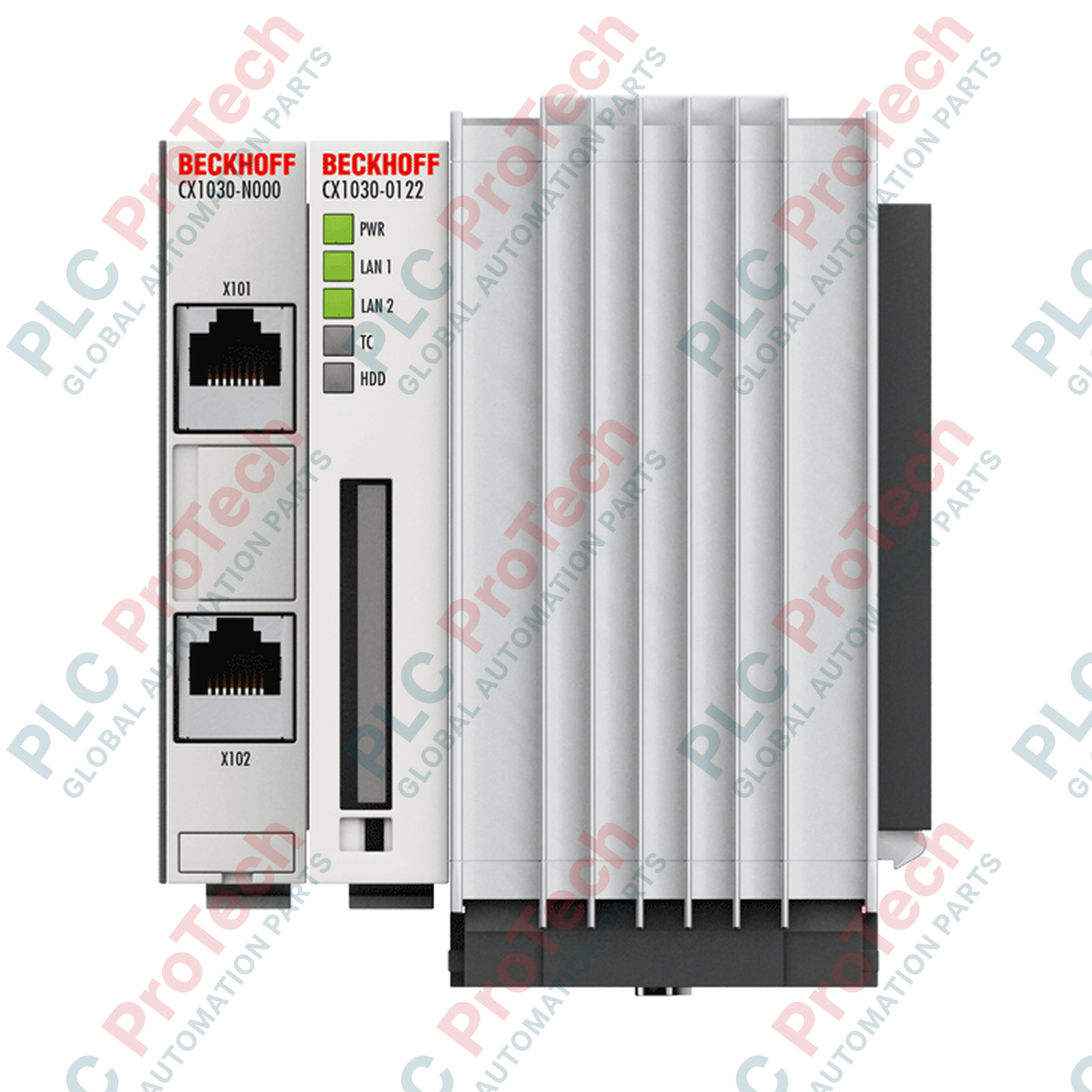

BECKHOFF CX1030-0012 CPU Module

Description

The BECKHOFF CX1030-0012 is a high-performance Embedded PC CPU module designed for demanding industrial control, automation, and motion control applications. Powered by an Intel Pentium M processor with a 1.8 GHz clock frequency, this single-core CPU module provides robust processing power for complex PLC and motion tasks in a compact, DIN-rail mountable form factor.

For communication and networking, the BECKHOFF CX1030-0012 features two RJ45 Ethernet ports operating at 10/100 Mbit/s through an internal switch. Memory capabilities include 256 MB of DDR RAM (expandable ex factory to 1 GB) and a dedicated slot for a Compact Flash card, with a 128 MB card included as standard. System-level connections are established via a 16-bit ISA (PC/104) system bus, allowing modular integration with compatible power supply and interface modules.

The module is designed for industrial durability, utilizing an active cooling design with a speed-controlled double ball bearing fan cartridge that is easily field-replaceable. Power supply and functional I/O terminal connections are established by coupling the CPU module to a matching CX1100-series power supply module, enabling communication with E-bus, K-bus, or IP-Link terminal networks.

Features

• Equipped with an Intel Pentium M single-core processor running at a 1.8 GHz clock frequency.
• Dual RJ45 Ethernet interfaces (10/100 Mbit/s) with an integrated switch.
• Compact Flash Type I and II expansion slot featuring an integrated eject mechanism.
• Active cooling architecture with a speed-controlled, double-bearing, field-replaceable fan cartridge.
• Internal, battery-backed real-time clock for reliable date and time preservation.
• Flexible I/O integration (E-bus, K-bus, or IP-Link) depending on the paired CX1100-series power supply module.
• Diagnostic LEDs for power, LAN link/activity, TwinCAT status, and flash access.

Applications

• Medium-to-high complexity PLC and motion control architectures in production machinery.
• Modular automation nodes utilizing TwinCAT 2 PLC, NC PTP, or NC I runtime environments.
• Decentralized control configurations requiring direct connection to EtherCAT Terminals (E-bus) or Bus Terminals (K-bus).

Technical Specifications

Installation Guidelines

1. Ensure the entire industrial control cabinet is fully de-energized before mounting, wiring, or removing any system component.
2. Mount the CPU module securely onto a standard 35 mm DIN rail (EN 60715) in a horizontal orientation to maintain optimal thermal convection.
3. Connect the module to a compatible CX1100-series power supply module (CX1100-0012, CX1100-0013, or CX1100-0014) to provide the system bus connection, power, and I/O bus interface.
4. Ensure the Compact Flash card containing the configured operating system and software runtime is fully inserted into the ejector slot before powering on the device.
5. Maintain adequate clearance above and below the module within the enclosure to ensure the integrated, speed-controlled fan cartridge can pull in sufficient airflow for proper cooling.
