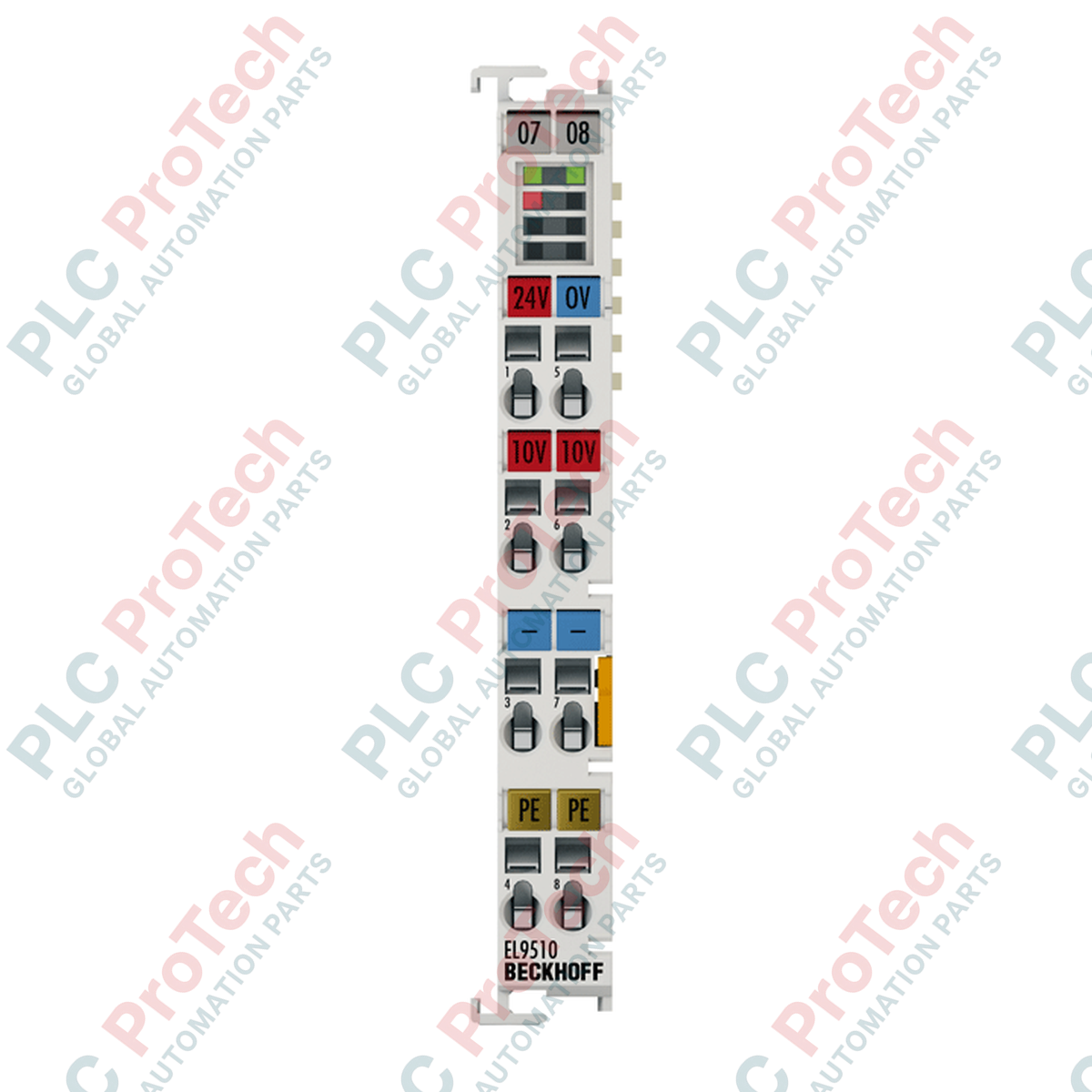

BECKHOFF EL9510 Power Supply Terminal 10 V DC

Product Overview

The EL9510 (EL9510) Power Supply Terminal generates a highly stabilized 10 V DC output voltage from a standard 24 V DC input. Operating directly within the Beckhoff EtherCAT system framework, this compact module supplies clean, low-ripple power to specialized sensors, potentiometers, and measuring transducers.

By isolating sensitive field instrumentation from heavy industrial bus noise, the terminal eliminates signal drift and reading fluctuations across automation networks. It is deployed extensively in precision automotive testing, textile manufacturing, and food processing lines, serving as a vital hardware layer that prevents measurement failure and drops system downtime.

Circuit Topology and Diagnostic Features

The EL9510 incorporates an intelligent internal DC-DC converter with complete short-circuit protection and a residual ripple profile restricted to less than 5 mV. The hardware passes diagnostic monitoring data directly into the EtherCAT master process image, permitting real-time polling of terminal health status.

The front-facing panel includes a dedicated overcurrent LED indicator for instant local troubleshooting. Designed with a standard 12 mm width, its polycarbonate housing features the classic double slot and key connection system for rapid interlocking side-by-side assembly on standard electrical backplanes.

Technical Specifications

Product FAQs

How do engineers utilize the EL9510 diagnostic data within the process image?

The terminal maps dedicated status bits directly into the controller's cyclic process data. If an output overload or short-circuit event happens, the diagnostic bit transitions from 0 to 1, letting the PLC routine isolate the affected field loop or safely pause process steps automatically.

Can the EL9510 power standard 10 V potentiometers directly?

Yes. The stabilized 10 V DC output (+/-1 %) is designed specifically to act as a highly accurate reference voltage for linear or rotary position potentiometers, ensuring precise displacement feedback.

What distinguishes the EL9510 terminal housing from the ESxxxx series variants?

The EL9510 uses standard cage-clamp terminals for direct wiring, whereas the alternative ESxxxx series design incorporates a fully pluggable wiring level that permits removing the connector block without unplugging individual lines.

Field Engineering and Safety Manual

• Conductor Termination Protocol: Open the spring clamps using a standard flat-head technical screwdriver. Strip solid (e) or stranded (st) wires to 8 to 9 mm. The terminal blocks accommodate solid/stranded profiles from AWG 28 to 14, or ferrule-insulated (f) lines from AWG 26 to 16. Ensure no stray wire strands remain loose outside the terminal clamp.

• Mechanical Rails and Power Contacts: Mount the module vertically on a 35 mm DIN rail conforming to EN 60715. Ensure the interlocking side connectors mate smoothly with adjacent terminals to secure continuous E-bus and power contact conduction. The integrated power contacts are rated for a maximum throughput current of 10 A.

• Hazardous Area Compliance: For installation under ATEX Zone 2 regulations (II 3 G Ex nA IIC T4 Gc), the entire terminal assembly must reside inside an IP54-compliant industrial control enclosure. Disconnection or replacement of any wiring terminal is strictly prohibited while the local power distribution system is energized.
