Description

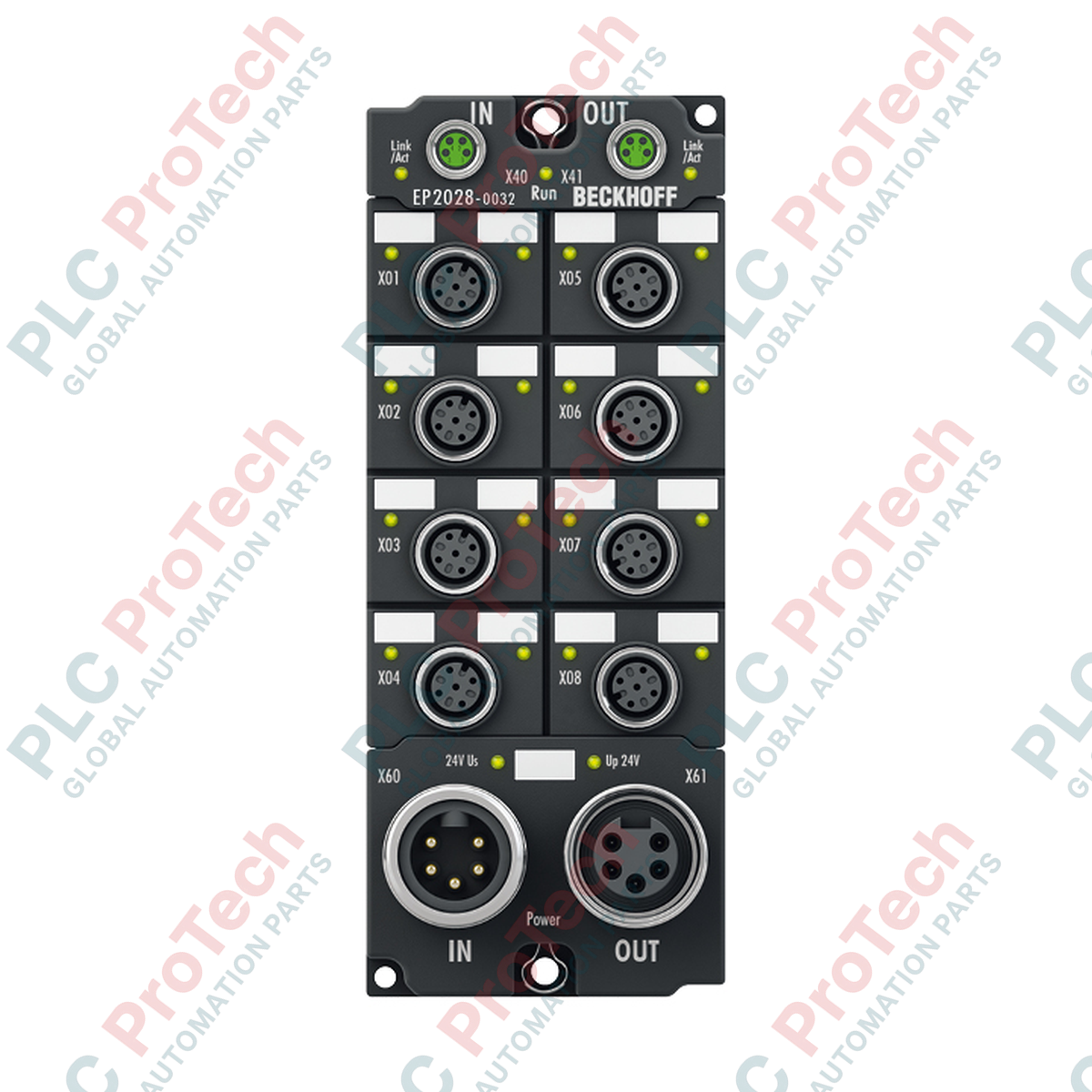

Designed for decentralized automation without control cabinet enclosures, the Beckhoff EP2028-0032 EtherCAT Box provides high-capacity control over eight digital actuator channels directly within harsh operating environments. This rugged IP67-rated device processes binary control signals from the automation controller to actuate heavy industrial loads such as solenoid valves, DC contactors, and signaling lamps. Equipped with high-power M12 output interfaces and a robust 7/8-inch power system, this module is engineered to handle up to 2.8 A per channel with a combined sum current of 16 A, making it an excellent choice for demanding field installations where high electrical load density and extreme reliability are required.

Features

• Rugged Enclosure: Fully encapsulated IP65/66/67 construction enables direct machine mounting without protective enclosures.
• High Output Current: Individual channels support loads up to 2.8 A, optimized for heavy-duty ohmic, inductive, and lamp loads.
• Comprehensive Diagnostics: Individually short-circuit proof outputs with quick-response current limiting (typical 15 A short-circuit current).
• Industrial Power Distribution: Features a high-capacity 5-pin 7/8-inch power configuration for feed and downstream loop-through connections.
• Standardized Fieldbus Connection: Shielded screw-type M8 interfaces ensure reliable, high-speed EtherCAT communication.

Applications

• Direct control of high-current hydraulic and pneumatic valve manifolds.
• Decentralized tooling and actuator control on robotic end-effectors.
• Automobile assembly lines and press shops with high electromagnetic and vibration levels.
• Conveyor systems, sorting machinery, and automated material handling equipment.

Technical Specifications Table

Connections and Interfaces

Empirical Engineering Insights

Alternative Models & Compatibility

The EP2028-0032 variant is functionally distinct from standard low-current EtherCAT boxes (such as the EP2028-0002). While the -0002 variant utilizes M8 power cabling and supports up to 0.5 A per channel, the -0032 utilizes a heavy-duty 7/8-inch power system to deliver up to 2.8 A per channel. These two variants are not directly drop-in compatible in terms of physical wiring systems. Upgrading to the -0032 requires transitioning to 7/8-inch power cables to support the higher current capacities.

Application Pitfalls & Engineering Notes

When switching inductive loads close to the 2.8 A channel maximum, the accumulated heat within the encapsulated housing must be closely monitored. In high-density installations, avoid placing adjacent high-duty cycle modules within dead air spaces. Although the continuous sum current rating is robustly set at 16 A, continuous duty near this threshold in elevated ambient temperatures can trigger localized thermal monitoring faults.

Commissioning & Wiring Tips

Ensure that all M12 and M8 connector interfaces are torqued exactly to OEM torque requirements (0.6 Nm for M12, 0.4 Nm for M8) using a calibrated torque wrench. Undertightening compromises the IP67 sealing, permitting ingress of moisture or coolant, whereas overtightening will fracture the internal plastic threads. To avoid communication drops, always use dual-shielded industrial Ethernet cables for the M8 EtherCAT connections to isolate high-frequency noise from adjacent high-power switching conductors.

Installation Guidelines

1. 1 Mount the module on a flat, vibration-resistant surface using two M4 bolts inserted through the designated mounting holes.
2. 2 Connect the shielded M8 EtherCAT network cables to the IN and OUT ports, ensuring correct key alignment.
3. 3 Secure the A-coded M12 cables to the output ports, ensuring that unused ports are sealed with IP67 protective caps.
4. 4 Attach the 5-pin 7/8-inch power feed, tighten the coupling ring, and verify the ground connection back to the central machine busbar.
