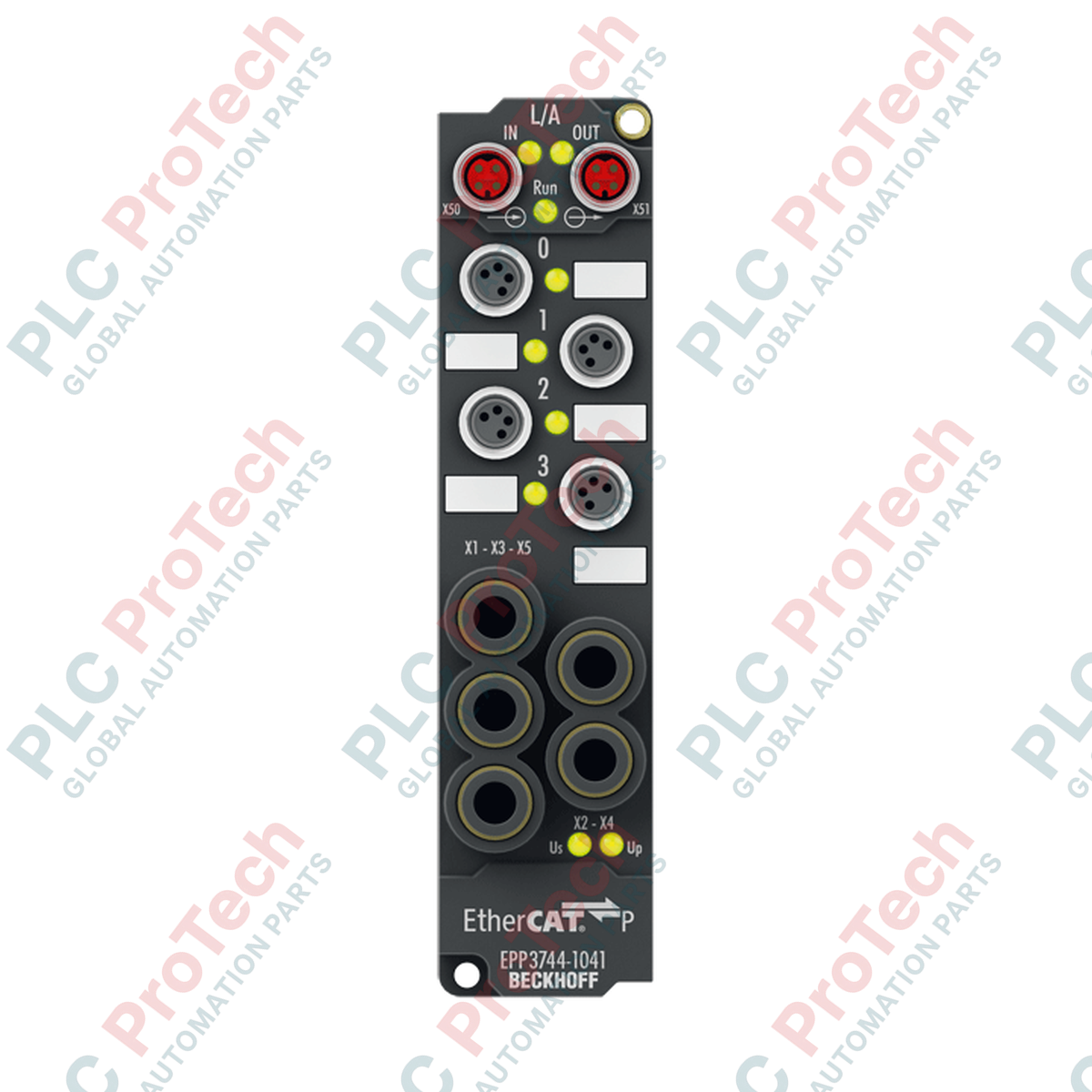

BECKHOFF EPP3744-1041 EtherCAT P Box

Description

The BECKHOFF EPP3744-1041 is a high-performance EtherCAT P Box designed for direct measurement of relative and differential air pressure on machinery and equipment. This space-saving module combines four air pressure inputs, six digital inputs, and two digital outputs into a single, highly protected decentralized industrial housing. By integrating pneumatic pressure measurement with multi-channel digital I/O processing at the machine level, it facilitates simplified system architectures and eliminates long routing of pneumatic tubing.

Operating within the EtherCAT P system network, the BECKHOFF EPP3744-1041 integrates high-speed EtherCAT communication and 24 V DC power supply lines (both Us control voltage and Up peripheral power) into a single, unified cable. Connection is established via standard P-coded M8 screw connections, significantly reducing wiring complexity, lowering assembly time, and minimizing the footprint required for installation on physical machines without traditional control cabinets.

Features

• Multifunctional interface containing four air pressure inputs, six digital inputs, and two digital outputs.
• Unified EtherCAT P connectivity combining data transmission and power distribution over dual P-coded M8 ports.
• Broad air pressure measuring capability covering ranges of 0 to 7 bar (0 to 100 psi) and -7 to 7 bar (-100 to 100 psi).
• Individually short-circuit proof digital outputs capable of delivering up to 0.5 A per channel.
• Support for Distributed Clocks to enable precise, synchronized measurement cycles across the automation system.
• Integrated 6 mm push-in pneumatic connections for direct, tool-free tubing installation.
• High physical resilience with IP65, IP66, and IP67 ratings, permitting installation in wet, dusty, or harsh operating environments.

Applications

• Pneumatic monitoring and real-time air pressure control in automated assembly systems.
• Differential pressure and vacuum detection on pick-and-place end effectors.
• Decentralized machine-mount sensor integration for material handling and conveyor installations.
• Direct machine monitoring in harsh industrial processes requiring high protection class I/O distribution.

Technical Specifications

General Specifications

Pneumatic and Signal Specifications

Electrical and Communication Specifications

Mechanical and Environmental Specifications

Connections / Interfaces

Installation Guidelines

1. Verify that the incoming model is the BECKHOFF EPP3744-1041 and matches your system configuration requirements.
2. Ensure the electrical power supply to the EtherCAT P line is completely de-energized before mounting or making any connection changes.
3. Inspect the outer casing, M8 electrical sockets, and pneumatic fittings for any visible physical damage before installation.
4. Securely mount the box directly onto the machine frame using standard mounting screws, ensuring a stable, low-vibration position.
5. Connect the pneumatic lines by inserting the 6 mm air tubes firmly into the push-in fittings, verifying a secure and airtight seal.
6. Attach the P-coded M8 EtherCAT P cables to the bus sockets and tighten the screw connections to ensure correct grounding and IP-rated sealing.
7. Wire the digital sensors and actuators to the respective M8 4-pin I/O sockets.
8. Perform system configuration and testing using TwinCAT software to verify correct digital states and accurate real-time pressure measurements.
