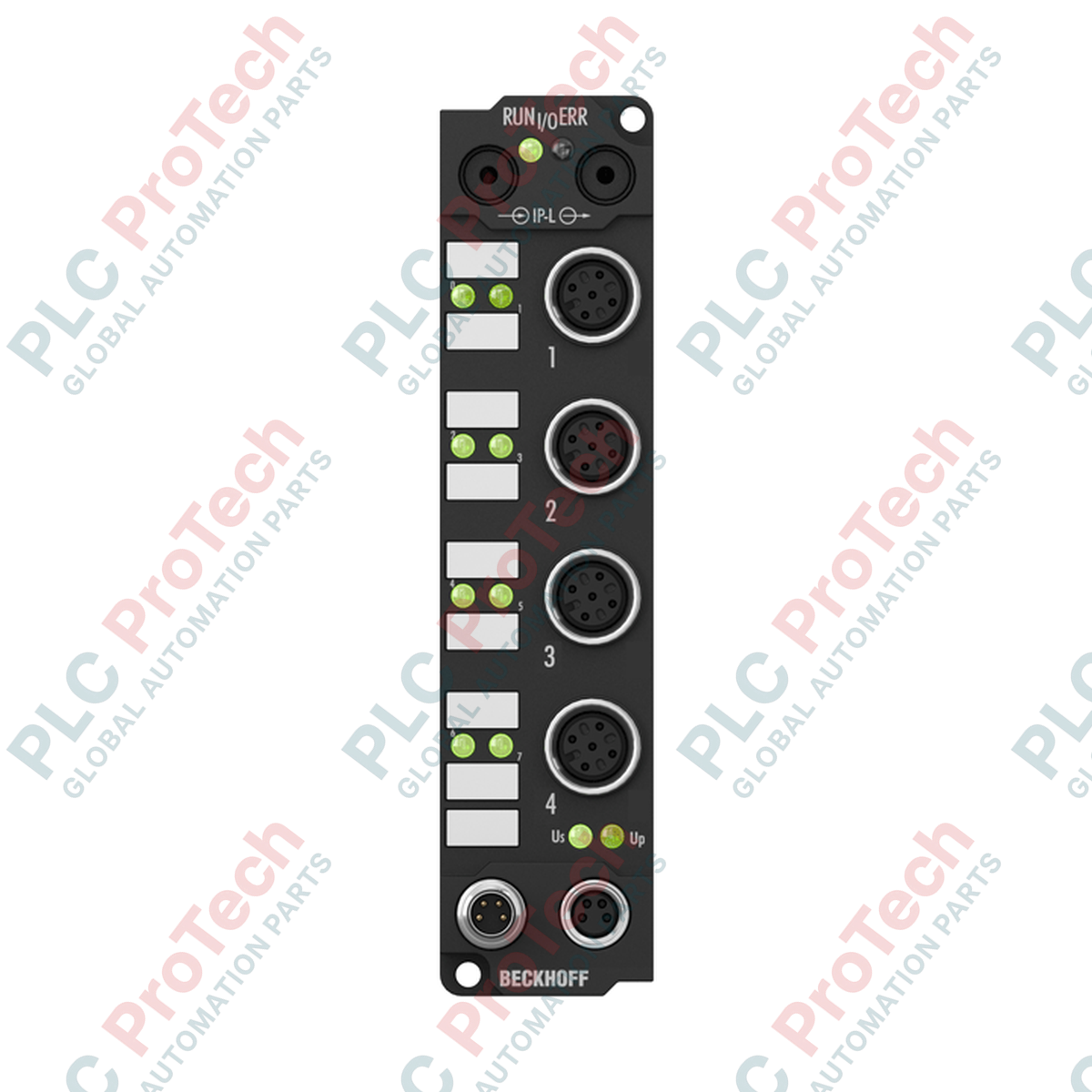

Designed for precise decentralized temperature acquisition, the BECKHOFF IE3202 Fieldbus Box extension module interfaces directly with resistive sensors in rugged, industrial environments. This IP67-rated analog input device facilitates the direct connection of up to four resistance thermometers without requiring protective control cabinets. By digitizing signals close to the physical process, it reduces noise susceptibility and cabling complexity.
The IE3202 supports a broad spectrum of RTD configurations, including standard Pt100, Pt200, Pt500, and Pt1000 sensors, alongside Ni100, Ni120, and Ni1000 variants. It also accommodates direct resistance measurements, such as those from potentiometers. Each of the four channels utilizes screw-type M12 connectors that can be wired in 2-wire, 3-wire, or 4-wire configurations (preset to 4-wire) to compensate for cable resistance errors and optimize measurement precision.
Operating as an IP-Link extension module, this device integrates seamlessly with Beckhoff Coupler Box modules, transferring digitized process data over high-speed IP-Link communication channels. The robust housing, high-resolution digitization, and configurable filtering capabilities make it an ideal choice for challenging distributed control architectures.
| BECKHOFF |
| IE3202 |
| 4 |
| Screw-type M12 for 2-, 3-, and 4-wire connections (preset: 4-wire) |
| Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni1000, resistance measurement (e.g., potentiometer) |
| -250 to +850 degC (Pt sensors); -60 to +250 degC (Ni sensors) |
| 0.1 degC per digit |
| less than ±1 degC |
| Approx. 250 ms, configurable down to 65 ms |
| 24 V DC (-15 % / +20 %) |
| typ. 0.5 mA |
| 5 variations, configurable |
| Derived from control voltage US |
| 40 mA (excluding sensor current) |
| Feed: 1 x M8 male socket (4-pin); Downstream: 1 x M8 female socket (4-pin) |
| Input: 4 x 16-bit data (4 x 8-bit control/status optional) |
| Channels/control voltage: 500 V; Between channels: None; Control voltage/fieldbus: Yes, via IP-Link |
| 0 to +55 degC |
| -25 to +85 degC |
| Conforms to EN 60068-2-6 / EN 60068-2-27 |
| Conforms to EN 61000-6-2 / EN 61000-6-4 |
| IP65/66/67 (conforms to EN 60529) |
| Variable |
| 2.0 kg |
| Connection Point | Connector Type | Functional Assignment |
|---|---|---|
| M8 Male, 4-pin | Control voltage US input | |
| M8 Female, 4-pin | Loop-through control voltage US to subsequent modules | |
| M12 Female, 5-pin | RTD sensor connection (supporting 2-, 3-, or 4-wire layouts) |
