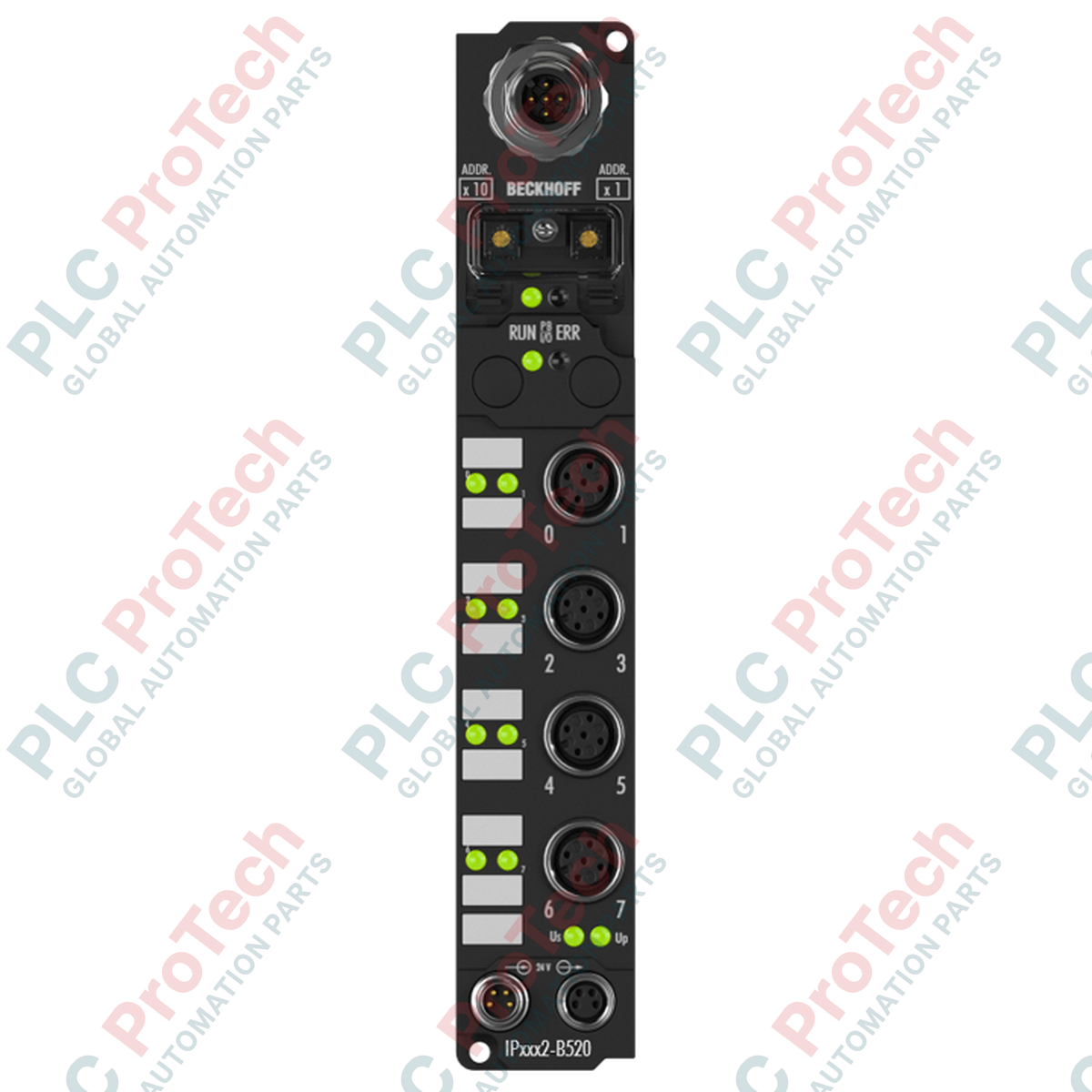

Designed for direct field deployment in harsh processing environments, the Beckhoff IP3312-B520 functions as a distributed industrial I/O station interfacing directly via the DeviceNet protocol. This Fieldbus Box module integrates temperature measurement capabilities by supporting up to two thermocouple inputs, eliminating the need for protective control cabinets. The device features automatic baud rate detection up to 500 kbaud and uses premium M12 and M8 connector interfaces to guarantee reliable signal transmission and robust physical connectivity under high mechanical stress. Configuration is managed seamlessly through the KS2000 software environment or directly via controller-based explicit messaging.
| Specification Parameter | Value / Rating |
|---|---|
| Manufacturer | Beckhoff Automation |
| Model Identifier | IP3312-B520 |
| Fieldbus Interface | DeviceNet (1 x M12 plug, 5-pin) |
| Data Transfer Rate | Automatic detection up to 500 kbaud |
| Control Voltage Supply | 24 V DC (-15% / +20%) |
| Box Current Consumption | 45 mA + sensor load (maximum 0.5 A) |
| Electrical Isolation | 500 V (Control voltage to fieldbus) |
| Ingress Protection Rating | IP65 / IP66 / IP67 (conforms to EN 60529) |
| Operating Temperature Range | 0 to +55 degC |
| Storage Temperature Range | -25 to +85 degC |
| Vibration/Shock Resistance | Conforms to EN 60068-2-6 / EN 60068-2-27 |
| EMC Standards | Conforms to EN 61000-6-2 / EN 61000-6-4 |
| Approvals | CE, UL |
| Shipping Weight (Calculated) | 2.0 kg |
| Port / Connection | Connector Type | Functional Assignment |
|---|---|---|
| DeviceNet Bus Interface | 1 x M12 plug, 5-pin | Shielded network communication line |
| Power Feed-In | 1 x M8 male socket, 4-pin | Incoming 24 V DC control voltage and ground |
| Power Downstream | 1 x M8 female socket, 4-pin | Power distribution loop to subsequent modules |
The IP3312-B520 module operates on DeviceNet configurations. When upgrading older networks or replacing modules within legacy industrial rings, ensure that your Master/Scanner configuration files (EDS) are correctly matched to firmware revisions. If converting a system to EtherCAT or PROFINET, equivalent fieldbus box modules must be chosen from the EP or EQ series respectively, as the IP series physical layers are dedicated to their specific fieldbus options (B520 for DeviceNet, B310 for PROFIBUS).
Thermocouple signals are highly vulnerable to electromagnetic interference (EMI). While the IP3312-B520 boasts robust EMC immunity conforming to EN 61000-6-2, running thermocouple extension wires alongside heavy-duty variable frequency drive (VFD) output cables can distort temperature readings. Avoid looping sensor cables and maintain separate routing pathways. Additionally, ensure all unused M12 and M8 ports are sealed with industrial protective caps to preserve the IP67 ingress rating.
During initial installation, ensure that DeviceNet terminating resistors are correctly placed at both physical ends of the trunk line (typically 121 ohms, 1/4 watt). When routing power through the M8 downstream port, calculate the total cumulative current of all linked sensors and modules. Exceeding the 0.5 A limit can lead to voltage drops, triggering low-power diagnostic faults on downstream sensors.
Mount the Fieldbus Box to a flat, vibration-resistant surface using two M4 screws through the integrated mounting ears.
Connect the incoming 24 V DC power supply to the 4-pin M8 male connector. Ensure polarities match precisely.
If looping power to other nodes, connect the downstream M8 female port using shielded 4-core cable.
Connect the DeviceNet network trunk line to the 5-pin M12 fieldbus connector. Verify termination resistors are active if this unit is at the network end.
Configure the node address and bus parameters using the KS2000 software tool or via the PLC configuration environment.
Global Express Shipping
Returns & Warranty
Manufacturer: BECKHOFF
Product No.: IP3312-B520
Country of origin:Germany
Product Type: Fieldbus Box Modules
Payment: T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months
