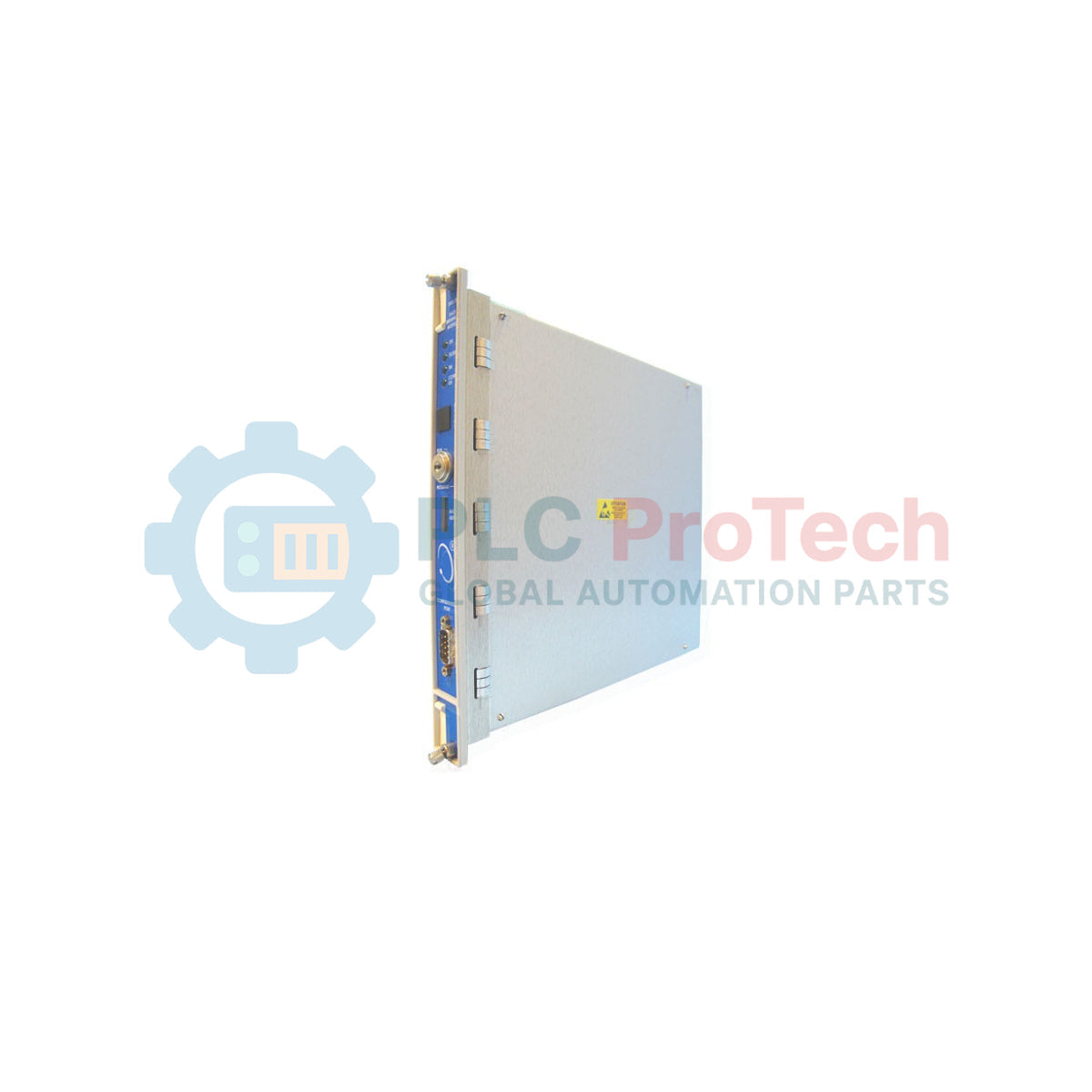

Bently Nevada 125744-02 3500 Series Rack Interface Module

SKU 125744-02

In stock
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Bently Nevada

  • Product No.: 125744-02

  • Country of origin:United States

  • Product Type: Rack Interface Modules

  • Payment: T/T, Western Union

  • Weight: 2000g

  • Shipping port: Xiamen

  • Warranty: 12 months

Description

Designed for integration within the 3500 machinery protection system, the 125744-02 serves as a critical component of the Rack Interface Module assembly. This module facilitates high-reliability communication between the monitoring rack's backplane and external host computers, engineering workstations, or distributed control systems (DCS). By managing system-level configurations and diagnostics, the unit provides the essential interface link needed to execute setup utilities, retrieve system events, and maintain continuous machinery health monitoring.

Features

  • Provides reliable communication protocols for configuration and diagnostics.
  • Designed for low power dissipation, consuming typically 4.75 watts during standard operation.
  • Supports serial communication protocols with speeds up to a maximum baud rate of 38.4 k baud.
  • Built to withstand extreme industrial environments with an extended storage temperature rating.
  • Fully compatible with standard 3500 Series rack backplanes and diagnostic software.

Applications

  • Turbine and generator vibration monitoring in power generation plants.
  • Critical rotating machinery protection in oil and gas refineries.
  • Compressor and pump diagnostics in petrochemical facilities.
  • Heavy industrial machinery status tracking in water treatment and manufacturing.

Technical Specifications

Manufacturer Bently Nevada
Part Number 125744-02
Series 3500 Series
Module Type Rack Interface Module
Power Consumption 4.75 watts, typical
Maximum Baud Rate 38.4 k baud
Maximum Cable Length 2.1 meters (7 feet)
Storage Temperature Range -40 degC to +85 degC (-40 degF to +185 degF)
Country of Origin U.S.A.
Shipping Weight 2.0 kg

Installation Guidelines

Prior to installation, ensure that the 3500 monitoring rack is powered down to prevent accidental electrical faults or communication errors on the backplane bus. Align the card carefully with the plastic guide rails of the designated slot and slide it firmly into place until the connector is fully seated. Secure the module using the integral thumb screws. Route all external communication cables away from high-voltage AC power cables and sources of electromagnetic interference (EMI) to prevent data corruption.

FAQ

What is the primary function of the Bently Nevada 125744-02?

The 125744-02 is a Rack Interface Module component for the Bently Nevada 3500 Series, enabling diagnostic and configuration communications between the rack's backplane and external monitoring software or DCS systems.

What is the maximum supported cable length for this module's serial connection?

The maximum recommended cable length is 2.1 meters (7 feet) to ensure signal integrity and reliable communication.

What is the storage temperature rating for the 125744-02?

This module can be safely stored in environments ranging from -40 degC to +85 degC (-40 degF to +185 degF).
