Bently Nevada 16710-27 Interconnect Cable

Description

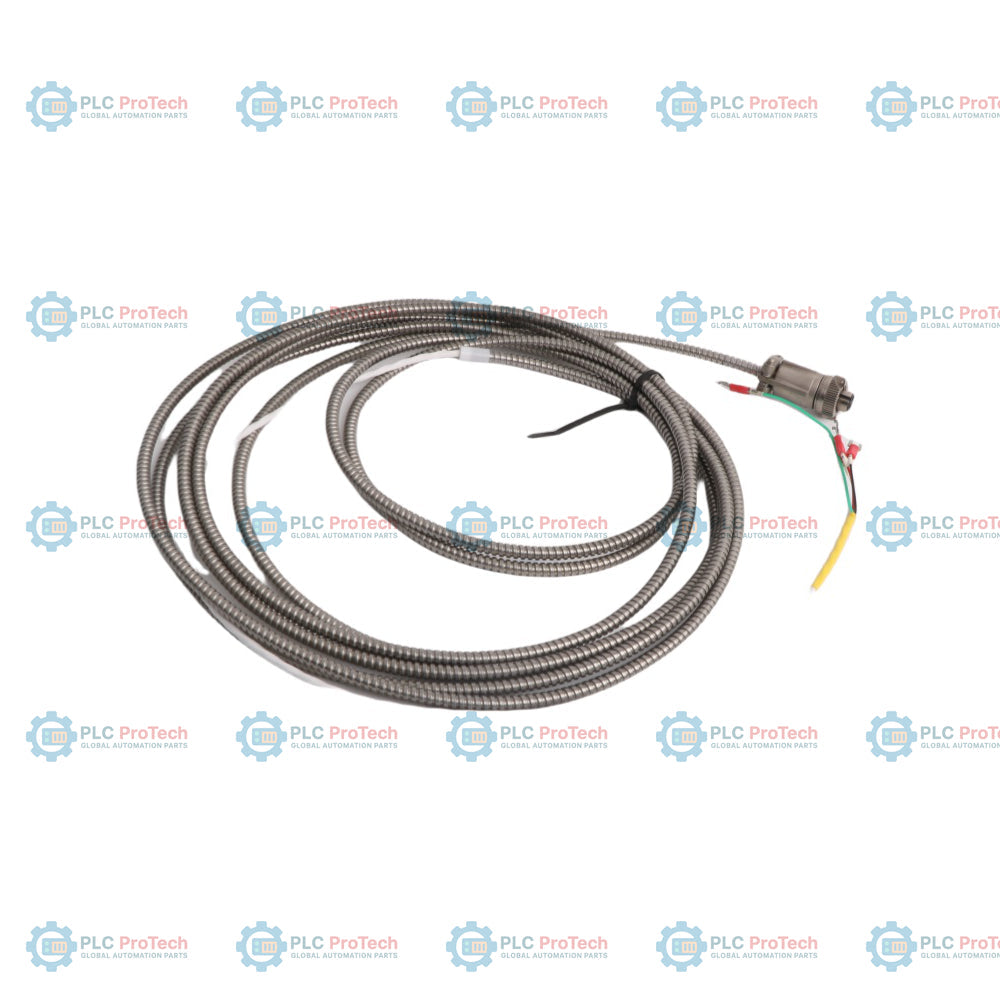

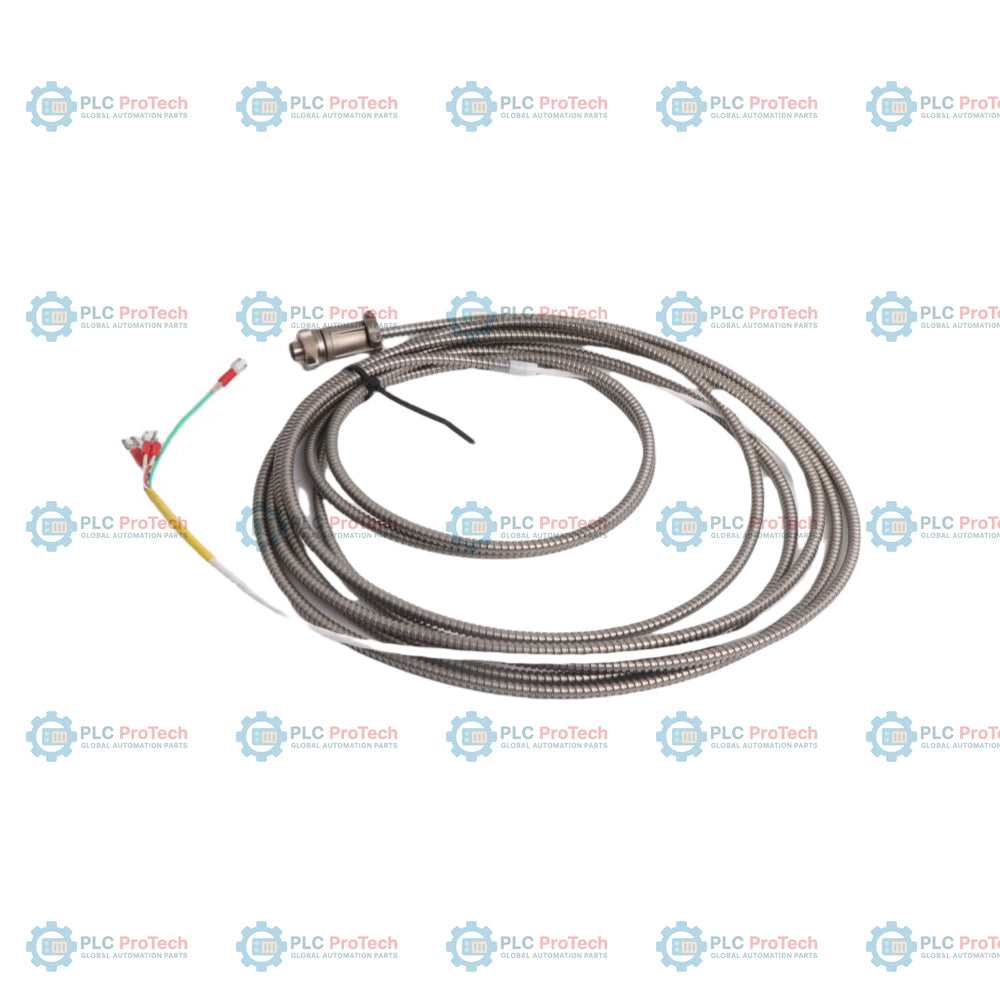

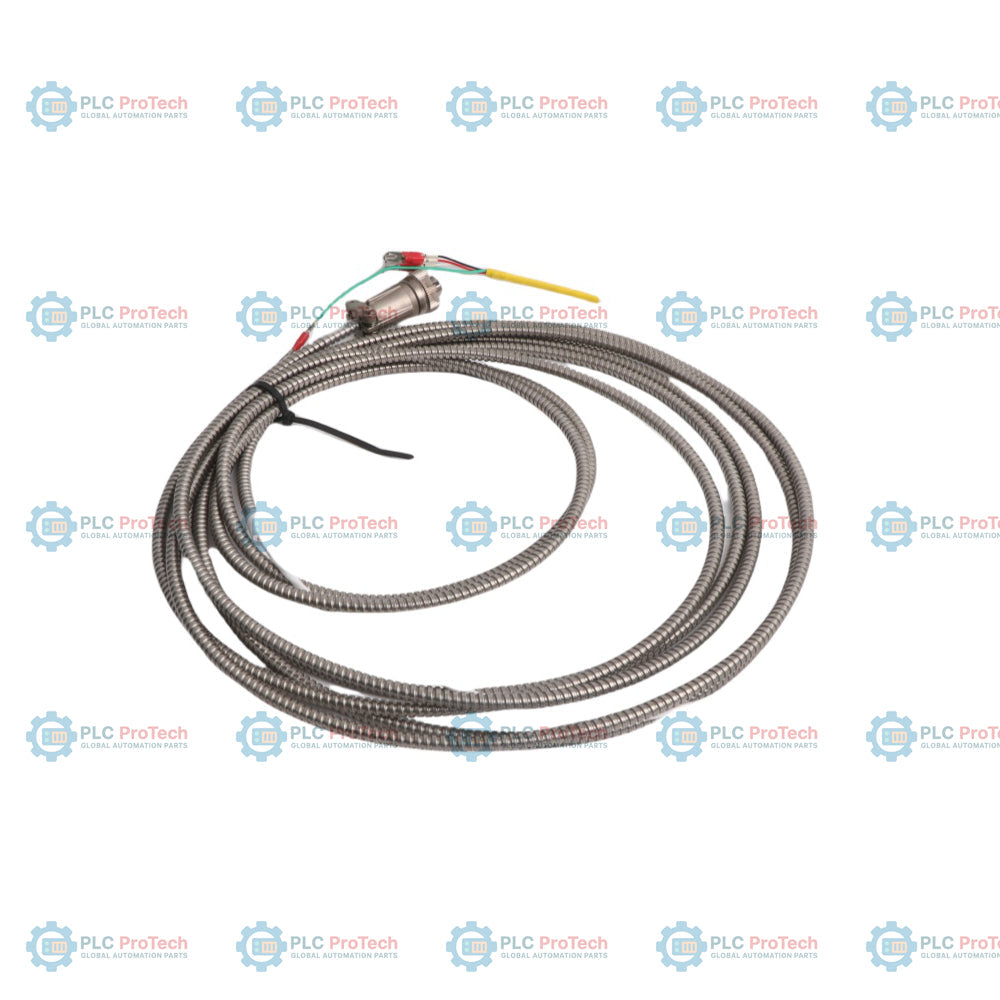

The 16710-27 is a 3-conductor shielded interconnect cable designed for use with Bently Nevada 330400 and 330425 acceleration transducers. This cable features a 3-socket plug at the transducer end and terminal lugs at the output end, facilitating reliable signal transmission in critical machinery monitoring applications. The cable is constructed with 22 AWG (0.5 mm2) wire, providing the necessary durability and shielding to maintain signal integrity between the sensor and the monitoring system. This specific configuration, identified by the -27 suffix, provides a total cable length of 27 feet (approximately 8.2 meters). The cable is engineered to withstand industrial environments, compatible with the housing and mounting requirements of the 3300 series acceleration transducer systems. It ensures that casing acceleration measurements, such as those required for gear mesh monitoring and overall machine protection, are transmitted with minimal degradation.

Features

• Configuration: 3-conductor shielded cable (22 AWG / 0.5 mm2)
• Connections: 3-socket plug at one end, terminal lugs at the other
• Cable Length: 27 feet (approx. 8.2 meters)
• Compatibility: Bently Nevada 330400 and 330425 Accelerometers
• Construction: Designed for industrial machinery vibration monitoring

Applications

• Gear mesh monitoring
• Casing acceleration measurements
• Critical machinery protection
• Rotor vibration monitoring (when transmitted to the casing)
• Industrial rotating equipment in power generation and petrochemical sectors

Ordering Information

Orderable Part Number	16710-27
Description	Interconnect cable for 330400/330425 accelerometer
Option A - Length	27	27 feet (approx. 8.2 m)

Technical Specifications

Manufacturer	Bently Nevada (Baker Hughes)
Part Number	16710-27
Cable Type	3-conductor, shielded
Wire Gauge	22 AWG (0.5 mm2)
Connector (Transducer End)	3-socket plug
Connector (Output End)	Terminal lugs
Maximum Length	Up to 30 m (99 ft) system capacity
Operating Temperature	-55 degC to +121 degC (-67 degF to +250 degF)

Installation Guidelines

Ensure the cable is routed in a way that minimizes exposure to extreme mechanical abrasion or high-heat zones. Standard installation utilizes protected enclosures and conduit to safeguard the wiring. Verify that the cable shield is properly terminated at the monitoring system ground reference to prevent noise interference. When installing the 3-socket plug, ensure it is firmly seated on the accelerometer receptacle to maintain the environmental seal.
