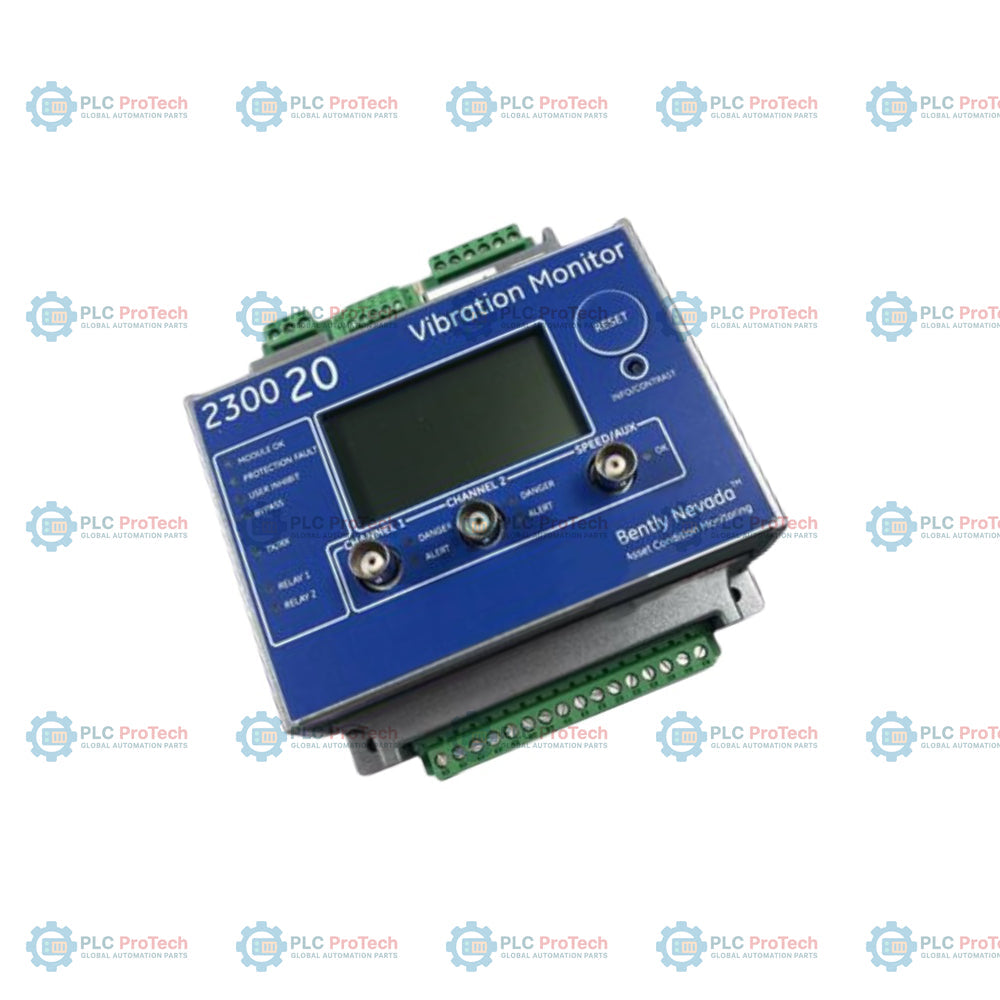

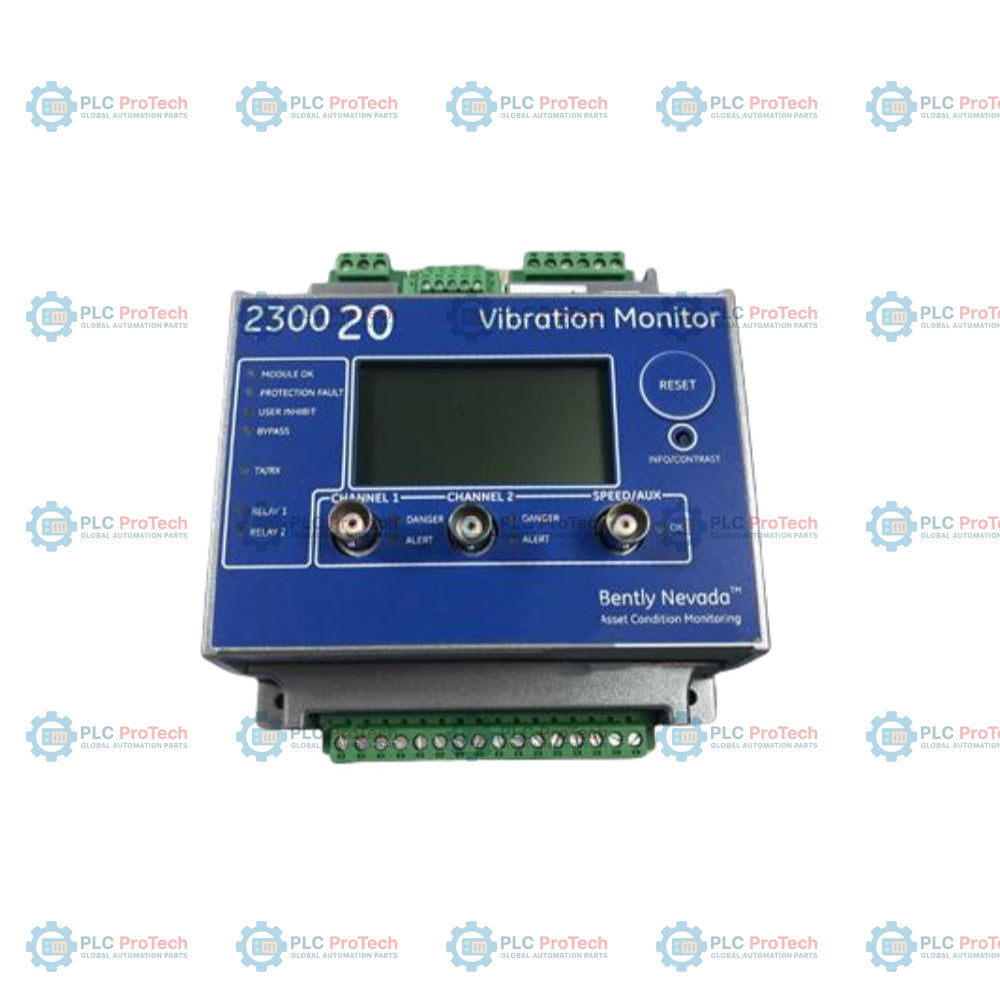

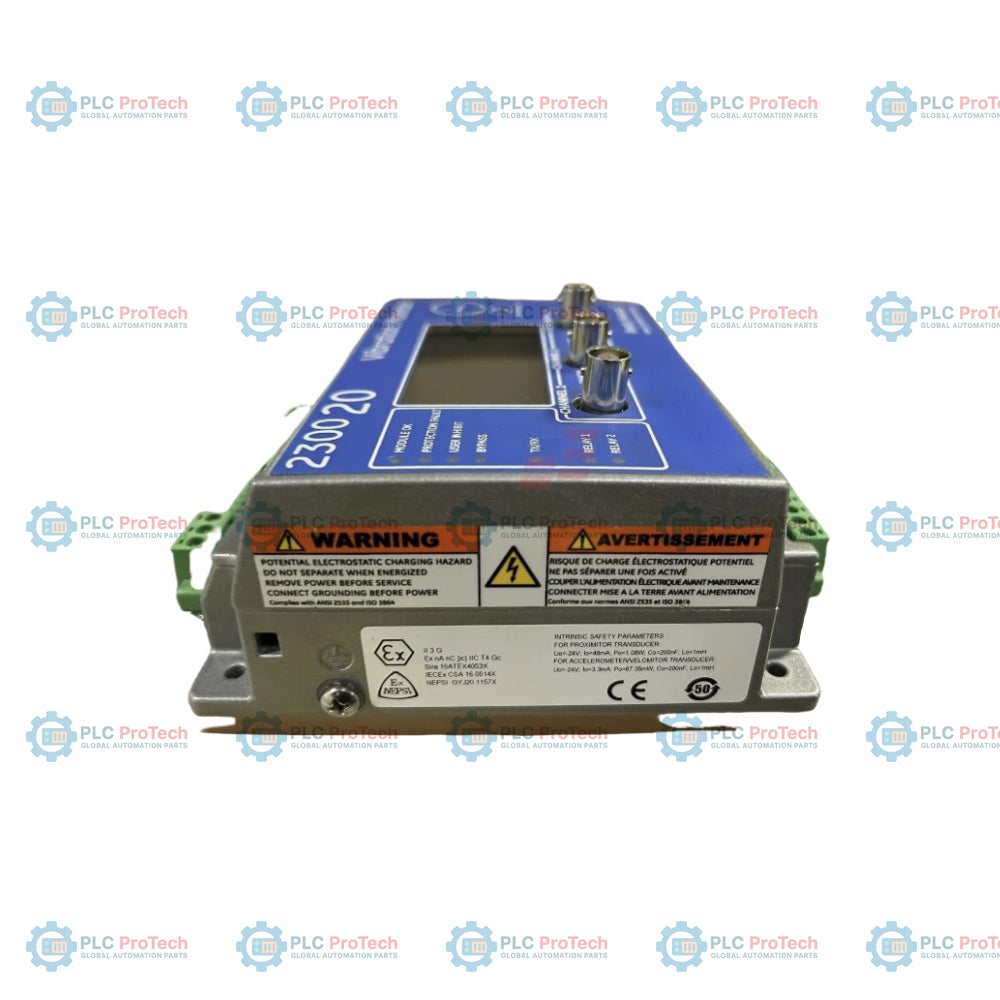

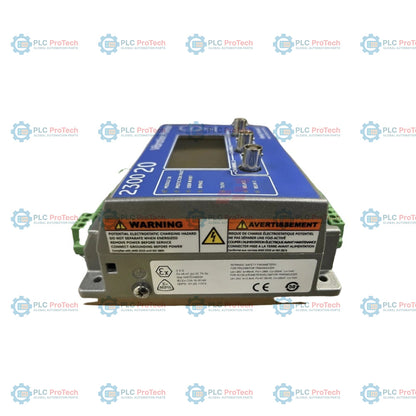

Bently Nevada 2300/20-00 2300 Series Vibration Monitor

SKU 2300/20-00

In stock

12-month warranty
Free returns within 30 days

Manufacturer: Bently Nevada
Product No.: 2300/20-00
Country of origin:United States
Product Type: Vibration Monitor
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 1030g
Dimensions: 127 mm x 127 mm x 76.2 mm (W x D x H)
Shipping port: Xiamen
Warranty: 12 months

Description

Bently Nevada 2300/20-00 is a continuous vibration monitoring and protection device designed for essential medium to low criticality machinery. The device provides vibration monitoring, high vibration level alarming, two channels of seismic or proximity measurement inputs (accelerometers, Velomitor, and Proximitor types), a dedicated speed input channel for time-synchronous measurements, relay contact outputs, and configurable 4-20 mA outputs interfacing with a DCS. Operating on DC power input, the module offers local LCD and LED real-time displays, Ethernet communication, Modbus over Ethernet, and alarm data capture for integration with System 1 software.

Features

Two acceleration/velocity/proximity input channels with synchronized sampling
One dedicated speed input channel supporting proximity probes, magnetic pickup, and proximity switch sensors
Two 4-20 mA outputs with internal current loop power supply
Two relay outputs with programmable setpoints
Three buffered transducer outputs (including Keyphasor signal) via BNC connectors
Ethernet 10/100 Base-T communication for configuration using Bently Nevada Monitor Configuration software with RSA encryption
Modbus over Ethernet protocol support
Local contacts for monitor bypass, configuration lockout, and latched alarm/relay reset
Integrated LCD display and diagnostic LEDs for status display

Applications

Oil & gas machinery monitoring
Power generation equipment protection
Water treatment plant assets
Pulp and paper machinery
Manufacturing and mining equipment
Cement plant rotating machinery

Ordering Information

Ordering Option	Description
2300/20-AA	Monitor with 4-20 mA Outputs (includes DIN rail mount assembly, manual, and monitor configuration software)
A: Approvals Option
00	None

Technical Specifications

Parameter	Specification
Manufacturer	Bently Nevada (Baker Hughes)
DC Input Voltage	18 to 36 Vdc
Power Consumption	Max 7.5 W
ADC Resolution	Independent 24-bit ADCs on input channels
Input Channels Accuracy	+/- 1% of full scale range
ICP Accelerometer Filter	Configurable bandpass filter 0.2 Hz to 20 kHz
ICP Accelerometer Scale Factor	5 to 1000 mV/g
ICP Accelerometer Full Scale	2 to 80 g peak
Velocity Filter	Configurable bandpass filter 0.2 Hz to 20 kHz
Velocity Scale Factor	5 to 1000 mV/in/s
Velocity Full Scale	0 to 50 in/s peak
Radial Vibration Filter	Configurable bandpass filter 0.2 Hz to 20 kHz
Radial Vibration Scale Factor	5 to 1000 mV/mil
Thrust Channel Scale Factor	5 to 1000 mV/mil
Thrust Full Scale	0 to 160 mil peak-peak
Speed Input Range (Proximity)	1 to 120,000 RPM
Speed Input Range (Proximity Switch)	1 to 60,000 RPM
Speed Input Range (Magnetic Pickup)	200 to 120,000 RPM
4-20 mA Outputs	Two outputs, internal loop supply, 0 to +12 Vdc across load, 0 to 600 ohm load resistance, 0.3662 uA resolution, 1% accuracy, 100 ms update rate
Relay Type	Single pole, double throw (SPDT), epoxy sealed, 2 dry-contact outputs
Relay Contact Rating (Non-Hazardous Area)	6 A @ 250 Vac / 6 A @ 24 Vdc (Max switched 250 Vac / 250 Vdc, 1500 VA AC / 150 W DC)
Relay Contact Rating (Hazardous Area)	6 A @ 24 Vac / 5 A @ 30 Vac / 5.8 A @ 24 Vdc / 4 A @ 30 Vdc
Buffered Outputs	2 Vibration Outputs, 1 Speed Output (BNC connectors)
Ethernet Interface	10Base-T / 100Base-TX (IEEE 802.3), RJ-45, max length 100 meters
Operating Temperature	-30 degC to +65 degC (-22 degF to +149 degF)
Storage Temperature	-40 degC to +85 degC (-40 degF to +185 degF)
Humidity	Up to 95%, non-condensing
Vibration Limitation	3 g
Dimensions (W x D x H)	127 mm x 127 mm x 76.2 mm (5 in. x 5 in. x 3 in.)
Weight	1.03 kg (2.26 lbs)
Mounting	Panel mount or DIN rail (adapter included)

Connections/Interfaces

Connector Pin	Function
BNC 1	Channel 1 Buffered Transducer Output
BNC 2	Channel 2 Buffered Transducer Output
BNC 3	Speed / Keyphasor Signal Buffered Output
RJ-45	10Base-T/100Base-TX Ethernet Interface
16-Pin Connector	Transducer Input Connector (P/N 106M3211)
10-Pin Connector	4-20mA Output Connector (P/N 106M3210)
6-Pin Connector	Relay Output Connector (P/N 106M3212)
5-Pin Connector	Contact Input Connector - Alarm Inhibit, Config Lock (P/N 106M3408)
5-Pin Connector	Contact Input Connector - Alarm Reset (P/N 106M2223)
3-Pin Connector	Power Input Connector (P/N 106M2231)

Installation Guidelines

Ensure proper chassis grounding using the provided jumpers or by connecting COM directly to earth ground through a terminal.
Mount the device using either the included DIN rail adapter or standard panel mounting setups.
Do not connect external power to the 4-20 mA current loops, as the monitor incorporates an internal loop power supply.
Use shielded twisted-pair cabling for transducer inputs and Ethernet communication to mitigate EMI/RFI interference.
Maintain recommended physical clearances around the monitor unit for proper heat dissipation and cable routing.

Compliance and Certifications

EMC Directives: EN 61000-6-2:2005, EN 61000-6-4:2007+A1, EN 61326-1:2013, EN 61326-2-3:2013, EMC Directive 2014/30/EU
Electrical Safety: EN 61010-1:2010, LV Directive 2014/35/EU
ATEX Directives: EN 60079-0:2012/A11:2013, EN 60079-11:2012, EN 60079-15:2010, EN 60079-7:2015, ATEX Directive 2014/34/EU
FCC: Complies with part 15 of the FCC Rules
RoHS: ROHS Directive 2011/65/EU
North American Hazardous Area Approvals: cNRTLus Class I, Division 2/ Zone 2, AEx nA nC [ic] IIC T4 Gc, Class I, Division 2, Groups A, B, C, and D; T4
ATEX/IECEx: II 3 G, Ex na nc [ic] IIC T4 Gc, Ex ec nc [ic] IIC T4 Gc (T4 @ Ta = -30 degC to +65 degC)

FAQ

What power supply voltage is required for the device?

The device operates on a DC power input ranging from 18 Vdc to 36 Vdc with a maximum power consumption of 7.5 W.

Can external loop power be connected to the 4-20 mA outputs?

No, the 4-20 mA outputs feature an internal current loop power supply and will not function with an externally powered loop.

What is the operating temperature range of the unit?

The operating temperature range for the device is from -30 degC to +65 degC.

What sensor input types are supported by the vibration channels?

The two vibration channels support ICP accelerometers, Velomitor sensors, and Proximitor proximity transducers.

View all FAQs →
