Description

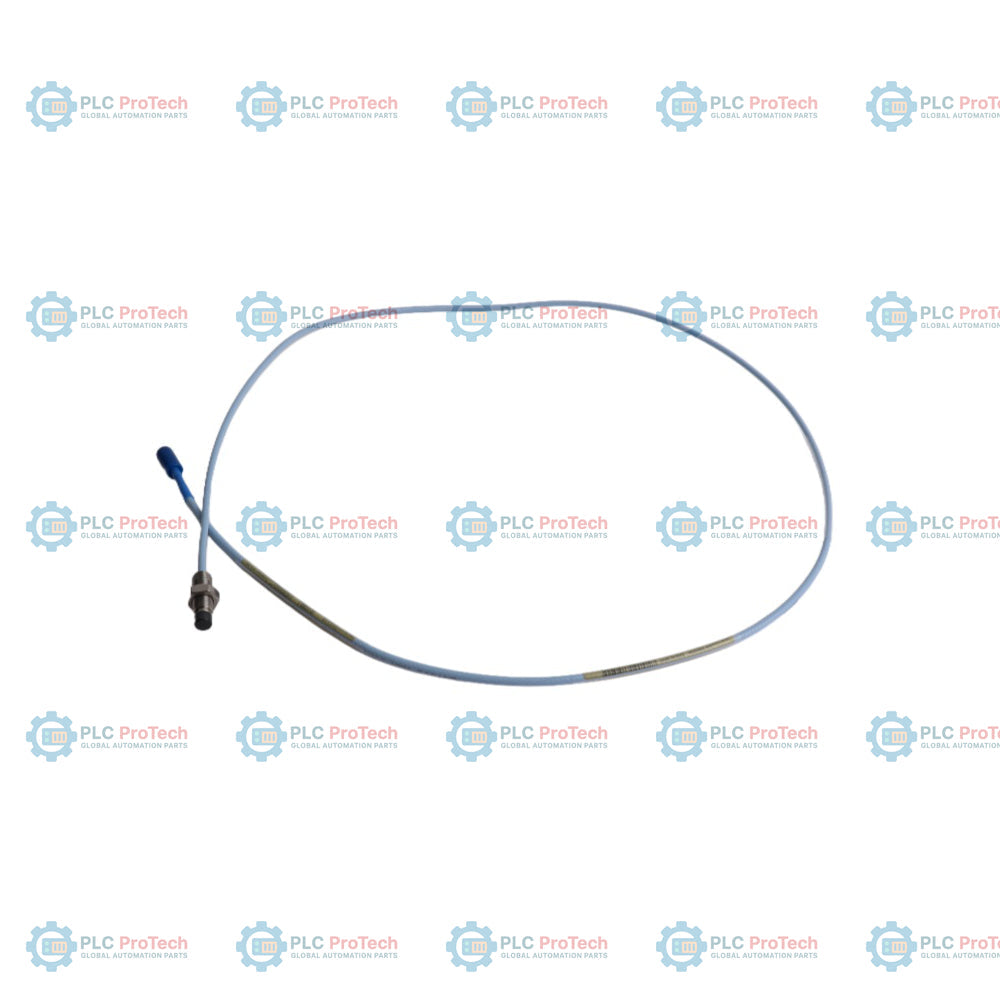

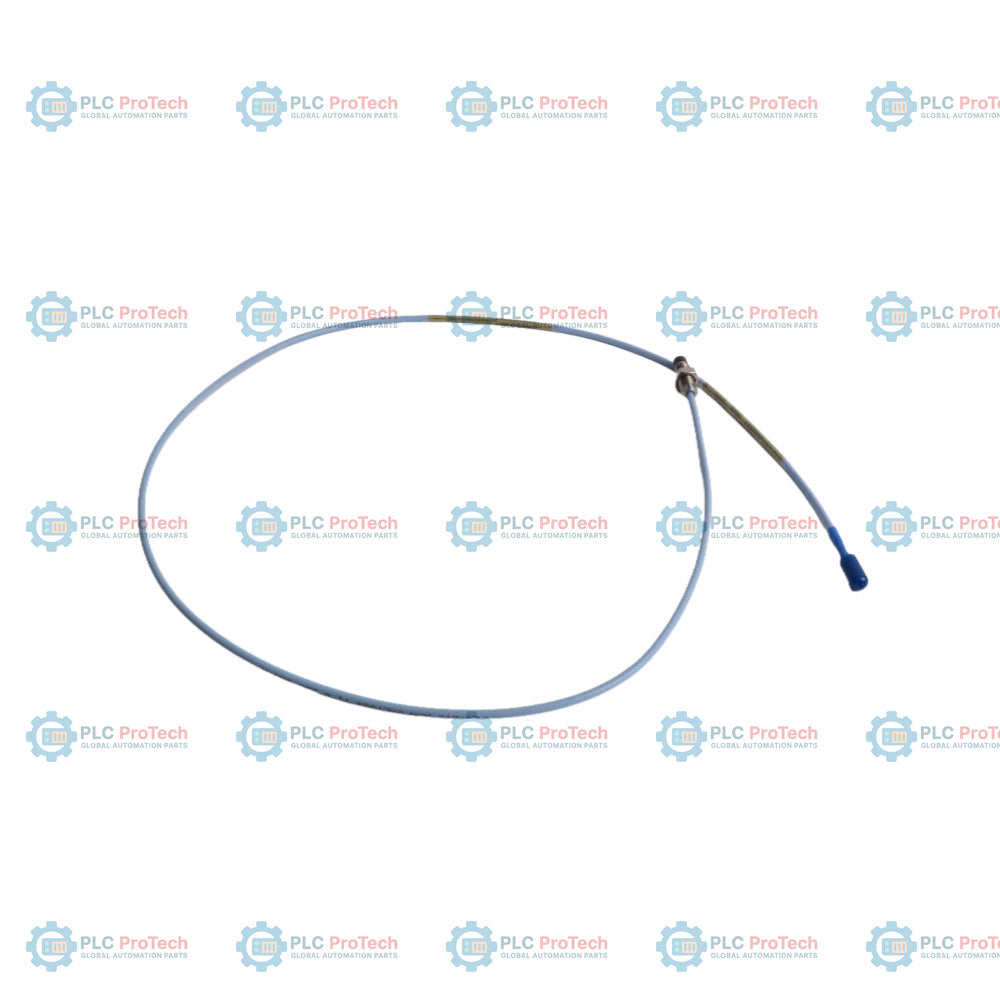

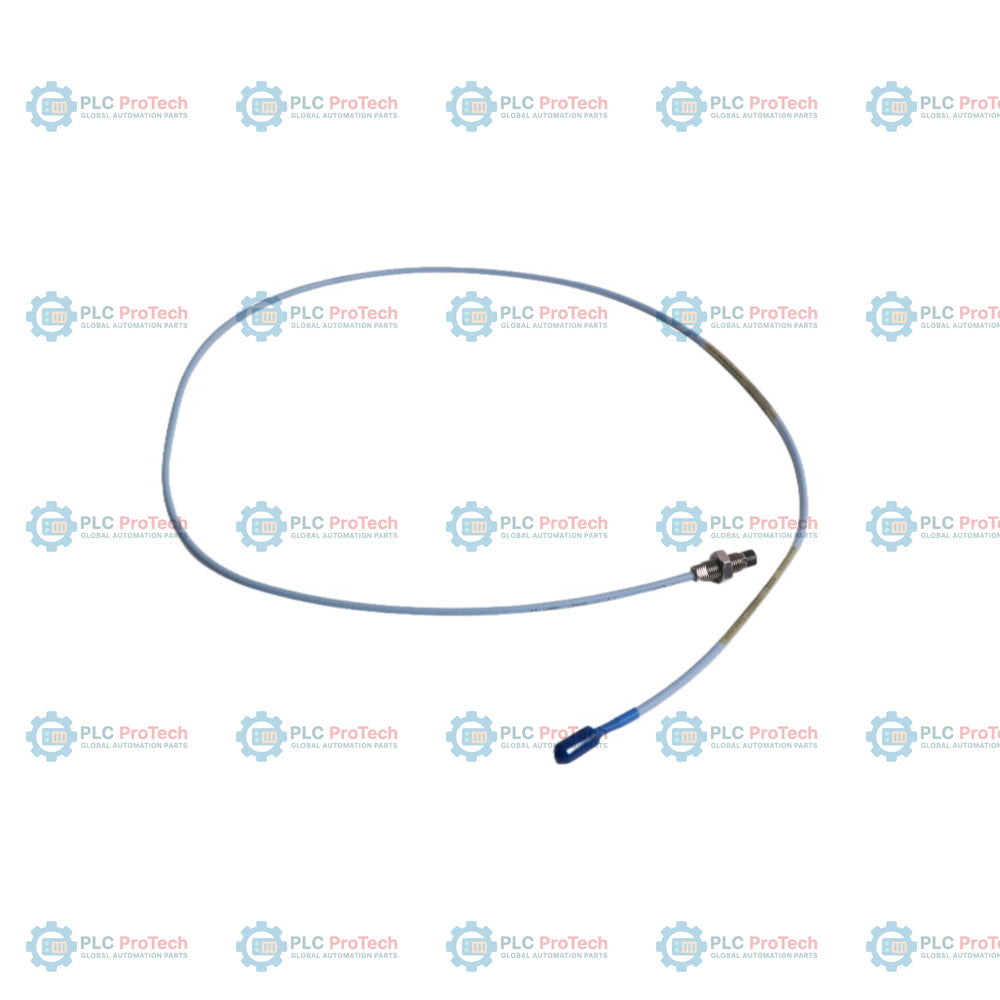

The Bently Nevada 330101-00-10-05-02-05 is a high-precision 3300 XL 8 mm proximity probe engineered to deliver reliable non-contact vibration and shaft position measurements in demanding industrial environments. This specific configuration features a fully threaded 1.0-inch case (with 0.0 inches of unthreaded length) and an unarmored, standard 0.5-meter (1.6 feet) triaxial cable terminated with a miniature coaxial ClickLoc connector. Certified under option 05, this probe meets stringent CSA, ATEX, and IECEx requirements, making it ideal for deployment within hazardous environments where explosive gases or dust may be present.

Operating on the eddy-current principle, the 3300 XL 8 mm transducer system delivers an exceptionally stable linear voltage output proportional to the distance between the probe tip and the target material, typically AISI 4140 steel. This 0.5-meter probe is designed for continuous machinery protection chains, seamlessly pairing with a 3300 XL extension cable and a matching 330180 series Proximitor sensor. Because this variant features a fully threaded body without unthreaded casing sections, it is highly suited for shallow-depth bearing mounts or flush-bracket configurations where mechanical installation space is highly constrained.

Features

• Precise Eddy-Current Sensing: Features an 8 mm tip diameter optimized for non-contact displacement and dynamic vibration tracking.
• Fully Threaded Standard Casing: Threaded 3/8-24 UNF-2A body with 1.0-inch overall case length and 0.0-inch unthreaded length for flush-mount flexibility.
• High-Reliability Coaxial Connector: Equipped with a miniature coaxial ClickLoc connector (option 02) and standard unarmored cable for a low-profile installation.
• Hazardous Area Certified: Pre-approved for explosive environments with ATEX, IECEx, and CSA certifications (option 05).
• Robust Environmental Construction: High-durability polyphenylene sulfide (PPS) tip and AISI 303/304 stainless steel case resist chemicals, moisture, and high pressures.

Applications

This proximity probe is typically deployed across critical heavy industry operations, including:

• Steam and gas turbine shaft vibration, thermal expansion, and axial displacement monitoring.
• High-speed centrifugal compressor, expander, and pump rotor protection.
• Fluid-film bearing clearance checks and oil-film thickness tracking on utility-scale rotating assets.
• Machinery protection inside hazardous petrochemical plants, refineries, pipelines, and gas processing facilities.

Ordering Information

Technical Specifications

Connections and Interfaces

Installation Guidelines

To ensure precise and maintenance-free measurement loops, adhere to the following standard engineering procedures:

• Verify the target material is AISI 4140 steel, as the standard 3300 XL transducer system is factory-calibrated to this alloy. If using alternative shaft alloys, a custom recalibration of the Proximitor sensor is necessary.
• Thread the probe into the mounting bracket or casing wall manually first to prevent cross-threading. Tighten to a standard torque of 7.5 N-m (66 in-lbf) and lock in place using a jam nut.
• Establish the target probe gap (typically 1.27 mm or 50 mils) by monitoring the DC voltage output from the Proximitor sensor (target gap reads -10 Vdc on a standard calibration curve).
• Ensure the coaxial ClickLoc connectors are kept clean, dry, and free of oil. Moisture or dirt inside the coaxial coupling will result in high-frequency signal noise or measurement drift.
• Maintain a minimum cable bend radius of 25.4 mm (1.0 inch) during final cable dressing and routing inside protective conduit or cable trays.

Compliance and Certifications

• CSA/cNRTLus: Class I, Zone 0: AEx/Ex ia IIC T5...T1 Ga; Class I, Groups A, B, C, D; Class II, Groups E, F, G; Class III (when installed with approved barriers per drawing 141092).
• ATEX/IECEx: Ex ia IIC T5...T1 Ga, Ex ia IIIC T90C...T280C Dc; EPL Ga and Gc. Ex nA IIC T5...T1 Gc, Ex ec IIC T5...T1 Gc (when installed per non-incendive/increased safety drawing 140979).
• EMC Directive: Compliant with European Union EMC Directive 2014/30/EU, standards EN 61000-6-2 (Immunity for Industrial Environments) and EN 61000-6-4 (Emissions).
• RoHS Directive: Complies with European Directive 2011/65/EU for restricted substances.
• Functional Safety: SIL 2 certified under standard IEC 61508 (HFT=0); SIL 3 capable with redundant sensor arrays (HFT=1).
