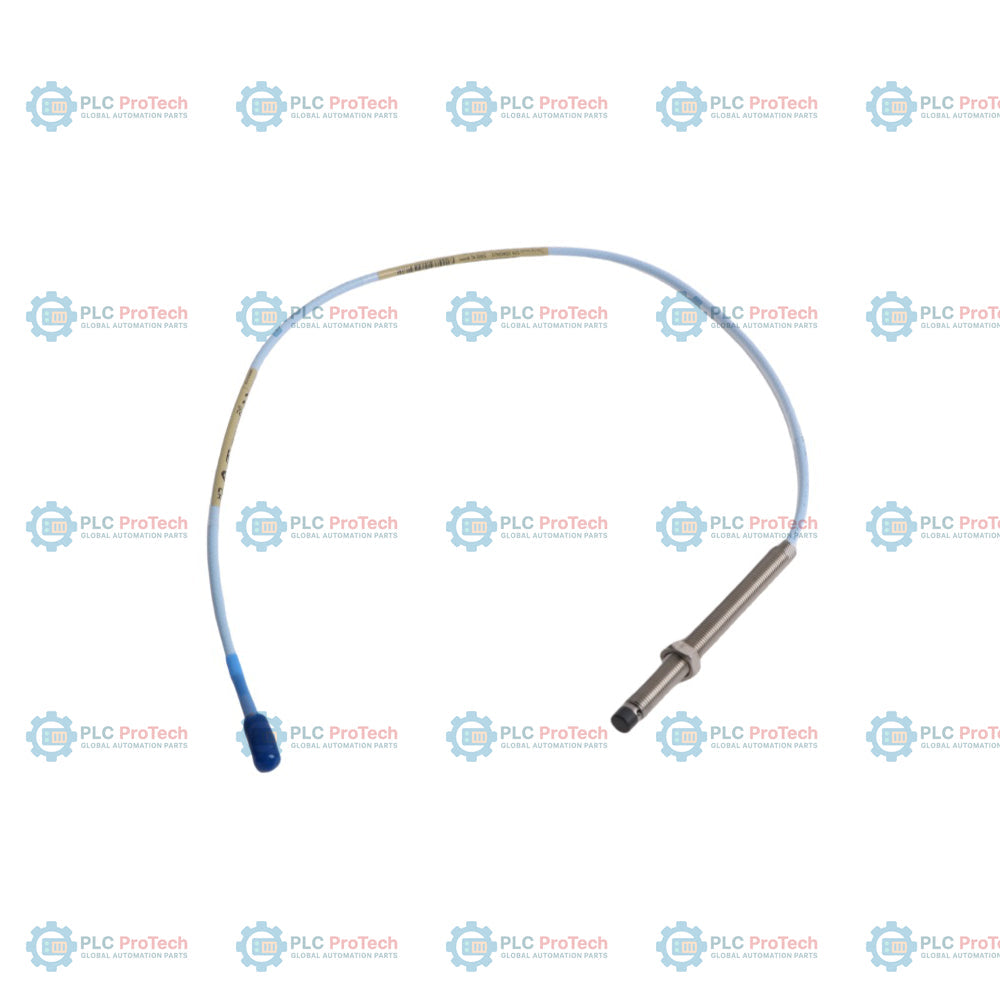

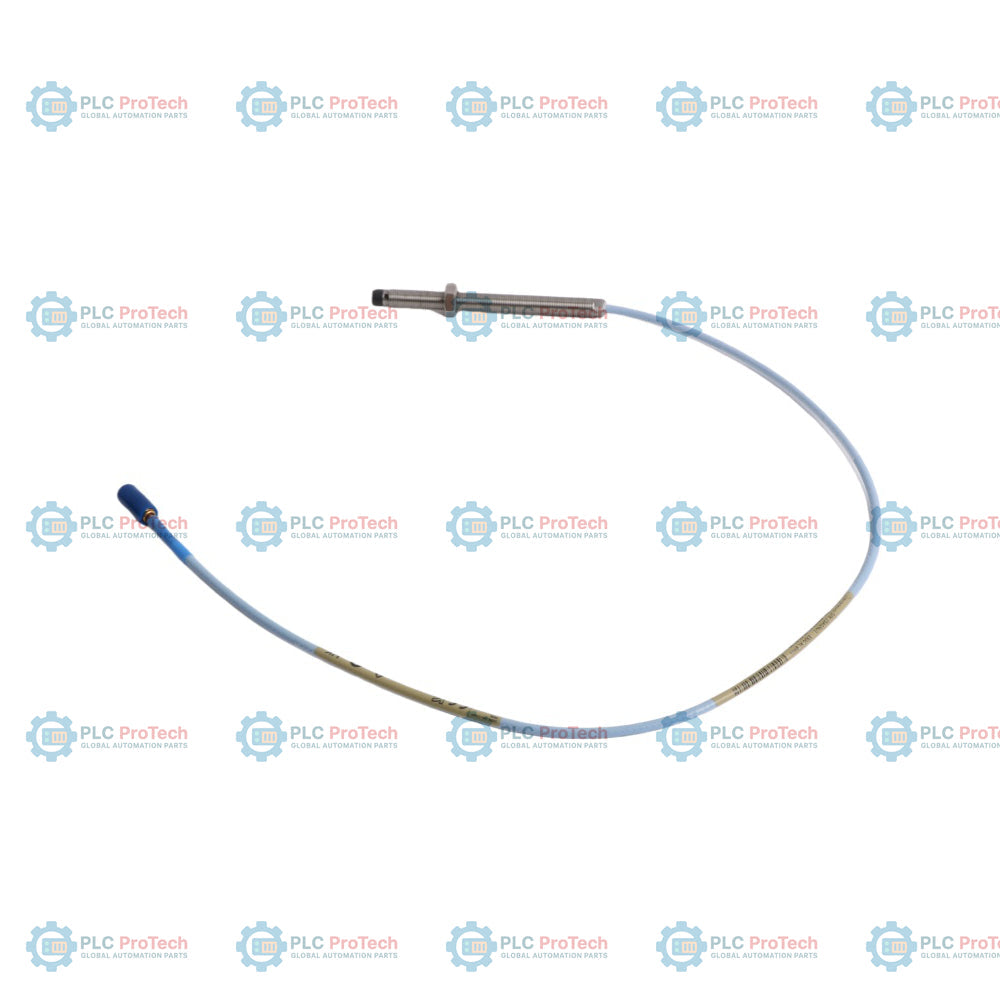

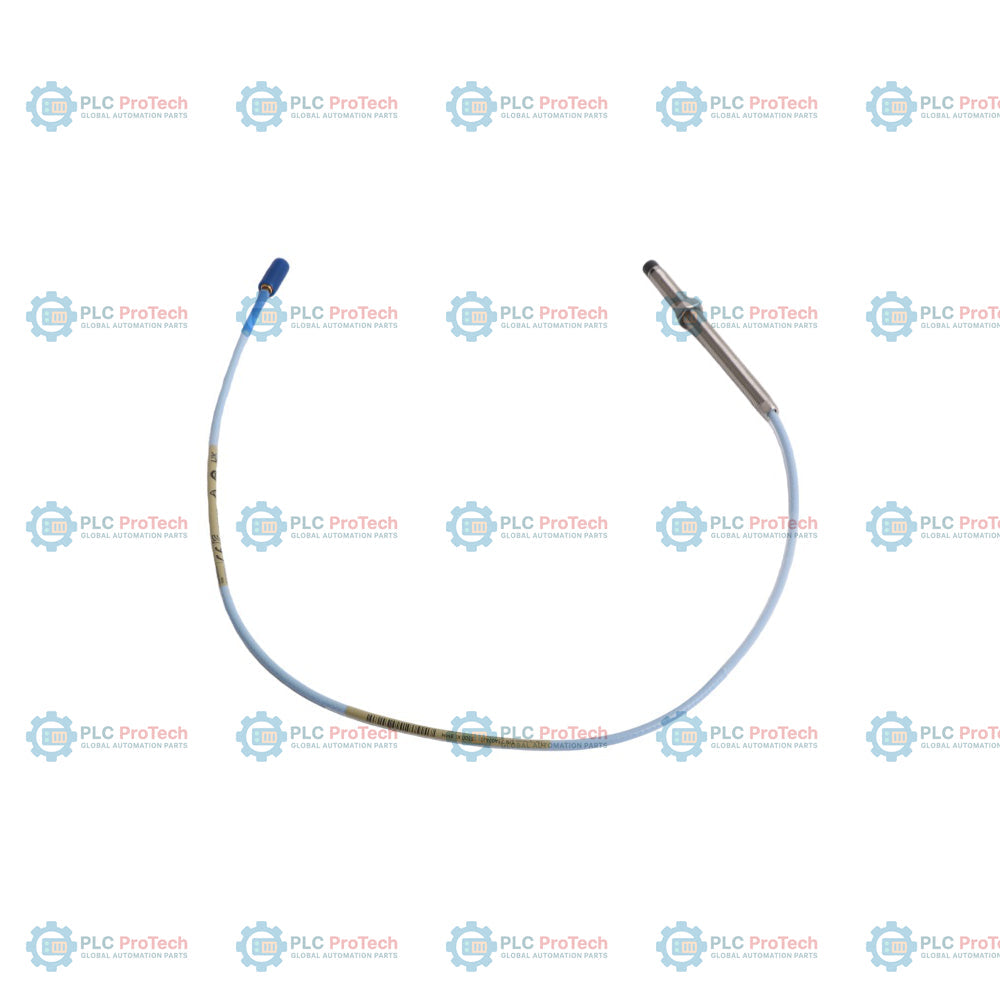

Fully threaded 3/8-24 UNF steel probe body (Option 00) with 4.0 in case (Option 40) and 0.5 m lead (Option 05) defines this 330101-00-40-05-02-00 configuration, an unarmored 3300 XL 8 mm proximity probe. The probe uses the eddy-current operating principle to perform non-contact shaft vibration and displacement measurements on rotating machinery. Because this variant is configured with an overall case length of 4.0 inches and has zero unthreaded length, it is fully threaded along the entire probe body to allow detailed adjustment of the probe gap within bearing housings or machine casings without requiring an unthreaded standoff.
Unlike armored variants or configurations designed for extremely harsh external exposures, this unit uses a standard unarmored coaxial cable measuring 0.5 meters (1.6 feet) in total length. It terminates in a miniature coaxial ClickLoc connector without a connector protector (Option 02) and is specified for installations where agency approvals are not required (Option 00). The system operates by pairing this probe with a matching 3300 XL Proximitor sensor and an extension cable to establish a complete 5-meter or 9-meter calibration path, making it suitable for monitoring steam and gas turbine shafts, pump rotors, and other critical industrial machinery.
| Option / Segment | Code on This SKU | Description / Meaning |
|---|---|---|
| Orderable Part Number | 330101-00-40-05-02-00 | 3300 XL 8 mm Proximity Probe, 3/8-24 UNF thread, without armor |
| A - Unthreaded Length Option | 00 | 0.0 in (0 mm) unthreaded length (fully threaded) |
| B - Overall Case Length Option | 40 | 4.0 in (101.6 mm) overall case length |
| C - Total Length Option | 05 | 0.5 meter (1.6 feet) total length |
| D - Connector and Cable-Type Option | 02 | Miniature coaxial ClickLoc connector, standard cable |
| E - Agency Approval Option | 00 | Not required |
| Parameter | Specification Value |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-00-40-05-02-00 |
| Product Family | 3300 XL 8 mm Proximity Transducer System |
| Probe Tip Diameter | 8 mm |
| Thread Type | 3/8-24 UNF-2A |
| Unthreaded Length | 0.0 in (0 mm) |
| Overall Case Length | 4.0 in (101.6 mm) |
| Probe Total Length | 0.5 meter (1.6 feet) |
| Cable Construction | Standard coaxial, unarmored |
| Connector Type | Miniature coaxial ClickLoc connector |
| Operating Principle | Eddy current |
| Measurement Type | Displacement (proximity) |
| Nominal DC Resistance (R_probe) | 7.45 +/- 0.50 ohms (center conductor to outer conductor) |
| Linear Range | 2.0 mm (80 mils) beginning at 0.25 mm (10 mils) from probe face |
| System Scale Factor | 7.87 V/mm (200 mV/mil) nominal |
| Target Material | AISI 4140 steel target (standard calibration) |
| Operating Temperature Range | -52 degC to +177 degC (-62 degF to +350 degF) |
| Probe Relative Humidity Resistance | Less than 3% change in Average Scale Factor (ASF) under 93% humidity |
| System Compatibility | 3300 XL Proximitor sensor (330180 series); 3500 rack via compatible I/O |
| Dimensions | 45 mm x 95 mm x 95 mm (H x W x D) |
| Weight | 0.14 kg |
To establish successful measurements, mount the probe with the appropriate probe gap as per system calibration procedures (typically centered in the linear range at 1.27 mm or 50 mils). Route the coaxial lead cable with proper shielding and grounding practices to prevent electromagnetic interference from influencing the vibration monitoring signals. Ensure the minimum bend radius of the coaxial cable is respected during routing, and avoid over-tightening any cable ties or clamps.
