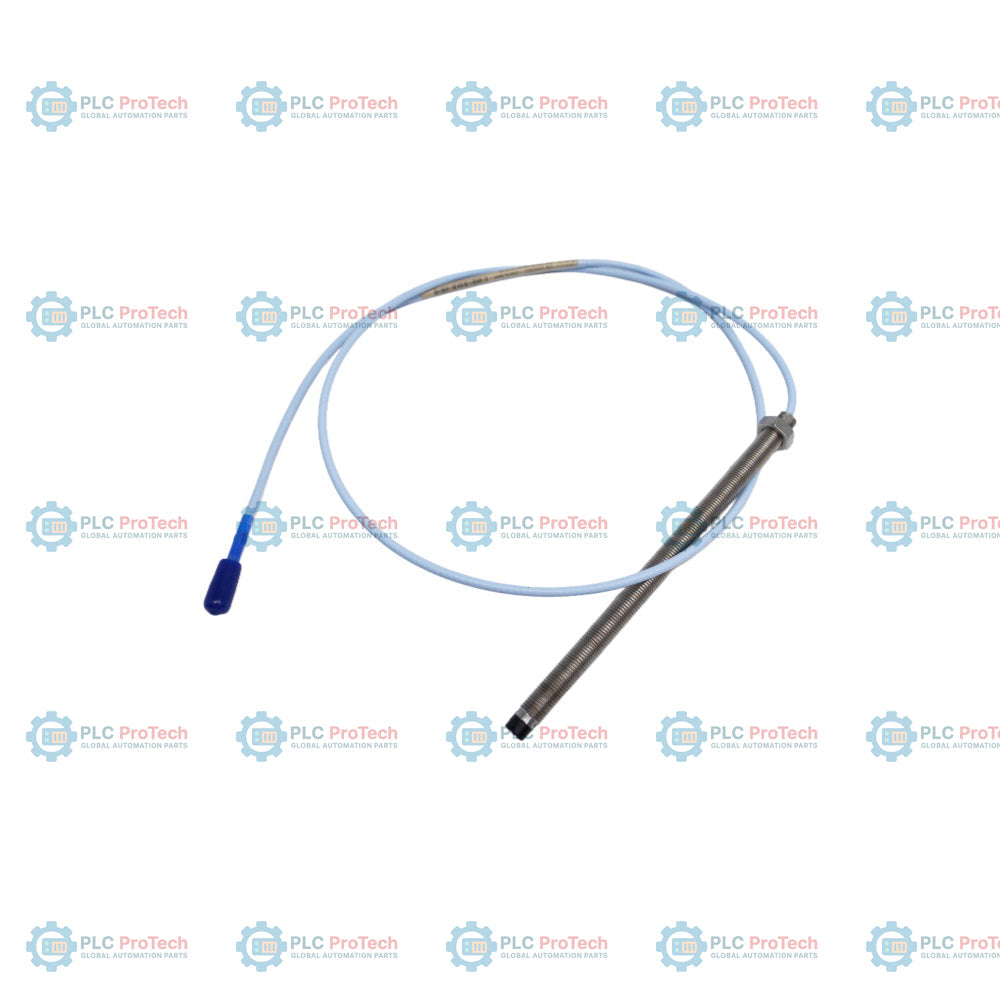

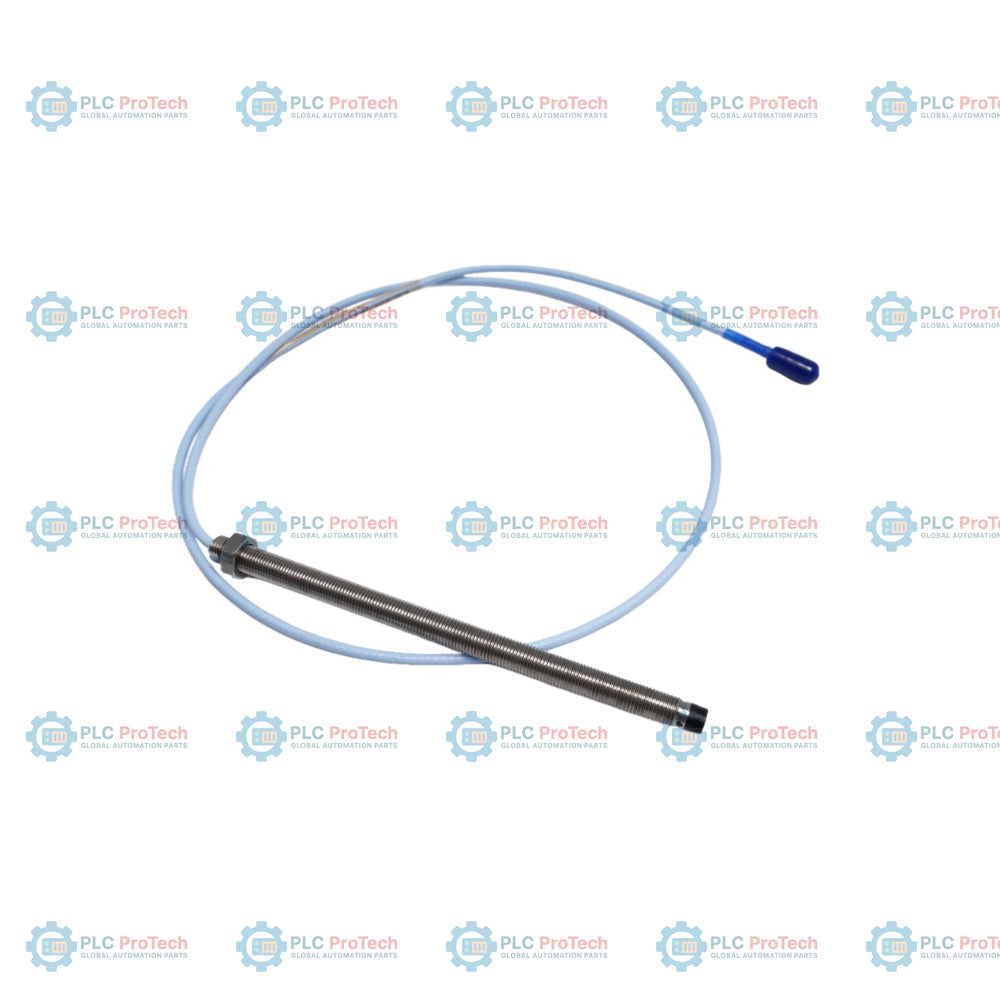

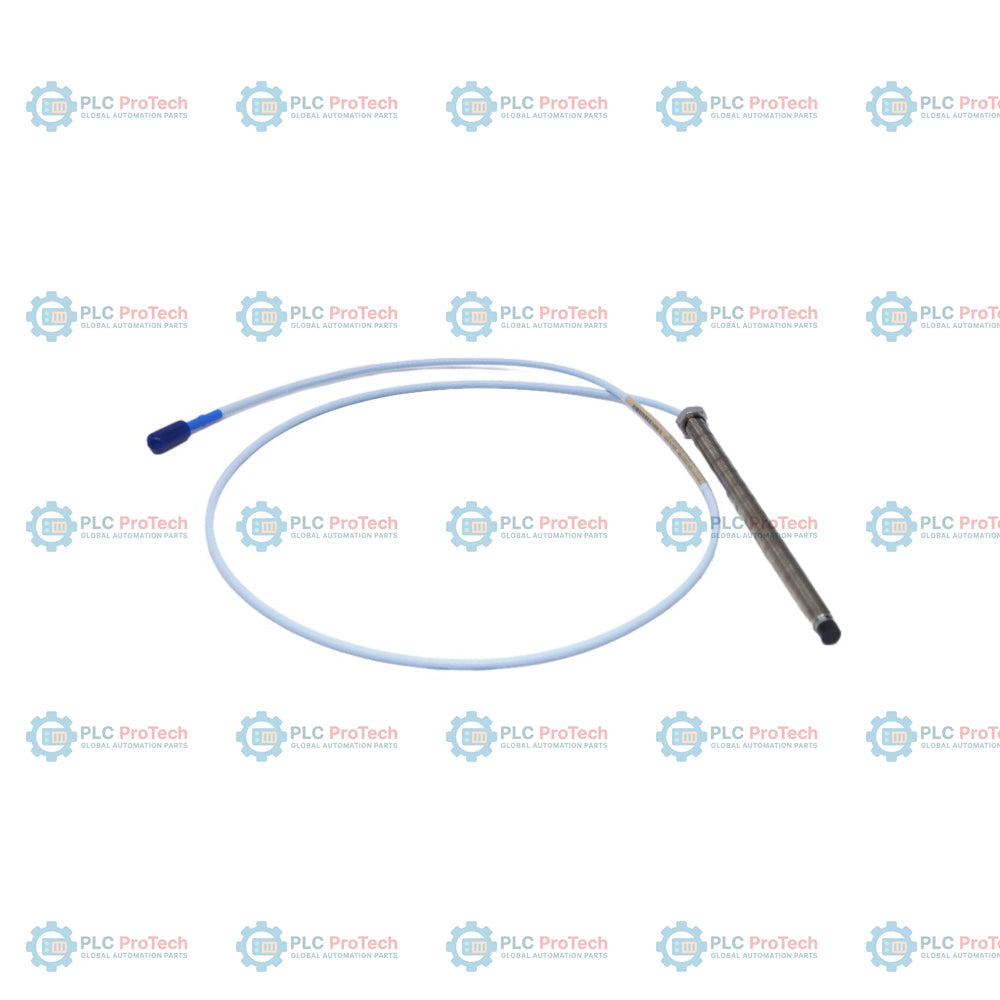

Bently Nevada 330101-00-68-10-12-05 3300 XL 8 mm Proximity Probe

SKU 330101-00-68-10-12-05

In stock

12-month warranty
Free returns within 30 days

Manufacturer: Bently Nevada
Product No.: 330101-00-68-10-12-05
Origin United States
Product Type: 8 mm Probes
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 0.14 kg
Dimensions: 45 mm x 95 mm x 95 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

The Bently Nevada 330101-00-68-10-12-05 is a high-performance 8 mm proximity probe engineered for non-contact shaft vibration and position measurements. As a specialized component of the 3300 XL 8 mm Proximity Transducer System, this configuration features a patented FluidLoc cable to prevent machine lubricating oil and other process fluids from leaking out of the machine housing through the inner core of the coaxial cable. Designed with a fully threaded 6.8-inch case (0.0 inches of unthreaded length) and a 1.0-meter total length, it provides exceptional measurement stability and mechanical longevity in heavy industrial environments. Armed with a miniature coaxial ClickLoc connector and certified for hazardous areas under ATEX, IECEx, and CSA standards, this probe is ideally suited for permanent installation on critical rotating machinery such as steam/gas turbines, centrifugal compressors, and high-pressure pumps.

Features

Non-contact eddy-current technology provides continuous, highly accurate shaft displacement and position measurements.
FluidLoc cable construction blocks oil and moisture propagation through the cable interior, protecting the terminal connection environment.
PPS (polyphenylene sulfide) tip material molded into a stainless steel case for exceptional chemical, temperature, and wear resistance.
Fully threaded 3/8-24 UNF body with an overall case length of 6.8 inches for deep-reach installation scenarios.
Integrated gold-plated ClickLoc coaxial connector offers secure, vibration-resistant, finger-tight connections.
Hazardous area approved (CSA, ATEX, IECEx) for intrinsic safety installations in explosive atmospheres.

Applications

Steam and gas turbine shaft vibration and axial displacement monitoring
Centrifugal compressor rotor position tracking and oil-seal protection
Boiler feed pumps and high-pressure petrochemical pump shaft displacement
Industrial gearboxes, electric motors, and generator bearing machinery protection

Ordering Information

Option	Code on This SKU	Description
Orderable Part Number	330101-00-68-10-12-05	3300 XL 8 mm Proximity Probe, 3/8-24 UNF thread, without armor
A - Unthreaded Length Option	00	0.0 in (completely threaded case)
B - Overall Case Length Option	68	6.8 in (68 tenths of an inch)
C - Total Length Option	10	1.0 meter (3.3 feet)
D - Connector and Cable-Type Option	12	Miniature coaxial ClickLoc connector, FluidLoc cable
E - Agency Approval Option	05	CSA, ATEX, IECEx Approvals

Technical Specifications

Manufacturer	Bently Nevada
Part Number / Model	330101-00-68-10-12-05
Product Family	3300 XL 8 mm Proximity Transducer System
Measurement Type	Displacement (proximity)
Operating Principle	Eddy current
Probe Tip Diameter	8 mm
Thread Size	3/8-24 UNF
Armor Option	Without armor
Nominal Probe DC Resistance	7.59 ohms +/- 0.50 ohms (center conductor to outer conductor)
Cable Type	Coaxial FluidLoc cable (oil leakage prevention)
Connector Type	Miniature ClickLoc coaxial connector
Operating and Storage Temperature	-52 degC to +177 degC (-62 degF to +350 degF)
Pressure Seal Rating	Viton O-ring design seals differential pressure between tip and case
System Compatibility	Compatible with Proximitor series 330180 and 3300 XL extension cables
Dimensions (H x W x D)	45 mm x 95 mm x 95 mm (H x W x D)
Weight	0.14 kg

Installation Guidelines

Mount the proximity probe using an appropriate probe gap per system calibration (typically gapped to output a nominal target voltage of -10 Vdc).
Ensure the probe cable is routed away from high-power electrical interference and protected with conduit where mechanical damage is a risk.
Ground the cable shielding properly at the Proximitor sensor end to minimize environmental electrical noise.
Securely tighten the mounting lock nut to maintain proper gapping under persistent machinery vibration.

Compliance and Certifications

ATEX: Ex ia IIC T5...T1 Ga (when paired with appropriate barriers)
IECEx: Ex ia IIC T5...T1 Ga
CSA: Intrinsic Safety approvals for hazardous environments

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What is the purpose of the FluidLoc cable option on this probe?

The FluidLoc cable (option code 12) prevents lubricating oil, process gases, and other liquids from leaking out of the machine housing through the interior of the probe cable, protecting surrounding electrical connections.

What are the dimensional specifications of this specific probe's body?

The probe has a 3/8-24 UNF thread, a 0.0-inch unthreaded length (fully threaded case), and an overall case length of 6.8 inches (68 tenths of an inch).

Which monitoring systems are compatible with the 330101-00-68-10-12-05 probe?

It is a core component of the Bently Nevada 3300 XL 8 mm system and is fully compatible with the 330180 series Proximitor sensors and 3500 protection system racks.

Does this probe configuration support hazardous area installations?

Yes, the -05 option code provides CSA, ATEX, and IECEx approvals, certifying the probe for intrinsic safety applications in hazardous industrial environments.
