Description

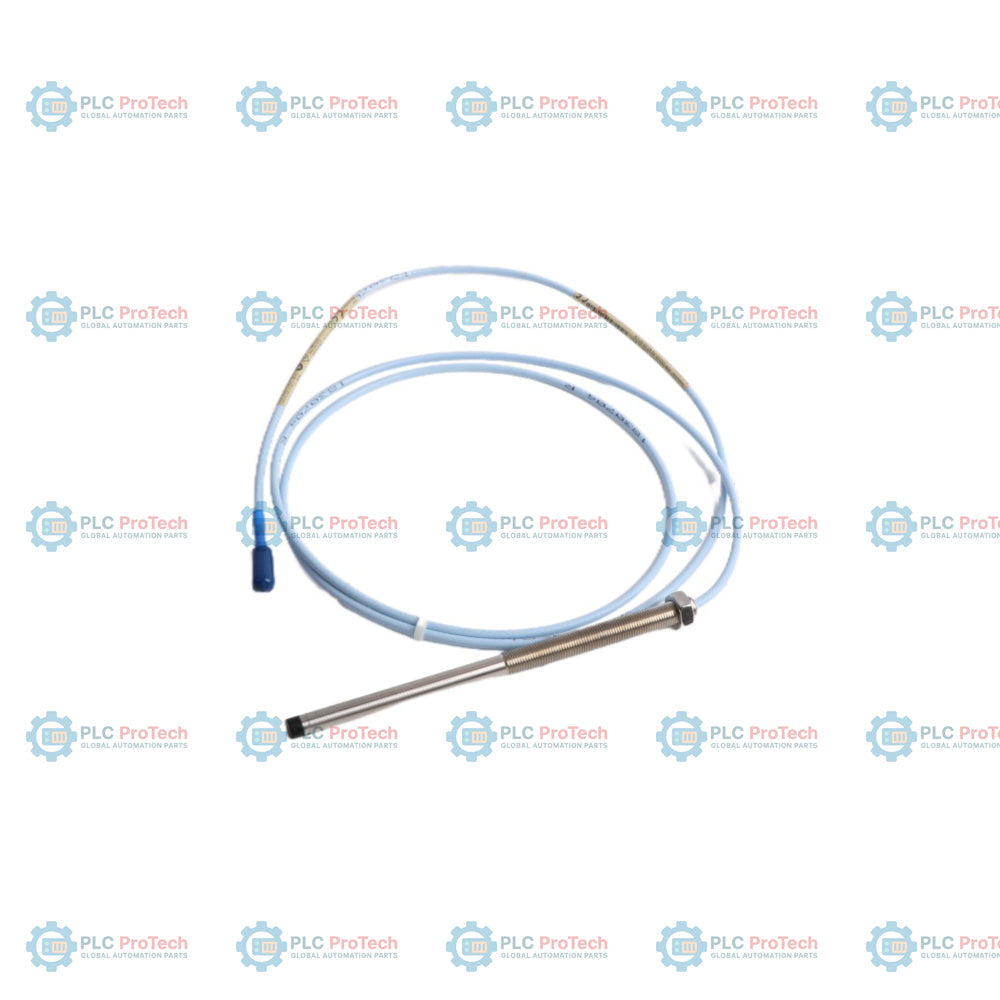

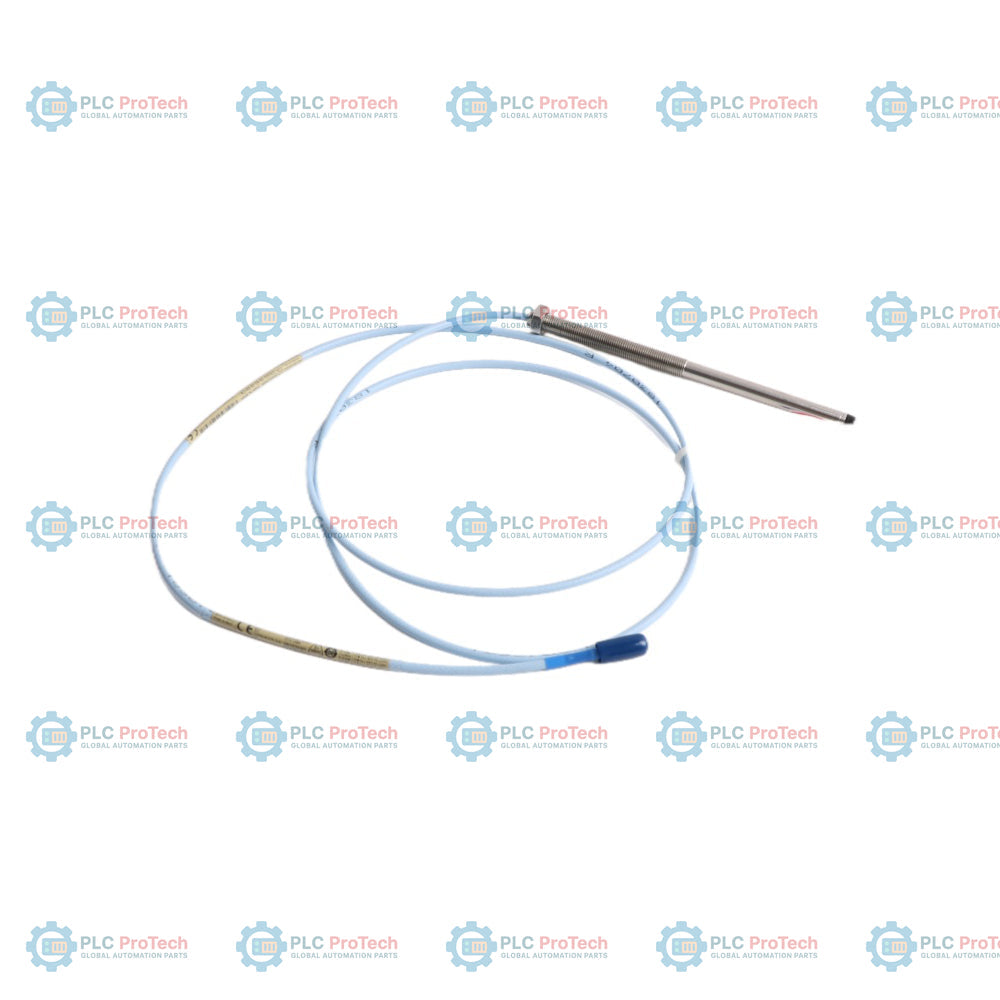

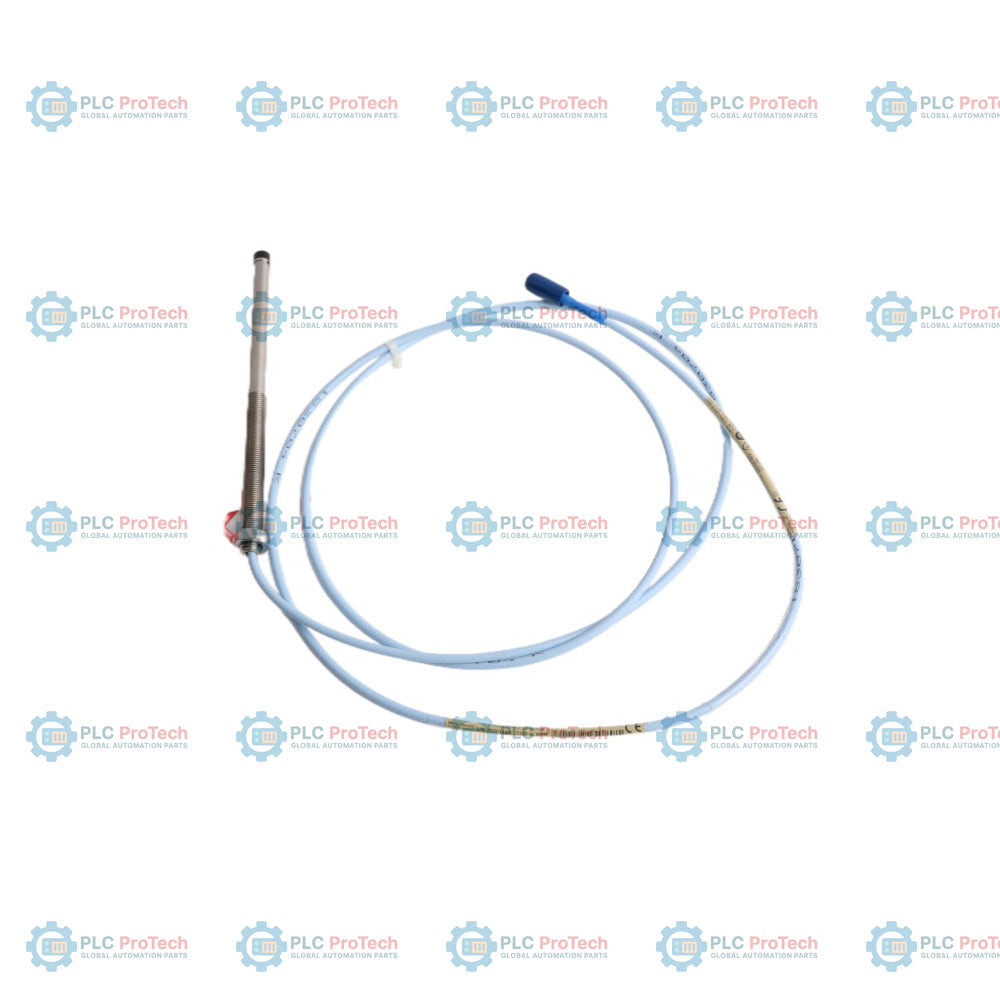

The Bently Nevada 330101-30-60-90-02-00 is an unarmored 8 mm proximity probe designed for non-contact shaft vibration and position measurement within critical rotating machinery. As a key component of the 3300 XL 8 mm Proximity Transducer System, this specific configuration features a 3/8-24 UNF threaded case with a 3.0-inch unthreaded length, a 6.0-inch overall case length, a 9.0-meter total cable length, and a miniature coaxial ClickLoc connector, configured without agency approvals.

Operating on the eddy-current principle, this transducer system measures the dynamic and static distance between the probe tip and the observed conductive target, such as a machine shaft. It pairs seamlessly with 3300 XL Proximitor sensors (such as the 330180 series) and standard extension cables to deliver extremely accurate, temperature-stable displacement signals. This configuration is commonly integrated into machinery protection systems (including the Bently Nevada 3500 series) to monitor fluid-film bearing clearance, radial shaft vibration, and axial thrust position in high-speed industrial applications.

Features

• Eddy-current sensor design for precise non-contact measurement of shaft displacement and vibration.
• Generous 9.0-meter total length enables direct connection to a Proximitor sensor without requiring a separate extension cable, simplifying wiring in specific system layouts.
• 3.0-inch unthreaded length allows deep insertion into machine casing or bearing housings while leaving a 3.0-inch threaded section for robust mechanical adjustment and locking.
• Standard unarmored cable design provides a lightweight, flexible routing path suitable for installations with protective conduit.
• Miniature coaxial ClickLoc connector offers a secure, reliable electrical connection that resists moisture and vibration.
• Robust probe tip constructed from high-durability PPS material to withstand harsh, oil-rich industrial environments.

Applications

This proximity probe is ideal for machinery protection and condition monitoring in heavy-industry sectors such as oil and gas, petrochemicals, power generation, and water treatment. Typical application scenarios include:

• Radial shaft vibration monitoring in steam and gas turbines.
• Thrust (axial) position measurements on high-speed compressors and turbochargers.
• Rotor displacement and bearing wear tracking in heavy industrial pumps and gearboxes.
• Shaft centerline tracking and rotational speed/keyphaser references.

Ordering Information

Technical Specifications

Installation Guidelines

• Probe Gapping: Mount the probe with the appropriate physical gap from the target surface (typically 1.27 mm or 50 mils for standard calibration, corresponding to -10 VDC output) before locking it into position.
• Cable Routing: Avoid sharp bends when routing the unarmored cable. Ensure the cable is supported and run through dedicated protective conduit if exposed to physical hazard or extreme mechanical wear.
• Grounding & Shielding: Connect the outer shield of the probe cable to the instrument ground inside the Proximitor sensor housing. Avoid multiple ground points to prevent ground loops.
• Mechanical Clearance: Maintain a minimum radial clearance around the probe tip of at least 3 probe diameters (approximately 24 mm) from any surrounding metal to avoid eddy-current side-loading effects.
• Locking: Tighten mounting nuts securely to the machinery housing or bracket to prevent drift due to structural vibration. Do not exceed recommended torque limits for 3/8-24 UNF threads.
