Manufacturer: Bently Nevada
Product No.: 330102-00-20-15-02-00
Country of origin:United States
Product Type: 3300 XL 8 mm Proximity Probe
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 140g
Dimensions: 45 mm x 95 mm x 95 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months

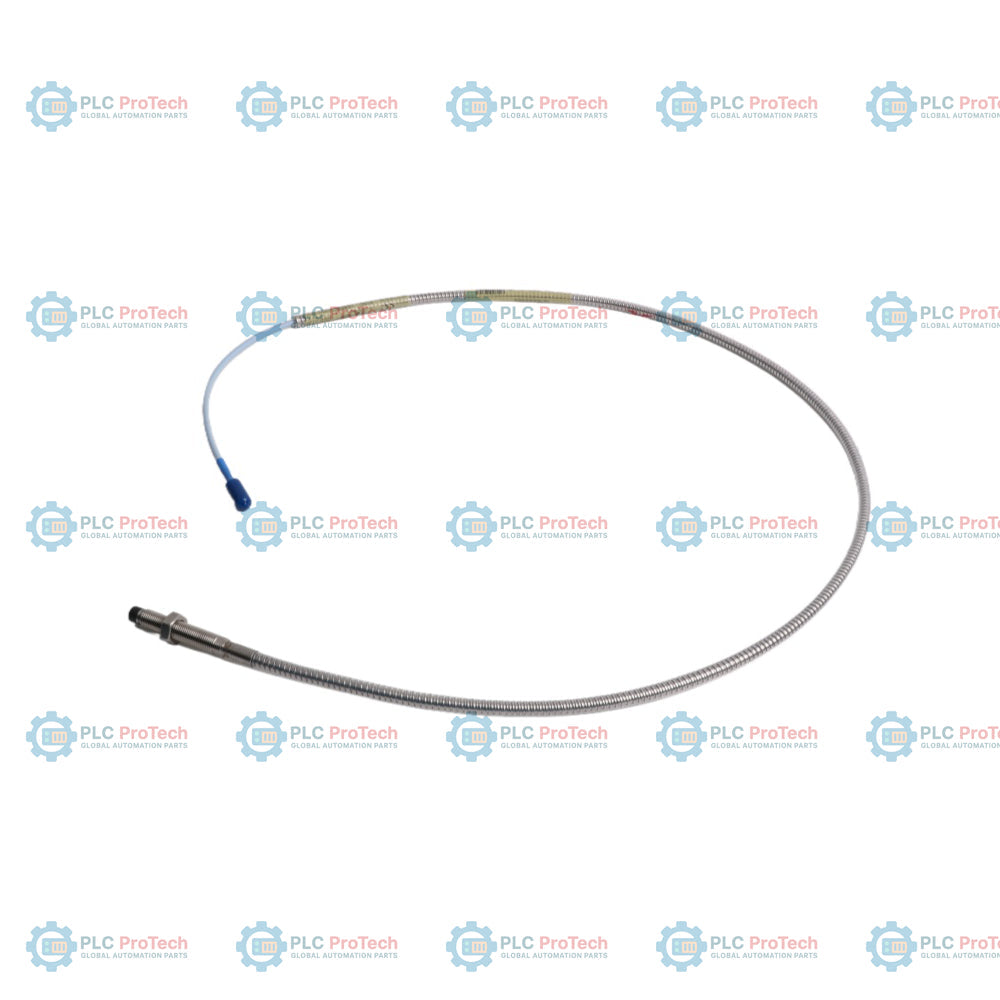

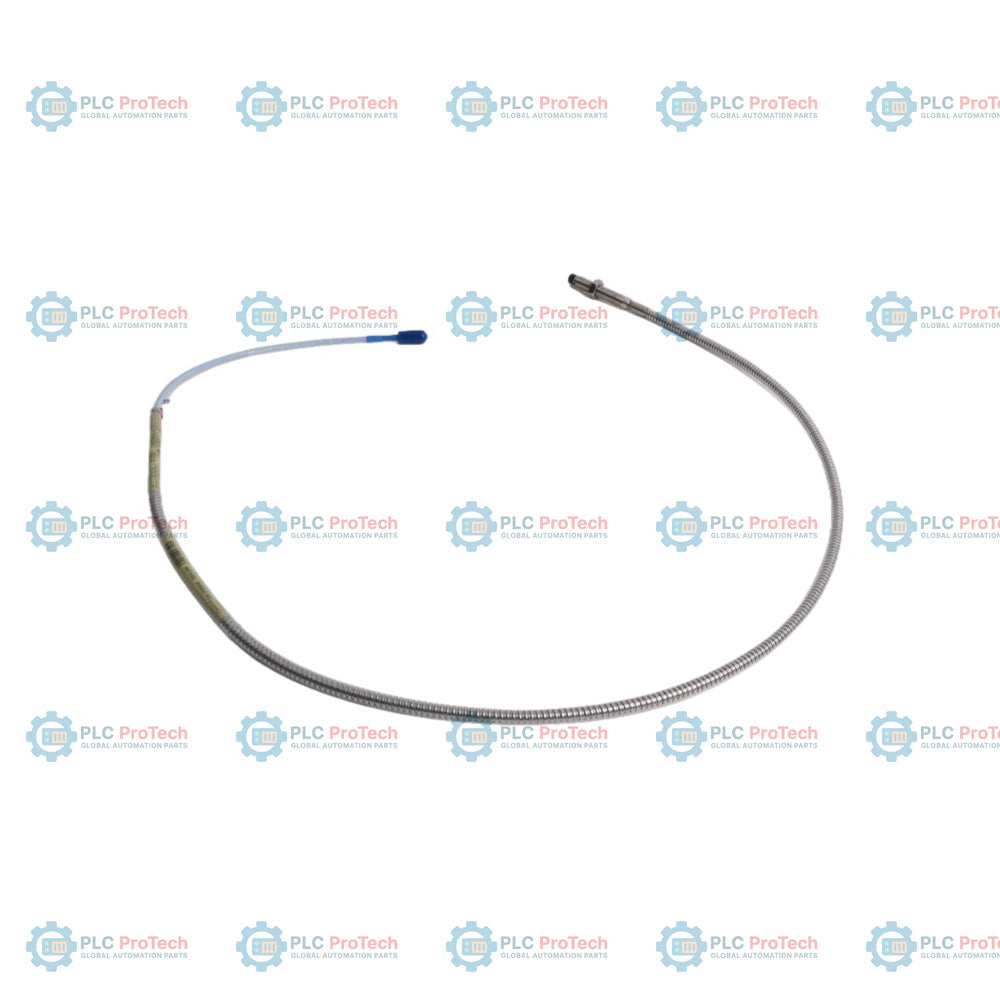

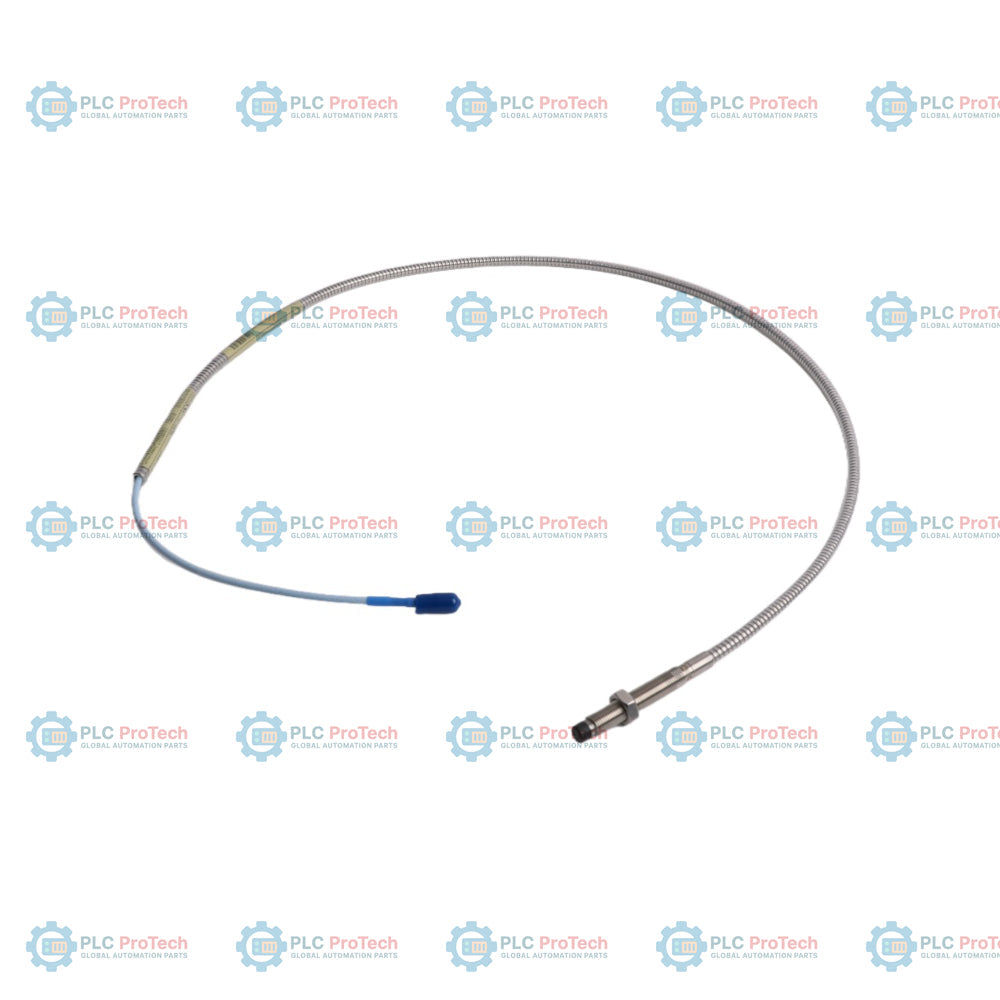

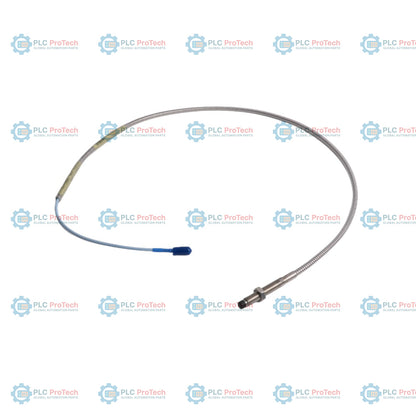

330102-00-20-15-02-00: 3300 XL 8 mm armored proximity probe with 0.0 in unthreaded length (Option 00), 2.0 in case length (Option 20), and 1.5 m total length (Option 15). This eddy-current displacement probe is designed for machinery protection and condition monitoring applications, specifically where physical cable protection is required due to harsh mechanical environments. The inclusion of armor provides increased resistance to abrasion and impact, making it suitable for critical rotating machinery where cable integrity is essential for accurate gap measurement.
The 330102 series is fully compatible with the 3300 XL 8 mm transducer system, including the 3300 XL Proximitor sensor and standard 330130 extension cables. This configuration utilizes the standard miniature coaxial ClickLoc connector (Option 02) and is supplied without specific hazardous area agency approvals (Option 00), intended for non-hazardous locations or standard industrial installations where site-specific certification is managed independently.
| Option | Code on This SKU | Description |
| Orderable Part Number | 330102-00-20-15-02-00 | 3300 XL 8 mm Armored Proximity Probe |
| A - Unthreaded Length | 00 | 0.0 in |
| B - Case Length | 20 | 2.0 in |
| C - Total Length | 15 | 1.5 m |
| D - Connector/Cable | 02 | Miniature coaxial ClickLoc connector, standard cable |
| E - Agency Approval | 00 | Not required |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Part Number | 330102-00-20-15-02-00 |
| Probe Diameter | 8 mm |
| Thread Size | 3/8-24 UNF |
| Probe Type | Armored |
| Case Length | 2.0 in |
| Unthreaded Length | 0.0 in |
| Total System Length | 1.5 m |
| Connector Type | Miniature coaxial ClickLoc |
| Operating Temperature | -55 degC to +177 degC |
| Storage Temperature | -55 degC to +105 degC |
Ensure the probe is gapped correctly according to the 3300 XL 8 mm transducer system manual. When installing the 330102 armored probe, avoid tight bend radii near the probe case to prevent mechanical stress. Ensure all connections are secure; the ClickLoc connector should be fully seated and tightened. While this SKU does not carry hazardous area certifications, standard electrical noise reduction practices, such as shielding and proper grounding, must be maintained for accurate signal integrity.
