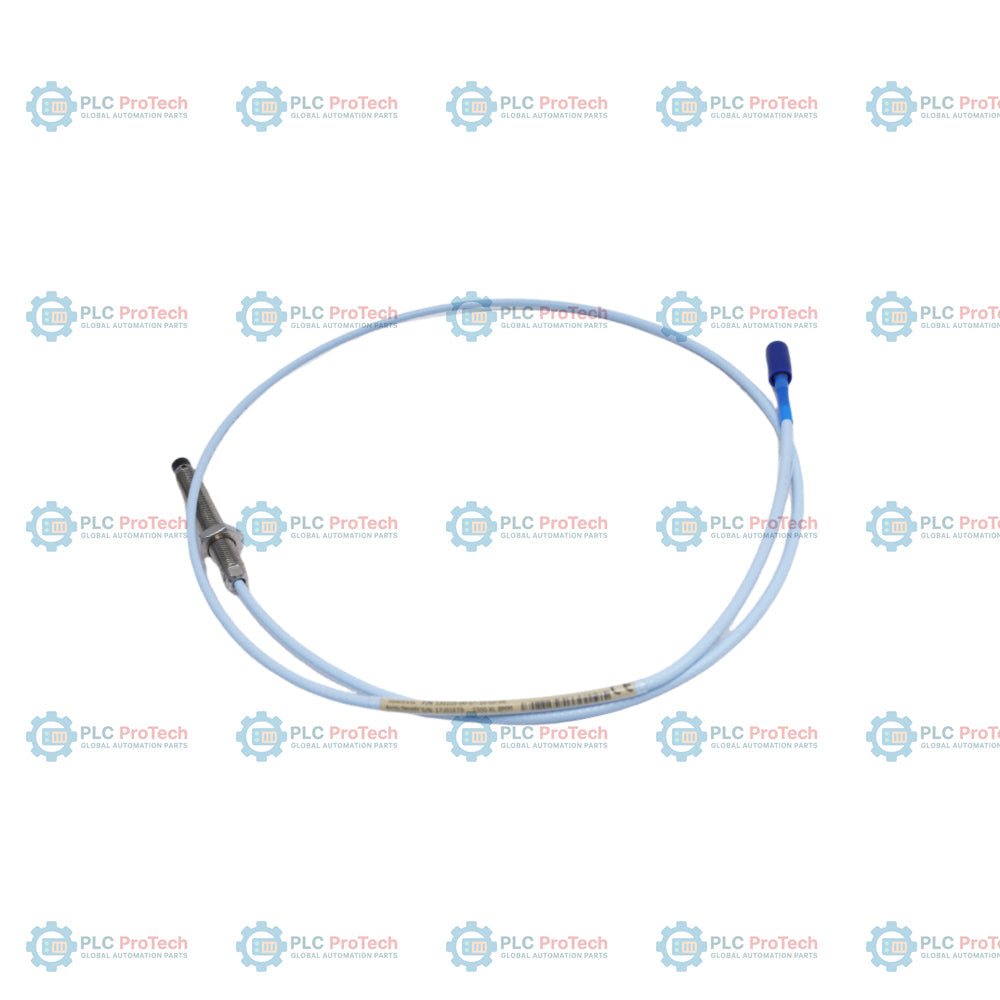

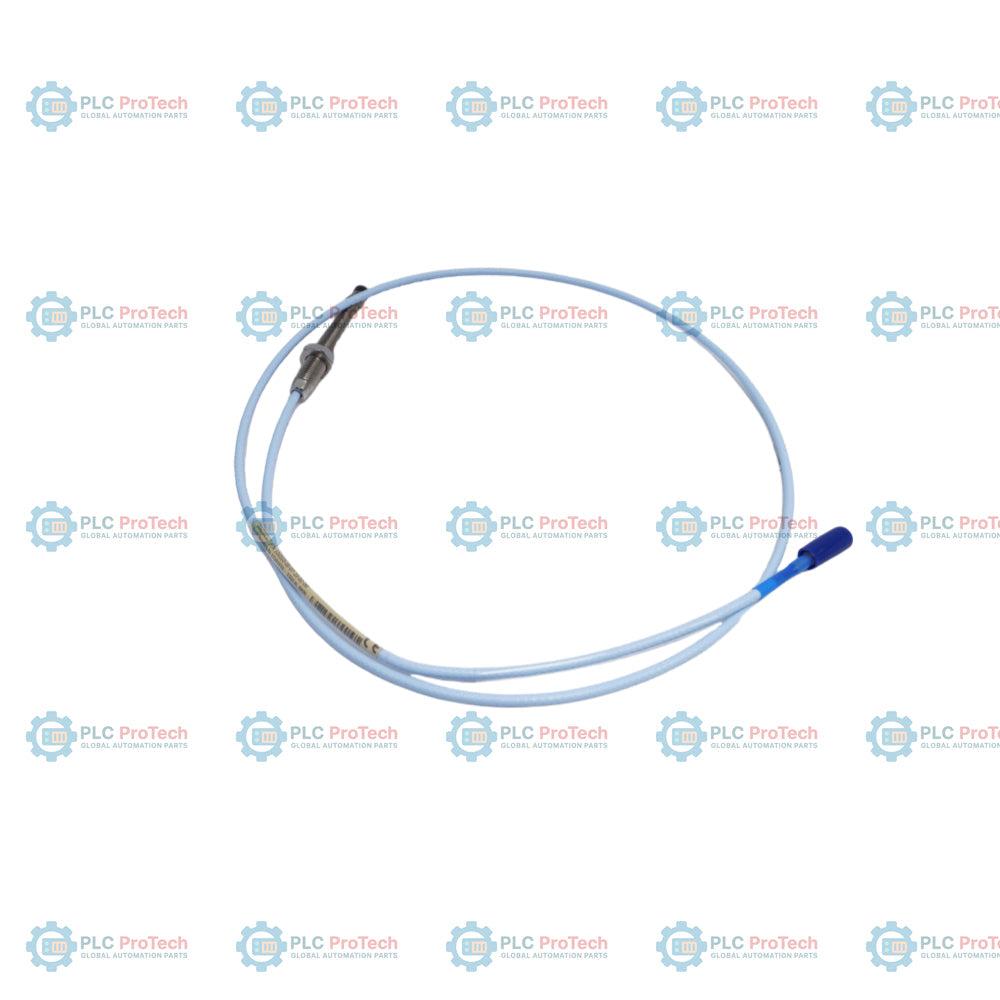

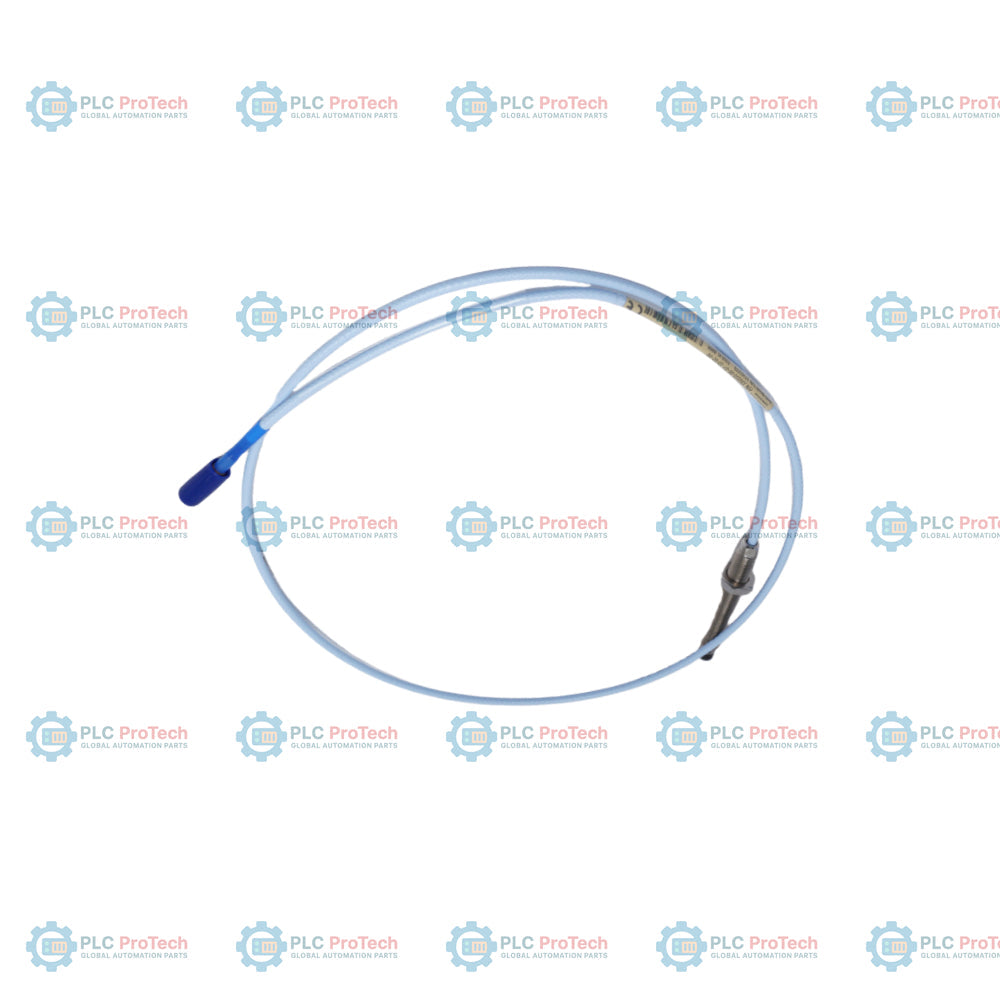

Bently Nevada 330103-00-07-10-02-00 3300 XL 8 mm Proximity Probe

SKU 330103-00-07-10-02-00

In stock
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Bently Nevada
  • Product No.: 330103-00-07-10-02-00
  • Origin United States
  • Product Type: 3300 XL 8 mm Proximity Probe
  • Barcode: 8537101190
  • Payment: T/T, Western Union
  • Weight: 0.32 kg
  • Dimensions: 70 mm x 10 mm x 10 mm (H x W x D)
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

3300 XL Proximity Probes

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Technical Datasheet

Bently Nevada 330103-00-07-10-02-00 3300 XL 8 mm Proximity Probe

Download Open in new tab
Quantity
Call sales Contact

Product Description

Description

Fully threaded M10 x 1 metric probe body (Option 00 unthreaded) with a 70 mm overall case length (Option 07) and a 1.0 meter total length (Option 10) specifies this non-armored 3300 XL 8 mm proximity probe configuration — 330103-00-07-10-02-00.

Unlike armored variants such as the 330104 series or configurations equipped with a connector protector (Option 01), this specific configuration features a lightweight, non-armored FEP insulated standard cable terminated with a miniature coaxial ClickLoc connector (Option 02) without an integrated connector protector. It operates as part of a complete 3300 XL 8 mm transducer system, pairing with a 3300 XL extension cable and a 3300 XL Proximitor sensor to measure static position or dynamic shaft vibration on rotating machinery.

Features

  • Option 00 specifies a 0 mm unthreaded length on a fully threaded metric probe case.
  • Option 07 provides a 70 mm overall case length with M10 x 1 thread pitch.
  • Option 10 provides a 1.0 meter (3.3 feet) total probe cable length.
  • Option 02 defines a miniature coaxial ClickLoc connector with standard FEP-insulated cable (no connector protector).
  • Option 00 requires no hazardous area agency approvals.
  • Polyphenylene sulfide (PPS) probe tip material withstands operating temperatures from -52 degC to +177 degC.
  • AISI 303 stainless steel case resists chemical degradation in fluid-film bearing environments.

Applications

  • Radial shaft vibration measurement on industrial rotating machinery.
  • Axial shaft position displacement monitoring on fluid-film bearing machines.
  • Keyphasor reference and speed measurements.
  • Turbine, generator, pump, compressor, and gearbox condition monitoring.

Ordering Information

Option / Segment Code on This SKU Description / Meaning
Orderable Part Number 330103-00-07-10-02-00 3300 XL 8 mm Proximity Probe, M10 x 1 thread, without armor
A - Unthreaded Length Option 00 0 mm unthreaded length (fully threaded case)
B - Overall Case Length Option 07 70 mm overall case length
C - Total Length Option 10 1.0 meter (3.3 feet) total cable length
D - Connector and Cable-Type Option 02 Miniature coaxial ClickLoc connector, standard cable
E - Agency Approval Option 00 No agency approvals required

Technical Specifications

Specification Category Parameter Value
Identity Manufacturer Bently Nevada (Baker Hughes)
Model / Part Number 330103-00-07-10-02-00
Product Series 3300 XL 8 mm Proximity Transducer System
Thread Type M10 x 1 metric thread
Electrical Nominal Scale Factor 7.87 V/mm (200 mV/mil)
Linear Range 2.0 mm (80 mils), starting at 0.25 mm (10 mils) from probe tip
Nominal DC Resistance (R_probe) 7.59 ohms +/- 0.50 ohms (for 1.0 m probe length)
System Input Voltage Range -17.5 Vdc to -26 Vdc (requires -23 Vdc to -26 Vdc with safety barriers)
Mechanical Unthreaded Body Length 0 mm
Overall Case Length 70 mm
Probe Tip Diameter 8 mm
Armor Option Without armor
Probe Tip Material Polyphenylene sulfide (PPS)
Probe Case Material AISI 303 or 304 stainless steel (SST)
Cable & Connector Cable Type 75 ohm triaxial, fluoroethylene propylene (FEP) insulated standard cable
Total Cable Length 1.0 meter (3.3 feet)
Connector Type Miniature coaxial gold-plated ClickLoc connector
Minimum Bend Radius 25.4 mm (1.0 in)
Environmental Limits Probe Operating Temperature -52 degC to +177 degC (-62 degF to +350 degF)
Probe Pressure Seal Sealed with Viton O-ring between probe tip and case
Relative Humidity Limits Less than 3% change in Average Scale Factor when tested in 93% humidity per IEC 68-2-3
Dimensions & Weight Physical Dimensions 70 mm x 10 mm x 10 mm (H x W x D) [Probe body size, excluding cable]
Weight 0.32 kg [Typical for 1.0 m probe assembly]

Installation Guidelines

  • Use a class fit matching the external probe thread (M10 x 1) for all internal mounting threads.
  • Maximum rated thread engagement length for M10 x 1 probe case is 15 mm. Tightening beyond recommended limits may cause binding.
  • Recommended probe case torque: Standard forward-mounted probes first three threads: 7.5 N-m (66 in-lbf); maximum rated torque is 22.6 N-m (200 in-lbf).
  • Observe the minimum permissible cable bend radius of 25.4 mm (1.0 in) during routing to prevent signal deterioration.
  • Set the recommended gap of approximately 1.27 mm (50 mils) to establish the nominal -9 Vdc electrical midpoint for radial vibration measurements.
  • Tighten ClickLoc connectors finger-tight. Never use tools on gold click-type connectors.

Compliance and Certifications

  • Fully complies with the mechanical configuration, linear range, accuracy, and temperature stability requirements of the American Petroleum Institute (API) Standard 670.
  • CE compliant.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What specify the mechanical dimensions of the 330103-00-07-10-02-00 proximity probe?
This probe configuration features a metric M10 x 1 thread with Option 00 (0 mm unthreaded length) and Option 07 (70 mm overall case length). It does not include protective armor over its 1.0-meter (Option 10) total standard cable length.
Does this specific 330103 configuration include a connector protector or armor?
No. Option 02 indicates a miniature coaxial ClickLoc connector with a standard FEP-insulated cable but without an integrated connector protector. The 330103 model series is also unarmored.
What is the thread specification and recommended torque for this probe?
The thread size is M10 x 1 metric thread. The recommended case torque for the first three threads is 7.5 N-m (66 in-lbf), with a maximum rated limit of 22.6 N-m (200 in-lbf) and a maximum thread engagement of 15 mm.
Which monitoring systems are compatible with the 330103-00-07-10-02-00 probe?
The probe is fully compatible with standard Bently Nevada 3300 XL 8 mm proximity transducer systems. It must be paired with a compatible 3300 XL extension cable and Proximitor sensor (such as the 5-meter or 9-meter system configurations depending on overall system architecture).
