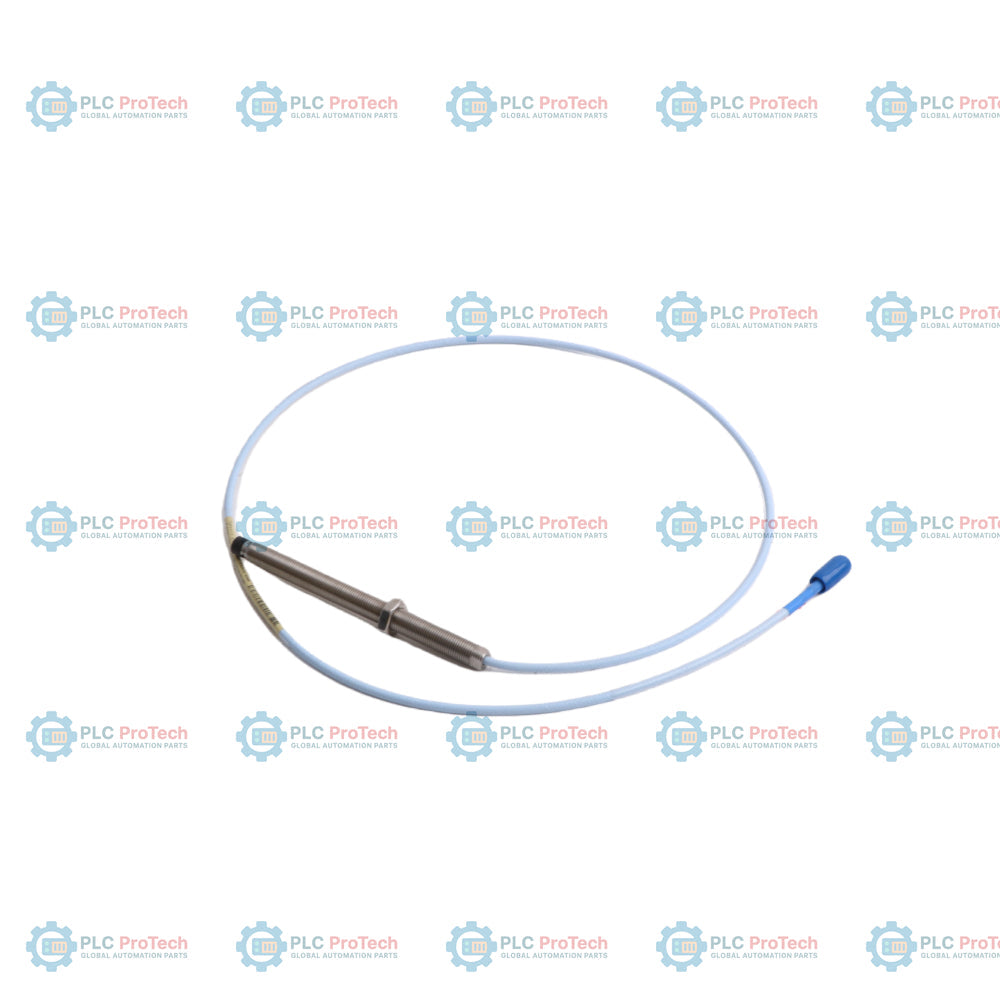

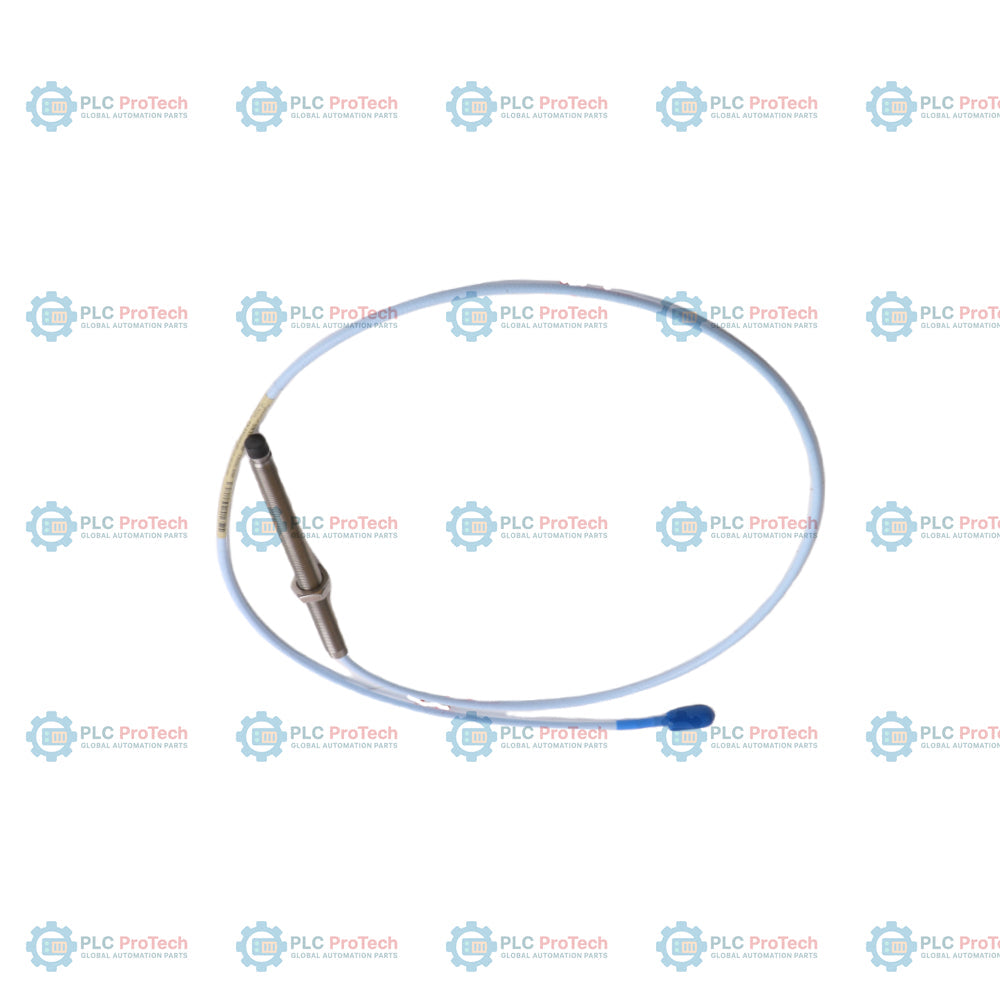

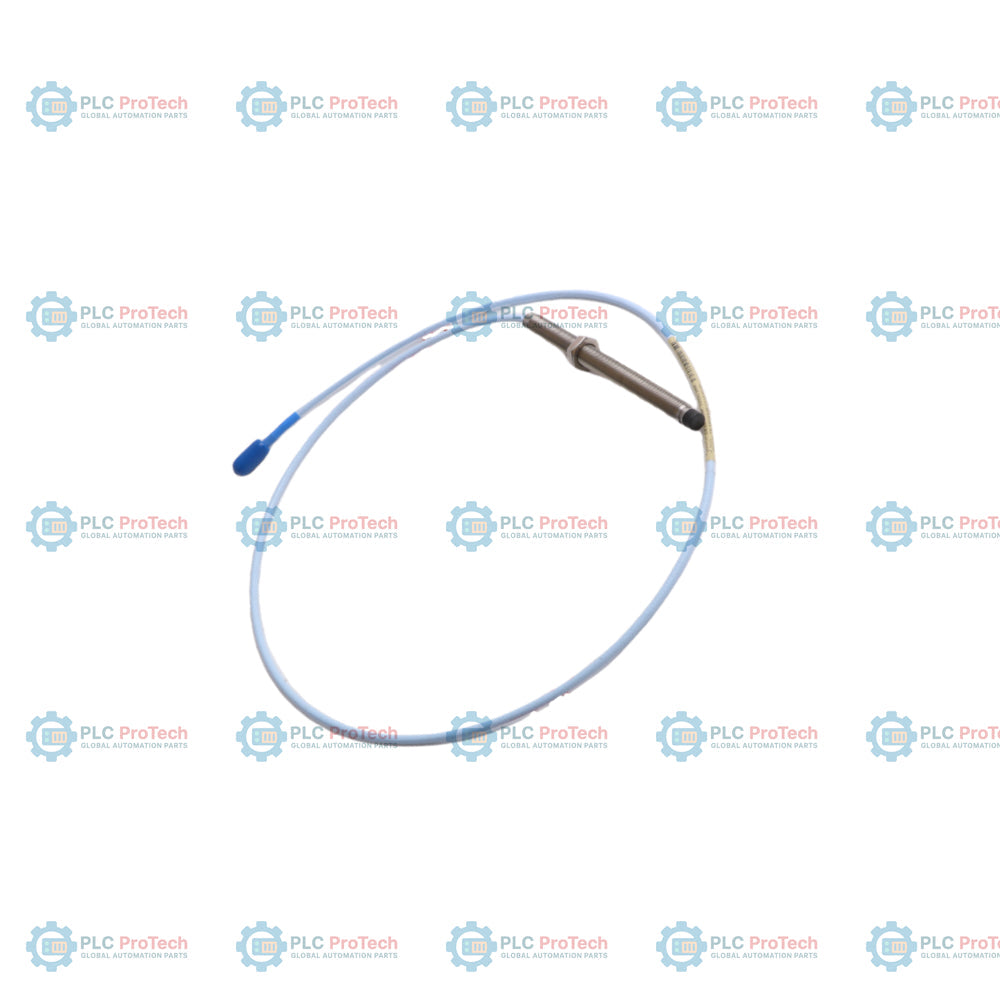

Bently Nevada 330103-00-12-10-02-00 3300 XL 8 mm Proximity Probe

SKU 330103-00-12-10-02-00

In stock

12-month warranty
Free returns within 30 days

Manufacturer: Bently Nevada
Product No.: 330103-00-12-10-02-00
Origin United States
Product Type: 3300 XL 8 mm Proximity Probe
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 0.32 kg
Dimensions: 120 mm x 10 mm x 10 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

Fully threaded M10 x 1 metric probe body (Option 00, 0 mm unthreaded) with 120 mm case length (Option 12) and 1.0 meter total cable length (Option 10) specifies the 330103-00-12-10-02-00 3300 XL 8 mm proximity probe configuration. This eddy-current non-contacting sensor measures static position and dynamic shaft vibration in machinery monitoring applications.

This configuration features a miniature coaxial ClickLoc connector with standard FEP-insulated cable (Option 02) and is supplied without agency approvals (Option 00). Unlike armored variants, this unarmored version provides increased cable flexibility for standard routing while maintaining complete electrical and physical interchangeability with other 3300 XL series components. It operates by generating a high-frequency magnetic field to observe conductive steel targets and outputs a voltage proportional to the distance between the probe tip and the observed surface.

Features

Option 00 unthreaded length specifies a fully threaded metric body with 0 mm of unthreaded length.
Option 12 overall case length provides a 120 mm threaded case length.
Option 10 total length defines an integrated 1.0 meter (3.3 feet) FEP-insulated coaxial probe cable.
Option 02 cable-type supplies a miniature ClickLoc coaxial male connector on standard cable.
Option 00 agency approval signifies standard mechanical and electrical configuration without hazardous area certification.
M10 x 1 metric thread body is constructed from corrosion-resistant AISI 303 or 304 stainless steel (SST).
Probe tip diameter of 8.0 mm utilizes robust polyphenylene sulfide (PPS) plastic encapsulation for pressure and moisture resistance.

Applications

Fluid-film bearing machinery displacement and vibration monitoring.
Static axial shaft position and dynamic radial vibration measurements.
Keyphasor speed and phase reference timing measurements on rotating shafts.
Industrial steam turbines, gas turbines, compressors, and motor bearing protection in environments not requiring hazardous area safety ratings.

Ordering Information

Option Segment	Code on This SKU	Description / Meaning
Orderable Part Number	330103-00-12-10-02-00	3300 XL 8 mm proximity probe, M10 x 1 metric thread, without armor
A - Unthreaded Length Option	00	0 mm unthreaded length (fully threaded body)
B - Overall Case Length Option	12	120 mm overall case length (10 mm increments)
C - Total Length Option	10	1.0 meter (3.3 feet) cable length
D - Connector & Cable-Type Option	02	Miniature coaxial ClickLoc connector, standard cable
E - Agency Approval Option	00	Not required (standard mechanical configuration)

Technical Specifications

Manufacturer	Bently Nevada
Part Number / Model	330103-00-12-10-02-00
Series	3300 XL 8 mm
Probe Tip Diameter	8.0 mm (0.31 in)
Case Thread Size	M10 x 1 metric
Unthreaded Length	0 mm
Threaded Case Length	120 mm
Total Cable Length	1.0 meter (3.3 feet)
Cable Type	75 Ohm triaxial, fluorinated ethylene propylene (FEP) insulated
Connector Type	Miniature male coaxial ClickLoc connector
Case Material	AISI 303 or 304 Stainless Steel (SST)
Probe Tip Material	Polyphenylene sulfide (PPS)
Standard Probe Temperature Range	-52 degC to +177 degC (-62 degF to +350 degF)
Recommended Installation Torque	7.5 N-m (66 in-lbf)
Maximum Rated Case Torque	22.6 N-m (200 in-lbf)
Maximum Cable Tensile Strength	330 N (75 lbf) probe case to probe lead
Weight	0.32 kg
Dimensions	120 mm x 10 mm x 10 mm (H x W x D)

Connections and Interfaces

Connector Port	Interface Type	Target Connection
Probe Cable End	Miniature male coaxial ClickLoc connector	3300 XL female coaxial extension cable connector

Installation Guidelines

Observe the minimum cable bend radius of 25.4 mm (1.0 in) during routing to prevent signal degradation.
Tighten the probe case thread during installation using a recommended torque of 7.5 N-m (66 in-lbf). Do not exceed 22.6 N-m (200 in-lbf).
Always verify that the combined length of the probe and extension cable matches the calibrated length required by the Proximitor Sensor (typically 5-meter or 9-meter systems).
Protect the coaxial probe-to-extension cable connection from turbine oil and fluids using silicone tape or connector protectors.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What are the case length and thread specifications for the 330103-00-12-10-02-00 probe?

This probe configuration features an M10 x 1 metric thread, a fully threaded body (0 mm unthreaded length), and an overall case length of 120 mm.

What does the -02-00 suffix mean at the end of the part number?

The -02 segment specifies a miniature coaxial ClickLoc connector on standard unarmored cable, and the trailing -00 segment indicates that no agency approvals are required.

Is an extension cable required for this probe?

Yes. Because this is a 1.0-meter probe, an extension cable must be used to reach the total system length (typically 5.0 or 9.0 meters) required to match the Proximitor Sensor.

What is the recommended installation torque for this metric probe?

The recommended mounting torque for the M10 x 1 threaded case is 7.5 N-m (66 in-lbf), with a maximum rated limit of 22.6 N-m (200 in-lbf) to avoid threading damage.
