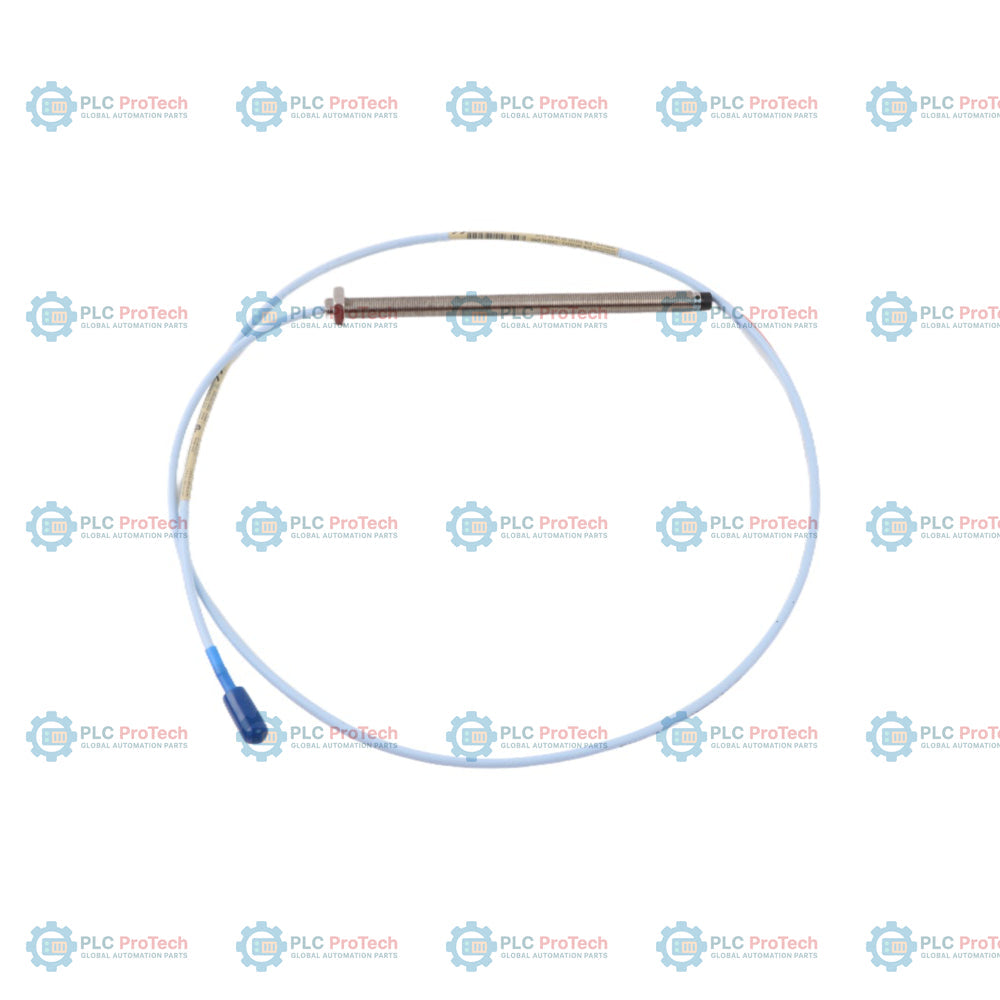

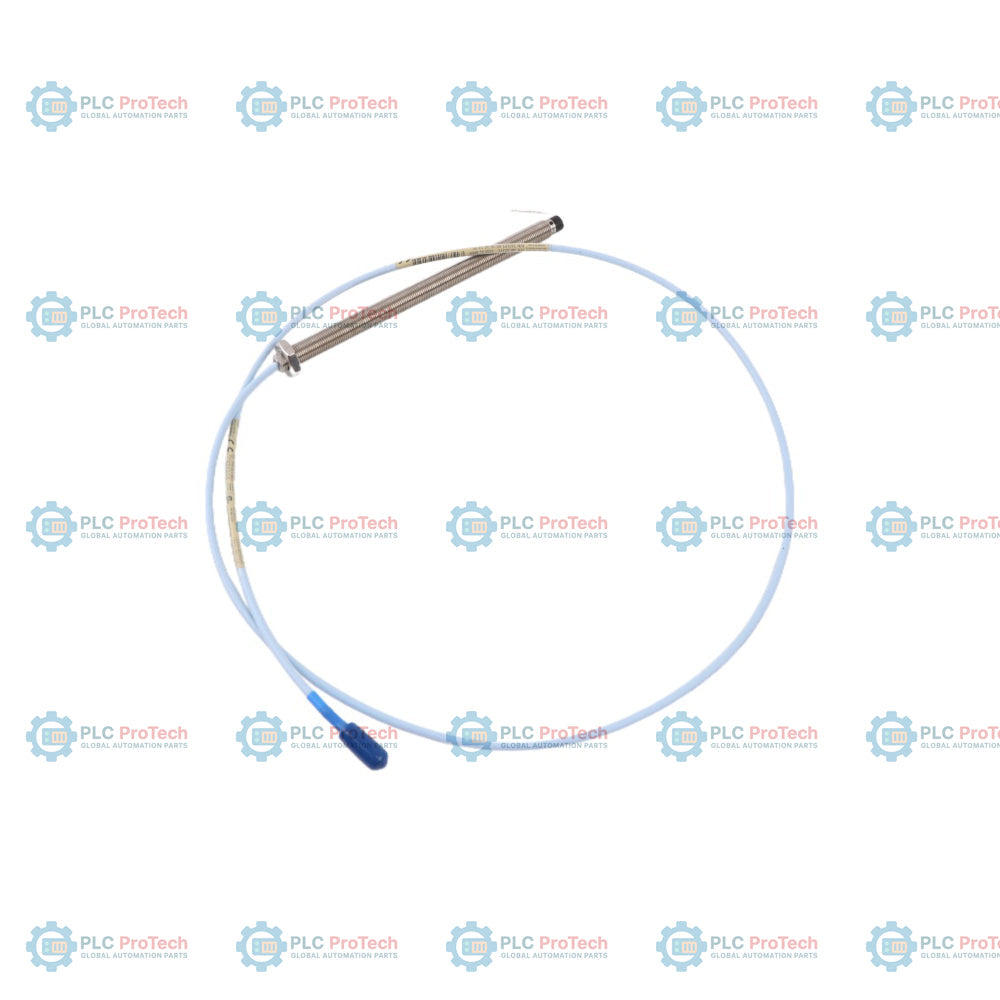

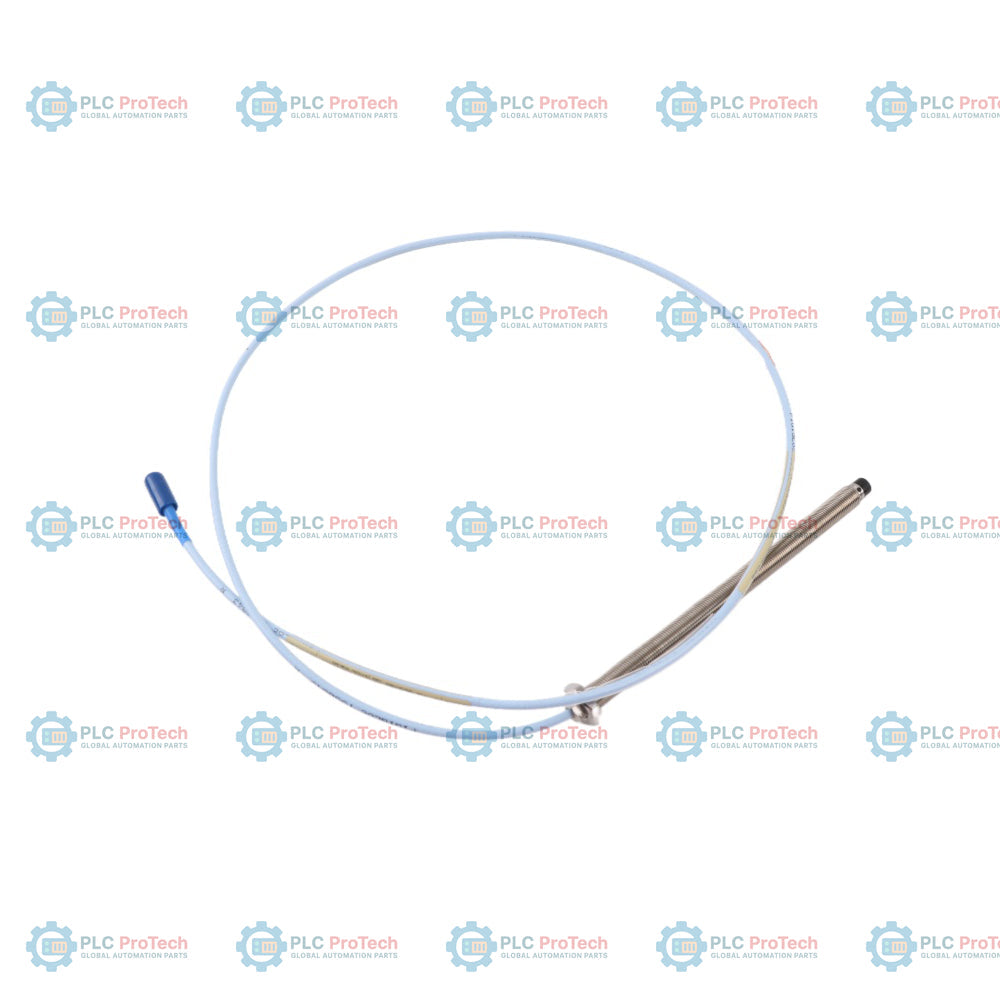

Option 00 (0 mm unthreaded length), Option 19 (190 mm overall case length), and Option 12 (FluidLoc cable with Miniature ClickLoc connector) specify this 3300 XL 8 mm proximity probe configuration — 330103-00-19-10-12-05. This unarmored probe operates on eddy-current technology to track shaft vibration and axial position. It features a metric M10 x 1 threaded body, a 1.0 m total cable length (Option 10), and carries CSA, ATEX, and IECEx hazardous area certifications (Option 05) for intrinsically safe installations.
Unlike standard coaxial cables, the integrated FluidLoc cable (Option 12) prevents lubricating oil, turbine fluids, or other process liquids from leaking out of the machine housing through the inner layers of the cable. The fully threaded case (0 mm unthreaded portion) provides robust mounting engagement inside deep-reach threaded bores, making it ideal for large turbine and compressor bearing casings where standard unthreaded neck lengths are unsuitable.
This proximity probe is used in critical rotating machinery protection systems. Typical applications include radial shaft vibration, axial thrust position, and reference speed/keyphase measurements on steam turbines, gas compressors, industrial pumps, and electrical generators, specifically in bearings or environments where fluid containment is critical.
| Option / Segment Code | This SKU Value | Description / Option Meaning |
|---|---|---|
| Orderable Part Number | 330103-00-19-10-12-05 | 3300 XL 8 mm Proximity Probe, M10 x 1 thread, without armor |
| A - Unthreaded Length Option | 00 | 0 mm unthreaded length (fully threaded case) |
| B - Overall Case Length Option | 19 | 190 mm overall case length (ordered in increments of 10 mm) |
| C - Total Length Option | 10 | 1.0 meter (3.3 feet) total probe cable length |
| D - Connector and Cable-Type Option | 12 | Miniature coaxial ClickLoc connector, FluidLoc cable (no connector protector) |
| E - Agency Approval Option | 05 | CSA, ATEX, and IECEx approvals |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Part Number | 330103-00-19-10-12-05 |
| Product Family | 3300 XL 8 mm Proximity Transducer System |
| Probe Diameter | 8.0 mm (0.31 in) |
| Thread Size | M10 x 1 metric thread |
| Armor Option | Without armor |
| Unthreaded Length | 0 mm (0.0 in) |
| Overall Case Length | 190 mm (7.48 in) |
| Total Cable Length | 1.0 meter (3.3 feet) |
| Cable Type | FluidLoc coaxial cable (prevents oil and liquid migration) |
| Connector Type | Miniature male coaxial ClickLoc connector |
| Target Material Calibration | AISI 4140 steel |
| Linear Range | 2.0 mm (80 mils) nominal linear range |
| Nominal Probe DC Resistance | 7.59 ohms (plus/minus 0.50 ohms) center conductor to outer conductor |
| Probe Case Torque Limit | Recommended mounting torque 11.2 Nm |
| Operating Temperature | -52 degC to +177 degC for probe; -51 degC to +260 degC for probe cable and connector |
| Pressure Rating | Designed to seal differential pressure between tip and case (Viton O-ring) |
| Dimensions | 150 mm x 150 mm x 40 mm (H x W x D) (coiled packaging) |
| Weight | 0.15 kg |
| Connector Contact | Signal Assignment |
|---|---|
| Center Conductor | RF Probe signal |
| Outer Conductor / Shield | Signal return / Common shield |
Global Express Shipping
Returns & Warranty
Manufacturer: Bently Nevada
Product No.: 330103-00-19-10-12-05
Country of origin:United States
Product Type: 3300 XL 8 mm Proximity Probe
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 150g
Dimensions: 150 mm x 150 mm x 40 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months
Option 00 (0 mm unthreaded length), Option 19 (190 mm overall case length), and Option 12 (FluidLoc cable with Miniature ClickLoc connector) specify this 3300 XL 8 mm proximity probe configuration — 330103-00-19-10-12-05. This unarmored probe operates on eddy-current technology to track shaft vibration and axial position. It features a metric M10 x 1 threaded body, a 1.0 m total cable length (Option 10), and carries CSA, ATEX, and IECEx hazardous area certifications (Option 05) for intrinsically safe installations.
Unlike standard coaxial cables, the integrated FluidLoc cable (Option 12) prevents lubricating oil, turbine fluids, or other process liquids from leaking out of the machine housing through the inner layers of the cable. The fully threaded case (0 mm unthreaded portion) provides robust mounting engagement inside deep-reach threaded bores, making it ideal for large turbine and compressor bearing casings where standard unthreaded neck lengths are unsuitable.
This proximity probe is used in critical rotating machinery protection systems. Typical applications include radial shaft vibration, axial thrust position, and reference speed/keyphase measurements on steam turbines, gas compressors, industrial pumps, and electrical generators, specifically in bearings or environments where fluid containment is critical.
| Option / Segment Code | This SKU Value | Description / Option Meaning |
|---|---|---|
| Orderable Part Number | 330103-00-19-10-12-05 | 3300 XL 8 mm Proximity Probe, M10 x 1 thread, without armor |
| A - Unthreaded Length Option | 00 | 0 mm unthreaded length (fully threaded case) |
| B - Overall Case Length Option | 19 | 190 mm overall case length (ordered in increments of 10 mm) |
| C - Total Length Option | 10 | 1.0 meter (3.3 feet) total probe cable length |
| D - Connector and Cable-Type Option | 12 | Miniature coaxial ClickLoc connector, FluidLoc cable (no connector protector) |
| E - Agency Approval Option | 05 | CSA, ATEX, and IECEx approvals |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Part Number | 330103-00-19-10-12-05 |
| Product Family | 3300 XL 8 mm Proximity Transducer System |
| Probe Diameter | 8.0 mm (0.31 in) |
| Thread Size | M10 x 1 metric thread |
| Armor Option | Without armor |
| Unthreaded Length | 0 mm (0.0 in) |
| Overall Case Length | 190 mm (7.48 in) |
| Total Cable Length | 1.0 meter (3.3 feet) |
| Cable Type | FluidLoc coaxial cable (prevents oil and liquid migration) |
| Connector Type | Miniature male coaxial ClickLoc connector |
| Target Material Calibration | AISI 4140 steel |
| Linear Range | 2.0 mm (80 mils) nominal linear range |
| Nominal Probe DC Resistance | 7.59 ohms (plus/minus 0.50 ohms) center conductor to outer conductor |
| Probe Case Torque Limit | Recommended mounting torque 11.2 Nm |
| Operating Temperature | -52 degC to +177 degC for probe; -51 degC to +260 degC for probe cable and connector |
| Pressure Rating | Designed to seal differential pressure between tip and case (Viton O-ring) |
| Dimensions | 150 mm x 150 mm x 40 mm (H x W x D) (coiled packaging) |
| Weight | 0.15 kg |
| Connector Contact | Signal Assignment |
|---|---|
| Center Conductor | RF Probe signal |
| Outer Conductor / Shield | Signal return / Common shield |
