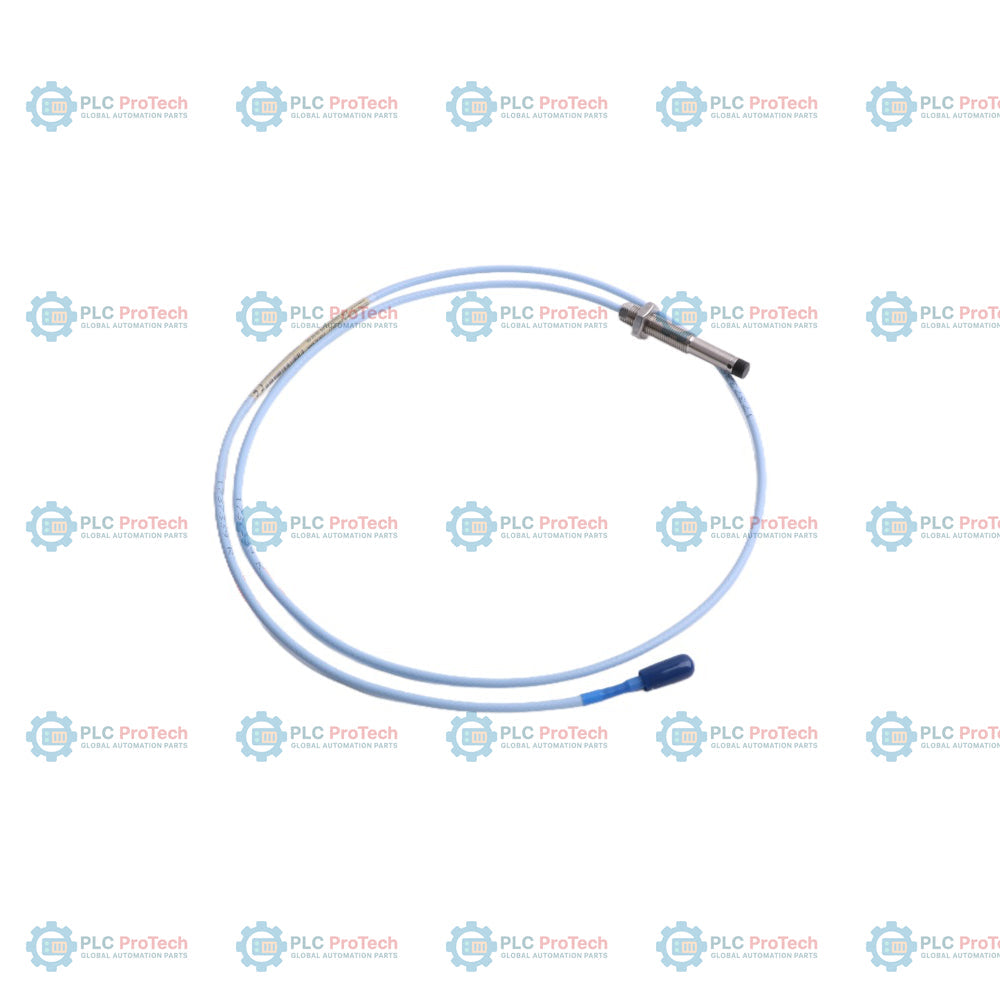

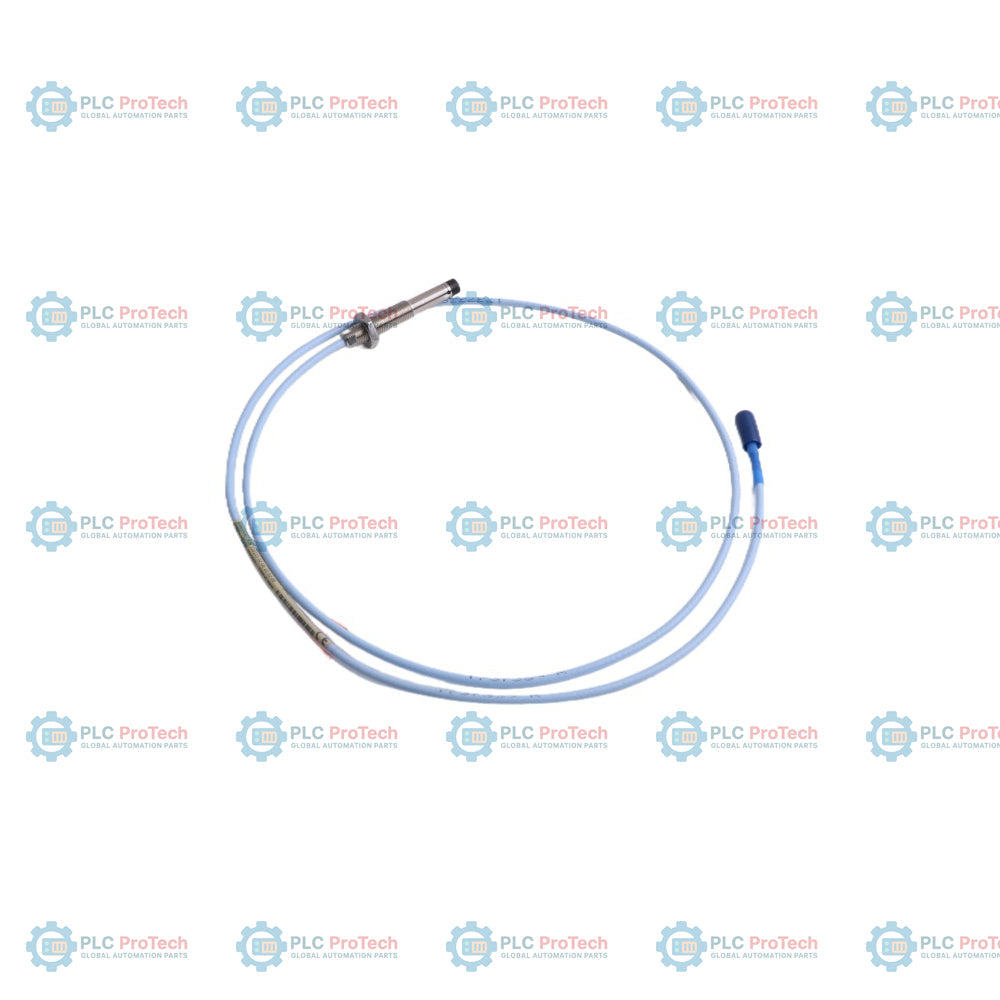

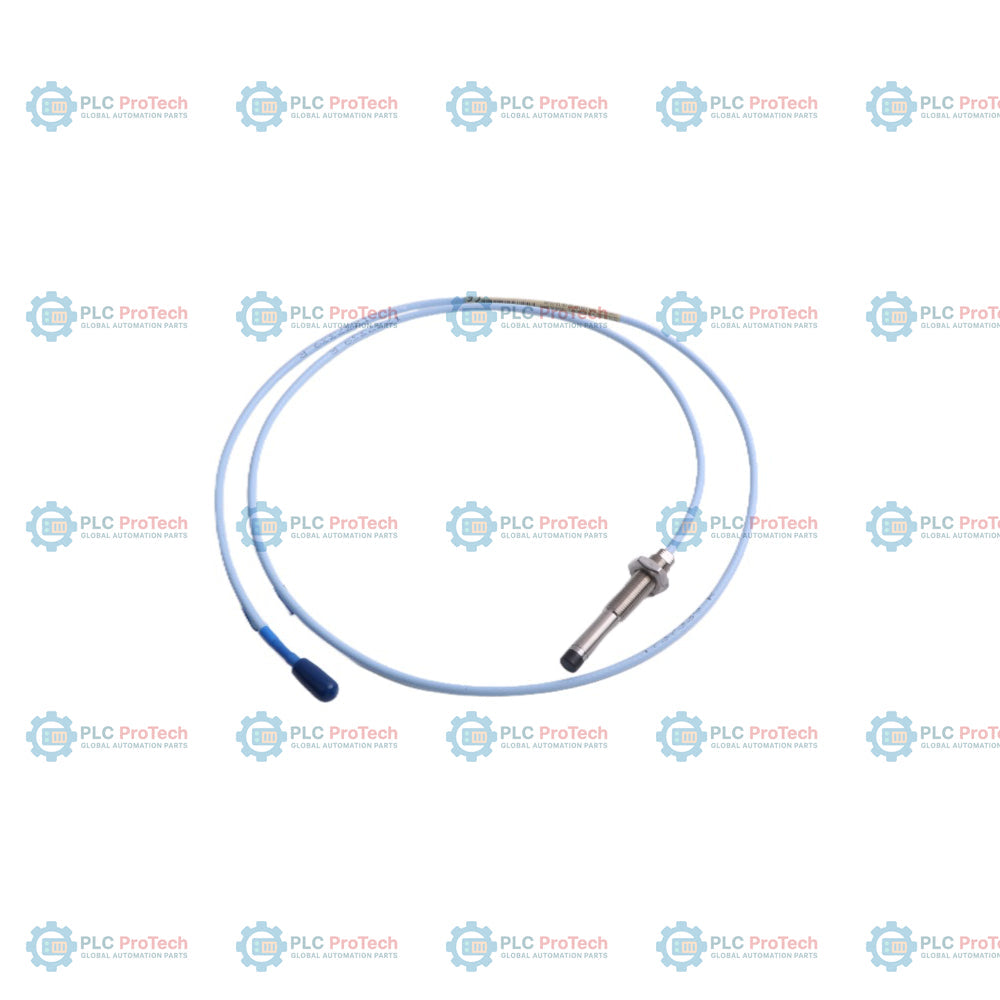

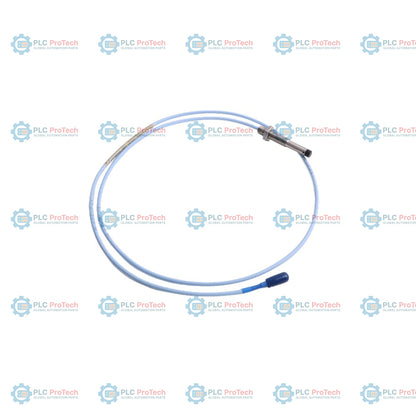

Bently Nevada 330103-02-06-10-02-05 3300 XL 8 mm Proximity Probe

Description

330103-02-06-10-02-05 is a 3300 XL 8 mm proximity probe configuration characterized by its 3/8-24 UNF threaded mounting with no connector protector (Option 02), 0.6 in (15 mm) case length (Option 06), 1.0 m (3.3 ft) total length (Option 10), and Standard miniature ClickLoc connector (Option 02). This transducer component functions as an integral part of the 3300 XL 8 mm proximity transducer system, providing non-contacting, eddy-current displacement measurement for monitoring critical rotating machinery.

The system is engineered to deliver accurate shaft vibration and axial position data when connected to a compatible 3300 XL Proximitor sensor and extension cable. This specific configuration, with its 1.0 m cable length and standard connector, is designed for installations where the cable length requirements match the specified system calibration. It provides the necessary signal transmission for monitoring axial position and shaft vibration, essential for protecting equipment such as turbines, compressors, and large pumps.

Features

• Option 02 (3/8-24 UNF) probe thread for standard mounting compatibility.
• Option 06 (0.6 in) case length suited for specific proximity to the target.
• Option 10 (1.0 m) system length, calibrated for this specific lead distance.
• Option 02 (Standard miniature ClickLoc) connector, providing a secure, reliable interface within the transducer chain.
• Option 05 (CSA, ATEX, IECEx) agency approvals for operation in hazardous environments.
• Compatible with all 3300 XL 8 mm Proximitor sensors and extension cables.
• Designed for continuous monitoring of radial vibration and axial position on rotating machinery.

Applications

• Fluid film bearing machinery (turbines, compressors, pumps).
• Shaft vibration monitoring.
• Axial (thrust) position measurement.
• Rotor-to-stator air gap measurement.
• Critical rotating equipment protection systems.

Ordering Information

Technical Specifications

Installation Guidelines

Ensure the probe is installed with the correct gap distance relative to the target surface, as specified in the 3300 XL monitoring system manual. Proper grounding and cable routing are critical to prevent signal noise; utilize shielded cable pathways away from high-power interference sources. When installing in hazardous areas, verify that the agency approval (Option 05: CSA, ATEX, IECEx) matches the installation site requirements and local safety codes.

Compliance and Certifications

This product carries certifications for hazardous locations (CSA, ATEX, IECEx) as denoted by Option 05. Ensure all installation practices conform to the specific safety and control drawing documentation provided with the system.
