Manufacturer: Bently Nevada
Product No.: 330104-00-05-10-02-05
Country of origin:United States
Product Type: 3300 XL 8 mm Proximity Probe
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 140g
Dimensions: 45 mm x 95 mm x 95 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months

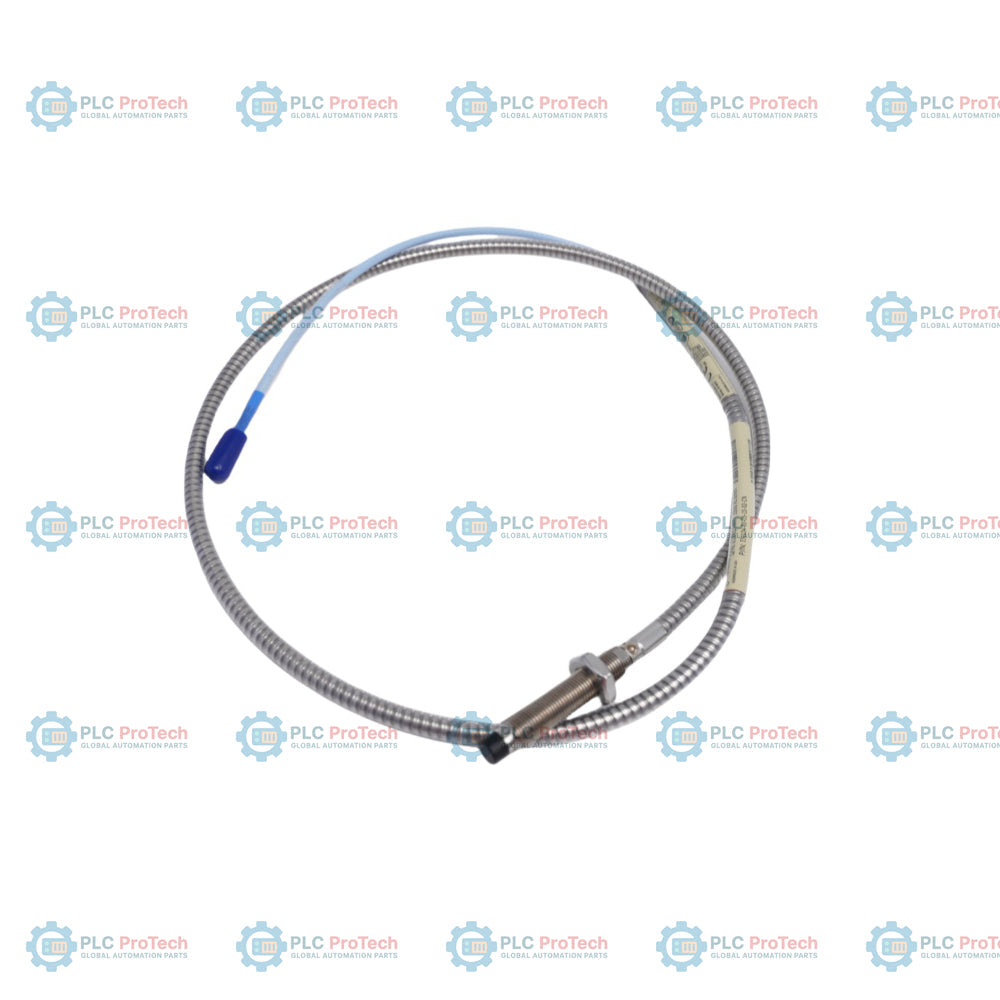

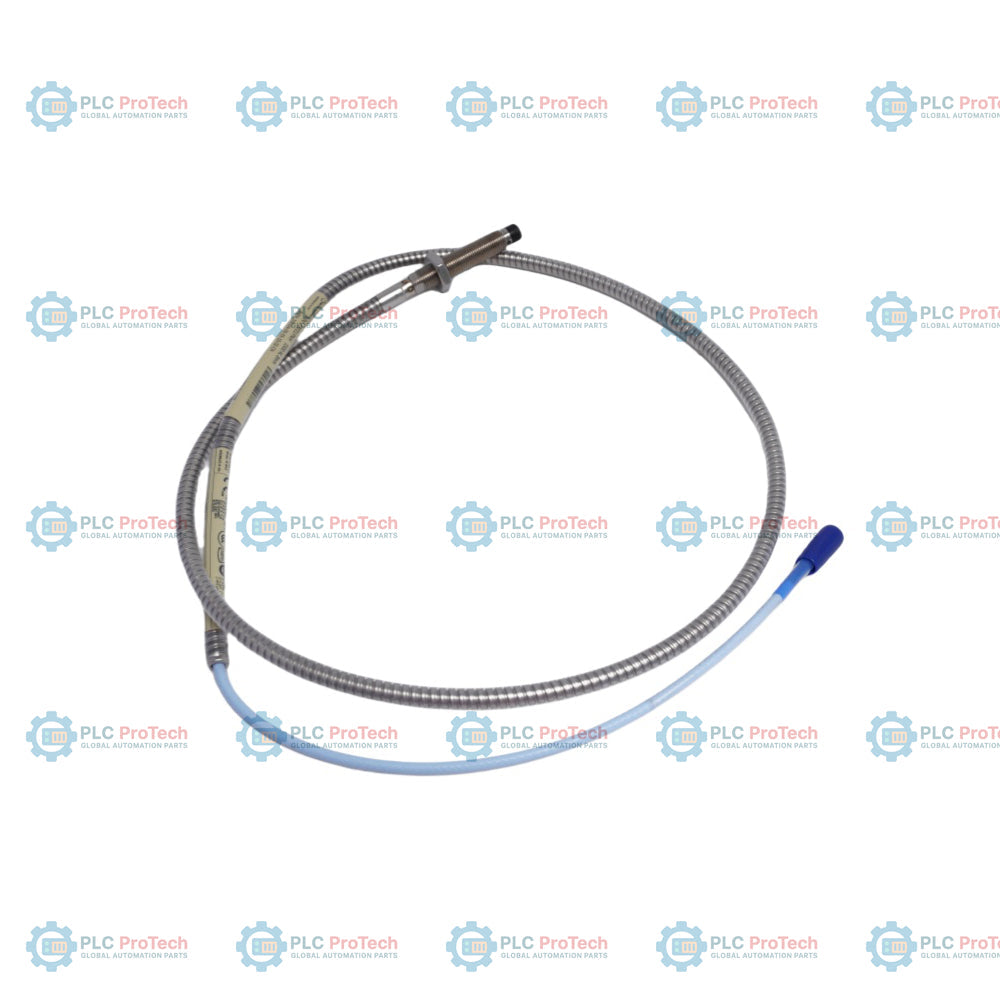

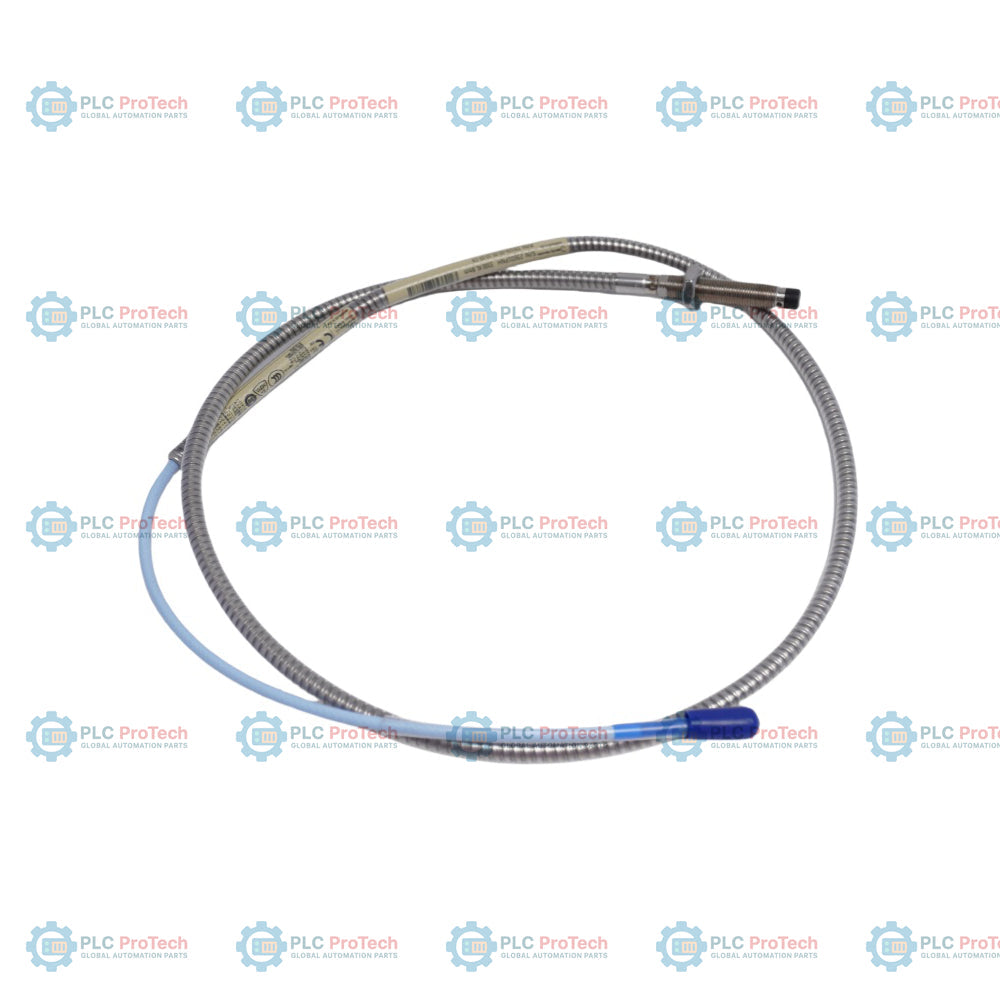

Option 00 (0.0 in unthreaded length), Option 05 (0.5 in case length), and Option 02 (miniature ClickLoc connector) specify this 330104-00-05-10-02-05 3300 XL 8 mm proximity probe configuration. This non-contact eddy-current transducer is a core component of the 3300 XL 8 mm monitoring chain, providing high-speed displacement measurement for rotating machinery.
This unit features a 1.0 m total length (Option 10) and is designed for hazardous area installations with CSA, ATEX, and IECEx approvals (Option 05). It is fully compatible with 3300 XL 330180 Proximitor sensors and 330130 extension cables, ensuring linear output over a 2 mm (80 mils) range in demanding industrial environments.
| Option | Code | Description |
| Orderable Part Number | 330104-00-05-10-02-05 | 3300 XL 8 mm Proximity Probe |
| A - Unthreaded Length | 00 | 0.0 in |
| B - Case Length | 05 | 0.5 in |
| C - Total Length | 10 | 1.0 m |
| D - Connector/Cable | 02 | Miniature ClickLoc connector, standard cable |
| E - Agency Approval | 05 | CSA, ATEX, IECEx |
| Manufacturer | Bently Nevada |
| Part Number | 330104-00-05-10-02-05 |
| Probe Diameter | 8 mm |
| Thread Size | 3/8-24 UNF-2A |
| Linear Range | 2 mm (80 mils) |
| Operating Temperature | -51 to +177 degC |
| Case Material | AISI 303 stainless steel |
| Connector Type | Miniature ClickLoc |
| Agency Approvals | CSA, ATEX, IECEx |
Ensure the probe is mounted in a suitable bracket to maintain the correct gap distance relative to the monitored shaft. The system requires a compatible 3300 XL Proximitor sensor (330180) and extension cable (330130). Use caution when routing the coaxial cable to prevent abrasion or sharp bends. In hazardous areas, ensure installation complies with the requirements specified in the relevant agency approval documentation.
This probe configuration (Option 05) meets CSA, ATEX, and IECEx requirements for hazardous area operation. Verify that the system installation conforms to local regulatory standards and the specific safety conditions listed in the product datasheet.
