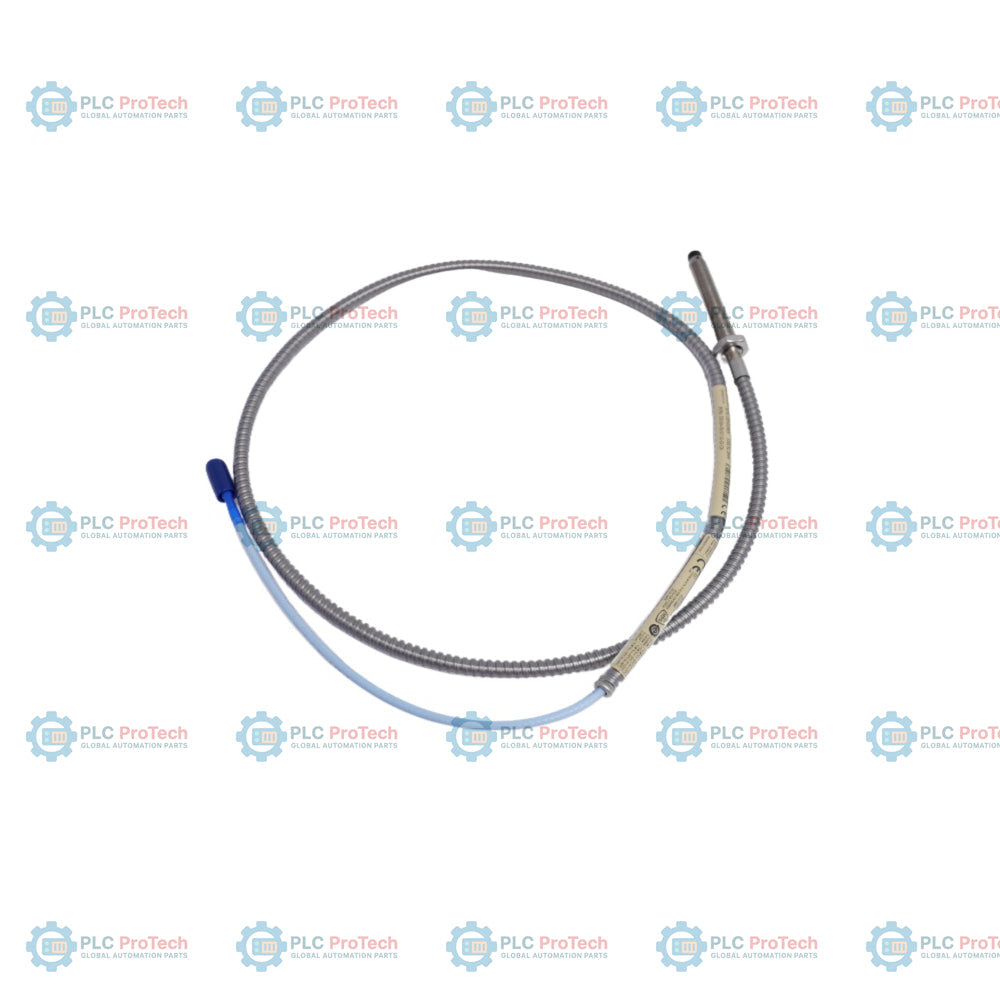

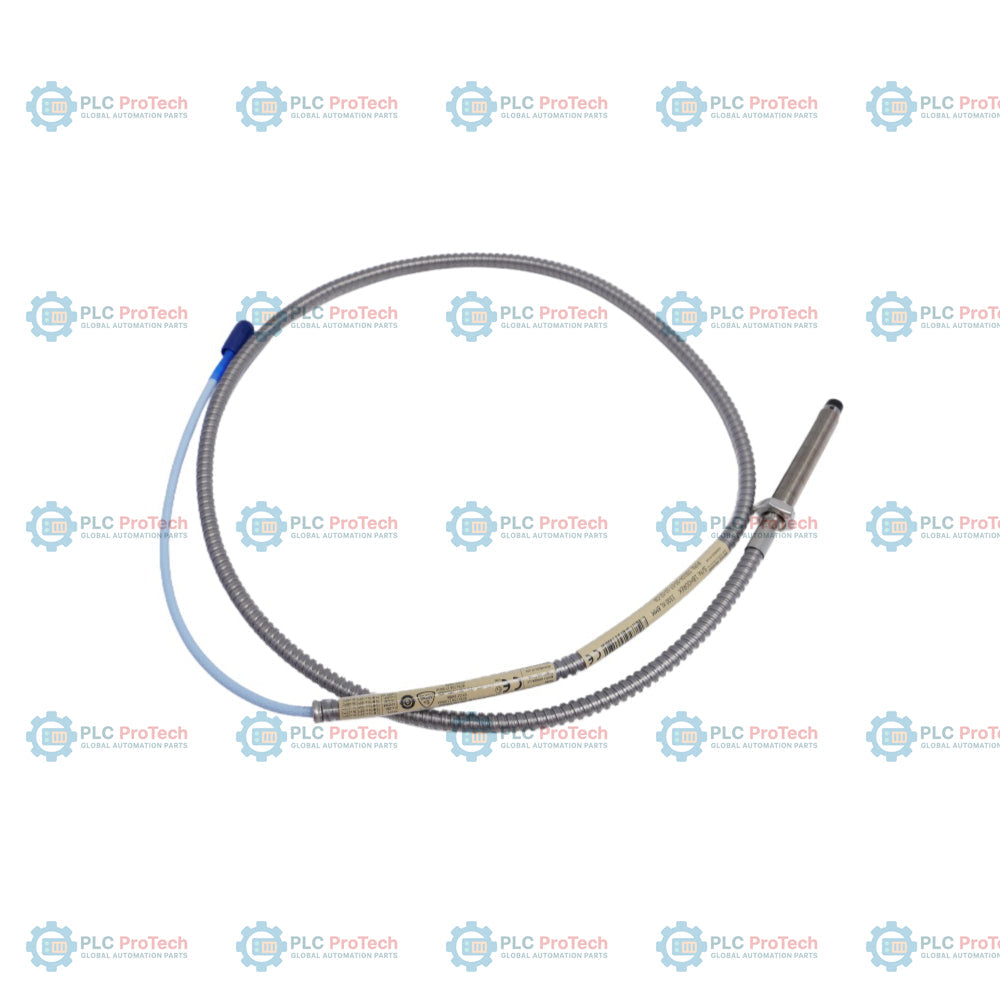

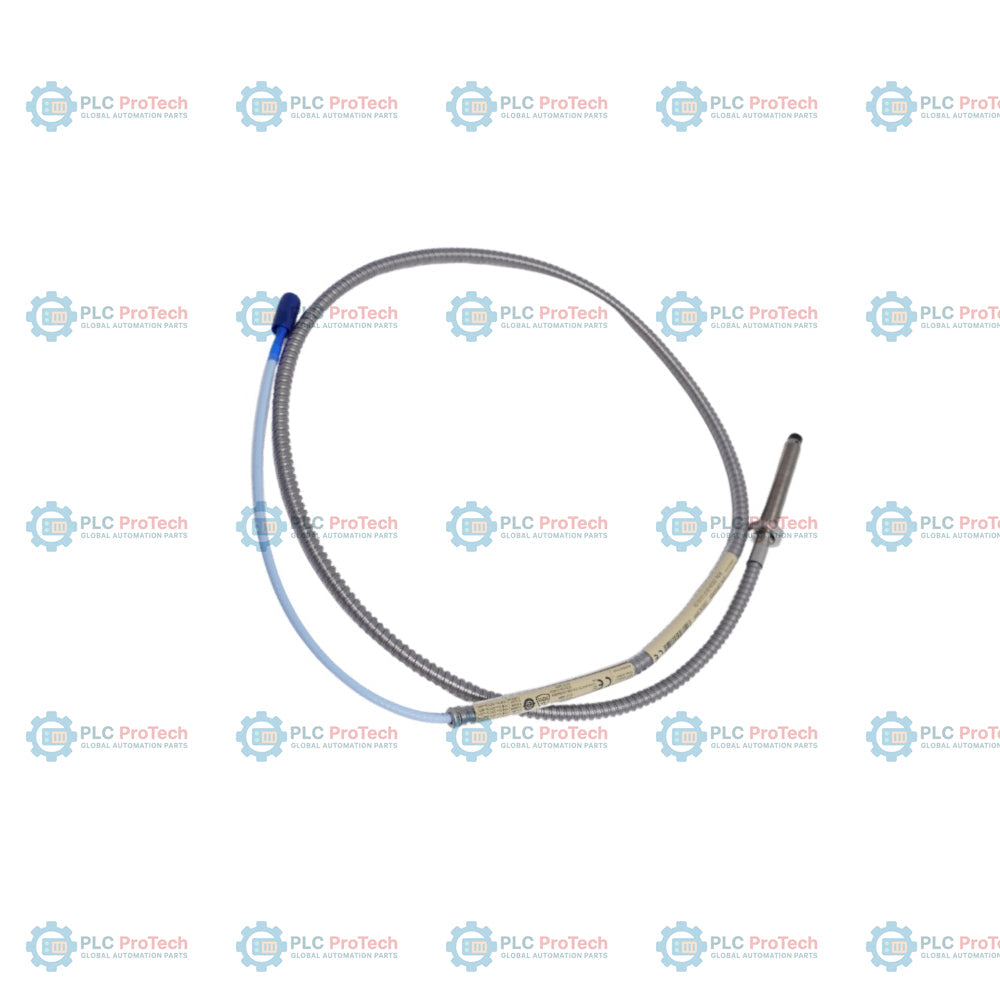

Bently Nevada 330104-00-07-10-02-05 3300 XL 8 mm Proximity Probe with Armor

SKU 330104-00-07-10-02-05

In stock
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Bently Nevada
  • Product No.: 330104-00-07-10-02-05
  • Origin United States
  • Product Type: 3300 XL 8 mm Proximity Probe
  • Barcode: 8537101190
  • Payment: T/T, Western Union
  • Weight: 0.15 kg
  • Dimensions: 105 mm x 105 mm x 25 mm (H x W x D)
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

3300 XL Proximity Probes

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Technical Datasheet

Bently Nevada 330104-00-07-10-02-05 3300 XL 8 mm Proximity Probe with Armor

Download Open in new tab
Quantity
Call sales Contact

Product Description

Description

330104-00-07-10-02-05 specifies a 3300 XL 8 mm proximity probe configured with M10 x 1 metric threads, a fully threaded 70 mm case, integrated stainless steel armor, a 1.0-meter overall length, and CSA, ATEX, and IECEx approvals.

This configuration incorporates an unarmored tip followed by a stainless steel armored cable jacket to withstand harsh industrial wear. The miniature coaxial ClickLoc connector is supplied without a connector protector (Option 02) and connects standard coaxial field wiring to a Proximitor sensor. It operates as part of an eddy-current transducer system to monitor machinery shaft vibration, position, or speed.

Features

  • M10 x 1 metric thread structure with 0 mm unthreaded length (Option 00) for complete thread engagement.
  • 70 mm overall case length (Option 07) suitable for shallow-depth machine case installations.
  • 1.0 meter (3.3 feet) overall system cable length (Option 10) matching 9-meter or 5-meter monitoring system requirements.
  • Stainless steel armored cable provides mechanical protection against abrasion and physical damage.
  • Miniature coaxial ClickLoc connector (Option 02) offers tool-free gold-plated click connection.
  • Agency approval Option 05 qualifies the probe for ATEX, IECEx, and CSA hazardous location installations.

Applications

This proximity probe is used in machinery protection systems to monitor rotating equipment parameters. Common industrial deployments include:

  • Radial shaft vibration monitoring on steam turbines, gas turbines, and industrial compressors.
  • Axial thrust position tracking on high-speed pumps and gearboxes.
  • Keyphasor and speed measurements on industrial machinery shafts.
  • Machinery condition monitoring in petrochemical, power generation, and water treatment plants.

Ordering Information

Option Segment Code Value Meaning / Description
Orderable Part Number 330104-00-07-10-02-05 3300 XL 8 mm probe, M10 x 1 thread, with armor
A - Unthreaded Length Option 00 0 mm (fully threaded case)
B - Overall Case Length Option 07 70 mm case length
C - Total Length Option 10 1.0 meter (3.3 feet) total length
D - Connector and Cable-Type Option 02 Miniature coaxial ClickLoc connector, standard cable
E - Agency Approval Option 05 CSA, ATEX, IECEx Approvals

Technical Specifications

Parameter Specification Value
Manufacturer Bently Nevada (Baker Hughes)
Part Number 330104-00-07-10-02-05
Product Series 3300 XL 8 mm Proximity Transducer System
Thread Type M10 x 1 metric thread
Unthreaded Length (Option A) 0 mm
Case Length (Option B) 70 mm
Total Probe Length (Option C) 1.0 meter (3.3 feet)
Connector Type (Option D) Miniature coaxial ClickLoc connector, standard cable (no connector protector)
Armor Type Integrated stainless steel armor
Agency Approvals (Option E) CSA, ATEX, IECEx hazardous area approvals
Nominal Probe DC Resistance 7.59 ohms +/- 0.50 ohms (center conductor to outer conductor)
Operating Temperature Range -52 degC to +177 degC (-62 degF to +350 degF)
Differential Pressure Seal Designed to seal up to 10.3 bar (150 psi) using Viton O-ring
Probe Tip Diameter 8.0 mm (0.31 in)
Minimum Target Size 15.2 mm (0.6 in) diameter (AISI 4140 steel target)
Dimensions 105 mm x 105 mm x 25 mm (H x W x D)
Weight 0.15 kg

Installation Guidelines

  • Verify that the total combined length of the probe and extension cable matches the calibrated length of the Proximitor sensor (typically 5 or 9 meters total).
  • Ensure correct probe gap during installation (typically gapped at 1.27 mm or 50 mils for mid-range operation).
  • Tighten the M10 x 1 threads to the proper installation torque; do not exceed 15 Nm (11 ft-lb) to avoid case damage.
  • Ensure the miniature coaxial ClickLoc connectors are connected finger-tight. Avoid using heavy pliers which can damage the gold plating.
  • Route the armored cable away from sharp edges, high-temperature conduits, and high-voltage power sources to minimize electrical noise interference.

Compliance and Certifications

  • ATEX: Flameproof and intrinsically safe approvals for hazardous zones (with compatible barriers)
  • IECEx: International hazardous area certification
  • CSA: North American safety approval for Class I, Division 1 and Division 2 locations
  • CE: Conformity marking for electromagnetic compatibility
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What does the 00-07 segment indicate in the Bently Nevada 330104-00-07-10-02-05 probe?
The first option (00) represents 0 mm of unthreaded probe case length, meaning the M10 x 1 case is fully threaded. The second option (07) specifies a 70 mm overall case length.
Does this specific 330104-00-07-10-02-05 model include armored cable protection?
Yes, the 330104 series probes feature an integrated stainless steel armored jacket over the coaxial cable to shield against mechanical abrasion and cuts in industrial environments.
What is the total length of this proximity probe?
This probe has a total length of 1.0 meter (approx. 3.3 feet), indicated by the total length option code 10.
Can this probe be connected directly to a controller or DCS?
No, this probe must be paired with a compatible 3300 XL extension cable and a 3300 XL Proximitor sensor (totaling a 5-meter or 9-meter matched system) to output a standard proportional voltage signal.
Reviews

More from this brand

Bently Nevada 3300/16-11-01-02-03-02-00 PWA 86739-01 Dual Vibration Monitor
3300/16-11-01-02-03-02-00 86739-01Bently Nevada 3300/16-11-01-02-03-02-00 PWA 86739-01 Dual Vibration Monitor
Bently Nevada 330180-X0-00 MOD 161255-02 3300 XL 5/8 mm Proximitor Sensor
330180-X0-00 161255-02Bently Nevada 330180-X0-00 MOD 161255-02 3300 XL 5/8 mm Proximitor Sensor
Bently Nevada 79492-01 3300/35 Six-Channel RTD Temperature Monitor
Bently Nevada 79492-01 3300/35 Six-Channel RTD Temperature Monitor
Bently Nevada 3500/25 125800-01 Keyphasor I/O Module | PWA 184389-01
3500/25 125800-01Bently Nevada 3500/25 125800-01 Keyphasor I/O Module | PWA 184389-01

330104-00-07-10-02-05

Stock & lead time on request

Call
  • Bently Nevada 330104-00-07-10-02-05
  • Bently Nevada 330104-00-07-10-02-05
  • Bently Nevada 330104-00-07-10-02-05
1 3

Bently Nevada 330104-00-07-10-02-05 3300 XL 8 mm Proximity Probe with Armor

Only 7 item(s) left in stock

  • Manufacturer: Bently Nevada

  • Product No.: 330104-00-07-10-02-05

  • Country of origin:United States

  • Product Type: 3300 XL 8 mm Proximity Probe

  • Barcode: 8537101190

  • Payment: T/T, Western Union

  • Weight: 150g

  • Dimensions: 105 mm x 105 mm x 25 mm (H x W x D)

  • Shipping port: Xiamen

  • Warranty: 12 months

View full details
Product Description
FAQ
Shipping Returns
Additional details
Reviews

Description

330104-00-07-10-02-05 specifies a 3300 XL 8 mm proximity probe configured with M10 x 1 metric threads, a fully threaded 70 mm case, integrated stainless steel armor, a 1.0-meter overall length, and CSA, ATEX, and IECEx approvals.

This configuration incorporates an unarmored tip followed by a stainless steel armored cable jacket to withstand harsh industrial wear. The miniature coaxial ClickLoc connector is supplied without a connector protector (Option 02) and connects standard coaxial field wiring to a Proximitor sensor. It operates as part of an eddy-current transducer system to monitor machinery shaft vibration, position, or speed.

Features

  • M10 x 1 metric thread structure with 0 mm unthreaded length (Option 00) for complete thread engagement.
  • 70 mm overall case length (Option 07) suitable for shallow-depth machine case installations.
  • 1.0 meter (3.3 feet) overall system cable length (Option 10) matching 9-meter or 5-meter monitoring system requirements.
  • Stainless steel armored cable provides mechanical protection against abrasion and physical damage.
  • Miniature coaxial ClickLoc connector (Option 02) offers tool-free gold-plated click connection.
  • Agency approval Option 05 qualifies the probe for ATEX, IECEx, and CSA hazardous location installations.

Applications

This proximity probe is used in machinery protection systems to monitor rotating equipment parameters. Common industrial deployments include:

  • Radial shaft vibration monitoring on steam turbines, gas turbines, and industrial compressors.
  • Axial thrust position tracking on high-speed pumps and gearboxes.
  • Keyphasor and speed measurements on industrial machinery shafts.
  • Machinery condition monitoring in petrochemical, power generation, and water treatment plants.

Ordering Information

Option Segment Code Value Meaning / Description
Orderable Part Number 330104-00-07-10-02-05 3300 XL 8 mm probe, M10 x 1 thread, with armor
A - Unthreaded Length Option 00 0 mm (fully threaded case)
B - Overall Case Length Option 07 70 mm case length
C - Total Length Option 10 1.0 meter (3.3 feet) total length
D - Connector and Cable-Type Option 02 Miniature coaxial ClickLoc connector, standard cable
E - Agency Approval Option 05 CSA, ATEX, IECEx Approvals

Technical Specifications

Parameter Specification Value
Manufacturer Bently Nevada (Baker Hughes)
Part Number 330104-00-07-10-02-05
Product Series 3300 XL 8 mm Proximity Transducer System
Thread Type M10 x 1 metric thread
Unthreaded Length (Option A) 0 mm
Case Length (Option B) 70 mm
Total Probe Length (Option C) 1.0 meter (3.3 feet)
Connector Type (Option D) Miniature coaxial ClickLoc connector, standard cable (no connector protector)
Armor Type Integrated stainless steel armor
Agency Approvals (Option E) CSA, ATEX, IECEx hazardous area approvals
Nominal Probe DC Resistance 7.59 ohms +/- 0.50 ohms (center conductor to outer conductor)
Operating Temperature Range -52 degC to +177 degC (-62 degF to +350 degF)
Differential Pressure Seal Designed to seal up to 10.3 bar (150 psi) using Viton O-ring
Probe Tip Diameter 8.0 mm (0.31 in)
Minimum Target Size 15.2 mm (0.6 in) diameter (AISI 4140 steel target)
Dimensions 105 mm x 105 mm x 25 mm (H x W x D)
Weight 0.15 kg

Installation Guidelines

  • Verify that the total combined length of the probe and extension cable matches the calibrated length of the Proximitor sensor (typically 5 or 9 meters total).
  • Ensure correct probe gap during installation (typically gapped at 1.27 mm or 50 mils for mid-range operation).
  • Tighten the M10 x 1 threads to the proper installation torque; do not exceed 15 Nm (11 ft-lb) to avoid case damage.
  • Ensure the miniature coaxial ClickLoc connectors are connected finger-tight. Avoid using heavy pliers which can damage the gold plating.
  • Route the armored cable away from sharp edges, high-temperature conduits, and high-voltage power sources to minimize electrical noise interference.

Compliance and Certifications

  • ATEX: Flameproof and intrinsically safe approvals for hazardous zones (with compatible barriers)
  • IECEx: International hazardous area certification
  • CSA: North American safety approval for Class I, Division 1 and Division 2 locations
  • CE: Conformity marking for electromagnetic compatibility
Key Features:
#3300 XL #Proximity Probes

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Technical Datasheet

Bently Nevada 330104-00-07-10-02-05 3300 XL 8 mm Proximity Probe with Armor

Download Open in new tab

What does the 00-07 segment indicate in the Bently Nevada 330104-00-07-10-02-05 probe?
The first option (00) represents 0 mm of unthreaded probe case length, meaning the M10 x 1 case is fully threaded. The second option (07) specifies a 70 mm overall case length.

Does this specific 330104-00-07-10-02-05 model include armored cable protection?
Yes, the 330104 series probes feature an integrated stainless steel armored jacket over the coaxial cable to shield against mechanical abrasion and cuts in industrial environments.

What is the total length of this proximity probe?
This probe has a total length of 1.0 meter (approx. 3.3 feet), indicated by the total length option code 10.

Can this probe be connected directly to a controller or DCS?
No, this probe must be paired with a compatible 3300 XL extension cable and a 3300 XL Proximitor sensor (totaling a 5-meter or 9-meter matched system) to output a standard proportional voltage signal.

Global Express Shipping

  • Standard Delivery: 4-6 Business Days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries, including rapid delivery to Saudi Arabia and UAE.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our professional technical warranty.

Orders are processed and delivered Monday-Friday (excluding public holidays).


For full eligibility, restocking fees, and international return details, please view our official Refund & Return Policy .

TECHNICAL SPECIFICATIONS

Country of origin
United States

Recently Viewed Products

Technical knowledge

Implementing 3-Switch XOR Ladder Logic with Internal Bit — figure 1

Implementing 3-Switch XOR Ladder Logic with Internal Bit

Implement a 3-SPST switch XOR light circuit in LogixPro or RSLogix 500 using an internal relay bit. Includes truth tables, boolean equations, and verified.

Building a Modbus RTU Network with CompactLogix and DeltaV — figure 1

Building a Modbus RTU Network with CompactLogix and DeltaV

Integrate Allen-Bradley CompactLogix, Caterpillar ATS, and generators into DeltaV DCS over Modbus RTU. Covers ProSoft MVI69-MCM, Miille DIN266 gateways.

ONS Instruction Not Energizing OTE in Studio 5000 Ladder Logic — figure 1

ONS Instruction Not Energizing OTE in Studio 5000 Ladder Logic

ONS instruction fires but the OTE coil never latches in Studio 5000 because the one-shot is only true for one scan. Use OTL/OTU or seal-in logic instead.

Kinetix 5500 EtherNet/IP Network Switch Requirements and Topology — figure 1

Kinetix 5500 EtherNet/IP Network Switch Requirements and Topology

Configure Allen-Bradley Kinetix 5500 servo drives on EtherNet/IP. Covers CIP Sync, IEEE 1588 V2 timing, Stratix selection, DLR topology, and HMI.

Honeywell Experion PKS C300 Series C controller (CC-PCNT05) in a DCS cabinet with FTE A/B indicators

Moving Average Filtering in DCS and PLC Analog Control

A moving-average filter is the sliding-window smoother most instrument engineers drop into DCS and PLC analog paths. Here is how the window works, how N and sample time set lag, and when a...

GE Mark VIe turbine control hardware: Ethernet switch, terminal board, I/O packs, and rack controller cards

GE Mark VI Function Blocks for Gas Turbine Control Logic

On Frame 5–9 gas turbines, GE Mark VI and Mark VIe run control as function-block application software. This article maps process, protection, and sequencing functions—and what Toolbox ST access...
