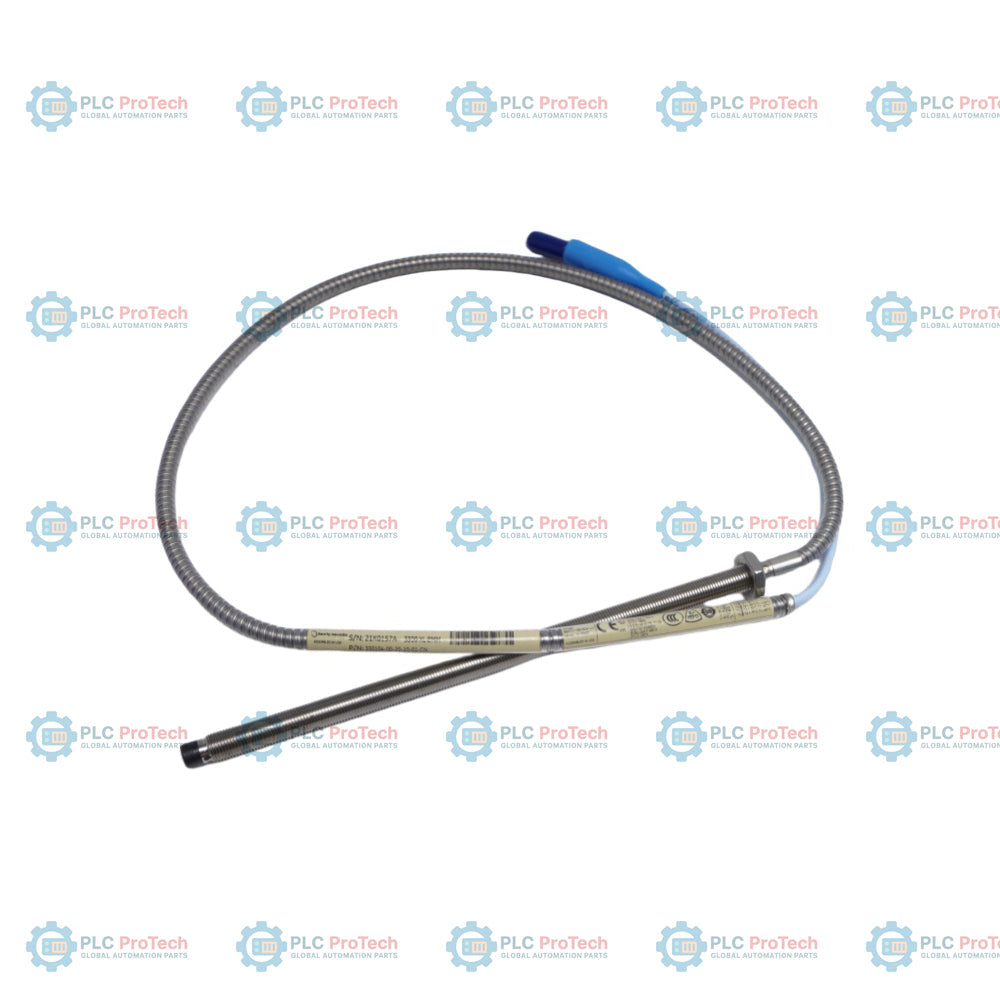

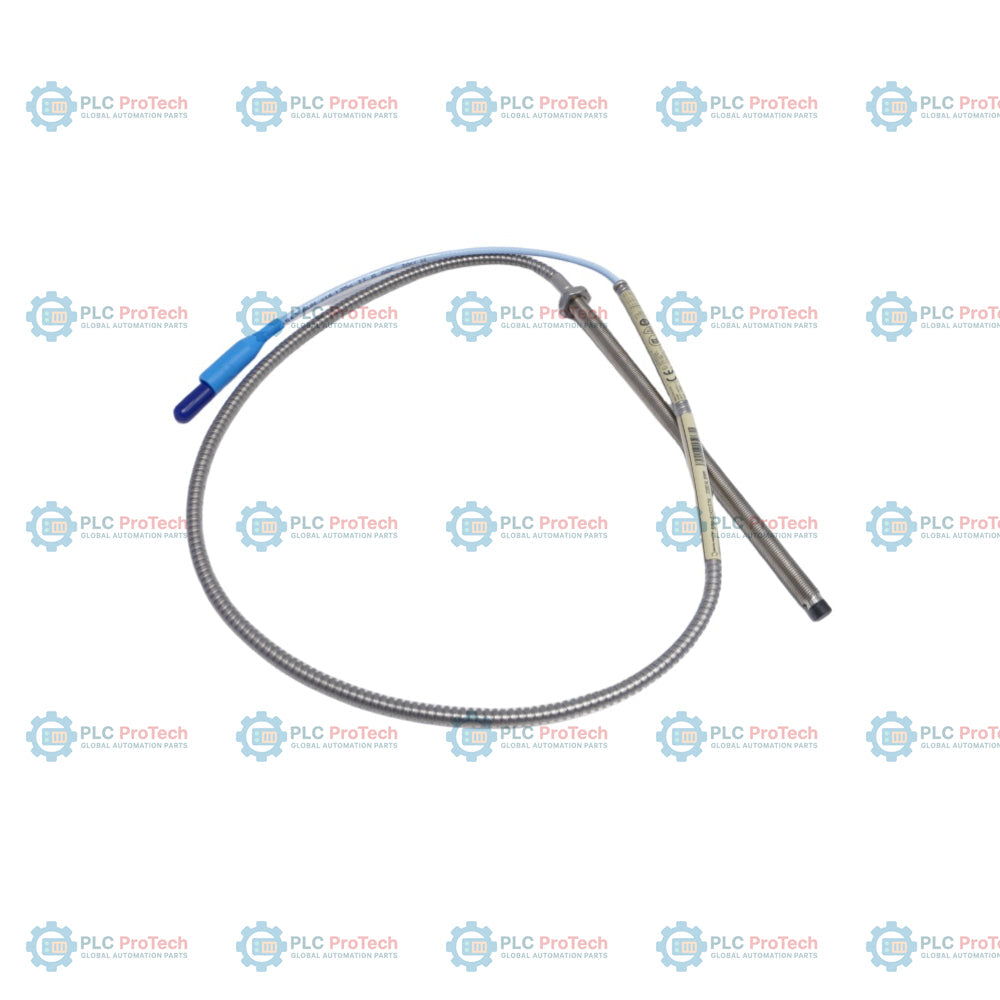

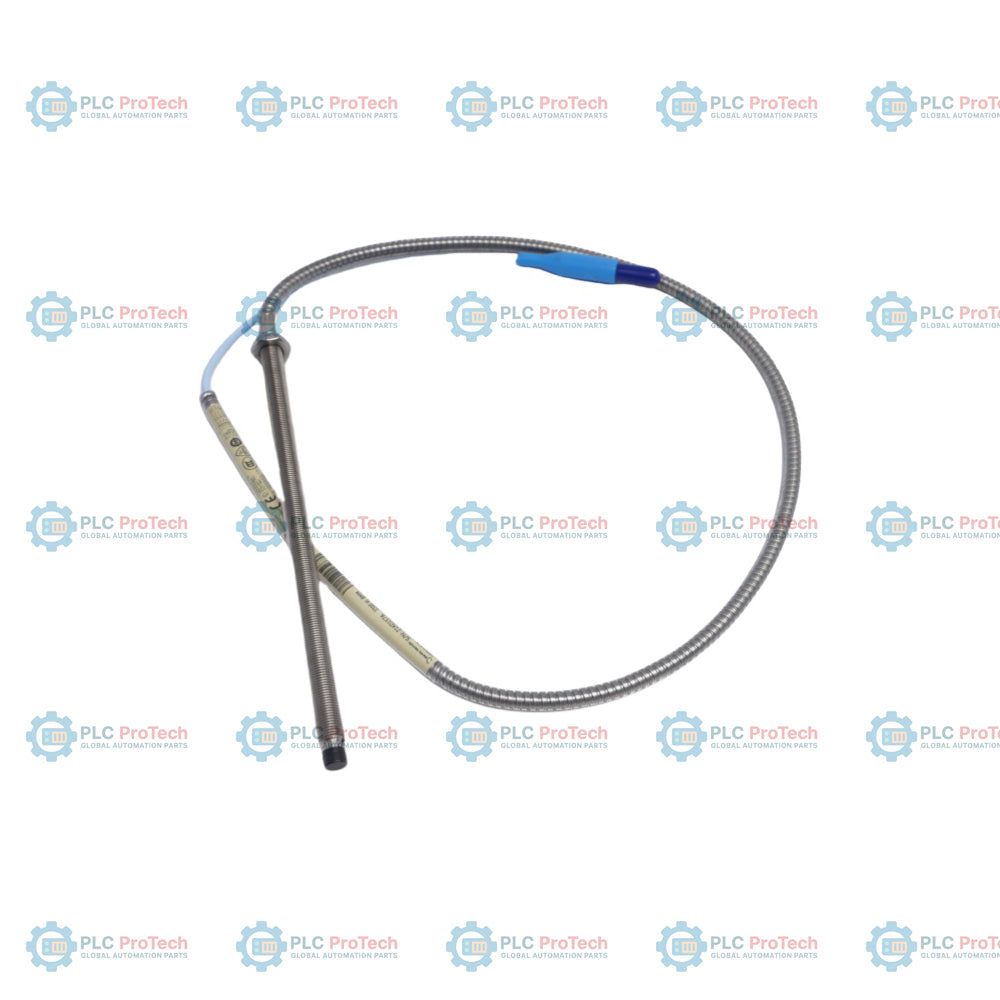

330104-00-20-15-12-05: 3300 XL 8 mm proximity probe configured with M10 x 1 metric threads, stainless steel armor, 0 mm unthreaded length, 200 mm overall case length, 1.5 m total cable length, FluidLoc cable with a miniature ClickLoc coaxial connector, and CSA/ATEX/IECEx hazardous area approvals.
Unlike non-armored variants such as the 330103, this 330104 model includes integrated stainless steel armor to shield the coaxial cable against physical damage and abrasive environments. The FluidLoc cable configuration (Option 12) prevents oil or other process fluids from leaking along the internal cable structure, making it distinct from standard cable configurations (Option 02). This specific configuration serves applications that demand a medium-length metric case and hazardous area certifications without requiring an integrated connector protector.
Vibration and position measurements on fluid-film bearing machines, Keyphasor reference measurements, and shaft speed monitoring. Used in industrial machinery environments such as power generation turbines, compressors, pumps, and motors. This armored version is used in environments with exposure to oil, steam, process chemicals, or mechanical hazards that require physical cable protection.
| Option | Code on This SKU | Description |
|---|---|---|
| Orderable Part Number | 330104-00-20-15-12-05 | 3300 XL 8 mm Proximity Probe with Armor, Metric |
| A - Unthreaded Length Option | 00 | 0 mm unthreaded length |
| B - Overall Case Length Option | 20 | 200 mm overall case length |
| C - Total Length Option | 15 | 1.5 meters (4.9 feet) |
| D - Connector and Cable-Type Option | 12 | Miniature coaxial ClickLoc connector, FluidLoc cable |
| E - Agency Approval Option | 05 | CSA, ATEX, IECEx Approvals |
| Parameter | Value |
|---|---|
| Manufacturer | Bently Nevada (Baker Hughes) |
| Part Number/Model | 330104-00-20-15-12-05 |
| Probe Tip Diameter | 8.0 mm (0.31 in) |
| Case Thread Size | M10 x 1 |
| Case Material | 303 stainless steel |
| Cable Type | FEP insulated FluidLoc coaxial cable |
| Armor Material | Stainless steel (FEP or PFA coated options available) |
| Connector Type | Miniature coaxial ClickLoc male |
| Nominal Probe DC Resistance | 7.73 ohms +/- 0.50 ohms (center conductor to outer conductor) |
| Operating Temperature Range | -52 degC to +177 degC |
| Probe Pressure Rating | Seals differential pressure up to 7.0 bar (100 psi) |
| System Compatibility | Pairs with 3300 XL Proximitor Sensor and 3300 XL Extension Cable |
| Target Material | AISI 4140 steel (standard target material) |
| Weight | 0.22 kg |
| Dimensions | 200 mm x 10.2 mm x 10.2 mm (H x W x D) |
| Connector Contact | Signal |
|---|---|
| Center Conductor | RF Signal (from Proximitor Sensor) |
| Outer Shield / Conductor | Common / Return |
The maximum length of thread engagement for M10 x 1 probe cases is 15 mm. Ensure the threaded mount has a matching class fit to prevent binding during installation. Tighten the ClickLoc coaxial connector only to finger tight. Maintain a minimum cable bend radius of 25.4 mm (1.0 in) for the armored coaxial cable. Standard system grounding must be followed, ensuring the probe case is isolated from external electrical noise or properly tied to machine ground.
Global Express Shipping
Returns & Warranty
Manufacturer: Bently Nevada
Product No.: 330104-00-20-15-12-05
Country of origin:United States
Product Type: 3300 XL 8 mm Proximity Probe
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 220g
Dimensions: 200 mm x 10.2 mm x 10.2 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months
330104-00-20-15-12-05: 3300 XL 8 mm proximity probe configured with M10 x 1 metric threads, stainless steel armor, 0 mm unthreaded length, 200 mm overall case length, 1.5 m total cable length, FluidLoc cable with a miniature ClickLoc coaxial connector, and CSA/ATEX/IECEx hazardous area approvals.
Unlike non-armored variants such as the 330103, this 330104 model includes integrated stainless steel armor to shield the coaxial cable against physical damage and abrasive environments. The FluidLoc cable configuration (Option 12) prevents oil or other process fluids from leaking along the internal cable structure, making it distinct from standard cable configurations (Option 02). This specific configuration serves applications that demand a medium-length metric case and hazardous area certifications without requiring an integrated connector protector.
Vibration and position measurements on fluid-film bearing machines, Keyphasor reference measurements, and shaft speed monitoring. Used in industrial machinery environments such as power generation turbines, compressors, pumps, and motors. This armored version is used in environments with exposure to oil, steam, process chemicals, or mechanical hazards that require physical cable protection.
| Option | Code on This SKU | Description |
|---|---|---|
| Orderable Part Number | 330104-00-20-15-12-05 | 3300 XL 8 mm Proximity Probe with Armor, Metric |
| A - Unthreaded Length Option | 00 | 0 mm unthreaded length |
| B - Overall Case Length Option | 20 | 200 mm overall case length |
| C - Total Length Option | 15 | 1.5 meters (4.9 feet) |
| D - Connector and Cable-Type Option | 12 | Miniature coaxial ClickLoc connector, FluidLoc cable |
| E - Agency Approval Option | 05 | CSA, ATEX, IECEx Approvals |
| Parameter | Value |
|---|---|
| Manufacturer | Bently Nevada (Baker Hughes) |
| Part Number/Model | 330104-00-20-15-12-05 |
| Probe Tip Diameter | 8.0 mm (0.31 in) |
| Case Thread Size | M10 x 1 |
| Case Material | 303 stainless steel |
| Cable Type | FEP insulated FluidLoc coaxial cable |
| Armor Material | Stainless steel (FEP or PFA coated options available) |
| Connector Type | Miniature coaxial ClickLoc male |
| Nominal Probe DC Resistance | 7.73 ohms +/- 0.50 ohms (center conductor to outer conductor) |
| Operating Temperature Range | -52 degC to +177 degC |
| Probe Pressure Rating | Seals differential pressure up to 7.0 bar (100 psi) |
| System Compatibility | Pairs with 3300 XL Proximitor Sensor and 3300 XL Extension Cable |
| Target Material | AISI 4140 steel (standard target material) |
| Weight | 0.22 kg |
| Dimensions | 200 mm x 10.2 mm x 10.2 mm (H x W x D) |
| Connector Contact | Signal |
|---|---|
| Center Conductor | RF Signal (from Proximitor Sensor) |
| Outer Shield / Conductor | Common / Return |
The maximum length of thread engagement for M10 x 1 probe cases is 15 mm. Ensure the threaded mount has a matching class fit to prevent binding during installation. Tighten the ClickLoc coaxial connector only to finger tight. Maintain a minimum cable bend radius of 25.4 mm (1.0 in) for the armored coaxial cable. Standard system grounding must be followed, ensuring the probe case is isolated from external electrical noise or properly tied to machine ground.
