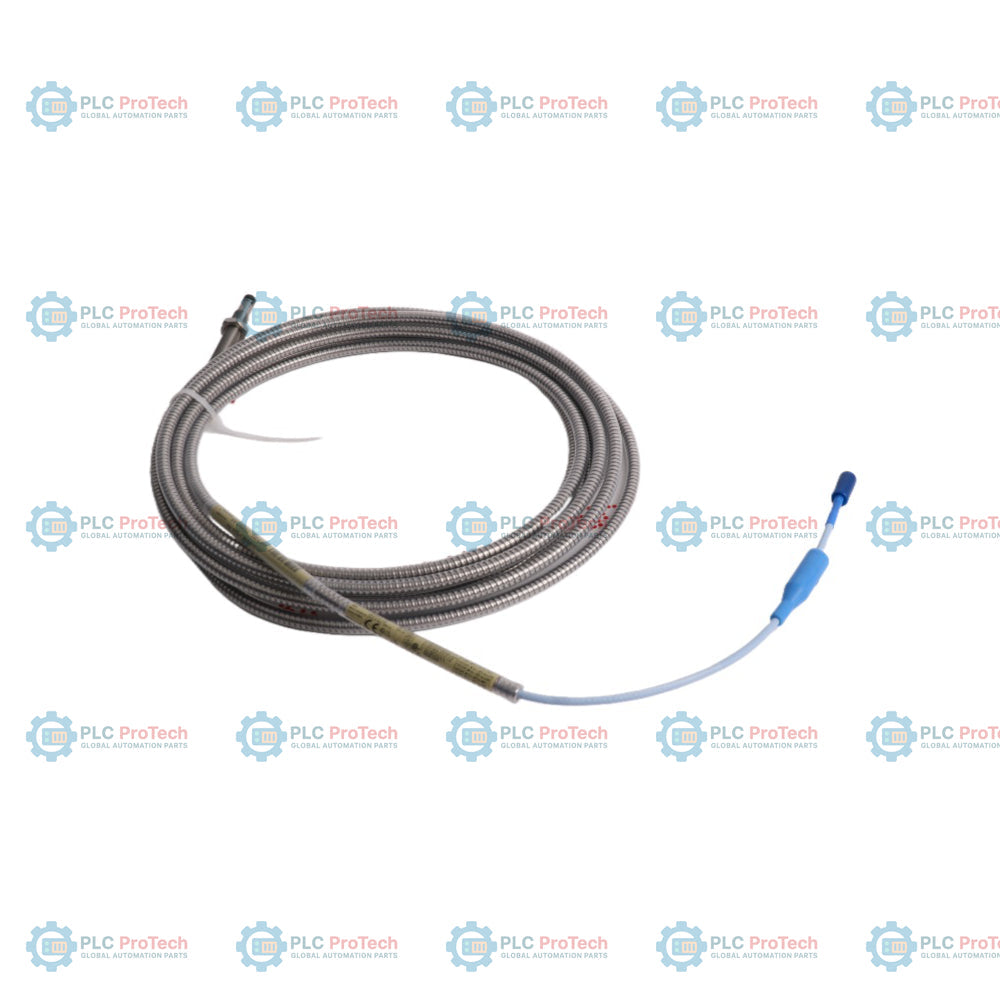

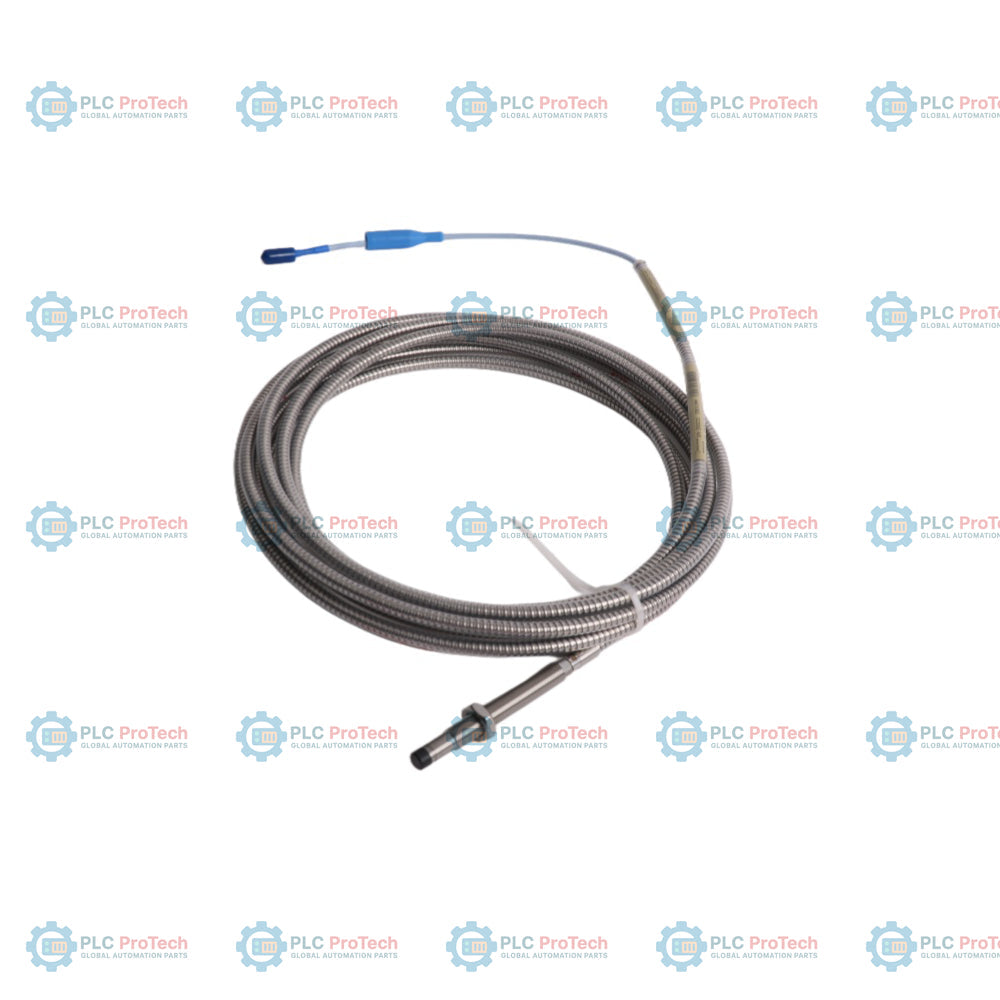

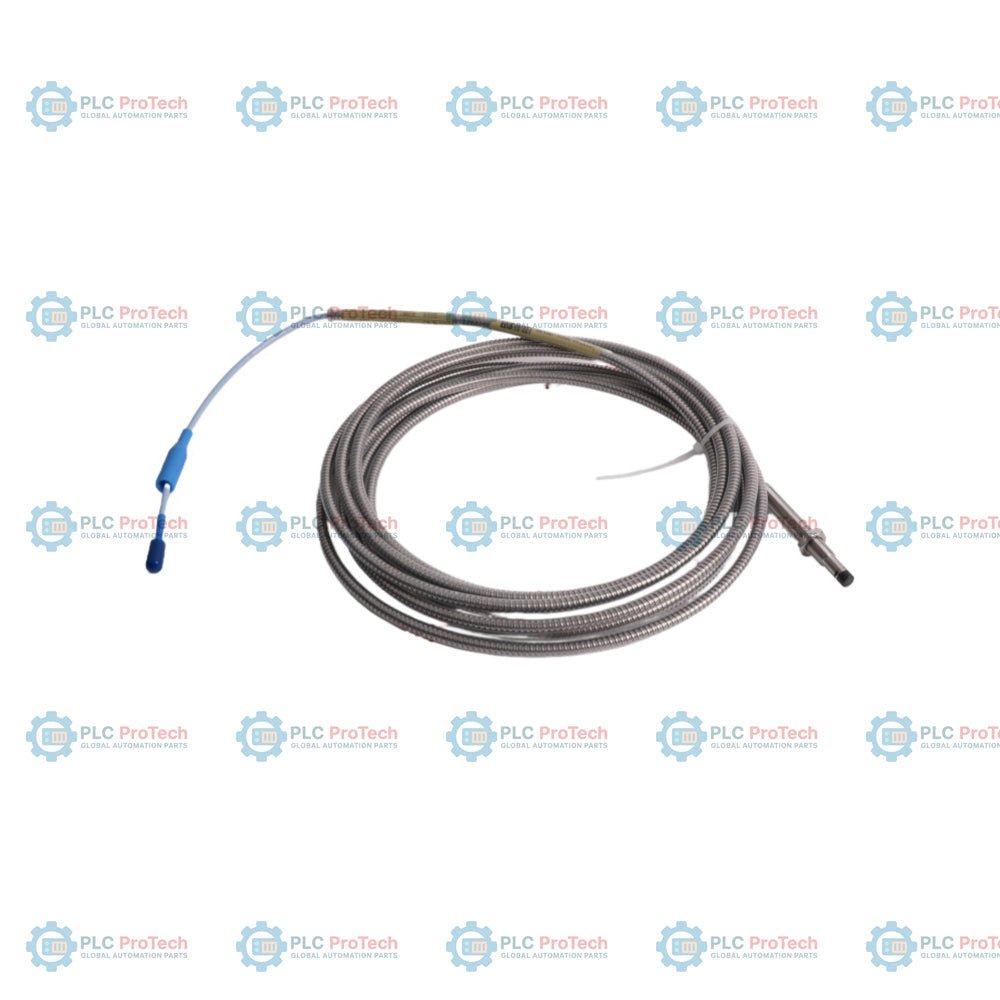

Bently Nevada 330104-01-08-50-01-05 3300 XL 8 mm Proximity Probe

Description

The 330104-01-08-50-01-05 is a 3300 XL 8 mm proximity probe featuring an M10 x 1 thread (Option 01), an 80 mm case length (Option 08), and a 5.0 meter total system length (Option 50). This configuration includes a Miniature ClickLoc coaxial connector with a connector protector and standard cable (Option 01), and is certified with CSA, ATEX, and IECEx agency approvals (Option 05).

As part of the 3300 XL 8 mm transducer system, this probe is engineered for non-contact eddy-current displacement measurement in demanding industrial environments. It provides precise shaft vibration and axial position monitoring when paired with a matching 3300 XL Proximitor sensor and extension cable. The M10 x 1 threaded housing design ensures secure installation in industrial machinery, while the ClickLoc connector system provides a reliable, environmentally sealed connection.

Features

• Option 01 (Unthreaded Length): 10 mm unthreaded length configuration.
• Option 08 (Case Length): 80 mm total case length.
• Option 50 (Total Length): 5.0 meter total system length, designed for use with a 5-meter Proximitor sensor.
• Option 01 (Connector/Cable): Miniature coaxial ClickLoc connector with integrated connector protector; standard cable.
• Option 05 (Agency Approval): CSA, ATEX, and IECEx hazardous area certifications.
• Probe Body: M10 x 1 thread with armor for mechanical protection.

Applications

• Critical machinery monitoring for steam turbines, gas turbines, and compressors.
• Shaft vibration and rotor axial position measurement.
• Hazardous area environments requiring CSA, ATEX, or IECEx compliance.
• General-purpose rotating machinery protection.

Ordering Information

Technical Specifications

Installation Guidelines

• Ensure the probe is gapped correctly according to the 3300 XL system manual to maintain linear range.
• Use the provided connector protector to shield connections from moisture and contaminants in harsh environments.
• Route cables through conduit or protective pathways to prevent abrasion and mechanical damage.
• Verify that the Proximitor sensor used in the system is calibrated for a 5-meter total length (including probe and extension cable).

Compliance and Certifications

• CSA (Canadian Standards Association)
• ATEX (Atmosphères Explosibles)
• IECEx (International Electrotechnical Commission Explosive)
