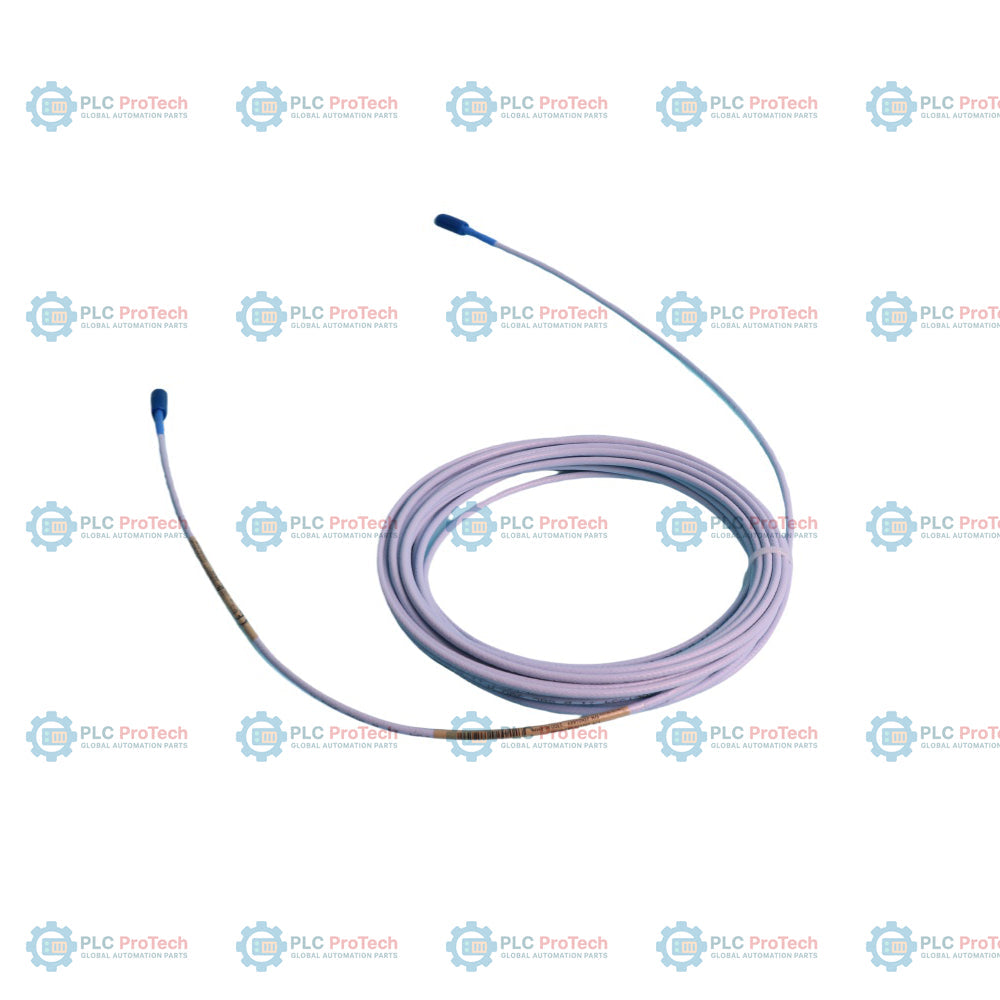

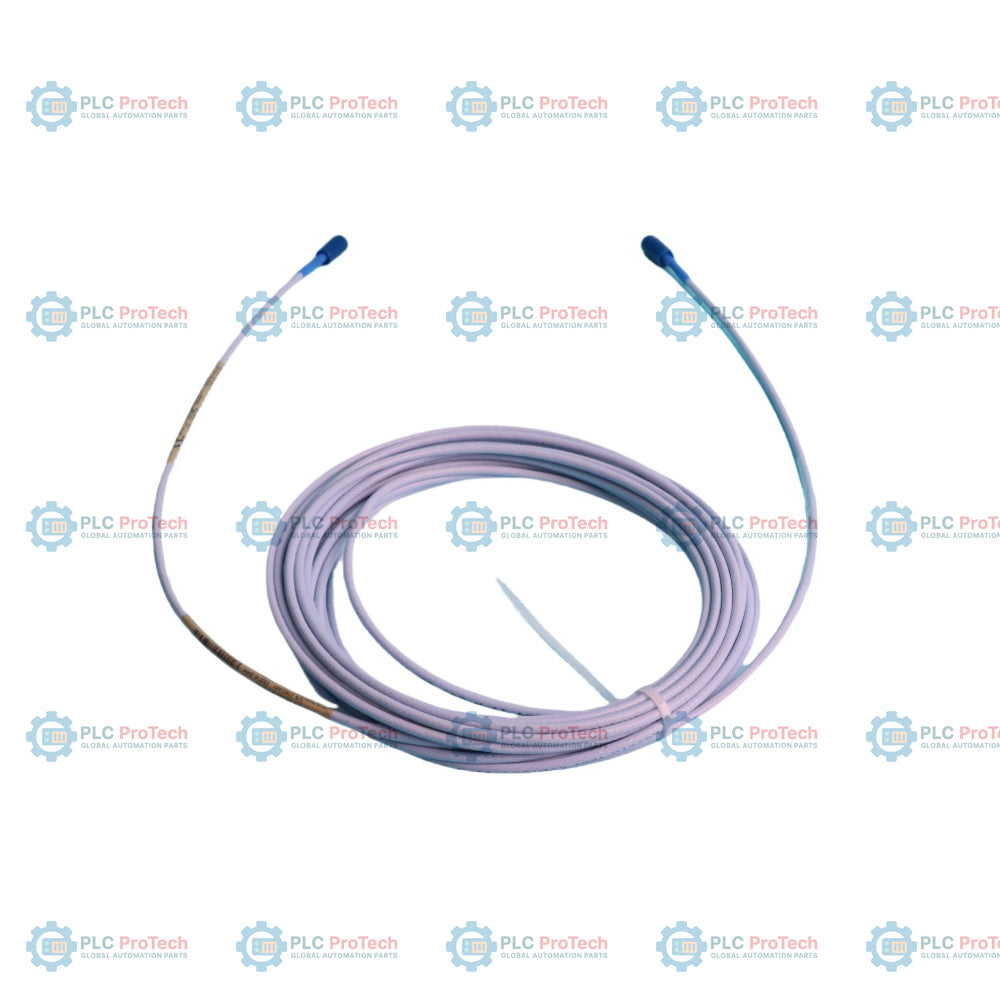

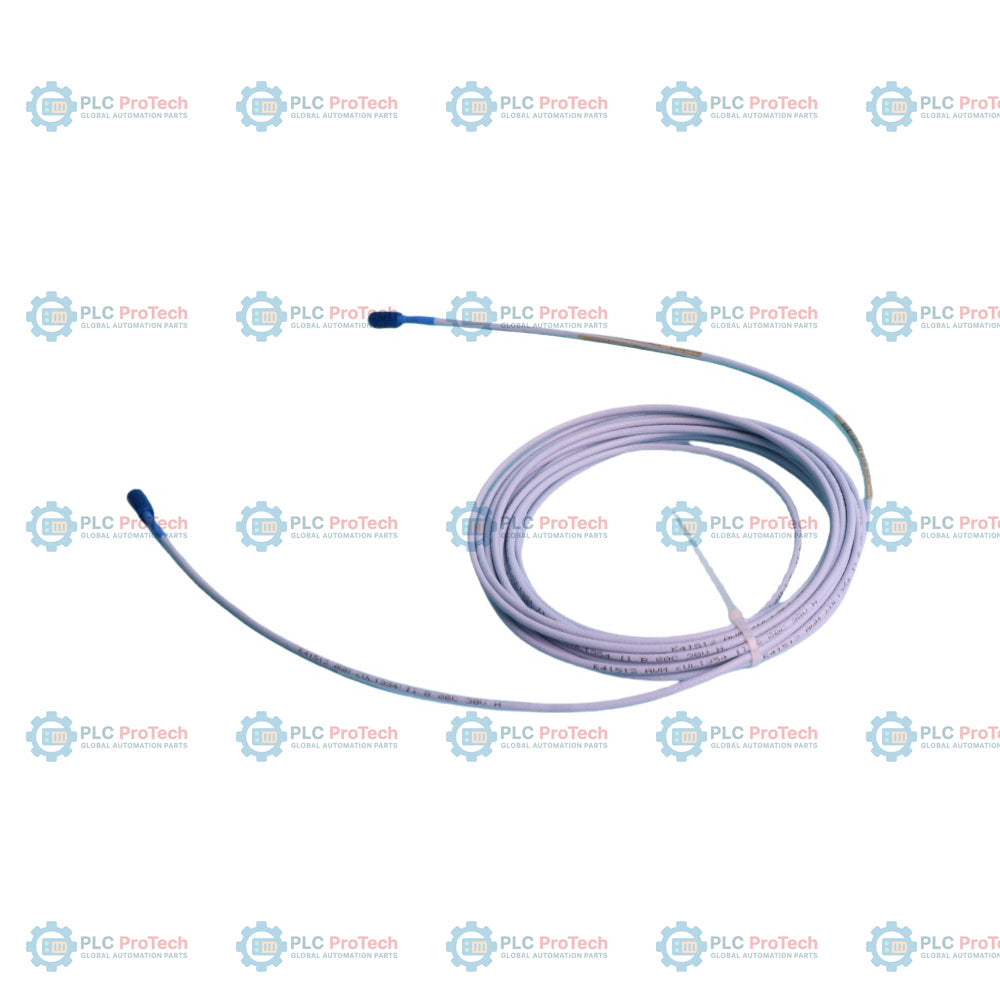

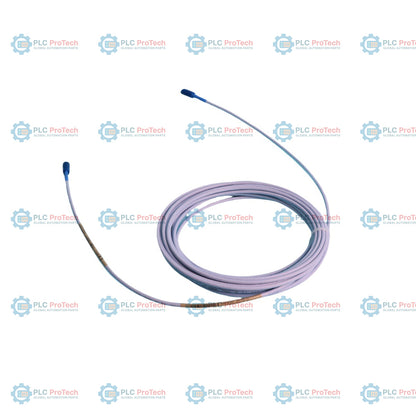

Bently Nevada 330130-085-00-02 3300 XL Standard Extension Cable

Description

The 330130-085-00-02 is a 3300 XL standard extension cable with a total length of 8.5 meters (Option 085), configured for standard cable usage (Option 00) and equipped with a connector protector (Option 02). This extension cable is a vital component of the 3300 XL 8 mm Proximity Transducer System, serving as the link between the 3300 XL 8 mm probe and the 3300 XL Proximitor sensor. By using high-quality coaxial cabling and gold-plated ClickLoc connectors, this assembly ensures reliable signal transmission for shaft vibration and axial position measurements. The integration of a connector protector helps maintain signal integrity in industrial environments. This cable assembly is essential for applications requiring extended reach between the measurement point and the monitoring instrumentation.

Features

• 8.5 meter (27.9 feet) total cable length
• Standard coaxial cable construction
• Equipped with a connector protector to prevent contamination of the ClickLoc connection
• Designed specifically for the 3300 XL 8 mm Proximity Transducer System
• Gold-plated ClickLoc connectors for stable, low-resistance electrical contact
• Compatible with 3300 XL 8 mm probes and 330180 Proximitor sensors

Applications

• Turbine and compressor shaft vibration monitoring
• Rotor axial position measurement
• Critical rotating machinery protection
• General-purpose eddy-current displacement sensing in industrial environments

Ordering Information

Option	Code on This SKU	Description
Orderable Part Number	330130-085-00-02	3300 XL Standard Extension Cable
A - Cable Length	085	8.5 meters (27.9 feet)
B - Cable Option	00	Standard cable
C - Connector Option	02	Standard cable with connector protector

Technical Specifications

Manufacturer	Bently Nevada (Baker Hughes)
Part Number	330130-085-00-02
System Compatibility	3300 XL 8 mm Proximity Transducer System
Cable Length	8.5 m
Connector Type	Miniature ClickLoc coaxial
Connector Material	Gold-plated brass / gold-plated beryllium copper
Operating Temperature	-51 degC to +177 degC

Installation Guidelines

• Ensure cable length plus probe length equals the total system length required for the Proximitor sensor calibration (typically 5 m or 9 m).
• Tighten ClickLoc connectors to finger-tight pressure to ensure secure contact without damaging the pins.
• Avoid sharp bends in the coaxial cable; maintain a minimum bend radius to prevent dielectric damage.
• Ensure the connector protector is clean and securely fastened before installation in high-dust or moisture environments.

Compliance and Certifications

• EMC Directive 2014/30/EU
• RoHS Directive 2011/65/EU
• Functional Safety: SIL 2 (HFT=0) / SIL 3 (HFT=1)
