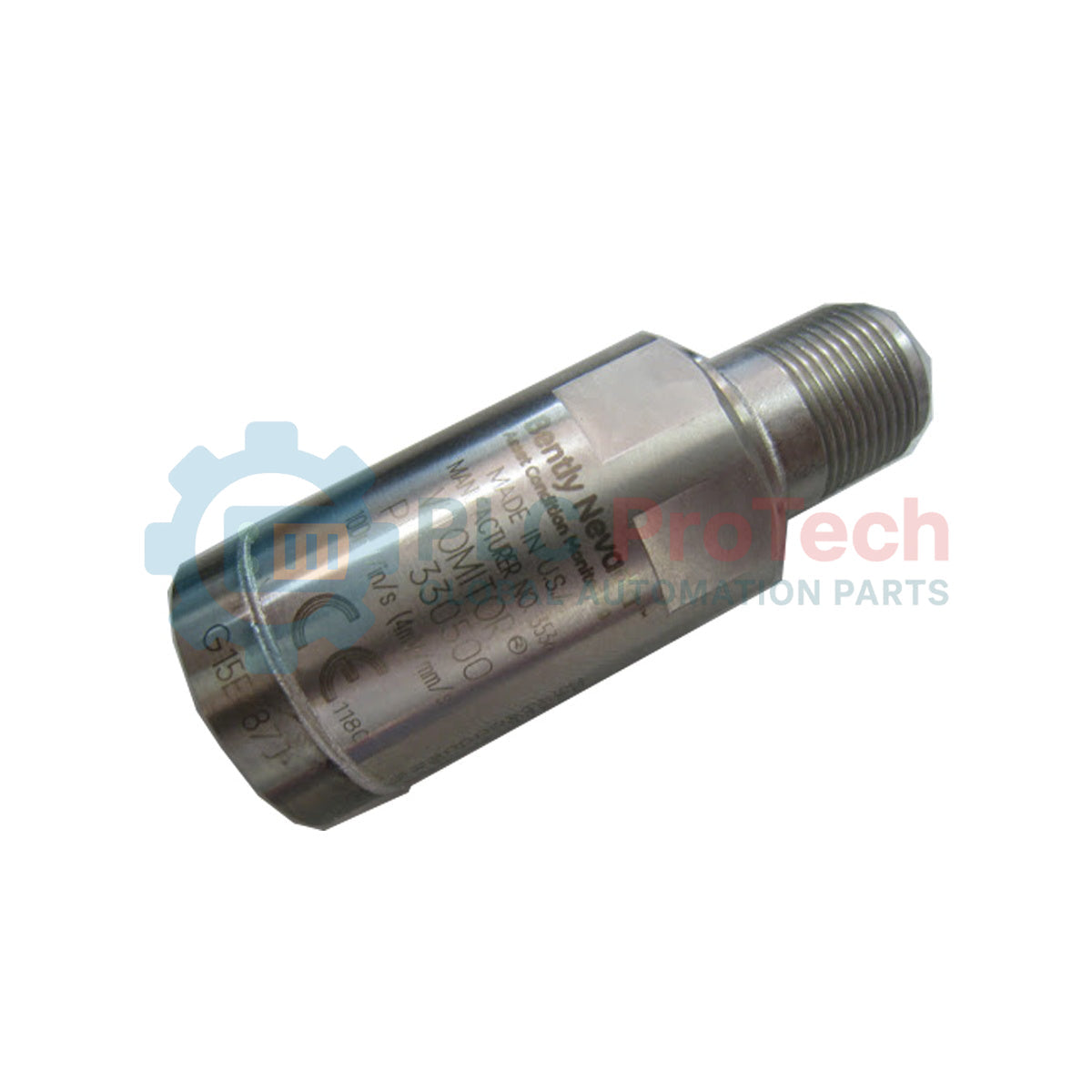

Bently Nevada 330500-03-CN Velomitor Piezo-velocity Sensor

Bently Nevada 330500-03-CN Velomitor Piezo-velocity Sensor

Only 7 item(s) left in stock
  • Manufacturer: Bently Nevada

  • Product No.: 330500-03-CN

  • Country of origin:United States

  • Product Type: Vibration Sensors

  • Payment: T/T, Western Union

  • Weight: 320g

  • Shipping port: Xiamen

  • Warranty: 12 months

Quantity
View full details

Description

Measuring casing vibration velocity directly on rotating machinery, the Bently Nevada 330500-03-CN integrates a rugged piezoelectric accelerometer with an internal integration circuit to output a true velocity signal. This design eliminates the requirement for external signal integration at the monitoring system, providing a robust and less noise-susceptible velocity output directly from the sensor casing. The device is housed in hermetically sealed stainless steel, engineered specifically to withstand severe, high-humidity industrial environments. Standard implementation incorporates a 1/4-28 UNF mounting thread and country-specific agency certifications, ensuring compliance with local plant safety standards.

Features

  • Piezoelectric Sensing Element: Incorporates a solid-state internal integrator to output a clean velocity waveform rather than raw acceleration.
  • Hermetic Seal: Complete 316L stainless steel enclosure prevents ingress of moisture, oils, and chemical contaminants.
  • Two-Pin Mil-C-5015 Connector: Top-exit standard industrial connection interface minimizes installation footprint.
  • Electrostatic Shielding: Internal Faraday shield isolates the sensing circuitry from electrostatic interference and electromagnetic fields.

Applications

  • Casing vibration measurements on steam and gas turbine bearings.
  • Real-time casing velocity monitoring on balance-of-plant machinery including pumps, draft fans, and air compressors.
  • Industrial gearbox casing diagnostic monitoring.
  • Paper machine dryer roll bearings and harsh wet-end industrial processing zones.

Technical Specifications Table

Parameter Specification Value
Manufacturer Bently Nevada
Model Number 330500-03-CN
Sensor Type Piezo-velocity (Velomitor)
Mounting Thread Option 1/4 - 28 UNF (Option 03)
Agency Approval CN (Country-specific hazardous area certifications)
Connection Interface 2-pin MIL-C-5015 receptacle
Casing Material Stainless Steel
Operating Bias Voltage Nominally -12 VDC (relative to common)
Net Weight 0.142 kg (0.31 lbs)
Shipping Weight (Calculated) 1.50 kg (3.30 lbs)
Country of Origin United States (U.S.A.)

Connections and Interfaces

Connector Pin Function / Circuit Assignment
Pin A Signal / Power (Bias and dynamic AC velocity signal)
Pin B Signal Return / Common
Shield / Shell Case ground (electrically isolated from internal signal pins)

Empirical Engineering Insights

Alternative Models & Compatibility

The 330500-03-CN is drop-in backward compatible with older Bently Nevada velocity transducers requiring standard 1/4-28 UNF casing mounting. Always verify monitor channel configuration; when replacing older electro-mechanical velocity sensors (like the 9200 series) with the 330500 piezo-velocity sensor, you must switch the monitor card jumper or software settings from "Seismic" (self-generating) to "Velomitor" (powered -24 VDC constant current) to prevent a transducer OK limit fault.

Application Pitfalls & Engineering Notes

Because the Velomitor utilizes an internal piezoelectric design, rapid ambient temperature variations can induce a transient thermal shock. This thermal expansion or contraction of the crystal mimics low-frequency vibration, triggering spurious "High Velocity" alarms. Avoid mounting the sensor directly opposite uninsulated steam pipe flanges, steam leaks, or cooling vents. If thermal transients are unavoidable, install a heat-insulating boot over the sensor body.

Commissioning & Wiring Tips

Always utilize 2-conductor shielded twisted-pair cabling (such as Bently Nevada 9571) for the signal run. To eliminate ground loops, terminate the cable shield only at the monitoring system / cabinet terminal strip. Cut the shield flush and insulate it with heat-shrink at the sensor's MIL connector end. Ensure the sensor mounting surface is machined flat to a surface finish of 0.8 micrometers (32 microinches) Ra to guarantee precise high-frequency mechanical transmission.

Installation Guidelines

CRITICAL WARNING:

Prior to starting the installation, ensure the target machinery is completely shut down, isolated, and locked out/tagged out (LOTO). Do not exceed the maximum mounting torque specification of 4.5 Nm (40 in-lb). Over-torqueing can cause permanent damage to the internal piezoelectric crystal assembly or strip the 1/4-28 thread adapter.

1
Prepare Mounting Spot: Drill and tap a perpendicular hole to a depth of at least 6 mm (0.25 inches) using the 1/4-28 UNF specification. Spot-face the surface to ensure complete, flat contact.
2
Apply Coupling Compound: Spread a thin, uniform layer of silicone grease or acoustic coupling fluid on the mating surface to optimize mechanical energy transfer.
3
Torque the Sensor: Thread the sensor into the mounting adapter and tighten using a calibrated torque wrench. Apply exactly 4.5 Nm (40 in-lb) of torque.
4
Connect & Secure Cable: Attach the MIL-C-5015 cable connector. Provide a drip loop in the cable immediately exiting the sensor, and secure the conduit or cable armor to the machine housing to prevent whipping or cable-induced strain.
Loading product navigation…

What is the function of the '03' suffix in the 330500-03-CN model?

The '03' option specifies a 1/4-28 UNF mounting thread adapter, allowing the sensor to be threaded into standard machinery housings with imperial mounting holes.

Why does the 330500-03-CN require constant current excitation?

As an active piezo-velocity sensor, it contains internal integrating micro-electronics. It requires a continuous, regulated excitation current (typically 2 to 10 mA at -24 VDC) from the monitor card to power these internal components.

Can I paint the housing of the 330500 Velomitor?

No, painting the sensor housing is not recommended as it can trap heat, affect thermal expansion characteristics, and obscure critical certification and hazard markings on the shell.

What should the normal bias voltage read on a healthy 330500-03-CN sensor?

Under normal operating conditions with the sensor powered, the bias voltage between the signal pin (A) and common pin (B) should measure approximately -12 VDC. Readings close to 0 VDC or -24 VDC indicate cabling faults.
