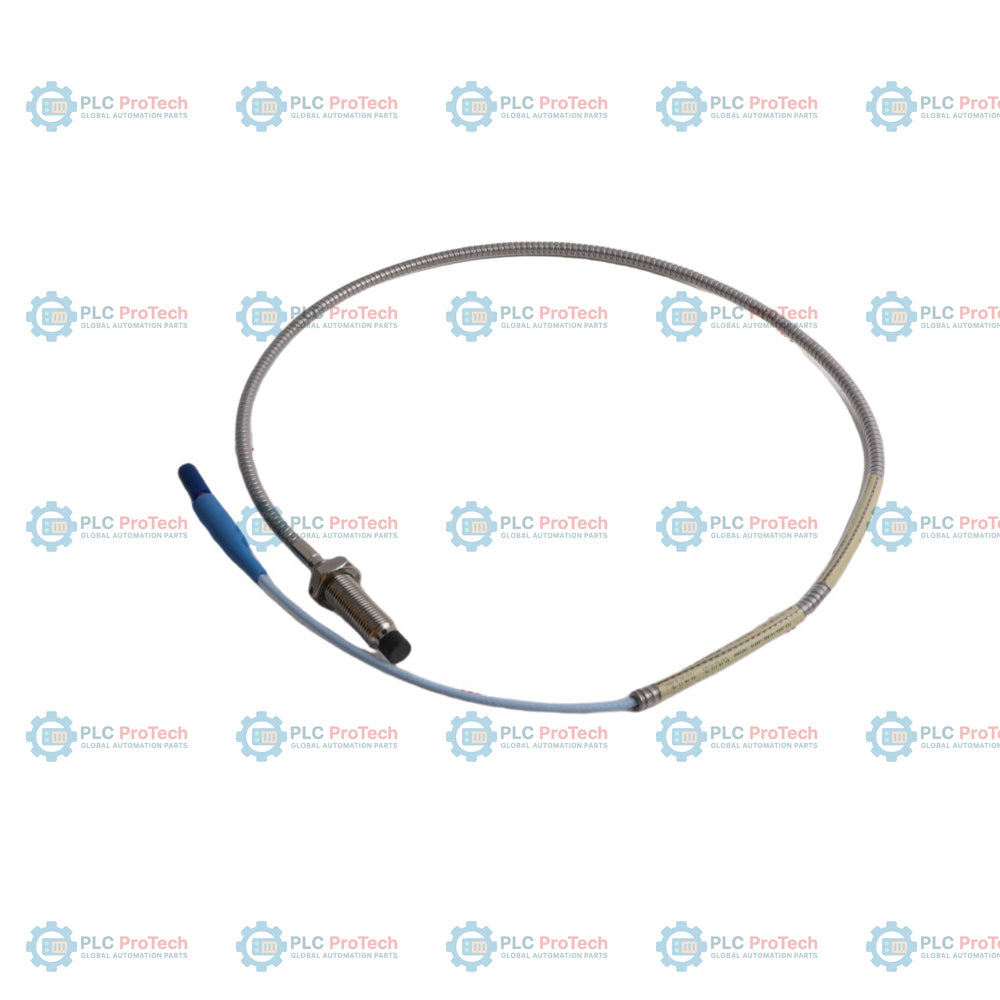

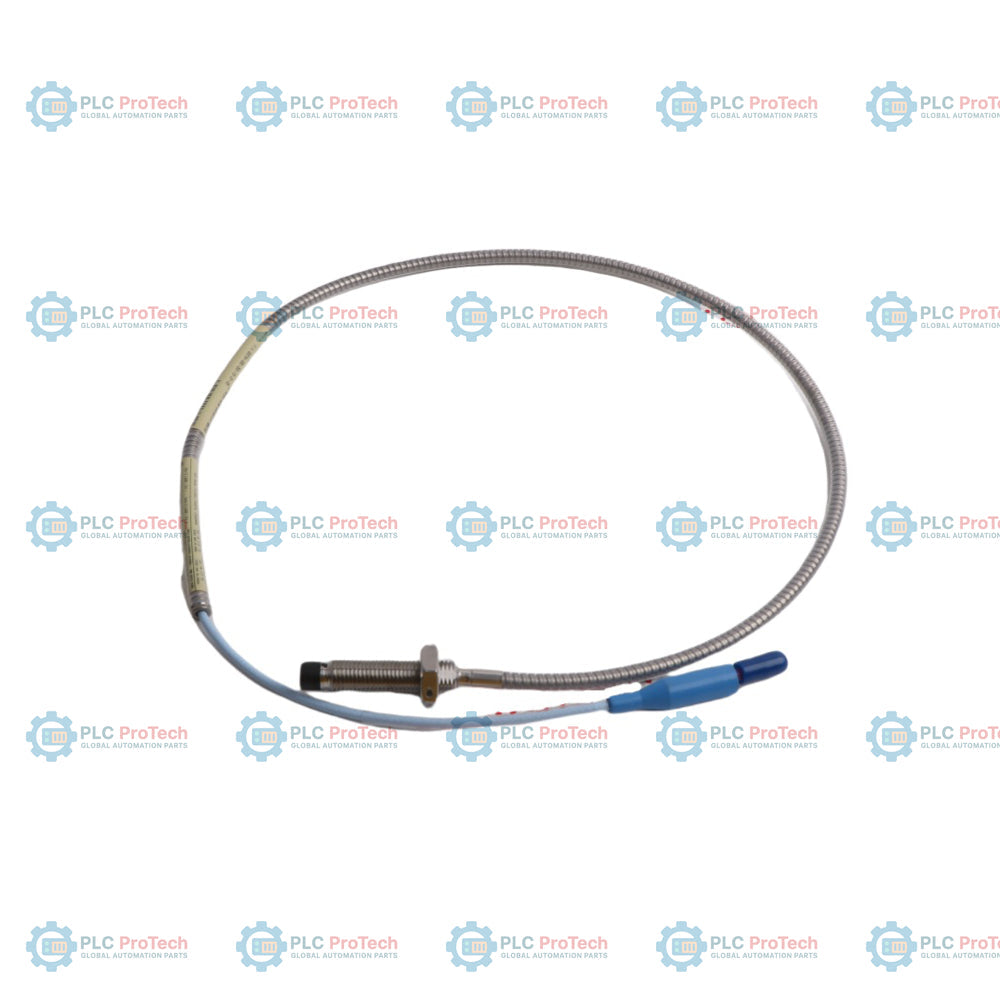

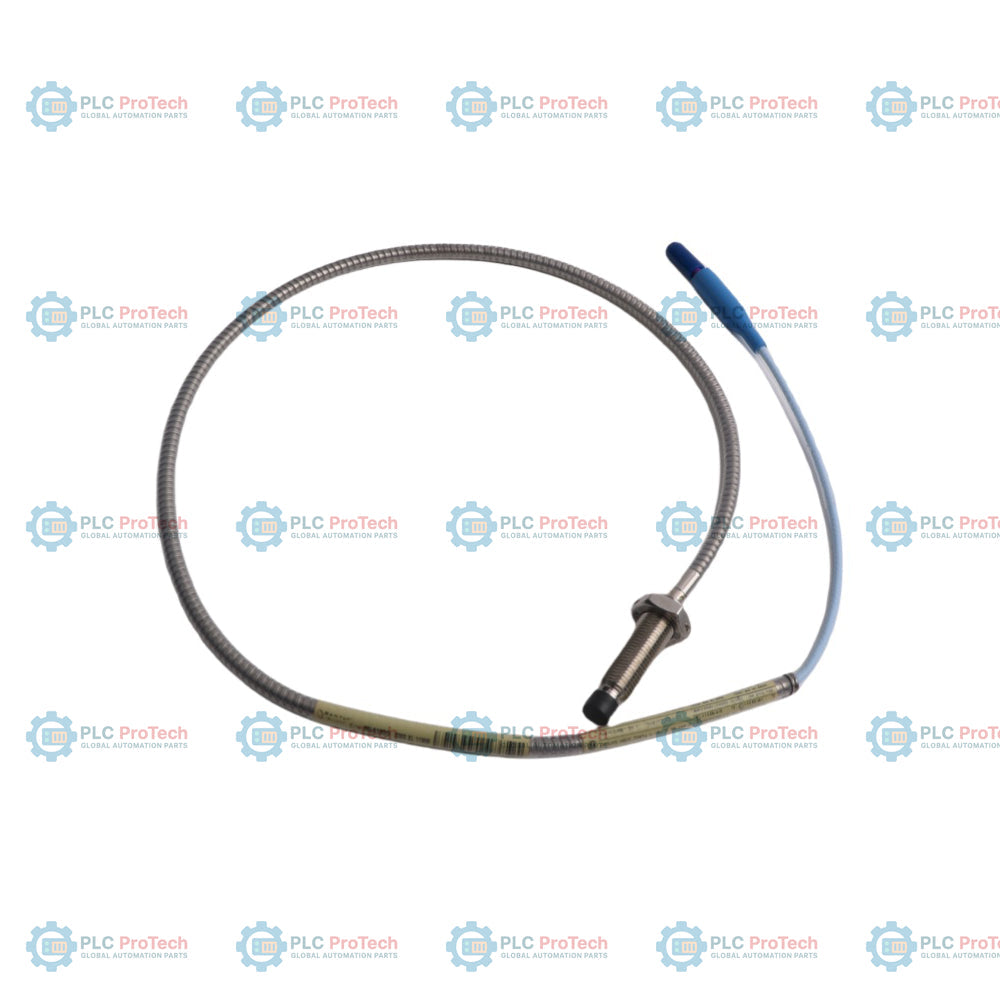

Metric thread M14 x 1.5 armored steel probe body (Option 000 unthreaded) with a 50 mm case length (Option 050) and a 1.0 m lead (Option 10) specifies the 330704-000-050-10-01-05 3300 XL 11 mm proximity probe configuration. This component belongs to the 3300 XL 11 mm Proximity Transducer System, producing a 3.94 V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines.
This armored configuration provides enhanced mechanical protection for the coaxial cable inside harsh industrial environments, shielding the cable from physical damage and abrasion. The integrated ClickLoc connector with a connector protector (Option 01) prevents moisture and oil ingress at the extension cable interface, maintaining signal integrity. The 11 mm tip diameter extends the linear measurement range to 4.0 mm, making it suitable for axial position and differential expansion measurements compared to standard 8 mm systems.
Common applications for this armored 11 mm probe include:
| Option | Code on This SKU | Description |
|---|---|---|
| Orderable Part Number | 330704-000-050-10-01-05 | 3300 XL 11 mm Proximity Probe, M14 x 1.5 thread, with stainless steel armor |
| A - Unthreaded Length Option | 000 | 0 mm unthreaded length |
| B - Overall Case Length Option | 050 | 50 mm case length (fully threaded) |
| C - Total Length Option | 10 | 1.0 meter (3.3 feet) total cable length |
| D - Connector and Cable-Type Option | 01 | Miniature coaxial ClickLoc connector with connector protector, standard cable |
| E - Agency Approval Option | 05 | Multiple Approvals (CSA, ATEX, IECEx, NEPSI, and others) |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Model / Part Number | 330704-000-050-10-01-05 |
| Transducer System | 3300 XL 11 mm Proximity Transducer System |
| Linear Range | 4.0 mm (160 mils), from approximately 0.5 mm to 4.5 mm (20 to 180 mils) |
| System Output | 3.94 V/mm (100 mV/mil) nominal |
| Recommended Gap | 2.5 mm (100 mils) |
| Thread Size | M14 x 1.5 metric thread |
| Mechanical Protection | AISI 302 stainless steel armor with FEP outer jacket |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 304 stainless steel (SST) |
| Probe Cable Specification | 75 Ohm triaxial, fluoroethylene propylene (FEP) insulated |
| Connector Type | Miniature coaxial ClickLoc connector with connector protector |
| Connector Material | Gold-plated brass |
| Maximum Case Torque | 63.3 N-m (560 in-lb) rated, 21.1 N-m (187 in-lb) recommended |
| Minimum Cable Bend Radius | 25.4 mm (1.0 in) |
| Tensile Strength (Maximum) | 330 N (75 lb) probe case to probe lead; 270 N (60 lb) at probe lead to extension cable connectors |
| Operating and Storage Temperature | -52 degC to +177 degC (-62 degF to +351 degF) |
| Relative Humidity | 100% condensing, non-submersible with protected connectors |
Ensure correct thread engagement and torque limits during installation. Secure the probe case to a maximum torque of 21.1 N-m (187 in-lb) for the M14 x 1.5 thread. The minimum bend radius of the armored cable must be maintained above 25.4 mm (1.0 in). Avoid exposing probe-to-extension-cable connections to turbine oil or industrial fluids without ensuring the connector protector is fully mated. Ground the system shield at the monitor end only, preventing ground loops across the machine case.
The 330704-000-050-10-01-05 probe is certified for use in hazardous areas under multiple agency guidelines:
