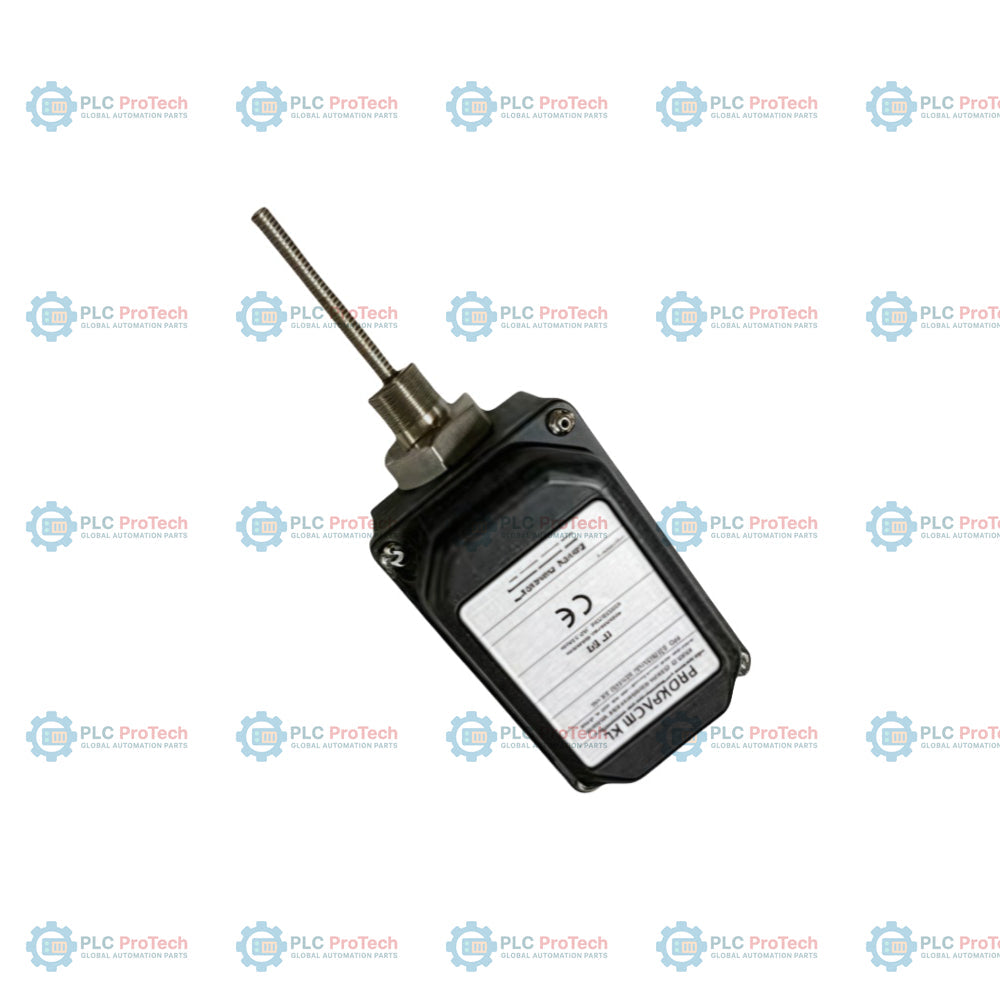

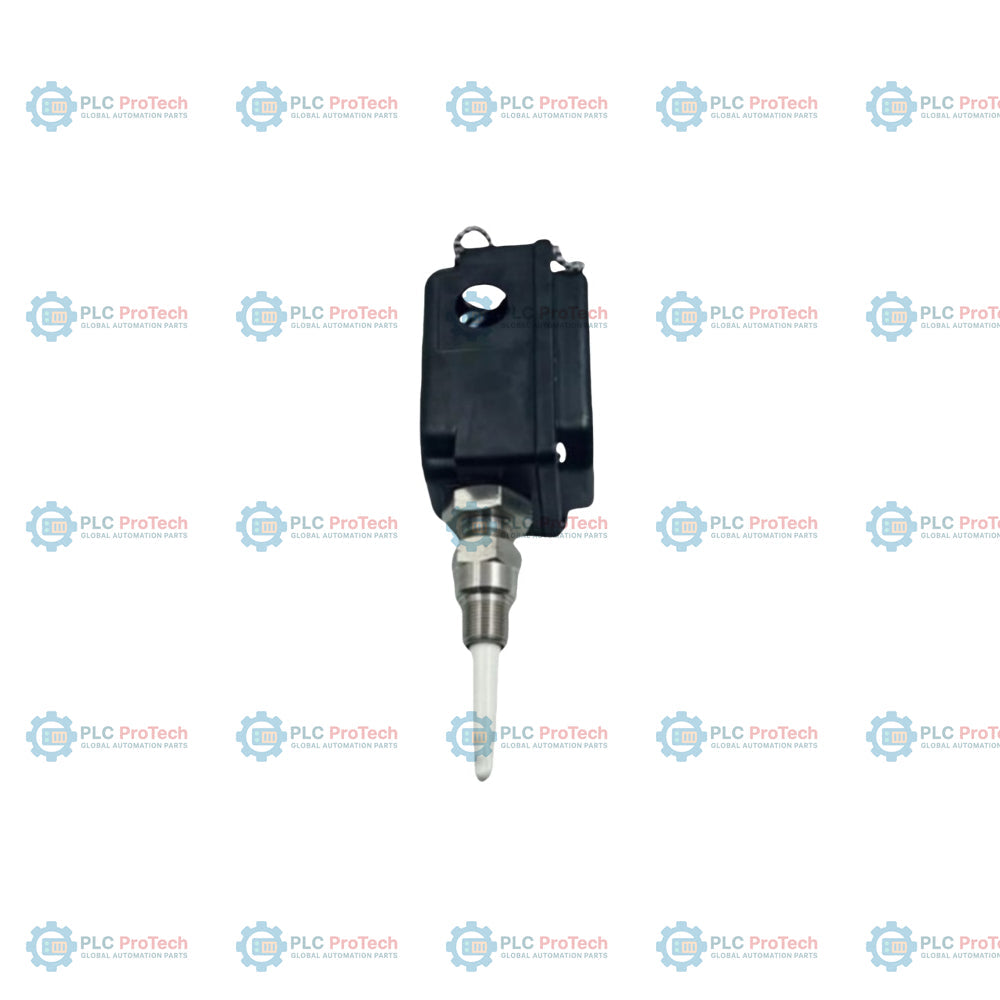

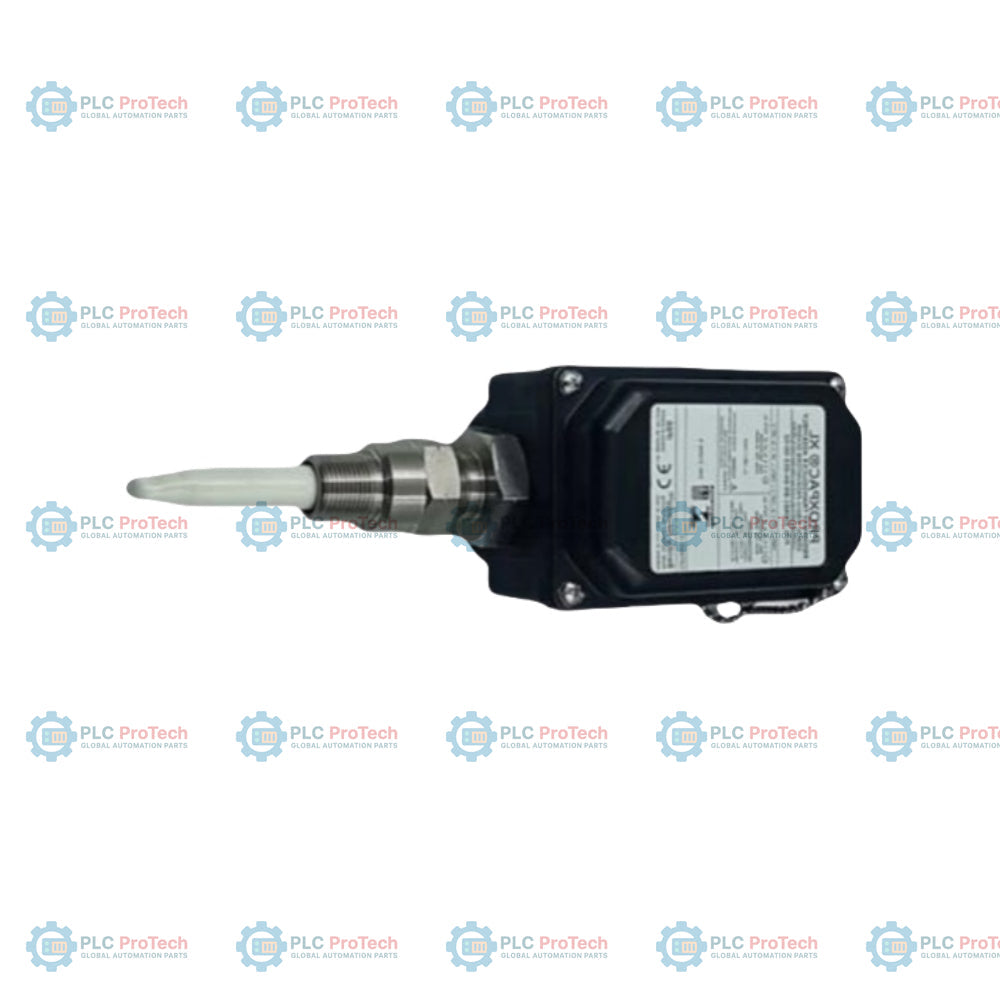

330881-01-00-000-00-02: 3300 XL metric PROXPAC XL integrated proximity transducer assembly, configured without a probe (Option 01, Proximitor sensor with Multiple Approvals) and without a probe sleeve or standoff adapter. This specific configuration serves as a spare or base housing unit containing a built-in 3300 XL Proximitor sensor certified for multiple hazardous area approvals, but does not include the physical 8 mm probe, standoff adapter, or outer sleeve assembly. It features no conduit fittings (Option 00, supplied with two plugs and two washers) and is configured with a 3/4-14 NPT mounting thread (Option 02).
The PROXPAC XL series combines a proximity probe and a Proximitor sensor into a single, self-contained field housing. This integrated design eliminates the requirement for separate Proximitor housings and intermediate extension cables, allowing field wiring to connect directly from the monitoring system to the housing. The housing is constructed from glass-reinforced, conductive polyphenylene sulfide (PPS) thermoplastic to resist severe industrial environments, dissipate electrostatic charges, and provide Type 4X and IP66 protection.
The PROXPAC XL integrated transducer assembly is used for non-contact shaft vibration, axial position, and speed measurements on rotating machinery such as steam turbines, gas turbines, compressors, pumps, and generators. This specific configuration is suited for applications where the housing or Proximitor sensor needs replacement, or where custom probe sleeves and probe elements are mounted separately in the field.
The table below decodes the configuration options for the 330881-01-00-000-00-02 metric transducer assembly:
| Option Segment | Code Value | Description |
|---|---|---|
| Base Model | 330881 | PROXPAC XL Proximity Transducer, Metric |
| A - Probe and Approvals Option | 01 | No probe; Proximitor sensor with Multiple Approvals |
| B - Standoff Adapter Option | 00 | No standoff adapter |
| C - Probe Penetration Option | 000 | No probe sleeve |
| D - Fittings Option | 00 | No fittings; two plugs and two washers |
| E - Mounting Thread Option | 02 | 3/4-14 NPT (required if ordering Standoff Adapter Option) |
| Parameter | Specification Value |
|---|---|
| Manufacturer | Bently Nevada (Baker Hughes) |
| Model Number | 330881-01-00-000-00-02 |
| Transducer Family | PROXPAC XL Series |
| System Power Requirement | -17.5 Vdc to -26 Vdc without barriers at 12 mA maximum |
| Proximitor Input Support | 3300 XL 8 mm Proximity Probe with 1-meter cable length |
| Signal Frequency Response | 0 to 10 kHz: +0, -3 dB (with up to 305 meters of field wiring) |
| Housing Material | UV-resistant, glass-reinforced polyphenylene sulfide (PPS) with conductive fibers |
| Housing Protection Rating | Type 4X and IP66 |
| Housing Operating Temperature | -52 degC to 100 degC (-62 degF to 212 degF) |
| Storage Temperature | -52 degC to 105 degC (-62 degF to 221 degF) |
| Relative Humidity | 100% condensing, non-submersible (when properly sealed) |
| Impact Resistance (BASEEFA) | Withstands two 4 Joule impacts at -39 degC and at 115 degC |
| Impact Resistance (CSA) | Withstands 7 Joule impact at ambient room temperature |
| Minimum Target Size | 15.2 mm (0.6 in) diameter (flat target) |
| Minimum Shaft Diameter | 50.8 mm (2.0 in) |
| Recommended Shaft Diameter | 76.2 mm (3.0 in) |
| Certification / Approval | Details |
|---|---|
| CE Mark | Complies with European directives |
| North America (CSA / cNRTLus) | Class I, Zone 0: AEx/Ex ia IIC T4/T5 Ga Class I, Groups A, B, C, and D; Class II, Groups E, F, and G; Class III Class I, Zone 2: AEx/Ex nA IIC T5...T1 Gc Class I, Division 2, Groups A, B, C, and D |
| ATEX / IECEx | Ex II 1 G Ex ia IIC T4/T5 Ga Ex ia IIIC T90C/T105C Dc Ex II 3 G Ex nA IIC T4/T5 Gc Ex ec IIC T4/T5 Gc |
| Ingress Protection | IP66 rating verified by BASEEFA |
Global Express Shipping
Returns & Warranty
Manufacturer: Bently Nevada
Product No.: 330881-01-00-000-00-02
Country of origin:United States
Product Type: PROXPAC XL Proximity Transducer
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 250g
Dimensions: 60 mm x 110 mm x 110 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months
