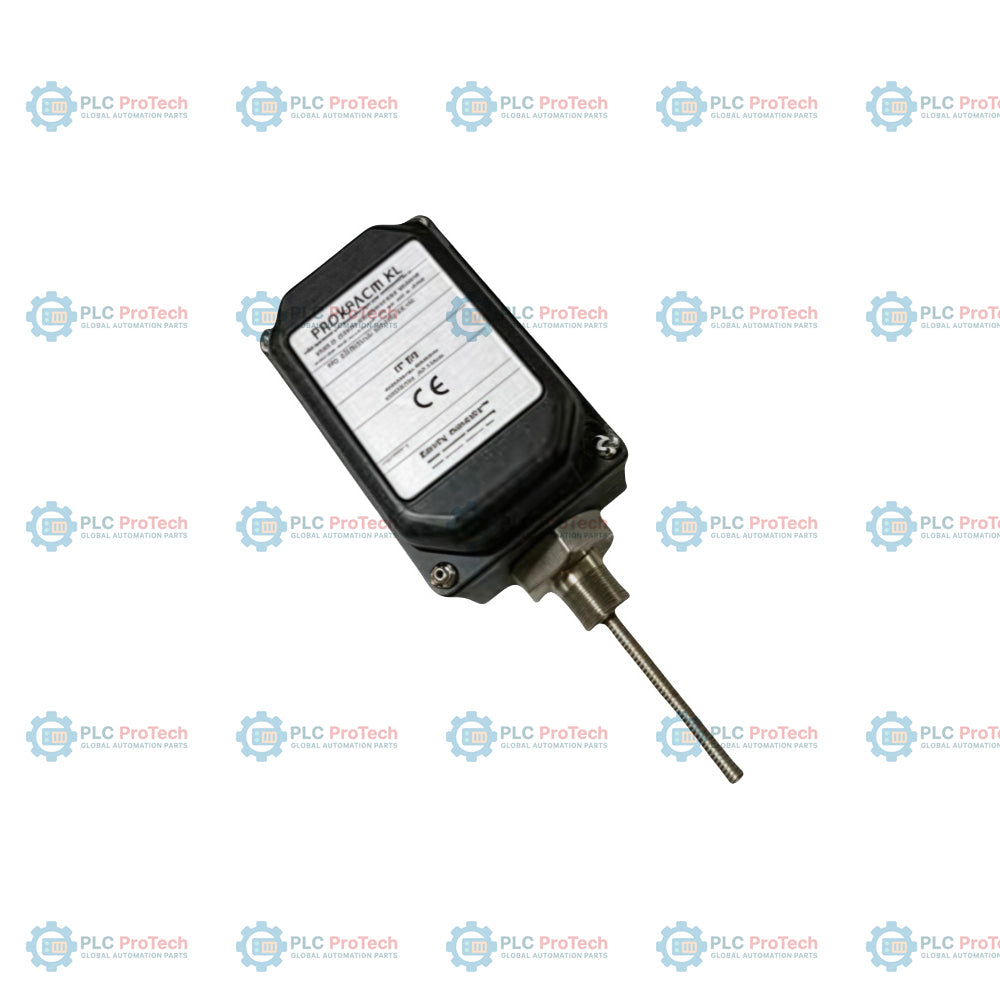

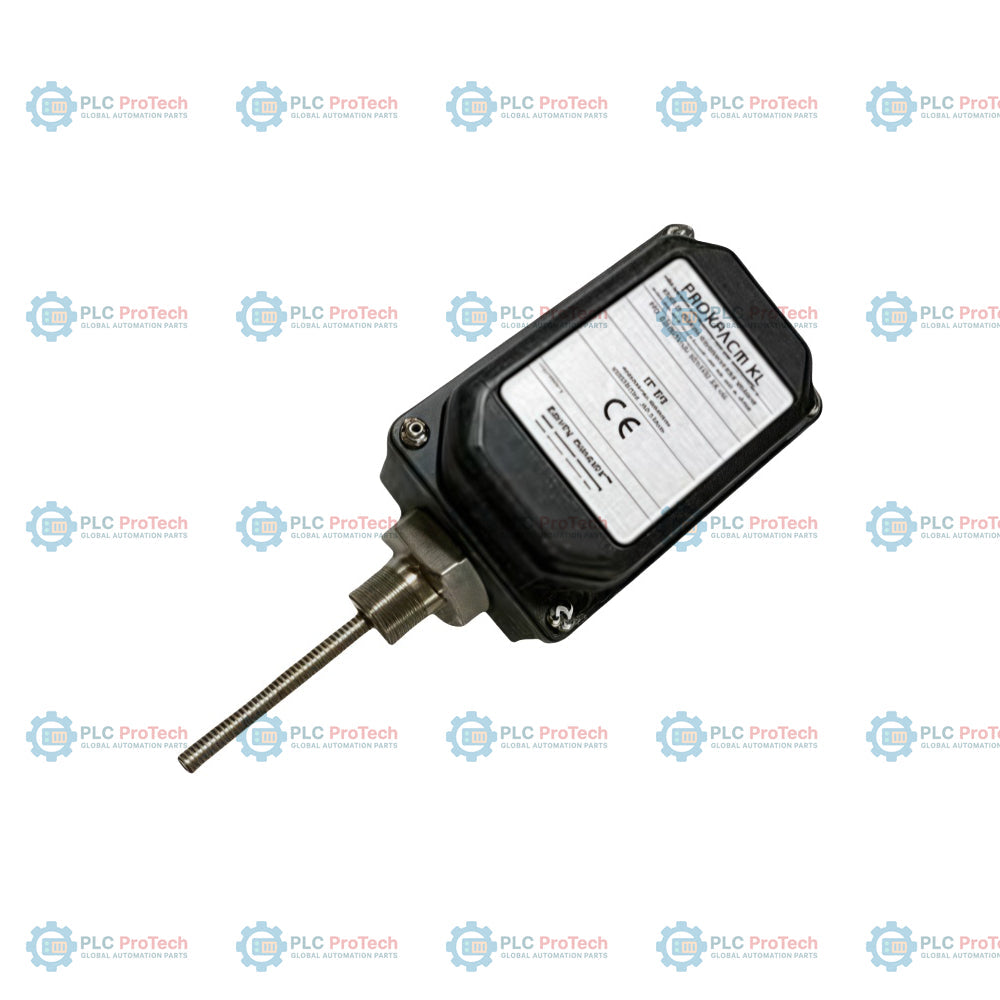

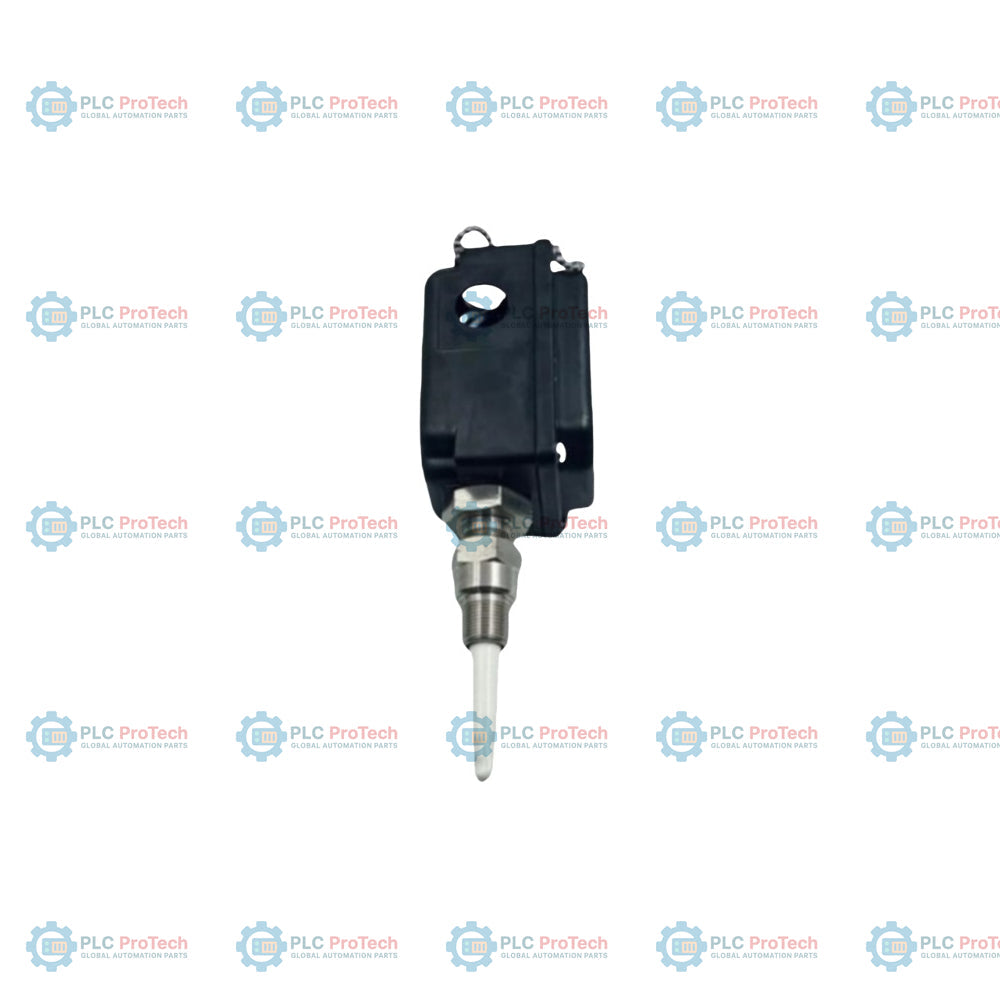

Bently Nevada 330881-28-04-115-06-02 PROXPAC XL Proximity Transducer

SKU 330881-28-04-115-06-02

In stock

12-month warranty
Free returns within 30 days

Manufacturer: Bently Nevada
Product No.: 330881-28-04-115-06-02
Country of origin:United States
Product Type: PROXPAC XL Proximity Transducer
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 250g
Dimensions: 60 mm x 110 mm x 110 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months

Description

Option 28 (Multiple Approvals probe) and Option 04 (40 mm standoff) specify this PROXPAC XL metric configuration - 330881-28-04-115-06-02, an integrated PROXPAC XL Proximity Transducer.

This integrated system combines an 8 mm proximity probe and a 3300 XL Proximitor sensor directly into a single molded Polyphenylene Sulfide (PPS) housing. This eliminates the need for external extension cables and separate Proximitor housings, with field wiring connecting directly from the monitor to the transducer assembly. It is used for non-contact displacement measurements, including shaft vibration and axial position, on rotating machinery.

Features

Option 28 provides an integrated 3300 XL 8 mm proximity probe certified with Multiple Approvals.
Option 04 specifies a 40 mm standoff adapter length (B Dimension).
Option 115 provides a probe penetration depth of 115 mm (C Dimension).
Option 06 supplies a fitting kit with one 3/4-14 NPT fitting, one 3/4-14 NPT to 1 1/2-14 NPT stainless steel (SST) reducer, and two plugs.
Option 02 provides a 3/4-14 NPT mounting thread, matching requirements for standoff installations.
Housing molded from glass-reinforced, UV-resistant Polyphenylene Sulfide (PPS) with conductive fibers to dissipate electrostatic charges.
IP66 environmental protection rating certified by BASEEFA to withstand severe industrial conditions.
Integrated design houses both probe and Proximitor sensor, eliminating separate sensor housings and intermediate extension cables.

Applications

Shaft vibration monitoring on high-speed industrial turbomachinery.
Axial rotor position measurement on steam turbines, gas turbines, and compressors.
Rotating machinery protection systems where simplified installation and direct field wiring are required.
Hardline conduit installations or high-moisture environments needing IP66/Type 4X enclosure protection.

Ordering Information

Option Segment	Code on This SKU	Description
Orderable Part Number	330881-28-04-115-06-02	PROXPAC XL Proximity Transducer, Metric
A - Probe and Approvals Option	28	3300 XL 8 mm probe with Multiple Approvals
B - Standoff Adapter Option	04	40 mm standoff adapter length
C - Probe Penetration Option	115	115 mm penetration length
D - Fittings Option	06	One 3/4-14 NPT fitting, one 3/4-14 NPT to 1 1/2-14 NPT SST reducer, and two plugs
E - Mounting Thread Option	02	3/4-14 NPT (required when ordering Standoff Adapter)

Technical Specifications

Parameter	Specification
Manufacturer	Bently Nevada
Part Number/Model	330881-28-04-115-06-02
Product Type	PROXPAC XL Proximity Transducer (Metric)
Probe Diameter	8 mm
Standoff Adapter Length (B Dimension)	40 mm
Probe Penetration Length (C Dimension)	115 mm
Sleeve Diameter	12.7 mm (0.5 in)
Housing Material	Glass-reinforced, UV-resistant Polyphenylene Sulfide (PPS) with conductive fibers
Sleeve/Chain Material	AISI 304 Stainless Steel
Outer Sleeve/Screws Material	AISI 303 Stainless Steel
Sleeve O-Ring Material	Neoprene
Power Requirements	Requires -17.5 Vdc to -26 Vdc without barriers at 12 mA maximum; -23 Vdc to -26 Vdc with barriers
Linear Range	2.0 mm (80 mils), starting at approximately 0.25 mm (10 mils) from target
Recommended Gap	1.27 mm (50 mils)
Incremental Scale Factor (ISF)	7.87 V/mm (200 mV/mil) +/- 5% including interchangeability error
Deviation from Best Fit Straight Line (DSL)	Less than +/-0.025 mm (+/-1 mil)
Output Resistance	50 Ohm
Frequency Response	0 to 10 kHz (+0, -3 dB) with up to 305 m (1000 ft) of field wiring
Operating Temperature (Probe)	-52 degC to +177 degC (-62 degF to +351 degF)
Operating Temperature (Housing/Sensor)	-52 degC to +100 degC (-62 degF to +212 degF)
Enclosure Rating	Type 4X and IP66
Impact Strength	Housing certified by BASEEFA to withstand two 4 Joule impacts at -39 degC and +115 degC; CSA verified for 7 Joule impact at room temperature
Maximum Housing Load	Supports 912 N (205 lbf) placed 38 mm (1.5 in) from unsupported end

Connections and Interfaces

Field wiring connects directly to the terminal block inside the PROXPAC XL housing cover, bypassing the need for intermediate extension cables.

Connection Parameter	Specification
Field Wiring Size	0.2 to 1.5 mm2 (16 to 24 AWG)
Cable Recommendation	3-conductor shielded twisted cable with drain wire
Maximum Cable Length	305 m (1000 ft) between the integrated sensor and the monitor

Installation Guidelines

Follow Bently Nevada drawing 141092 for intrinsically safe installations and drawing 140979 for non-incendive/non-sparking installations.
Mount housing using the 3/4-14 NPT thread (Option 02) through the machine case, ensuring proper O-ring sealing to maintain the IP66/Type 4X rating.
Secure the standoff adapter and sleeve according to recommended torque values: retaining nut to 29.5 N-m and probe sleeve locknut to 39.3 N-m.
Protect cabling within a suitable conduit system. Option 06 provides the required SST reducer and fittings for robust connection to 1-1/2 NPT conduit or piping.

Compliance and Certifications

European Community Directives: EMC Directive 2014/30/EU, RoHS Directive 2011/65/EU
Standards: EN 61000-6-2 (Industrial Immunity), EN 61000-6-4 (Industrial Emissions)
Maritime Certifications: 2019 Rules for Conditions of Classification
Enclosure Ratings: IP66 (BASEEFA verified) and Type 4X

FAQ

What does the A28 option mean on the 330881-28-04-115-06-02?

The A28 option specifies that this transducer features an integrated 3300 XL 8 mm proximity probe certified with Multiple Approvals for hazardous area installations.

What are the standoff and penetration lengths for this model?

This specific model has a B04 option which denotes a 40 mm standoff adapter length, and a C115 option representing a 115 mm probe penetration depth.

What is the function of the D06 fittings option?

The D06 option supplies a fitting kit consisting of one 3/4-14 NPT conduit fitting, one 3/4-14 NPT to 1-1/2-14 NPT stainless steel reducer, and two plugs.

Can the PROXPAC XL transducer be wired directly to a monitor?

Yes, the PROXPAC XL contains its own built-in Proximitor sensor inside the housing cover, allowing field wiring to connect directly to the monitors without an intermediate extension cable.

View all FAQs →

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.
