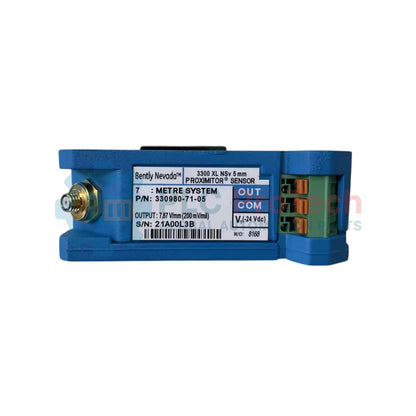

Bently Nevada 330980-71-05 3300 XL NSv Proximitor Sensor

Description

The 330980-71-05 is a high-performance 3300 XL NSv Proximitor Sensor engineered by Bently Nevada for specialized eddy-current machinery protection systems. This proximity sensor is purposefully optimized for demanding industrial deployment areas featuring compact installation constraints, such as centrifugal air compressors, process gas machinery, and refrigeration compression skids. It operates as a critical signal conditioner, converting raw electromagnetic gaps into a linear voltage signal to track machine health parameters.

The specific variant 330980-71-05 is designated for a 7.0-meter (23.0 feet) total system loop length and is equipped with an integrated DIN-rail mounting track pad. It includes Multiple Agency Approvals for universal hazardous area safety installation compliance. Featuring robust RFI/EMI shielding and specialized SpringLoc terminal blocks, this thin-profile aluminum sensor provides high-stability signal fidelity and effortless field wire terminations without the need for specialized routing tools.

Features

• Optimized for small-shaft targets under 51 mm (2 inches) and restricted side-view or counterbore clearances.
• Configured for a 7.0-meter total system loop length balancing length requirements across compact infrastructure layouts.
• Snap-on 35mm DIN-rail mounting base plate ensuring reliable electrical isolation from structural enclosure grounds.
• Multiple hazardous area approvals certified for universal deployment across global plant environments.
• Toolless SpringLoc terminal strip arrangement enabling fast, high-integrity field wiring connectivity.
• Advanced onboard RFI/EMI filtering achieving European CE compliance without restrictive shielding barriers.

Applications

• High-accuracy radial vibration tracking and relative shaft position metrics on small-diameter high-speed rotors.
• Critical axial thrust displacement monitoring on fluid-filmed bearings with restrictive counterbore paths.
• Precision zero-speed tracking, tachometer loops, and Keyphasor phase reference logging on industrial compressor skids.

Technical Specifications

Connections/Interfaces

Installation Guidelines

• DIN Rail Attachment: Snap the Proximitor Sensor base pad securely onto standard 35mm DIN rail tracks. Ensure the underlying replacement mounting pad isolates the metal chassis frame from raw cabinet ground grids to eliminate loops.
• Matched Loop Length Balance: Verify that the combined mechanical lengths of the attached 3300 NSv probe and extension cable sum to exactly 7.0 meters to maintain calibrated scale factors.
• Field Wire Termination: Use recommended three-conductor shielded triad cable (16 to 24 AWG). Depress the SpringLoc cage clips to seat bare wire ends completely before releasing tension.
• Connector Weatherproofing: Install specialized male/female connector protectors or apply a wrap of self-fusing silicone tape over the coaxial links to block process fluids and maintain 100% condensing humidity defenses.
