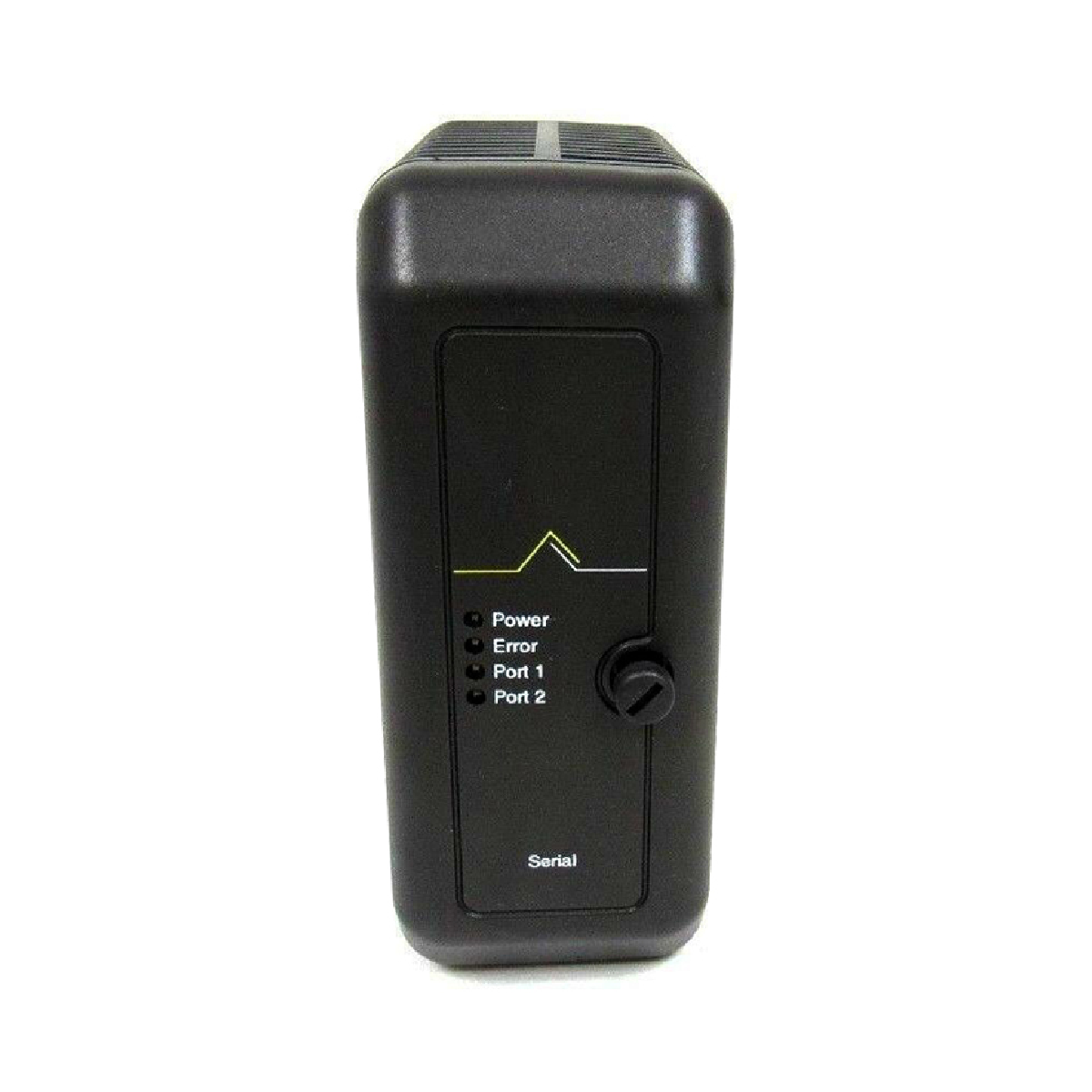

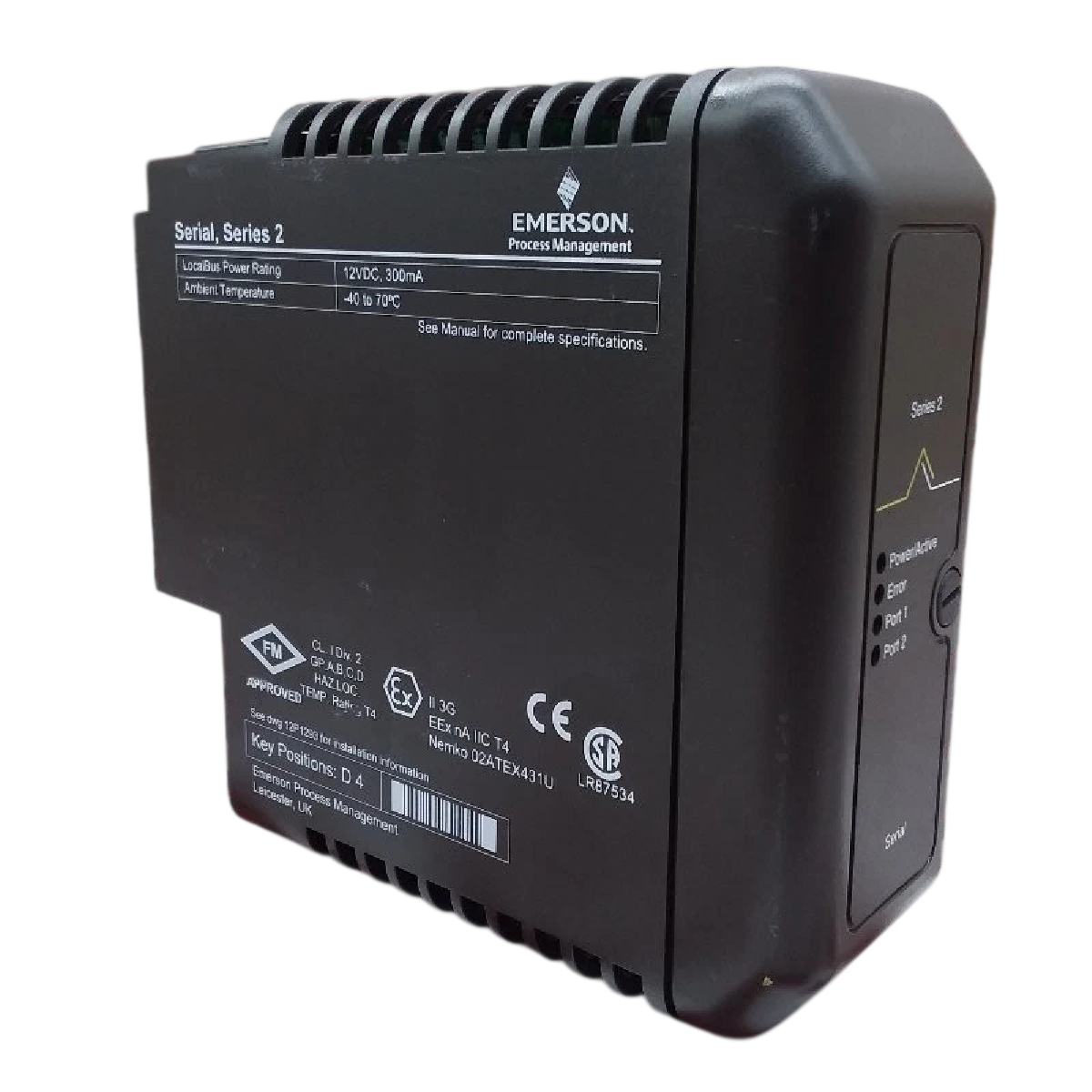

Emerson VE4006P2 KJ3241X1-BA1 M-series Serial Interface Card

SKU VE4006P2 KJ3241X1-BA1

In stock

12-month warranty
Free returns within 30 days

Manufacturer: Emerson
Product No.: VE4006P2 KJ3241X1-BA1
Country of origin:United States
Product Type: Serial Interface Card
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 180g
Dimensions: 5.1cm x 12.7cm x 12.7cm
Shipping port: Xiamen
Warranty: 12 months

Description

The Emerson KJ3241X1-BA1 (also referred to as VE4006P2) is a Serial Interface Card designed for the DeltaV M-series automation platform. This Series-2 module features two communication ports, enabling integration with various field devices through multiple protocols. It supports RS232, RS422/485 half-duplex, and RS422/485 full-duplex communication, providing flexibility for industrial data exchange. Each port is electrically isolated from the system and other ports to ensure signal integrity and protection in demanding process environments.

Features

M-series Serial Interface Card with 2-port configuration

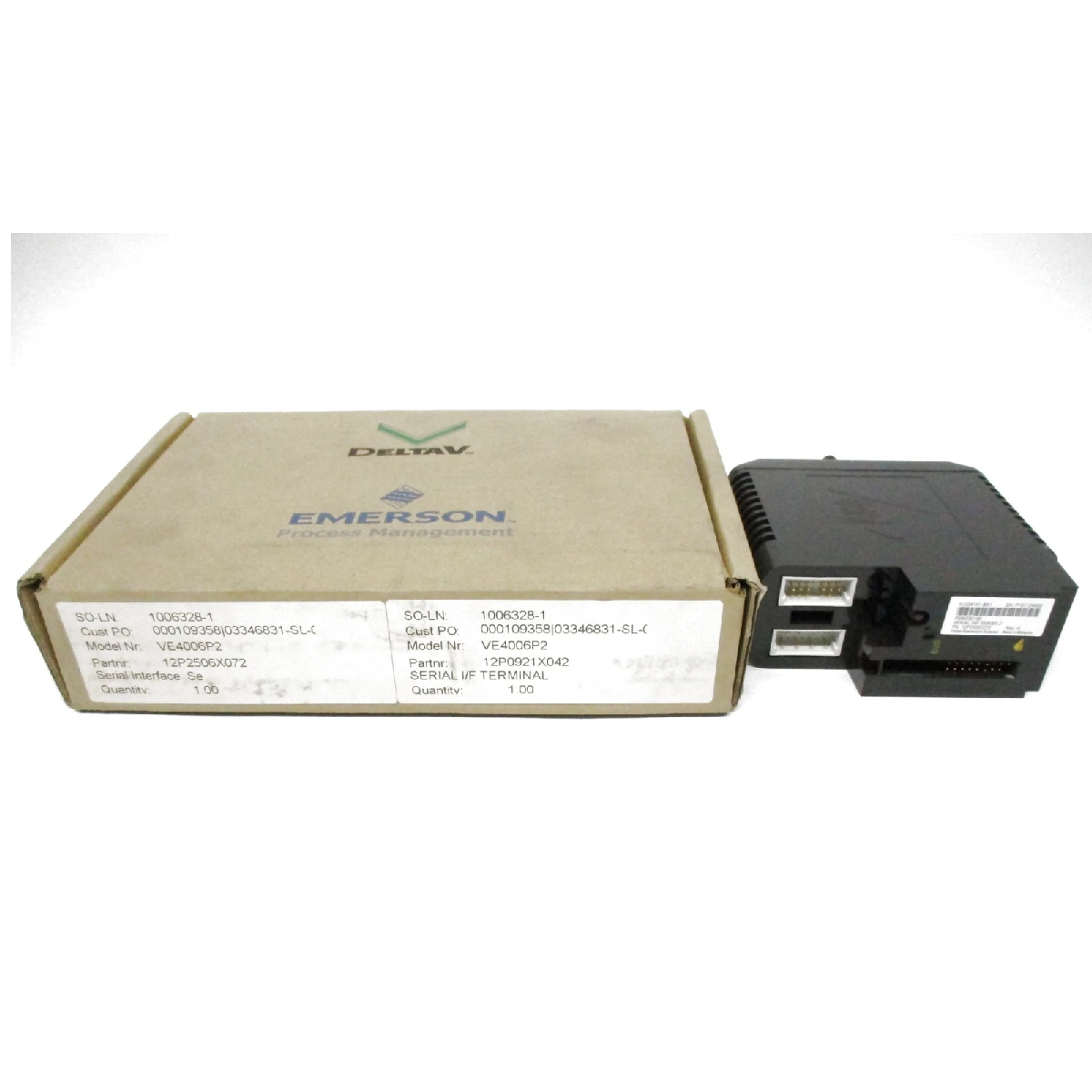

Includes 1 Interface Card and 1 simplex Terminal Block
Supports RS232, RS422/485 half-duplex, and full-duplex communication
Electrical isolation between ports and the system
Configurable parity: Even, Odd, or None
Rotational keying system (Key Pos: D4) for terminal block compatibility
Supports up to 32 data sets (16 per port)

Applications

Distributed Control Systems (DCS)
Process automation and industrial communication
Field device integration and serial data acquisition
Supervisory control and data monitoring

Technical Specifications

Parameter	Specification
Model	KJ3241X1-BA1 (VE4006P2)
Brand	Emerson DeltaV
Product Type	M-series Serial Interface Card
Ports	2
Port Types	RS232, RS422/485 half duplex, RS422/485 full duplex
Data Sets	32 (16 per port)
Baud Rates	300, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
Parity	Even, Odd, None
Isolation	Each port isolated from system and other ports
Operating Temperature	-40 to 70 Celsius
Storage Temperature	-40 to 85 Celsius
Relative Humidity	5 to 95%, non-condensing
Protection Rating	IP 20
Terminal Block Key	D 4

Installation Guidelines

This unit cannot be removed or inserted with system power energized in hazardous areas.
A rotary keying system ensures compatibility between the I/O card and terminal block; verify the keys are set correctly before installation.
Ensure all ports are externally grounded as per system requirements to maintain isolation performance.
Refer to document 12P2046 for specific instructions regarding installation and operation in hazardous areas.

Compliance and Certifications

ATEX: II 3G Ex nA nC IIC Gc (FM12ATEX0090U)
IECEx: IECEX FMG 12.0035U
FM: CL. 1 Div. 2, GP. A, B, C, D (Temp. Rating T4)
CE: Approved

FAQ

Can the module be inserted while the system power is energized?

No, the module cannot be removed or inserted with system power energized unless the area is known to be non-hazardous.

What port types are supported by this device?

The module supports RS232, RS422/485 half-duplex, and RS422/485 full-duplex communication.

How do I ensure the terminal block matches the I/O card?

A rotary keying system (Key Pos: D4) is used to ensure compatibility. The terminal block must have its keys set to match the specific I/O card.

Are the ports isolated?

Yes, each port is electrically isolated from the system and from the other port. Note that these ports must be externally grounded.
