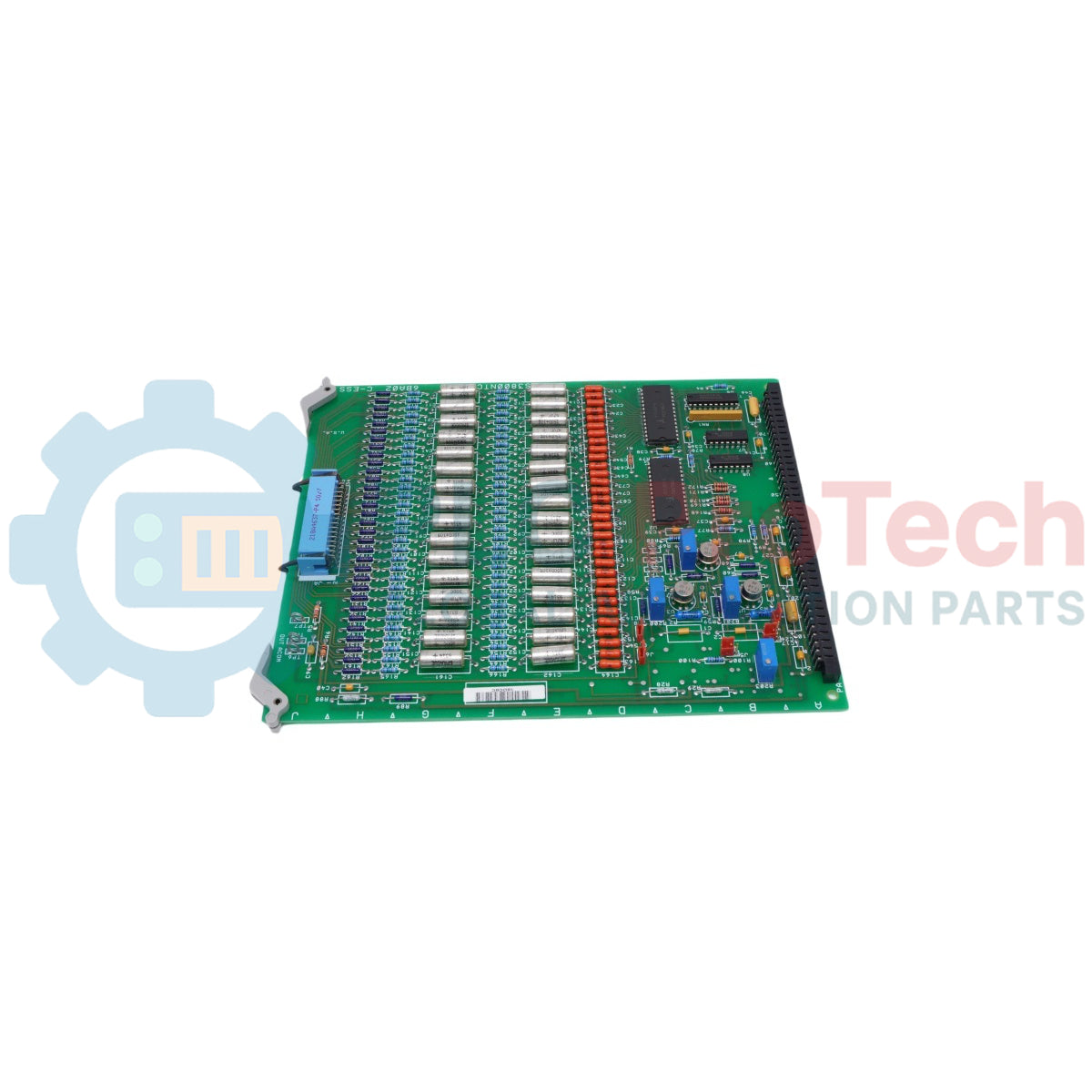

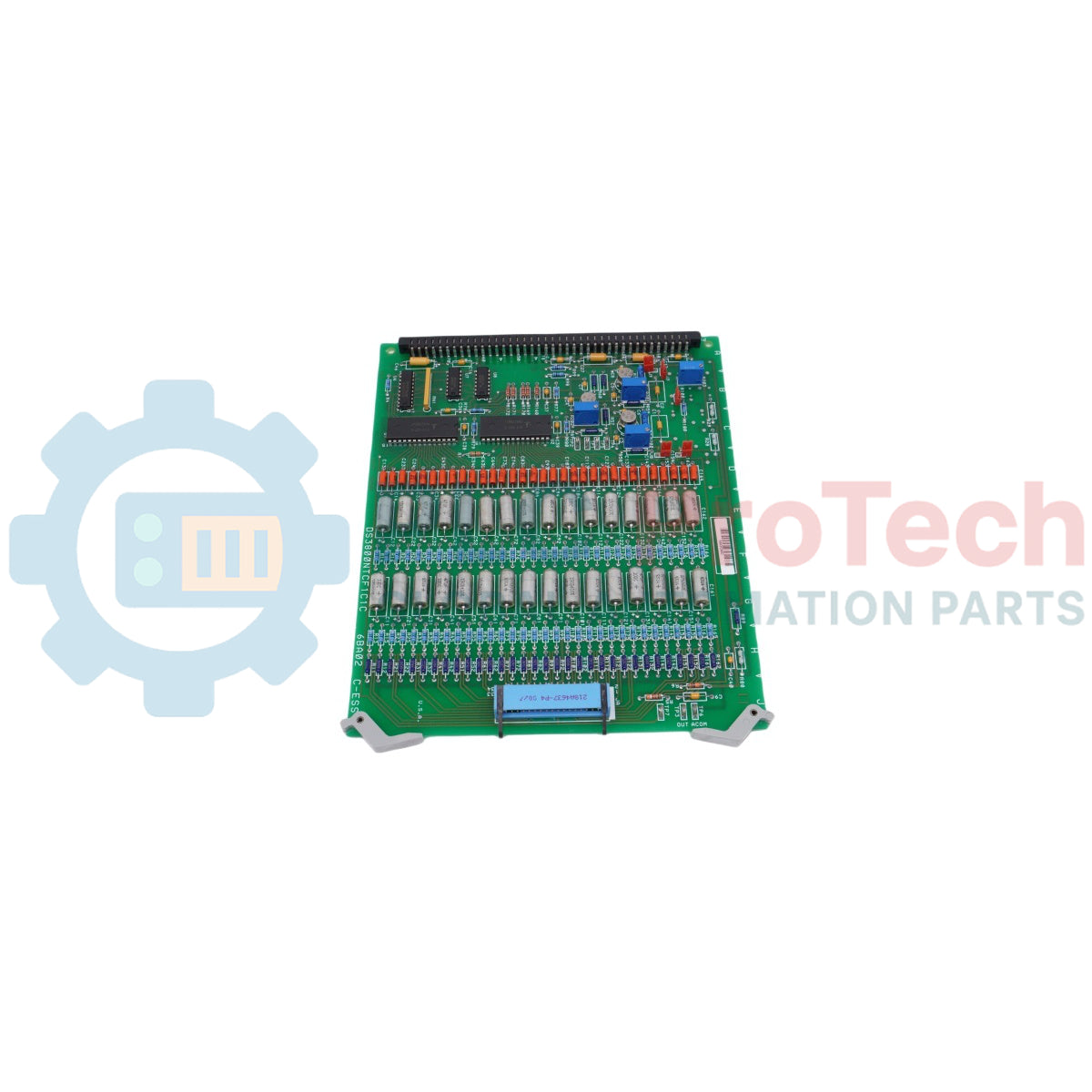

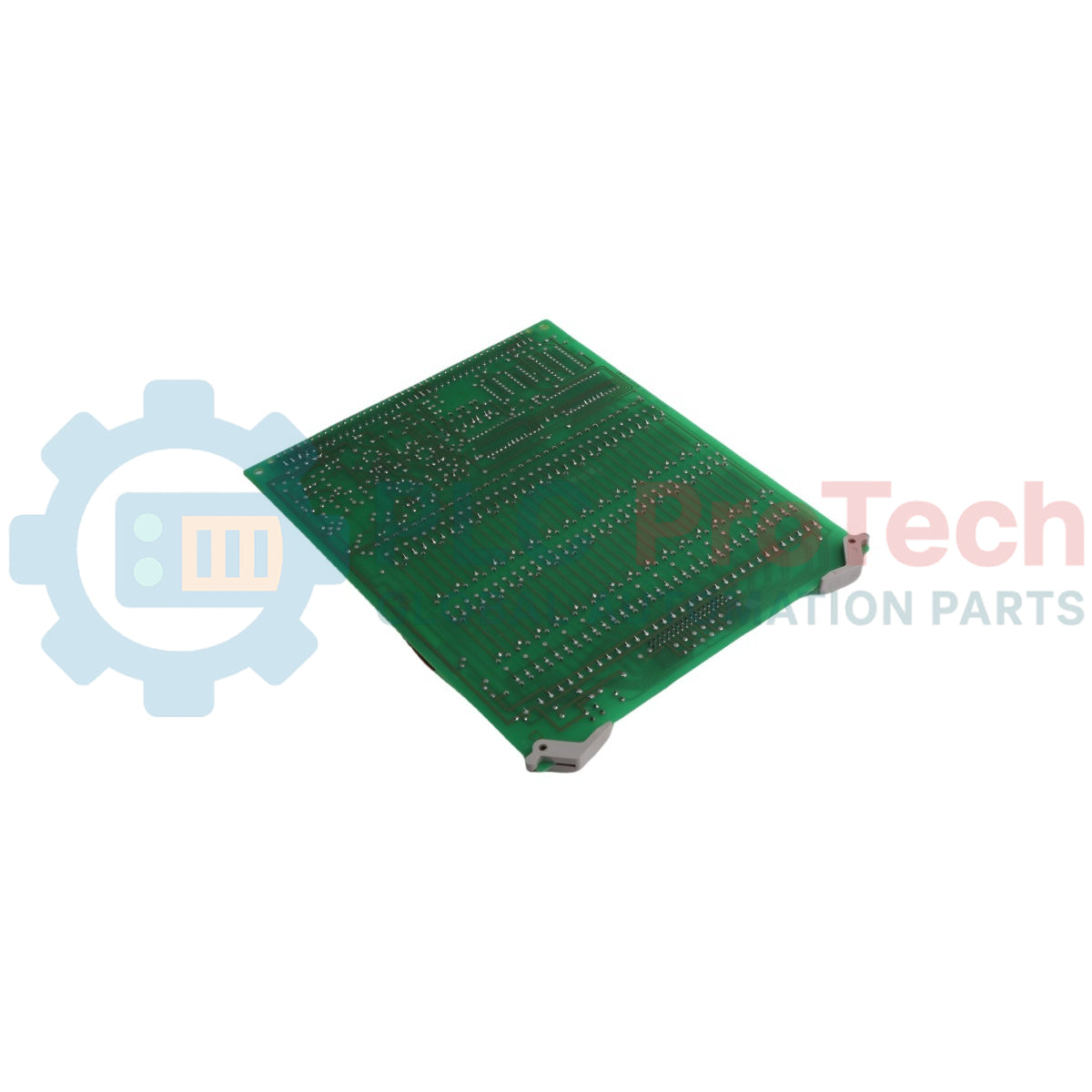

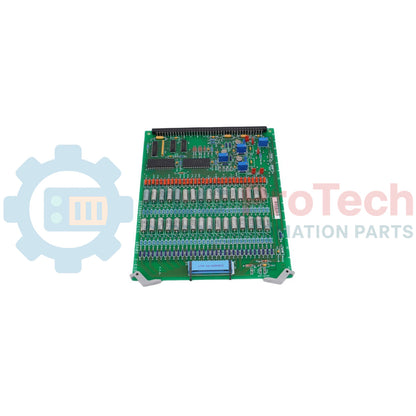

GE DS3800NTCF1C1C Mark IV Thermocouple Condition Card

Description

The thermocouple condition card acts as a dedicated analog signal conditioning interface designed for the legacy Speedtronic management infrastructure. The DS3800NTCF1C1C reads real-time exhaust temperature metrics from turbine-mounted sensor probes and computes precise deviation values relative to a pre-established reference setpoint. This conditional calculation generates the critical output command signal required to execute deterministic temperature control loop actions across the system. Operating within a distributed array of thirteen matching cards, this specific printed circuit board processes sensor telemetry to maintain thermal balancing, protecting the gas or steam turbine from combustor faults, mechanical distortion, or unscheduled thermal fatigue downtime.

Features

• Integrates five hardware jumper switches alongside four high-precision calibration potentiometers for field voltage divider adjustments.
• Features one onboard dedicated resistor network array to establish accurate reference scaling for micro-voltage thermocouple inputs.
• Constructed with seven dedicated test points grouped into distinct diagnostic lines of three and four channels for fast field troubleshooting.
• Outfitted with integrated hex inverting gates operating on a regulated 7 V supply, combined with three-state output octal buffers and line drivers.
• Includes factory-drilled alignment holes and pre-installed nylon extractor/inserter handles on the right corners to simplify rack insertion and extraction.

Applications

• Gas and Steam Turbine Exhaust Temperature Monitoring
• Speedtronic Control Loop Signal Conditioning
• Multi-Channel Thermocouple Thermal Balancing Arrays
• Combustor Protection and Temperature Control Loops

Technical Specifications

Installation Guidelines

• Handling and Insertion: Retract the board utilizing the built-in nylon extractor/inserter clips positioned on the right corners. Avoid applying perpendicular force to the surface-mounted film capacitors or composite resistors during insertion into the non-VME panel chassis.
• Calibration Validation: Utilize the onboard line test points (TP) to measure and log real-time loop response parameters. Adjust the four integrated calibration potentiometers to align command output values if discrepancy exists between the physical thermocouple output and reference baselines.
• Shielding Continuity: Ensure all incoming thermocouple compensation extension cables are properly stripped and land securely on their termination tracks. Keep signal shielding continuous up to the cabinet grounding bulkhead to eliminate low-frequency electrical noise from corrupting the core command algorithm.
