GE Multilin UR-8NH Standard 8CT With Enhanced Diagnostics

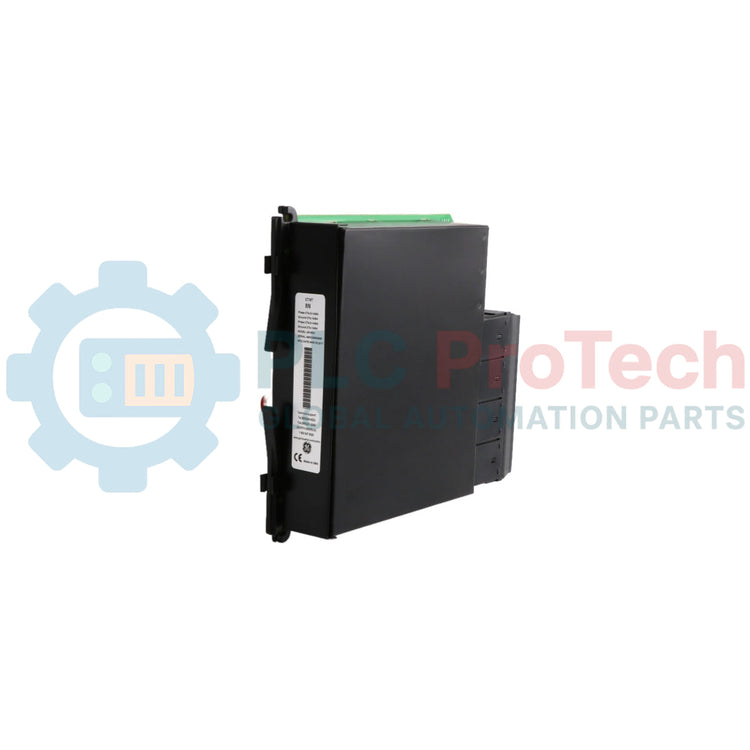

Description

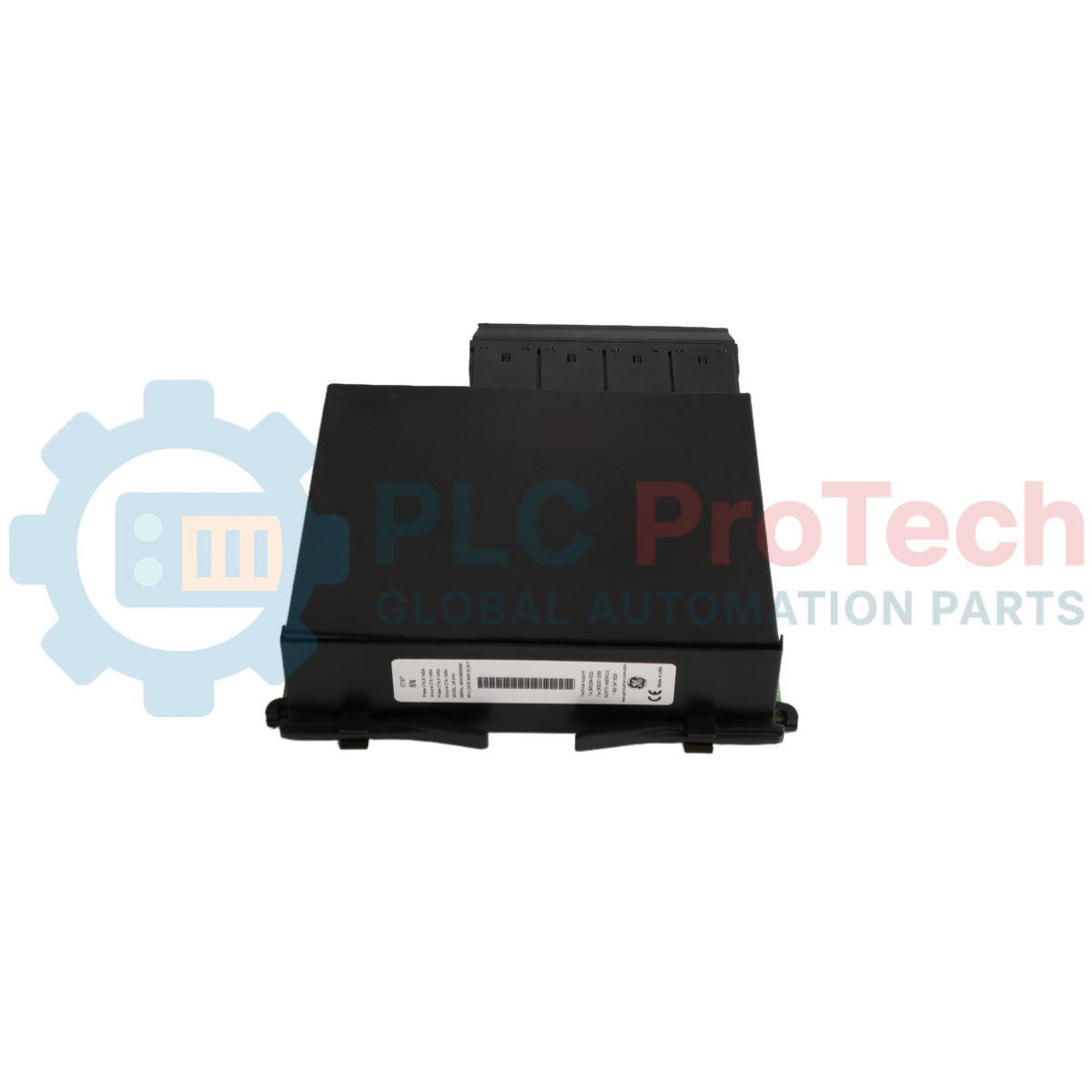

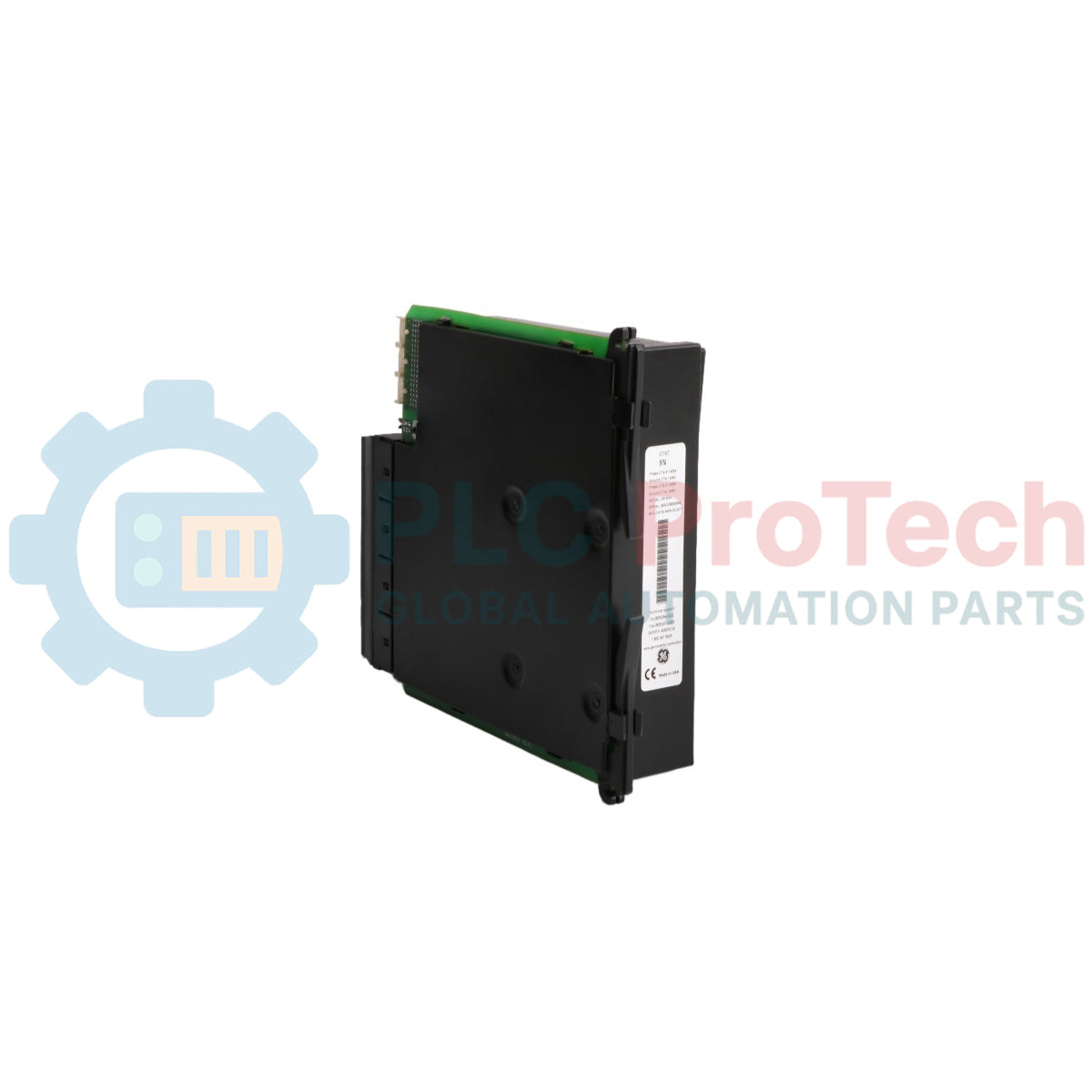

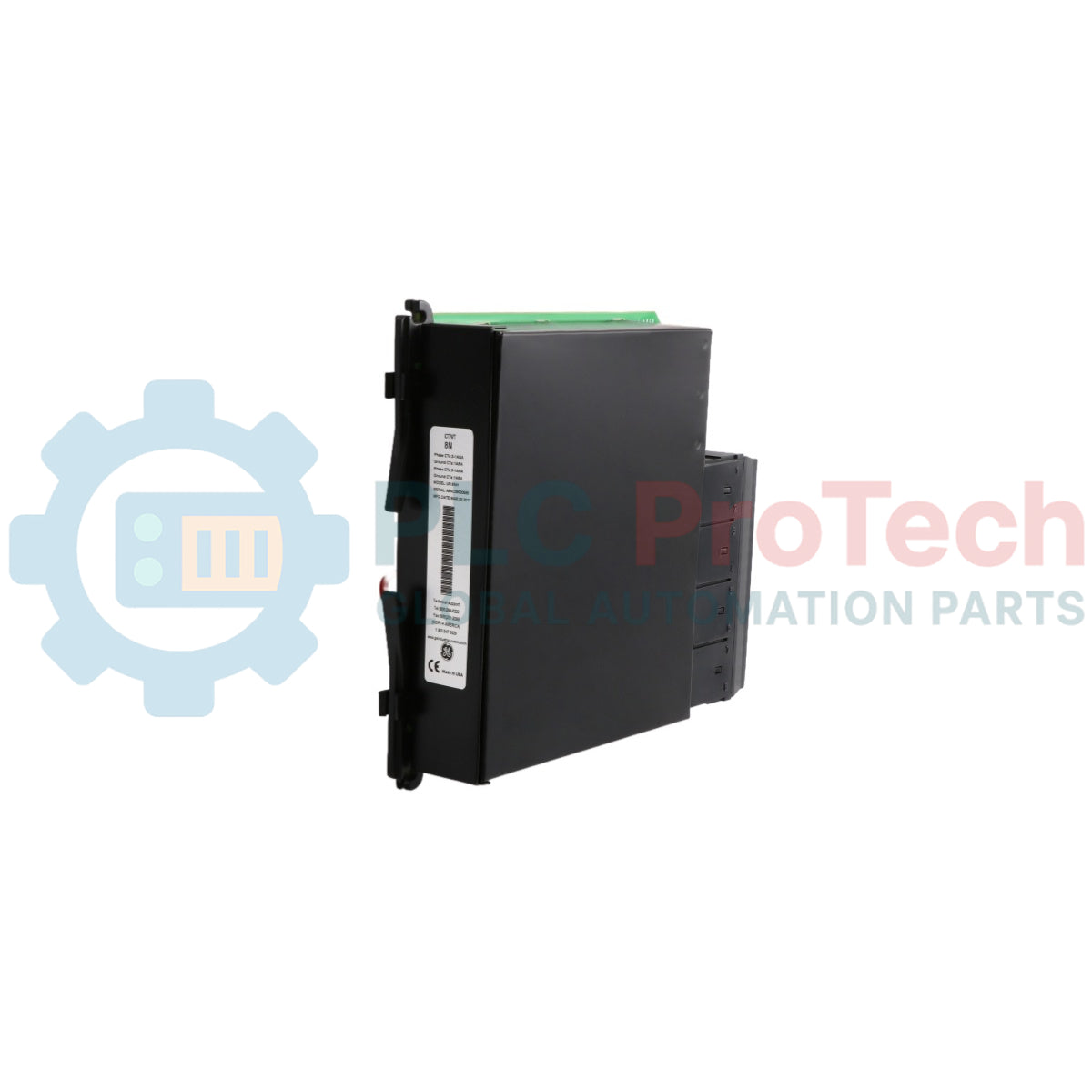

The GE Multilin UR-8NH Standard 8CT with enhanced diagnostics is a modular component designed for the Universal Relay (UR) platform, specialized for transformer, transmission line, and substation protection management. This specific hardware assembly couples the 8N current transformer (CT) input module with the H high-voltage universal power supply module within a heavy-duty automation chassis. The 8N module offers 8 independent current transformer inputs engineered with enhanced diagnostics to continuously verify internal digital signal processor paths and safeguard external CT circuit connectivity against undetected open-circuit faults. Operating as a core analog measurement and power management unit, the GE Multilin UR-8NH Standard 8CT with enhanced diagnostics interfaces seamlessly with updated protective processing cores to deliver real-time telemetry, oscillography, and high-speed protection routing across industrial electrical systems.

Features

• Continuous Input Verification: Integrated enhanced diagnostics within the 8N module continuously monitor internal hardware health and analog-to-digital signal path status.
• High-Density CT Monitoring: Provides 8 separate current transformer inputs optimized for comprehensive three-phase and neutral current telemetry.
• Universal Power Architecture: Equipped with the H power supply module designed to tolerate a wide input range across both AC and DC auxiliary power networks.
• Blue-Label Alignment Warning: Features blue color-coded physical labeling to guarantee correct hardware compatibility with corresponding high-performance CPU architectures.
• Advanced Transient Recording: Facilitates data routing for high-capacity event recording and non-volatile oscillography storage.

Applications

• Utility and primary substation transformer protection.
• Transmission line and feeder management distribution networks.
• Industrial power distribution automated switchgear configurations.
• Substation automation schemes interfacing via high-speed communication networks.

Ordering Information

Technical Specifications

Installation Guidelines

Panel Mounting

Mount the chassis containing the modules securely inside a standard 19-inch equipment rack system or a designated panel cutout. Verify that the structural framework supports the collective weight of the populated unit and heavy-gauge rear terminal wiring harnesses.

Grounding

Establish a secure grounding path from the rear-chassis grounding stud to the main station ground busbar. Use a low-impedance copper wire with a minimum gauge of 10 AWG (or 4.0 mm square), ensuring all non-conductive coatings or paint are scraped away at the terminal junction point.

CT Terminal Connections

All secondary lines coming from external current transformers must pass through an dedicated external shorting block mechanism before connecting to the rear terminal blocks of the unit. Never clear or open-circuit an active CT secondary circuit. Use proper ring-tongue terminal lugs and copper conductors rated for 90 degC or higher.

CPU Module Alignment

The 8N module utilizes modern blue labeling characteristics. Ensure it is exclusively paired with matching blue-labeled central processing units (including variants 9E, 9G, 9H, 9J, 9K, 9L, 9M, 9N, 9P, 9R, or 9S) to prevent physical hardware mismatches or critical system faults.
