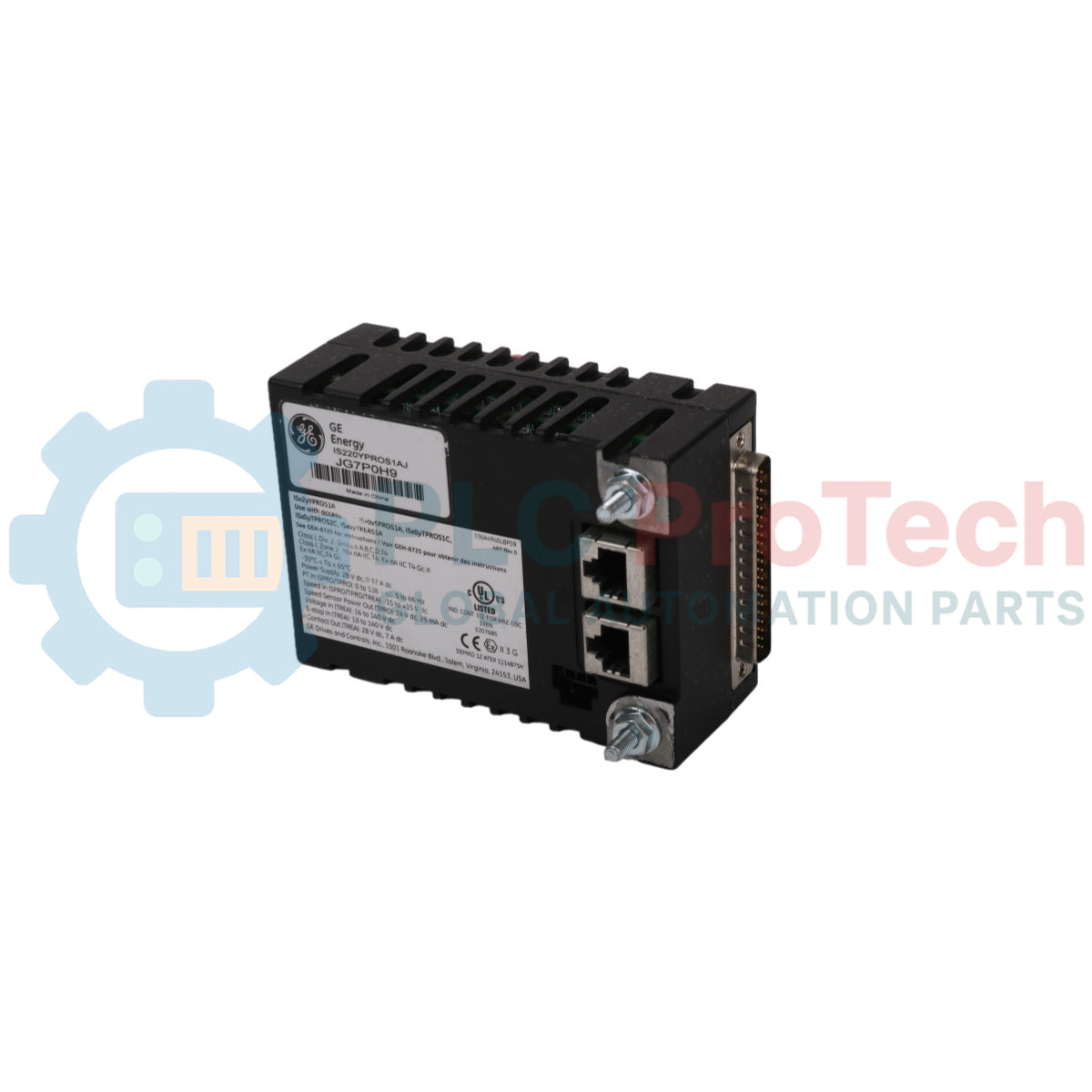

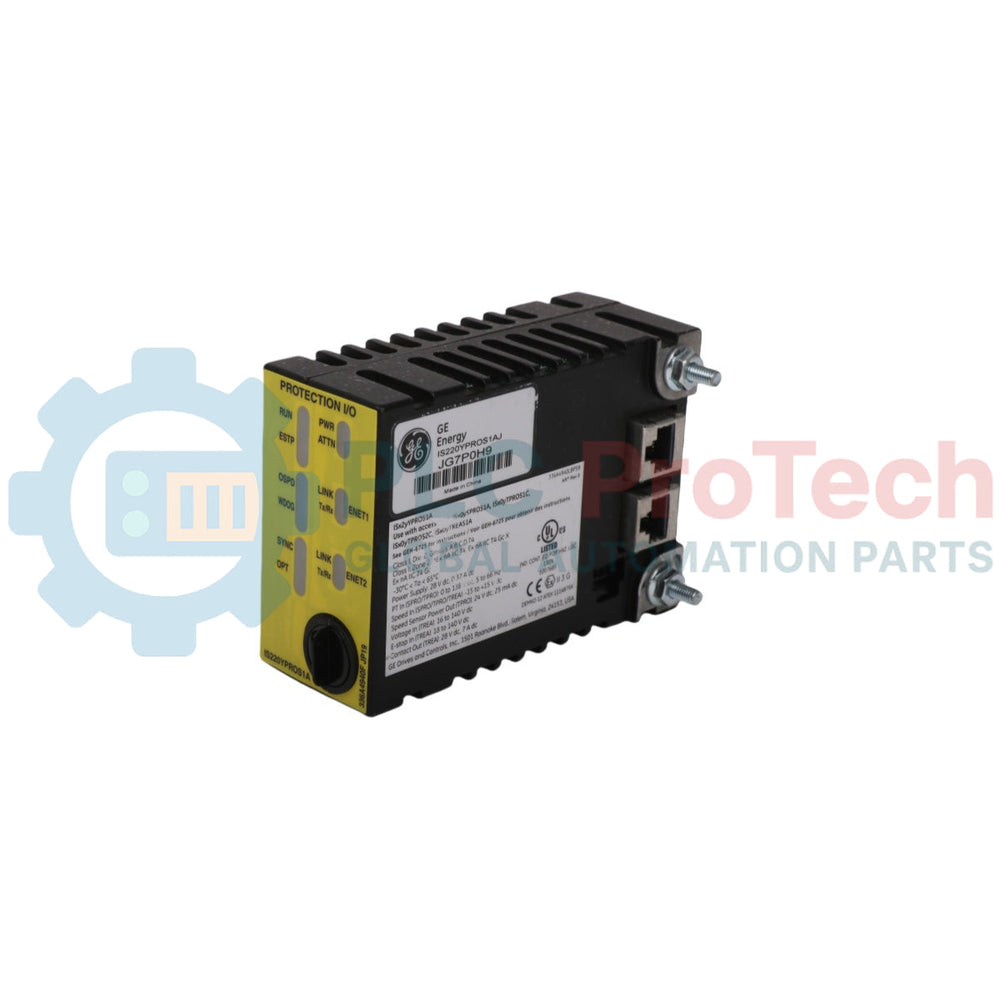

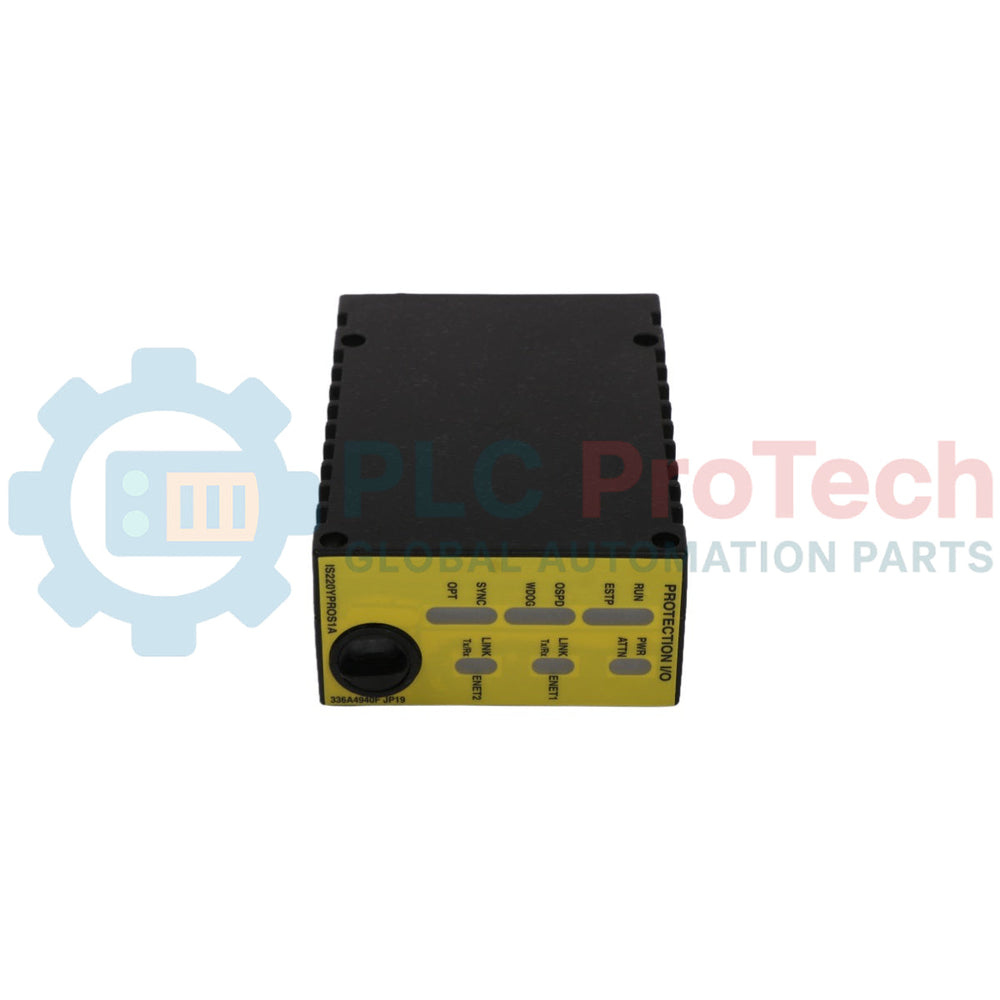

General Electric IS220YPROS1AJ Mark VIeS Backup Turbine Protection I/O Module

Description

The IS220YPROS1AJ functions as a backup turbine protection I/O module within the Mark VIeS control system series. This module is engineered to operate as an independent backup overspeed protection loop, working alongside a secondary checking circuit to manage generator synchronization with an external utility bus. Additionally, the IS220YPROS1AJ provides a dedicated, self-contained watchdog process loop to monitor the runtime state of the primary plant control architecture. Outfitted with onboard Ethernet network ports, the hardware handles bidirectional IONet communications directly with system control modules while displaying real-time linkage status updates using diagnostic LEDs. The base printed circuit board assembly features a special style of PCB protection coating to maintain hardware operation in challenging field industrial panels.

Features

• Establishes a fully independent hardware backup layer unaffected by primary control system operation.
• Executes discrete overspeed protection algorithms and secondary generator bus synchronization checks.
• Embeds a dedicated watchdog mechanism to evaluate primary control module processing states.
• Incorporates physical dual Ethernet connectors supporting fast IONet fieldbus infrastructure communications.
• Features localized diagnostic status LEDs providing real-time operational feedback for network linkages.
• Utilizes a specialized style of protective PCB coating to prevent structural circuit degradation.

Applications

• Backup Turbine Protection Systems: Providing overspeed safety interlocks and secondary emergency trips on heavy utility turbines.
• Generator Synchronization Loops: Validating voltage and frequency status before closing main circuit breakers to the utility grid.
• Independent Safety Watchdogs: Tracking primary industrial controller operation within Mark VIeS safety-instrumented architectures.

Technical Specifications

Connections/Interfaces

Installation Guidelines

• Isolate all external power inputs and turn off active lines before mounting the protection module to its mating terminal base.
• Ensure the module is configured correctly for the specific terminal layout, such as triple modular redundant (TMR) setups mounted across simplex protection (SPRO) terminal boards, single TPROS#C terminal bases, or specialized TREA boards for aero-derivative systems.
• Secure all connection elements firmly to maintain steady 28 V dc external power distribution across the internal processor boards.
• Verify that structural ambient panel temperatures are kept within the designated range of -30 to + 65 Celsius to prevent premature component failure.
