Honeywell 51196895-100 LCN System 1.8GB Hard Drive

Description

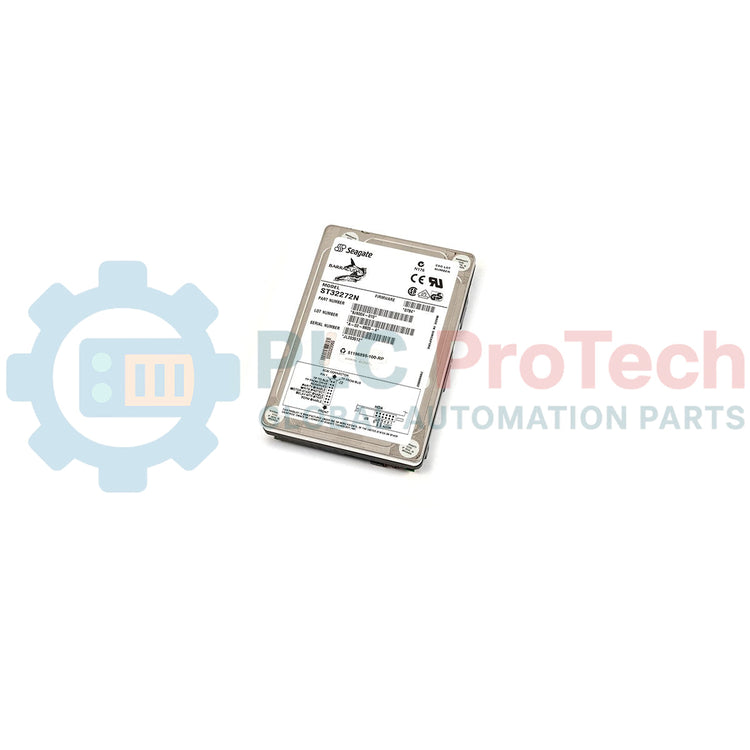

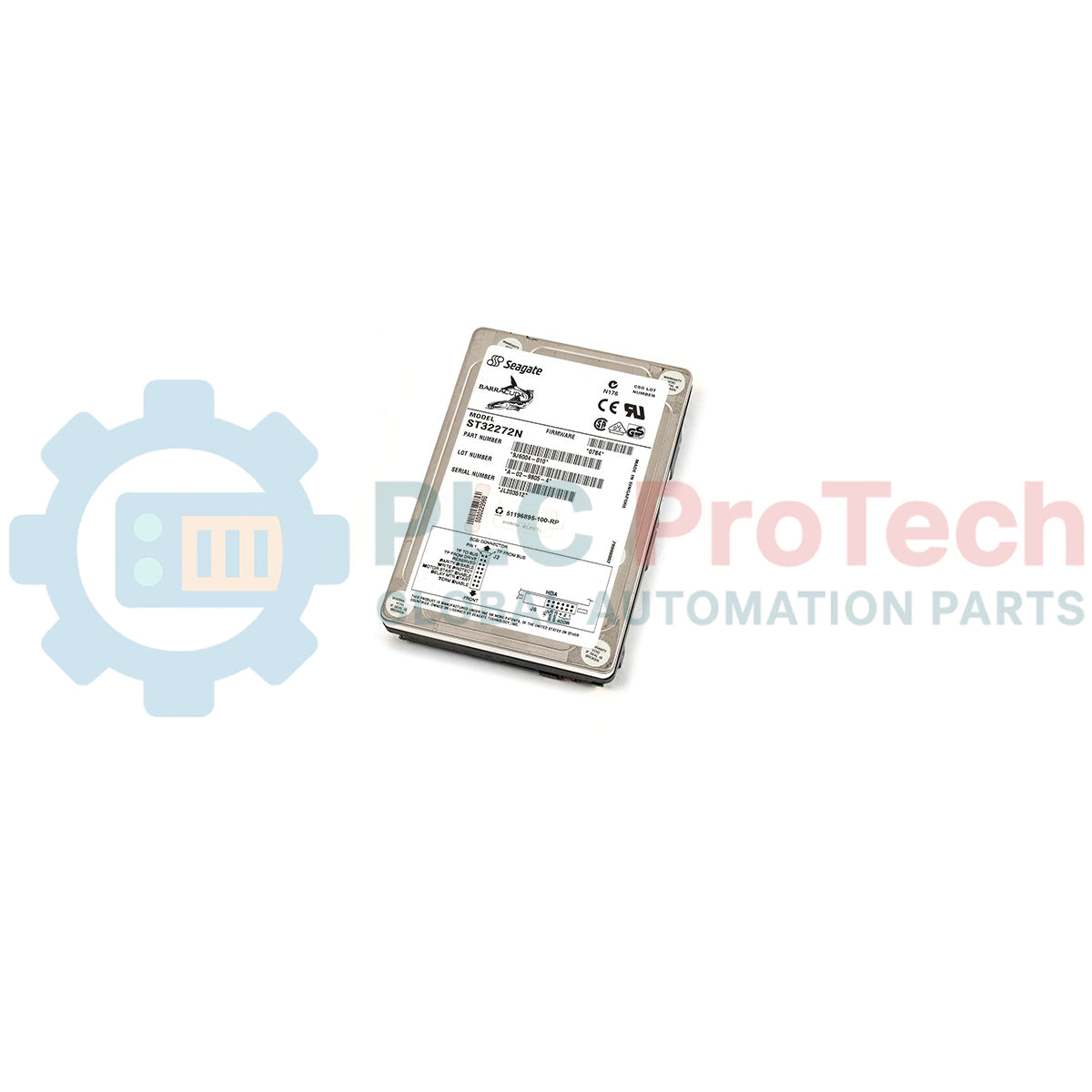

Serving as a critical legacy storage component within industrial control room architectures, the Honeywell 51196895-100 is an engineered 1.8GB hard drive built specifically for Local Control Network (LCN) system nodes. This specialized drive integrates seamlessly into Honeywell TDC 3000 distributed control system (DCS) platforms, providing reliable non-volatile data storage for critical system files, event journals, and control configurations. It is formatted and configured to meet the stringent sector requirements and timing parameters mandated by legacy Honeywell storage processors, mitigating communication timeout issues common with standard commercial storage media.

Features

• Direct mechanical and electrical compatibility with Honeywell TDC 3000 LCN processor modules.
• Pre-configured sectors and low-level firmware architecture optimized for real-time DCS data logging.
• High-reliability design built to endure continuous, non-stop write/read cycles in standard 24/7 industrial control cabinets.
• Legacy SCSI interface integration ensuring direct backward compatibility with older host bus adapters.

Applications

• Honeywell TDC 3000 LCN History Modules (HM) storage replacements.
• Application Module (AM) storage subsystem maintenance.
• DCS Operator Station backup database drives.
• Legacy process control databases in refining, chemical production, and power generation plants.

Technical Specifications

Empirical Engineering Insights

Alternative Models & Compatibility

This drive replaces legacy 1.0GB and older 1.8GB hard disk models within Honeywell History Modules. Ensure that your LCN software release (e.g., R500, R600 series) supports the target partition parameters. Substituting this OEM-configured part with standard commercial storage will cause bootstrap failures on the LCN due to missing specialized low-level tracks required by legacy controllers.

Application Pitfalls & Engineering Notes

Avoid hot-swapping this hard drive under any circumstances. LCN modules do not have hot-plug backplanes for storage drives. System degradation can occur if the SCSI bus termination is interrupted during live operations. Ensure active SCSI termination is maintained downstream on the same bus chain.

Commissioning & Configuration Tips

Before powering on the host module, verify the jumper configurations on the drive's rear pin array. The SCSI ID must match the assigned slot ID configured in the Honeywell Network Gateway or HM configuration files. Incorrect SCSI ID settings will prevent the LCN node from recognizing the volume during initialization.

Installation Guidelines
