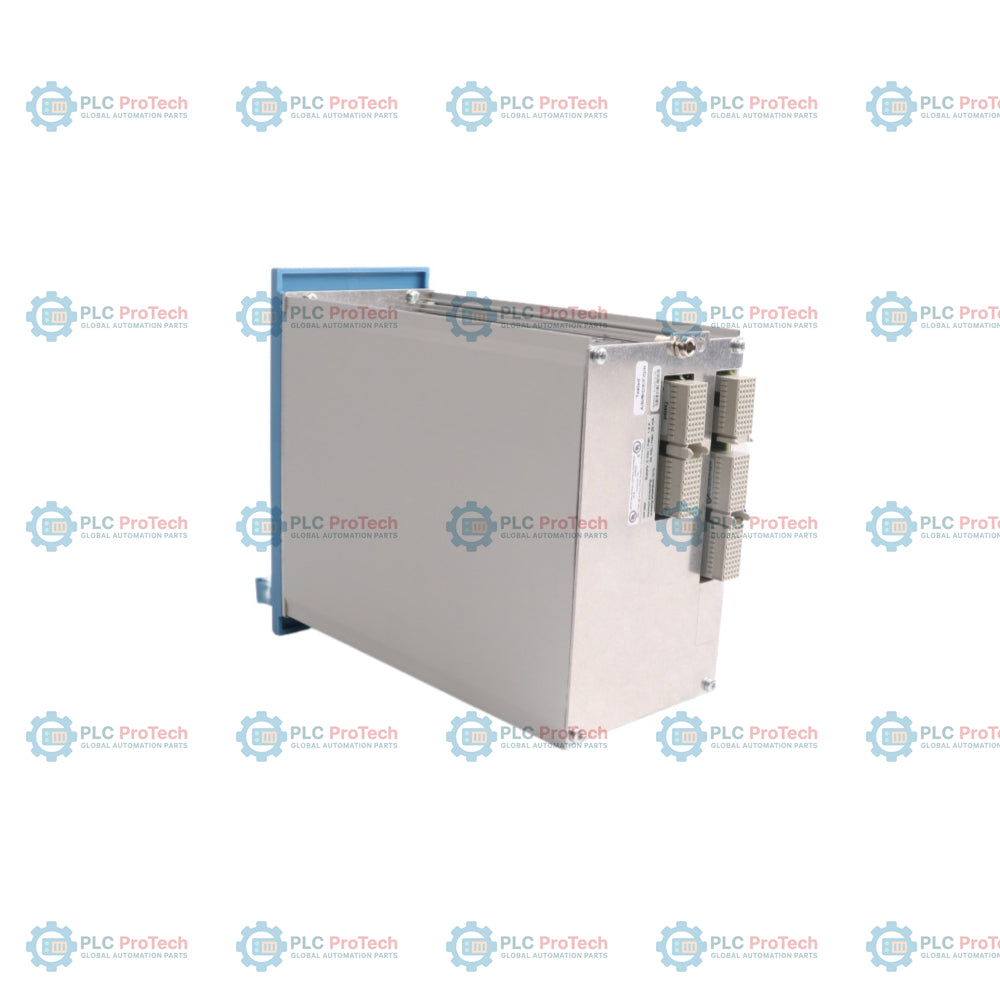

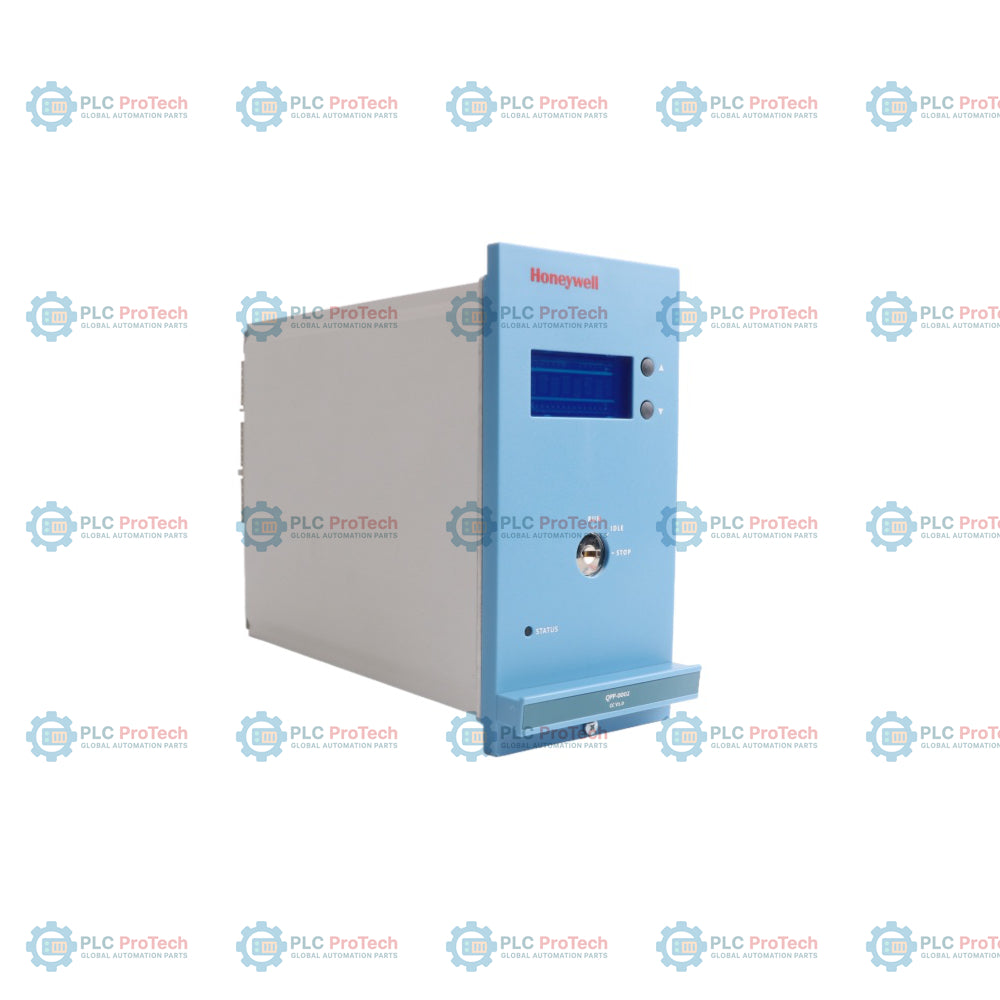

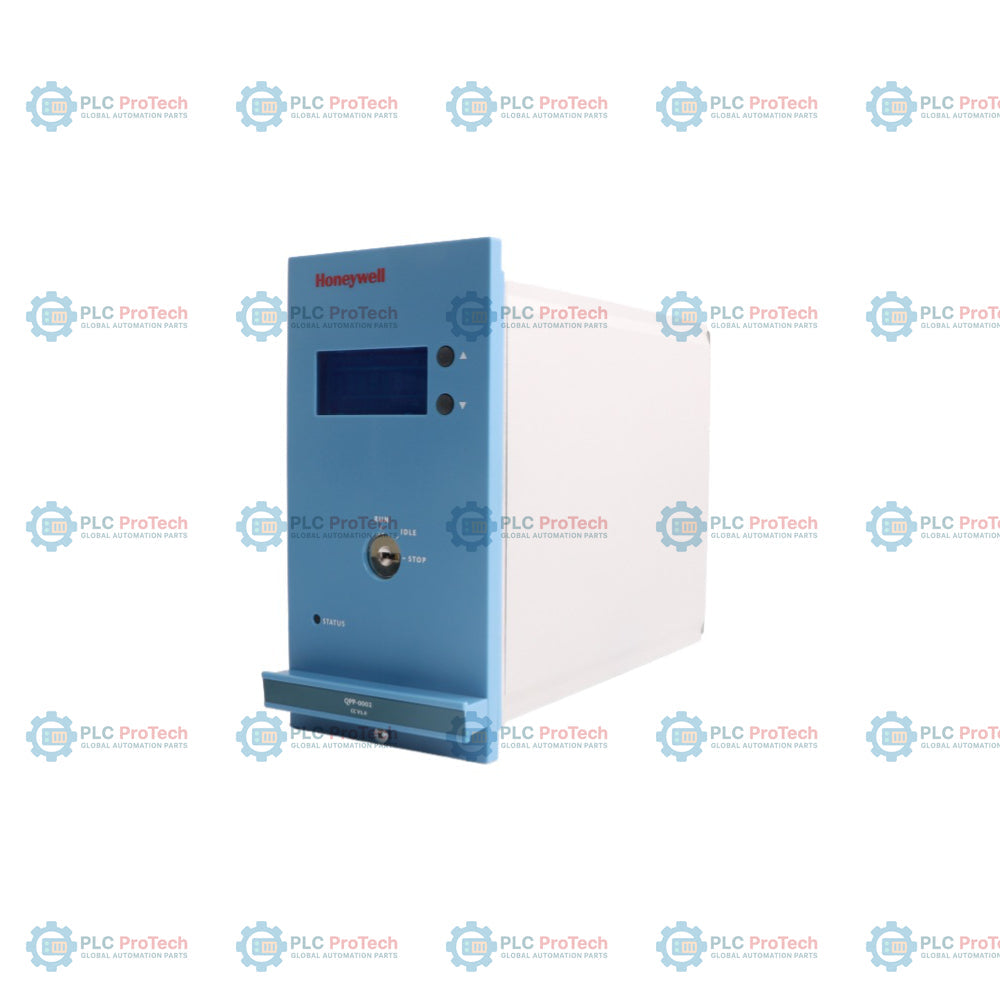

Honeywell FC-QPP-0002 CC V1.0 Safety Manager Quad Processor Module

SKU FC-QPP-0002 CC V1.0

In stock
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Honeywell
  • Product No.: FC-QPP-0002 CC V1.0
  • Origin United States
  • Product Type: Quad Processor Module
  • Barcode: 8537101190
  • Payment: T/T, Western Union
  • Weight: 1.3 kg
  • Dimensions: 176 x 88.5 x 212 mm
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Technical Datasheet

Honeywell FC-QPP-0002 CC V1.0 Safety Manager Quad Processor Module

Quantity

Product Description

Description

The Honeywell FC-QPP-0002 CC V1.0 is an enhanced-performance Quad Processor Pack designed as the core processing engine for Honeywell Safety Manager systems. Installed within the CPCHAS-0001 or CPCHAS-0002 Controller chassis, this module manages system operations by processing field input signals, executing safety logic diagrams created in graphical Functional Logic Diagrams (FLDs), and driving output interfaces. Operating as a direct, one-on-one spare replacement for the first-generation QPP-0001 in systems running Safety Manager firmware release R121 or higher, it offers complete backward compatibility and flexible deployment across non-redundant and redundant architecture models.

Engineered to meet stringent industrial safety standards, the FC-QPP-0002 CC V1.0 features a dual-processor, dual-memory architecture running synchronized internal execution paths. Hardware data-comparators continuously monitor every read and write cycle between both microprocessors. If a data discrepancy occurs, the integrated watchdog triggers an immediate safety response. With internal diagnostic coverage exceeding 99%, a single FC-QPP-0002 CC V1.0 module can run applications up to SIL3 without operational time limitations. When deployed in a dual-processor redundant Controller chassis configuration, the two modules communicate over a dedicated high-speed link to establish a 2oo4D voting architecture.

This processing module incorporates an 8-digit front-panel User Interface Display for real-time operational status, system diagnostics, and IP network verification. A three-position key switch (RUN, IDLE, STOP) provides hardware-level operational control, while dedicated power, temperature, and battery line monitors continuously check module status. The "FC-" prefix and "CC V1.0" designator indicate factory conformal coating, delivering high environmental protection against airborne contaminants and atmospheric humidity in harsh control cabinet environments.

Features

  • Dual Synchronous Processor Architecture: Operates two lockstep microprocessors with real-time hardware data-comparators for continuous cross-checking of read/write operations.
  • SIL3 Certified Safety Performance: Diagnostic coverage exceeding 99% enables single-module deployment up to SIL3 and 2oo4D voting capability in redundant Controller configurations.
  • On-Board High-Speed Memory: Features 2 x 2 MB system/application Flash, 1 x 16 MB backup Flash, 2 x 256 KB battery-backed SRAM, and 2 x 512 KB dedicated SRAM for redundant processor data exchange.
  • Advanced Dual-Section Watchdog: Includes a fully testable 1oo2D watchdog circuit monitoring execution loop timing, memory integrity, 5 Vdc/24 Vdc power rails, and Emergency Shut Down (SD) inputs.
  • Integrated Emergency Shut Down (SD) Input: Galvanically isolated 24 Vdc input de-energizes watchdog outputs directly during safety trips, independent of the main processors.
  • Diagnostic User Interface: Eight-digit front-panel LED display with navigation buttons provides live scrolling access to chassis diagnostics, IP configurations, battery voltage, and internal module temperatures.
  • Conformal Coating: CC V1.0 specification provides protective PCB coating against corrosive atmospheric gases, humidity, and airborne dust particles.

Applications

  • Safety Instrumented Systems (SIS): Central logic solver execution for Emergency Shutdown (ESD), Process Safety Management, and Fire and Gas (F&G) monitoring loops.
  • Critical Burner Management Systems (BMS): High-reliability flame safety control, furnace shutdown logic, and boiler protection systems.
  • Turbomachinery Safety Interlocks: Over-speed protection logic, auxiliary trip coordination, and emergency shutoff control for turbines and compressors.
  • Redundant Safety Controller Upgrades: One-on-one replacement for legacy QPP-0001 modules in Safety Manager systems running firmware R121 or higher.

Technical Specifications

General

Parameter Specification
Manufacturer Honeywell
Exact Model Number FC-QPP-0002 CC V1.0
Product Type Quad Processor Pack (Control Processor Module)
System Platform Safety Manager
Controller Chassis Compatibility CPCHAS-0001, CPCHAS-0002
Firmware Requirement (QPP-0001 Replacement) Safety Manager Release R121 or higher
Conformal Coating Yes (FC / CC V1.0 Series)
Diagnostic Coverage > 99%
Safety Integrity Level Up to SIL3 (Single Module), 2oo4D Architecture (Redundant Pair)

Electrical & Power Ratings

Parameter Specification
24 V Supply Voltage Range 24 Vdc (-15% / +30%)
24 V Supply Current Max. 25 mA
5 V Supply Voltage Range 5 Vdc (+/- 5%)
5 V Supply Current Max. 1.2 A
Emergency Shut Down (SD) Input Voltage (High) 15 Vdc to 32 Vdc
Emergency Shut Down (SD) Input Voltage (Low) < 4 Vdc (Reverse polarity protected)
Emergency Shut Down (SD) Input Current Approx. 8 mA at 24 Vdc
+24 V_SD Output Supply Voltage 15 Vdc to 31 Vdc
+24 V_SD Output Resistance Approx. 1.1 kOhm (Short circuit proof)
Watchdog Output Current (WDout) 750 mA per output

Memory & Processor Specifications

Parameter Specification
System / Application Program Flash 2 x 2 MB Flash
Backup Program Flash 1 x 16 MB Flash
Battery-Backed Data SRAM 2 x 256 KB SRAM
Redundant Communication Data SRAM 2 x 512 KB SRAM
IObus Communication Drivers 4 Integrated Channels

Environmental & Mechanical

Parameter Specification
Operating Temperature Range -5 degC to +70 degC (+23 degF to +158 degF)
Storage Temperature Range -40 degC to +85 degC (-40 degF to +185 degF)
Relative Humidity 10% to 95% (Non-condensing)
Physical Dimensions (H x W x D) 176 x 88.5 x 212 mm (6.93 x 3.48 x 8.35 in)
Module Weight 1.3 kg (2.87 lbs)

Connections / Interfaces

Interface Function
Front Panel 8-Digit Display Real-time system messaging, diagnostic scrolling, IP address verification, and software version readout
Status LED Indicator Multi-color LED indicating system operational state (Off: Power down/STOP, Green: Normal, Red: Hardware error)
Processor Status Key Switch Hardware selection switch for RUN, IDLE, and STOP processor operating states
Controller Backplane Connector Provides interface to internal 5 Vdc / 24 Vdc power rails, IObus channels, 1oo2D redundant links, and the 24 Vdc SD input

Installation Guidelines

  1. Verify System Requirements: Prior to installing the FC-QPP-0002 CC V1.0 as a replacement for a QPP-0001, ensure the Safety Manager system software is at firmware Release R121 or higher.
  2. Observe Safety Controls: Turn the front-panel Processor Status Key Switch to STOP before attempting module insertion or removal from the Controller chassis backplane.
  3. Chassis Alignment: Align the module card edges with the pre-determined Control Processor slot rails inside the CPCHAS-0001 or CPCHAS-0002 chassis. Slide the unit firmly until backplane connectors seat completely.
  4. Emergency Shut Down Wiring Check: If utilizing the external 24 Vdc Emergency Shut Down (SD) trip input, verify proper connection of external potential-free contacts via a SICP-0002/L3 cable assembly. If unused, ensure the default SD jumper link remains installed on the controller backplane.
  5. Key Switch Initialization: Rotate the key switch from STOP to IDLE or RUN to initiate processor boot cycles and self-diagnostic power-up routines.

Configuration & Commissioning

  • Firmware Flash Maintenance: Flash memory on the FC-QPP-0002 CC V1.0 can be updated directly through the system network interface without physically removing the module from the Controller chassis.
  • Status Display Verification: Use the front-panel Up and Down scroll buttons to inspect system node numbers, assigned IP addresses (COM 1A/1B, COM 2A/2B), supply rail voltages (Vcc, Vb), and internal operating temperature readings (Tmp).
  • Diagnostic Monitoring: If a hardware fault occurs, scroll to the Fail menu to inspect stored diagnostic events, including specific chassis, slot, module ID, and associated error codes.
  • Redundant System Synchronization: In dual-controller systems, monitor the LED display during power-up to confirm the module transitions through PowerUp, Sync, and Running states without fault indicators.

Compliance and Certifications

  • CE Mark: European Conformity Compliance
  • UL Listed: Underwriters Laboratories Certified
  • CSA Certified: Canadian Standards Association Approved
  • TUV: Safety Approved for High-Integrity Safety Applications (up to SIL3)
  • FM Approved: Factory Mutual Recognized for Hazardous Locations
Shipping &amp; Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
Is the Honeywell FC-QPP-0002 CC V1.0 backward compatible with older QPP-0001 modules?
Yes, the Honeywell FC-QPP-0002 CC V1.0 is backward compatible and acts as a direct one-on-one spare replacement for the legacy QPP-0001 module in Safety Manager systems running firmware release R121 or higher.
What safety architecture does a pair of Honeywell FC-QPP-0002 modules provide?
A single module delivers SIL3 safety capabilities with over 99% diagnostic coverage. When installed in a redundant Controller chassis configuration, two FC-QPP-0002 modules form a 2oo4D voting architecture for high-availability process safety.
What is the function of the Emergency Shut Down (SD) input on the FC-QPP-0002 CC V1.0?
The galvanically isolated 24 Vdc Emergency Shut Down input de-energizes the watchdog outputs directly when a trip signal occurs, bypassing the main microprocessors to guarantee a safe hardware shutdown.
What does the CC V1.0 suffix indicate on this Honeywell processor module?
The CC V1.0 suffix (along with the FC- prefix) designates that the module features factory conformal coating on its circuit boards, protecting sensitive components against humidity, chemical vapors, and industrial airborne pollutants.
