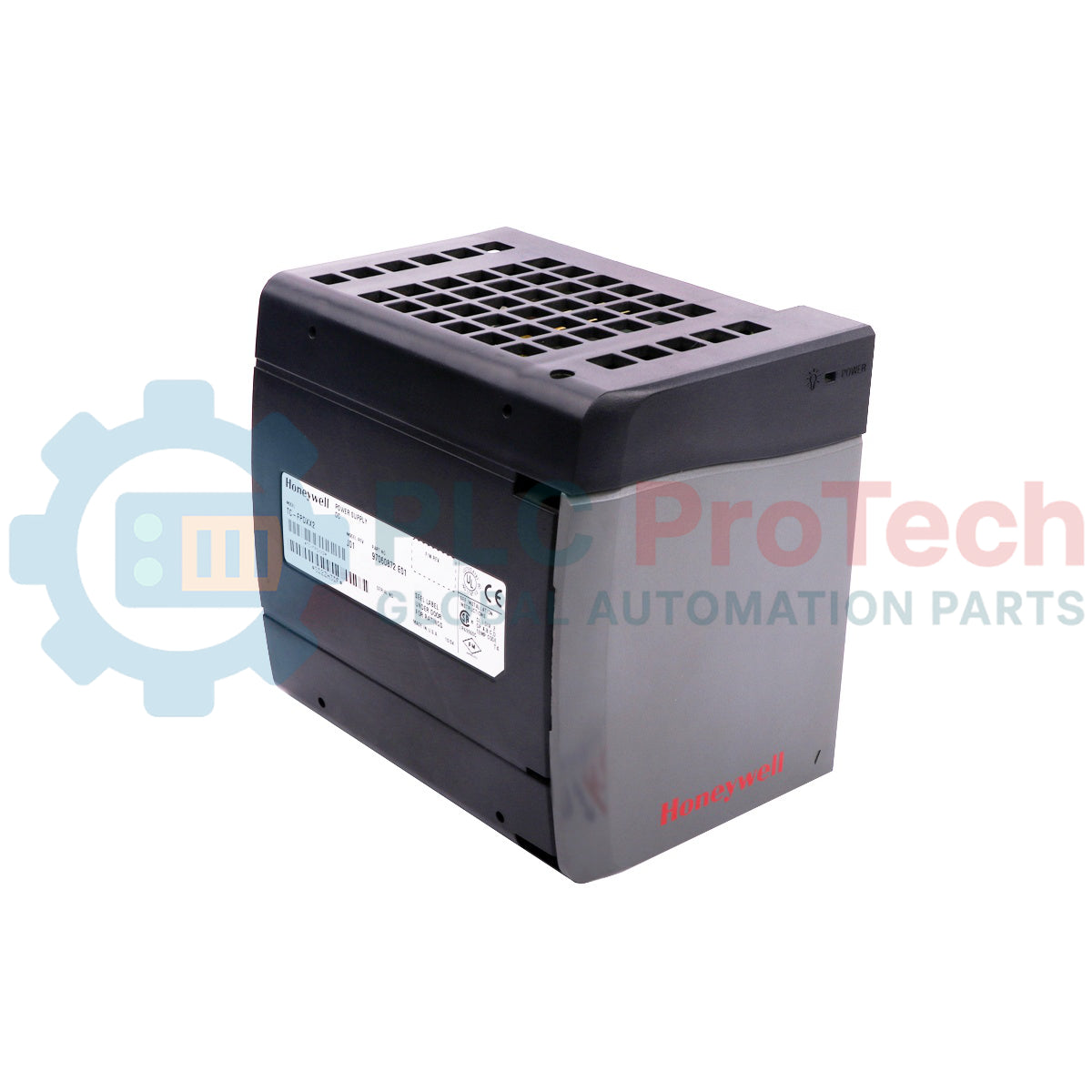

Honeywell TC-FPDXX2 Uncoated Series-A Power Supply

SKU TC-FPDXX2

In stock

12-month warranty
Free returns within 30 days

Manufacturer: Honeywell
Product No.: TC-FPDXX2
Country of origin:United States
Product Type: Power Supply Modules
Payment: T/T, Western Union
Weight: 1100g
Dimensions: 11.2 x 14.5 x 14.0 cm (4.41 x 5.71 x 5.51 in)
Shipping port: Xiamen
Warranty: 12 months

The Honeywell TC-FPDXX2 is an uncoated Series-A non-redundant power supply module designed to deliver reliable DC operating power to modules installed within an Experion LX / Experion LS Chassis Series-A platform. Mounted directly onto the left side of the chassis backplane without consuming an I/O slot, the TC-FPDXX2 converts a nominal 24 VDC input into four regulated backplane output voltages—1.2 VDC, 3.3 VDC, 5.1 VDC, and 24.0 VDC—providing up to 70 W total power output to support controller, network, and I/O module operations.

Features

Non-redundant chassis-side mounting designed to power backplane modules without consuming an I/O slot position.
Wide DC input range from 19.2 to 32 VDC with tolerance for temporary drops down to 16 VDC during motor starting conditions.
Quad-voltage DC backplane output supplying 1.2 VDC, 3.3 VDC, 5.1 VDC, and 24.0 VDC.
High total power output capability delivering up to 70 W at 60 degC.
Integrated non-replaceable soldered fuse protection for enhanced short-circuit and fire hazard prevention.

Applications

Experion LS and C200E process control chassis power distribution.
Distributed Control Systems (DCS) operating in 24 VDC plant power environments.
Remote I/O chassis assemblies requiring internal backplane logic power.

Technical Specifications

Parameter	Specification
Manufacturer	Honeywell
Model	TC-FPDXX2
Coating	Uncoated
Input Voltage Range	19.2 to 32 VDC (Input may drop to 16 VDC for max 2 minutes/hour)
Input Power	100 W
Maximum Inrush Current	30 A
Frequency Range	DC
Total Power Output Maximum	70 W @ 60 degC
Backplane Output Current, 1.2 VDC	1.5 A
Backplane Output Current, 3.3 VDC	4 A
Backplane Output Current, 5.1 VDC	10 A
Backplane Output Current, 24.0 VDC	2.8 A
Fuse Protection	Non-replaceable fuse soldered in place
Wiring Gauge	#14 AWG (1.4 mm)
Module Location	Left side of chassis (does not consume a slot)
Operating Temperature	0 to 60 degC (32 to 140 degF)
Storage Temperature	-40 to 85 degC (-40 to 185 degF)
Operating Humidity	5 to 95% noncondensing
Dimensions (L x D x H)	11.2 x 14.5 x 14.0 cm (4.41 x 5.71 x 5.51 in)
Weight	1.1 kg (2.5 lb.)

Installation Guidelines

Mounting Position: Install directly onto the left end of the Series-A chassis backplane. Ensure the power module interlocks properly with the chassis structure.
Wiring Requirements: Connect incoming DC power using #14 AWG (1.4 mm) wire to match terminal specifications. Maintain correct input polarity during installation.
Power Load Calculation: Calculate total power consumption of all populated backplane modules to ensure combined output power on 1.2 V, 3.3 V, 5.1 V, and 24.0 V rails does not exceed the 70 W limit at 60 degC.
Thermal & Clearance: Maintain adequate vertical and horizontal clearance around the chassis assembly to allow proper convective cooling and prevent ambient temperatures from exceeding 60 degC.

Compliance and Certifications

UL 508 Industrial Control Equipment
Class I, Div 2, Groups A, B, C & D Hazardous and Ordinary locations
89/336/EEC, EMC Directive (EN 50081-2 Emissions, EN 50082-2 Immunity)
C-Tick (Australian Radiocommunications Act)
CE-Mark Approval

FAQ

What is the primary function of the power supply module?

The device mounts to the left side of a Series-A chassis to convert 24 VDC input into four regulated backplane voltages, delivering logic power to modules in the rack.

Does installing the power supply take up a chassis slot?

No, the device attaches directly to the left side of the chassis backplane without consuming any standard module slot positions.

What is the total maximum backplane output power available?

The combined power output across all backplane voltage rails must not exceed 70 W at temperatures up to 60 degC.

How is the power supply protected against internal short circuits?

The device contains an internal non-replaceable fuse soldered onto the board to protect against short circuits and fire hazards.
