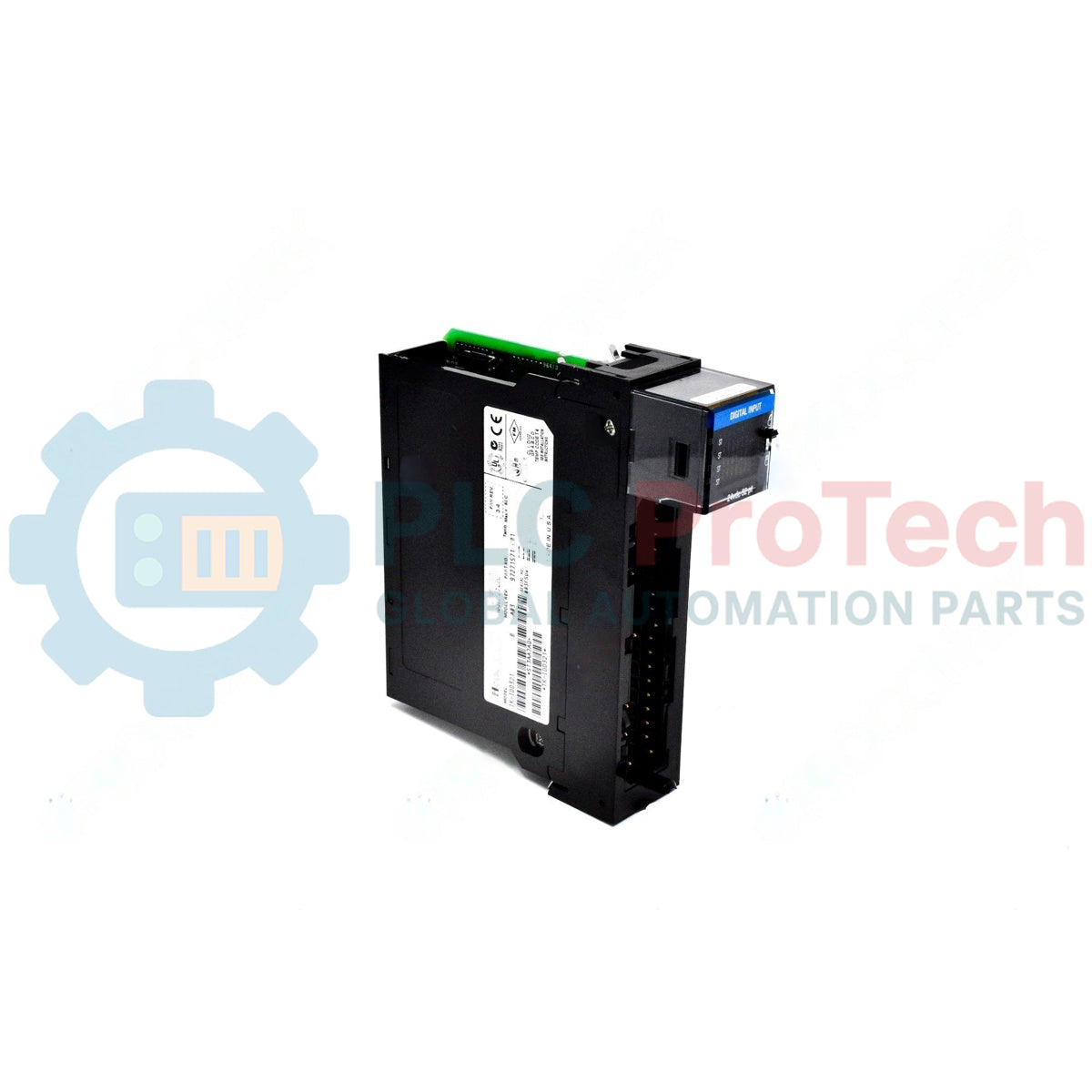

Honeywell TK-IDD321 C200 32-Point Discrete Input Module

Description

The TK-IDD321 is a high-density hardware component configured as a 32-Point Discrete Input Module designed for operation within the Honeywell C200 and Experion distributed control system (DCS) platforms. This module monitors digital on/off states from industrial field equipment, including limit switches, proximity sensors, pushbuttons, and auxiliary contacts, converting them into low-voltage logic thresholds for the central processor. It features 32 distinct input channels organized into two isolated banks of 16 channels sharing a common return path. Engineered to handle a nominal input voltage of 24 VDC, the internal detection circuits comply with IEC Type 1+ input compatibility standards and provide galvanic isolation barriers to prevent field-side electrical surges from migrating into the system backplane logic.

Features

• High-density 32-point tracking matrix organized in two symmetrical 16-point common banks.
• IEC Type 1+ compliance ensuring stable and predictable switching thresholds.
• Sustained operational reliability at elevated temperatures up to 60 Celsius across all channels.
• Low active current requirements combined with protective inrush clamping.
• Direct physical integration with standard 36-position connection terminal assemblies.

Applications

• High-density discrete sensor and switch array monitoring.
• Real-time interlock, safety gate, and pushbutton tracking.
• Distributed Control Systems (DCS) sequence-of-events processing.
• Equipment status loop telemetry in chemical manufacturing, refinery, and power automation.

Technical Specifications

Connections/Interfaces

Installation Guidelines

Grounding and Shielding

Verify that the hosting C200 chassis is bonded directly to the plant instrument grounding grid using a heavy-duty, low-impedance copper strap. Ensure that binary sensor signal wiring shields are terminated strictly at external grounding blocks rather than landing on the functional module terminals.

Handling and ESD Protection

The internal solid-state logic microchips are sensitive to static electricity. Technicians must wear an approved, tightly fitted static-dissipative wrist strap connected to a verified earth ground before unpacking the module housing, configuring internal links, or handling the backplane connectors.

Alignment and Insertion

Align the edges of the module's circuit board with the upper and lower plastic tracks of the local rack slot. Slide the unit inward until the rear pins seat completely into the backplane receptacle, and secure the integrated structural fasteners on the front faceplate to defend against continuous industrial panel vibration.

Wiring Configuration

Land all 24 VDC discrete loop conductors on the compatible TC-TBCH 36-position terminal block. Group field wiring neatly inside separate wire ducts isolated from AC motor feeds, transformer cables, and high-energy inductive switching pathways to eliminate electromagnetic induction on the 24 V inputs.

FAQ

What is the primary function of this module in the DCS?

It receives discrete on/off signals from up to 32 field-side elements and relays their digital state logic to the primary C200 controller.

How are the 32 input channels electrically grouped?

The channels are divided into two distinct groups, containing 16 inputs per common return wire path.

What specific terminal component must be used to link field wires?

This module utilizes the model TC-TBCH 36-position terminal block for physical field loops.

What is the minimum current required for the channel to register an on-state?

The input circuit requires a minimum on-state current parameter of 2 mA to reliably flip the logic register.

What is the maximum allowed voltage for an off-state signal condition?

To guarantee an off-state logic condition, the input potential at the terminal must not exceed 5 V.

Can this module maintain full performance under high temperature conditions?

Yes, it is fully rated to handle its complete 10-31.2 VDC on-state voltage range up to 60 Celsius with all channels energized.

What is the net unboxed weight of the individual module?

The individual, unboxed hardware assembly has a net physical weight of exactly 0.24 Kg.

How does the module handle initial power surges during contact closure?

The module exhibits a transient short/inrush current limit of 250 mA peak, which decays to less than 37% within 22 ms.

What is the maximum internal power dissipation of this hardware?

The maximum power dissipation generated by the module under full operating conditions is rated at 6.1 W.

Is this discrete hardware unit compliant with international sensor interfaces?

Yes, the input monitoring profiles align directly with the criteria established under the IEC Type 1+ standard.
