Description

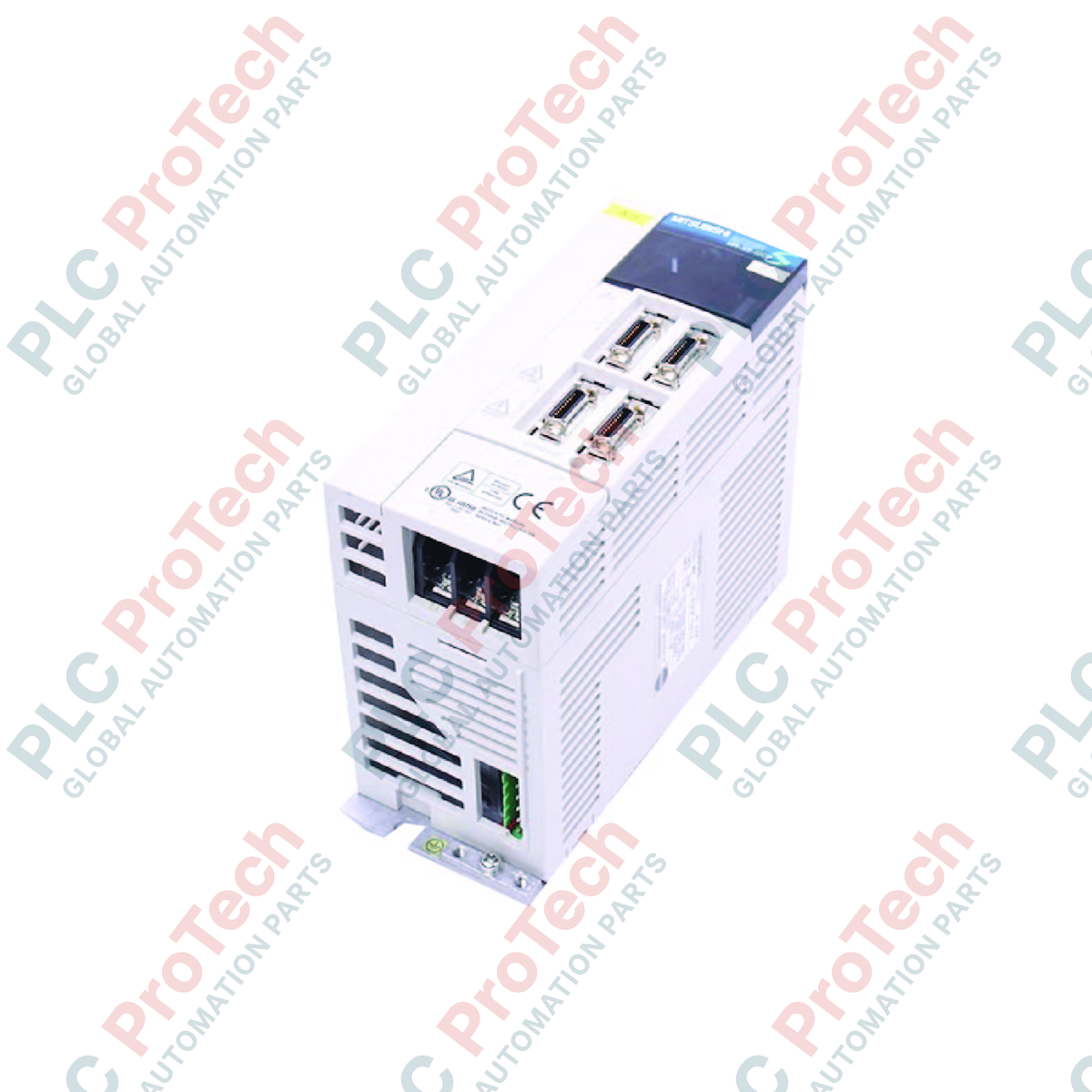

Engineered to streamline decentralized motion architectures, the Mitsubishi Electric MR-J2S-40CP-S212 AC servo amplifier integrates high-performance velocity and positioning control within a compact frame. This unit features a built-in positioning function (CP type) that enables autonomous program-based motion execution, reducing the overhead processing burden on host PLCs. Specifically designed under the S212 special specification, this variant supports single-phase 100V AC to 120V AC input systems, making it highly suitable for applications where standard three-phase power is unavailable. It pairs seamlessly with 400W rated MELSERVO-J2-Super series AC servo motors to deliver exceptional dynamic response and steady-state torque accuracy.

Key Features

• Integrated Positioning Function (CP): Executes point-to-point motion profiles directly from internal registers, eliminating the need for dedicated external positioning modules.
• Single-Phase Low Voltage Support: Specially modified (S212) to operate on 100V AC to 120V AC inputs, ideal for localized or utility-grid powered utility machinery.
• High-Resolution Feedback Compatibility: Interfaces with high-resolution serial encoders to guarantee micro-step precision and continuous path accuracy.
• Real-Time Adaptive Autotuning: Dynamically measures mechanical resonance and load inertia ratios, automatically adjusting control loop gains for optimized response.
• Serial Communication Ports: Equipped with RS-422/RS-232C interfaces for direct parameterization, configuration diagnostics, and multi-drop networking.

Applications

• Localized gantry robots, pick-and-place mechanisms, and automated XY tables.
• Precision packaging equipment, cartoning machines, and sealing systems.
• Labeling machinery, optical inspection systems, and rotary index tables.
• Pharmaceutical processing lines and laboratory automation machinery.

Technical Specifications

Interfaces and Port Configuration

Alternative Models & Compatibility

The MR-J2S-40CP-S212 features built-in positioning functionality (CP). It is not direct-drop-in compatible with standard speed-and-torque analog controllers like the MR-J2S-40A or pulse-train-only models like the MR-J2S-40B without reprogramming host interface logics. Note that the -S212 suffix signifies the low-voltage 100V variant; replacing this unit with a standard MR-J2S-40CP (which requires 200V AC to 230V AC) will require a different incoming power line configuration.

Application Pitfalls & Engineering Notes

When utilizing single-phase 100V AC distribution networks, voltage drops during rapid acceleration curves are a common source of system faults. Under heavy loads, a line sag below 85V AC will instantly trigger an AL 10 (Undervoltage) fault code. It is highly recommended to size incoming feed transformer capacities to match transient peak current requirements rather than steady-state nominal ratings.

Commissioning & Wiring Tips

To prevent electrical noise coupling into the serial feedback loop, ensure the encoder shielding is continuously bonded. The CN2 outer casing clamp must be grounded to the main chassis plate. If commissioning via the serial interface using MELSOFT MR Configurator, ensure the rotary station switch (SW1) on the drive front panel is set to "0" for direct 1-to-1 computer communications.

Installation Guidelines
