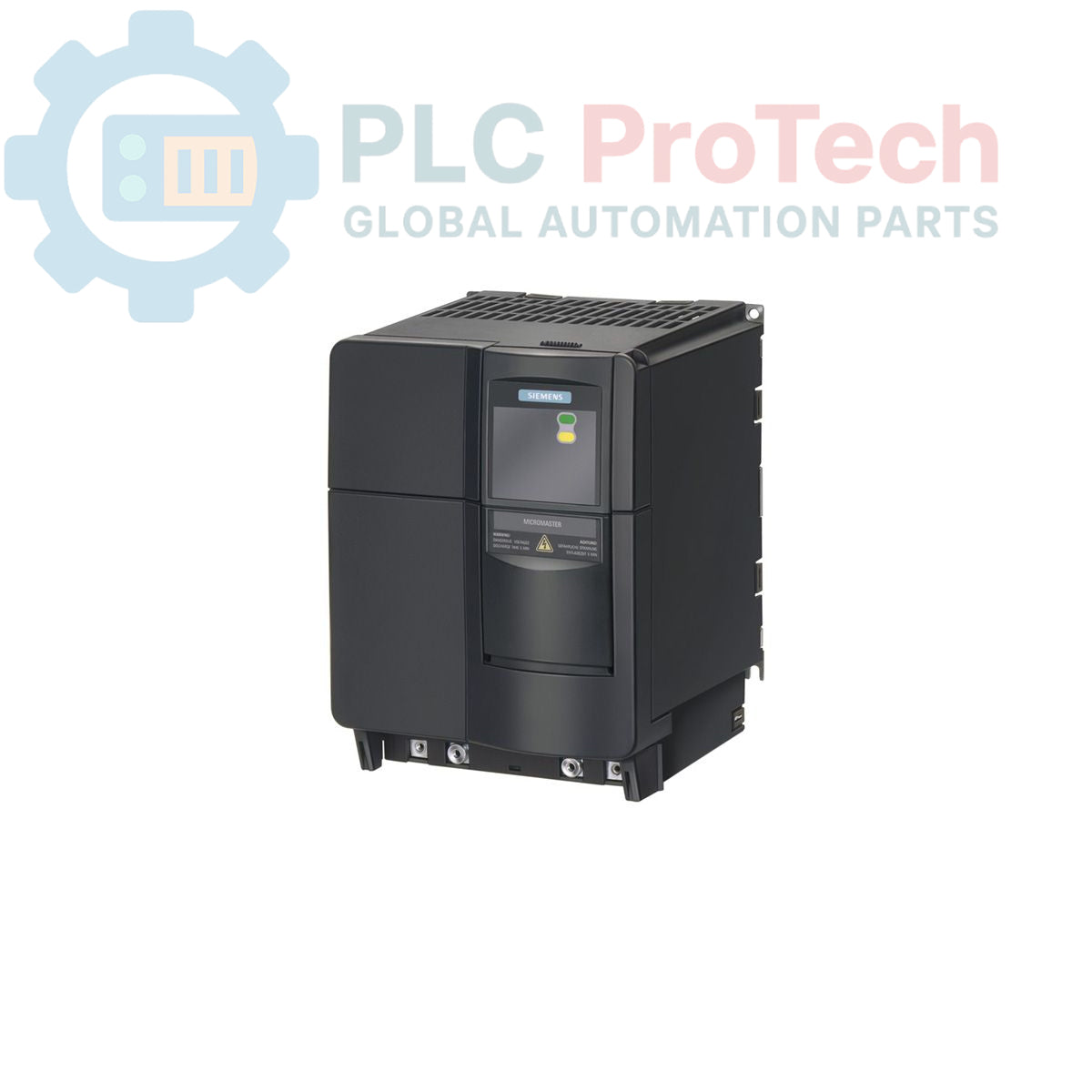

Siemens 6SE6420-2AC25-5CA1 Micromaster 420 Frequency Converter

SKU 6SE6420-2AC25-5CA1

In stock

12-month warranty
Free returns within 30 days

Manufacturer: Siemens
Product No.: 6SE6420-2AC25-5CA1
Country of origin:Germany
Product Type: Frequency Converters
Barcode: 85044095
Payment: T/T, Western Union
Weight: 5900g
Dimensions: 18.50cm x 19.50cm x 24.50cm
Shipping port: Xiamen
Warranty: 12 months

Description

The 6SE6420-2AC25-5CA1 is a Micromaster 420 series frequency converter engineered for versatile motor control in industrial applications. This drive accepts a 3-phase supply voltage of 200–240 V AC (±10%) at 47–63 Hz and delivers a nominal power output of 5.5 kW. It features an integrated Class A filter for EMC compliance and supports both constant torque and square-law torque applications, with an overload capacity of 150% for 60 seconds. Housed in an IP20-rated enclosure, the drive is designed for robust operation in ambient temperatures ranging from -10 degC to +50 degC. Note: This unit is supplied without an AOP (Advanced Operator Panel) or BOP (Basic Operator Panel).

Features

Rated for 5.5 kW power output in 3-phase 200–240 V systems
Integrated Class A filter for electromagnetic compatibility
Overload capacity of 150% for up to 60 seconds
Suitable for constant torque and square-law torque motor profiles
Robust IP20-rated housing for industrial cabinet integration
Wide ambient temperature operating range: -10 degC to +50 degC

Applications

Conveyor systems and material handling
Industrial pump and fan speed control
Mixing and agitator machinery
General-purpose industrial automation
Equipment requiring precise variable speed regulation

Technical Specifications

Feature	Specification
Manufacturer	Siemens
Brand	Siemens
Range	Micromaster 420
Product Type	Frequency converter
Input Voltage	200–240 V AC (3-phase)
Supply Frequency	47–63 Hz
Power Rating	5.5 kW
Nominal Output Current	22 A
Max. Output Frequency	650 Hz
Protection Rating	IP20
Product Phase	Phase-Out
Weight	5.90 kg
Dimensions	18.50 cm x 19.50 cm x 24.50 cm
Commodity Code	85044095
Export Control Regulations (ECCN)	N

Installation Guidelines

Mounting: Install the frequency converter vertically within a control cabinet to ensure adequate airflow through the internal heatsinks.
Clearance: Maintain the manufacturer-specified ventilation clearances to prevent thermal accumulation.
Wiring: Connect 3-phase power input and motor cables securely; ensure proper shielding is utilized to maintain EMC Class A compliance.
Grounding: Establish a low-impedance ground connection to the chassis to ensure safe and stable operational conditions.
Environment: Protect the unit from excessive moisture, oil mist, and corrosive particulates to maintain the integrity of the IP20 electronics.

FAQ

What is the rated power and voltage of this drive?

This Micromaster 420 drive is rated for 5.5 kW and operates on a 3-phase 200–240 V AC supply.

Does this drive include an operator panel?

No, the 6SE6420-2AC25-5CA1 is supplied without an AOP or BOP.

What is the overload capacity of the 6SE6420-2AC25-5CA1?

The drive supports an overload of 150% for up to 60 seconds.

What is the product lifecycle status for this frequency converter?

The 6SE6420-2AC25-5CA1 is currently in the phase-out product phase.
