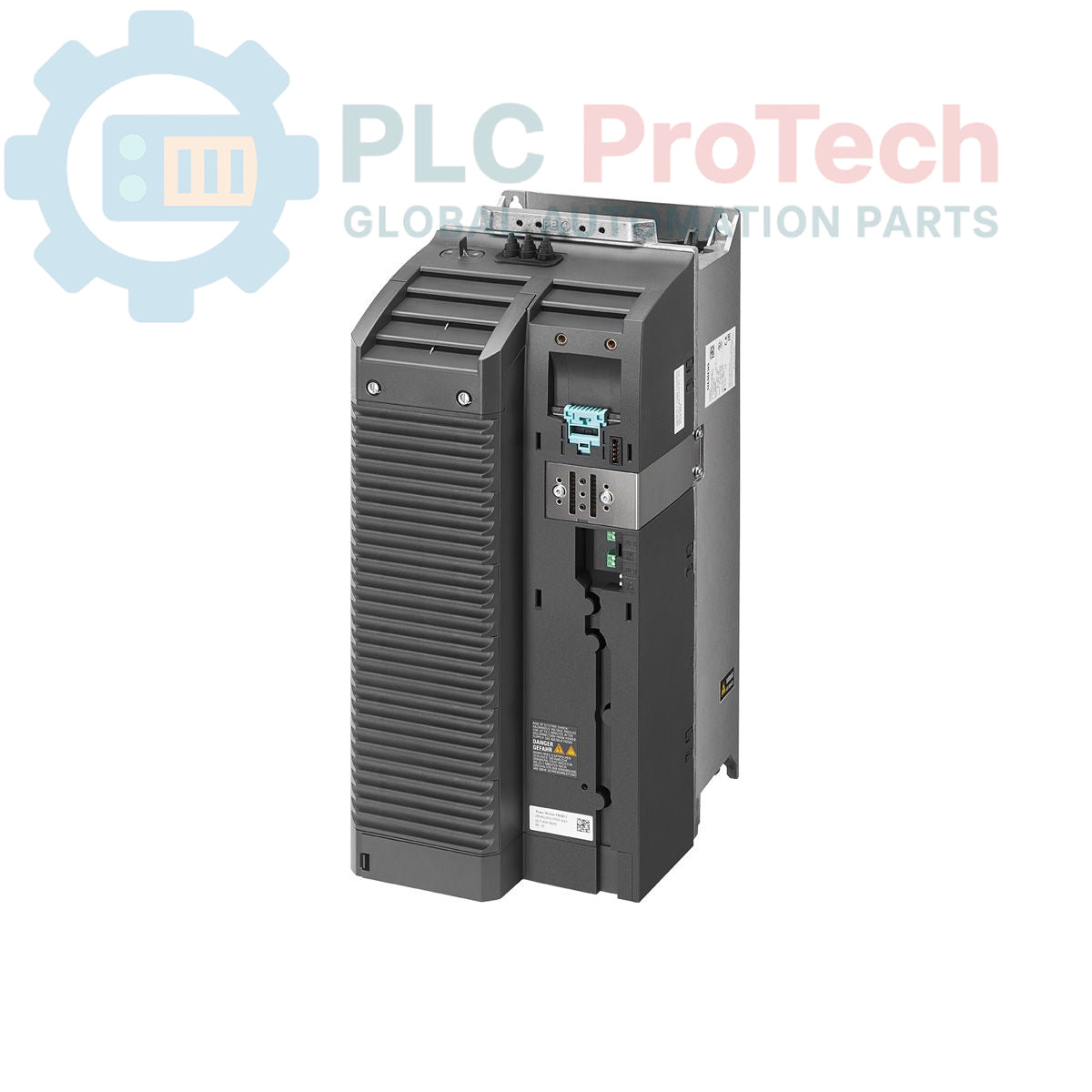

Siemens 6SL3210-1PC24-2UL0 SINAMICS G120 Power Module PM240-2

SKU 6SL3210-1PC24-2UL0

In stock

12-month warranty
Free returns within 30 days

Manufacturer: Siemens
Product No.: 6SL3210-1PC24-2UL0
Country of origin:Germany
Product Type: Power Modules
Barcode: 85044086
Payment: T/T, Western Union
Weight: 16800g
Dimensions: 20.00cm x 23.70cm x 47.20cm
Shipping port: Xiamen
Warranty: 12 months

Description

The 6SL3210-1PC24-2UL0 is a SINAMICS G120 PM240-2 power module, engineered for high-performance motor control in industrial applications. This unfiltered power module includes an integrated braking chopper, providing the necessary functionality for applications requiring controlled deceleration.

Designed for 3-phase AC supply voltages between 200 V and 240 V (47–63 Hz), the module offers flexible power ratings depending on the overload profile. In High Overload (HO) mode, it supports 7.5 kW with an ambient temperature range of -20 degC to +50 degC. In Low Overload (LO) mode, it supports 11 kW with an ambient range of -20 degC to +40 degC. With an IP20 protection rating and a compact FSD frame size, this unit is intended for cabinet-based installations. Please note that this product is supplied as a power module only, without a control unit or operator panel, and is approved for use with CU firmware version V4.7 HF8 or later.

Features

PM240-2 power module series
Integrated braking chopper for energy dissipation
3-phase input voltage range: 200–240 V AC
Dual-mode power capability: 7.5 kW (HO) / 11 kW (LO)
Compact FSD frame size (472 x 200 x 237 mm)
IP20 ingress protection
Compatible with CU firmware V4.7 HF8

Applications

Conveyor systems and material handling
Pump and fan control in industrial processes
General machinery requiring integrated braking capabilities
Variable speed drive (VSD) system upgrades

Technical Specifications

Feature	Specification
Brand	Siemens
Range	SINAMICS
Subrange	G120
Product Type	Power Module
Input Voltage	3AC 200–240 V
Output Current	42 A
Power Rating (HO)	7.5 kW
Power Rating (LO)	11 kW
Protection Class	IP20
Weight	16.80 kg
Dimensions	20.00 cm x 23.70 cm x 47.20 cm
Product Phase	Active
Commodity Code	85044086

Installation Guidelines

Mounting: Install the module vertically within a clean, ventilated control cabinet. Ensure sufficient clearance is maintained according to FSD frame size requirements to allow for airflow.
Cooling: The unit utilizes internal cooling; ensure the cabinet intake and exhaust vents remain unobstructed to maintain temperature limits.
Grounding: Connect the power module chassis to the cabinet protective earth (PE) busbar to ensure compliance with EMC standards and operator safety.
Control Unit: This module requires a separate Control Unit (CU) to operate; ensure the selected CU firmware is at least V4.7 HF8 for compatibility.
Wiring: Use appropriate wire gauges for the 42 A nominal output and ensure all power connections are torqued according to the official documentation.

FAQ

Does this power module include a control unit?

No, the 6SL3210-1PC24-2UL0 is supplied as a power module only and requires a separate Control Unit for operation.

What is the primary function of the integrated braking chopper?

The braking chopper is used to dissipate energy during deceleration, preventing overvoltage in the DC link.

What are the power capabilities of this module?

The module is rated for 7.5 kW in High Overload mode and 11 kW in Low Overload mode.

Which firmware version is this module approved for?

It is approved for use with CU firmware version V4.7 HF8.
