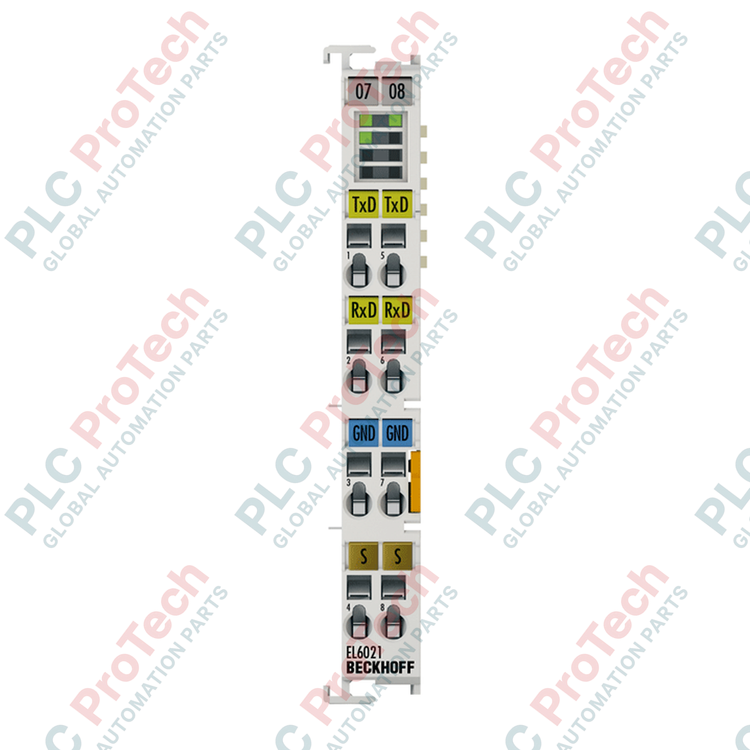

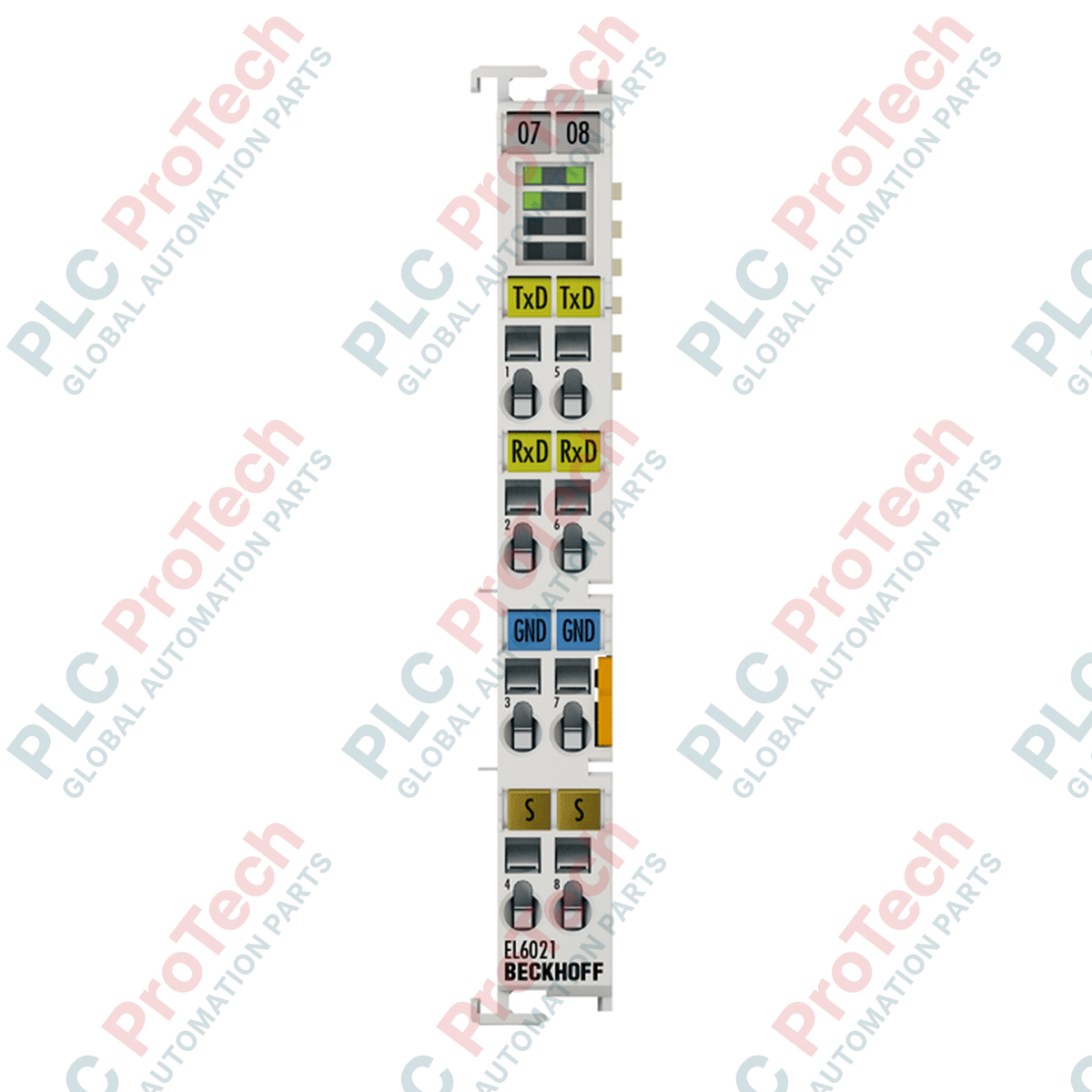

Módulo de Interface Serial Beckhoff EL6021 EtherCAT Terminal

Description

The integration of serial point-to-point connections into an EtherCAT network is handled efficiently by the Beckhoff EL6021 serial interface module, which provides a high-performance communication path for RS422 and RS485 devices. Operating as a single-channel communication terminal, this unit facilitates direct, isolated connection of serial equipment to the decentralized control architecture. By executing full-duplex or half-duplex transmission via balanced differential signaling, it guarantees robust data transfer even in environments subjected to severe electromagnetic interference. The device bypasses local address configurations entirely, allowing all functional variables and protocol behaviors to be parameterized through the master PLC system.

Features

• Flexible Serial Standards: Features a selectable RS422 or RS485 hardware interface configured directly via software.
• Configurable Baud Rates: Supports multiple baud rates from 2400 to 115,200 baud for broad compatibility.
• Robust Buffer Architecture: Built-in 864-byte receive buffer and 128-byte transmit buffer prevent data loss during processing peaks.
• Galvanic Isolation: Provides 500 V electrical isolation between the internal E-bus logic and the external signal lines.
• Spring-Clamp Termination: Leverages spring-actuated terminal contacts for reliable wire connections resistant to high vibration.
• Compact Form Factor: Standard 12 mm width optimizes mounting space on high-density control panels.

Applications

• Barcode & RFID Scanner Integration: Real-time serial data streaming from logistical scanning hardware directly to the PLC.
• Industrial Weighing Systems: Connecting digital scales, load cells, and weighing terminals over isolated RS485.
• VFD & Servo Drive Control: Point-to-point RS485 network command distribution to multi-drop motor controllers.
• Environmental Sensor Networks: Collecting parameters from remote climate, pressure, and temperature transmitter arrays.

Technical Specifications

Connections and Interfaces

Empirical Engineering Insights

Alternative Models & Compatibility

The module offers identical software mapping to the ES6021 version. While the EL6021 features built-in spring-tension clamp terminations, the ES6021 provides pluggable terminal blocks for accelerated physical swaps. When replacing older revisions of this module in TwinCAT, check the XML device description version compatibility to ensure correct PDO (Process Data Object) structure mapping.

Application Pitfalls & Engineering Notes

To prevent data loss over long-distance RS485 loops, the internal 120-ohm termination resistor must be active at the physical endpoints. A frequent engineering mistake is neglecting PLC cycle times; if the PLC scan rate is significantly slower than the serial incoming data block transmission time, the internal 864-byte receive buffer will overflow, causing buffer errors in the status word. Cycle your serial processing tasks concurrently with the data arrival rate.

Commissioning & Wiring Tips

Line termination for this module is configured strictly in software through the CoE (CAN over EtherCAT) directory index 0x8000. Ensure that the RS485/RS422 shielded cable is directly grounded to the DIN rail ground terminal. Unshielded serial lines running parallel to high-current variable frequency drive cabling can cause communication drops or corrupted checksum registers.
