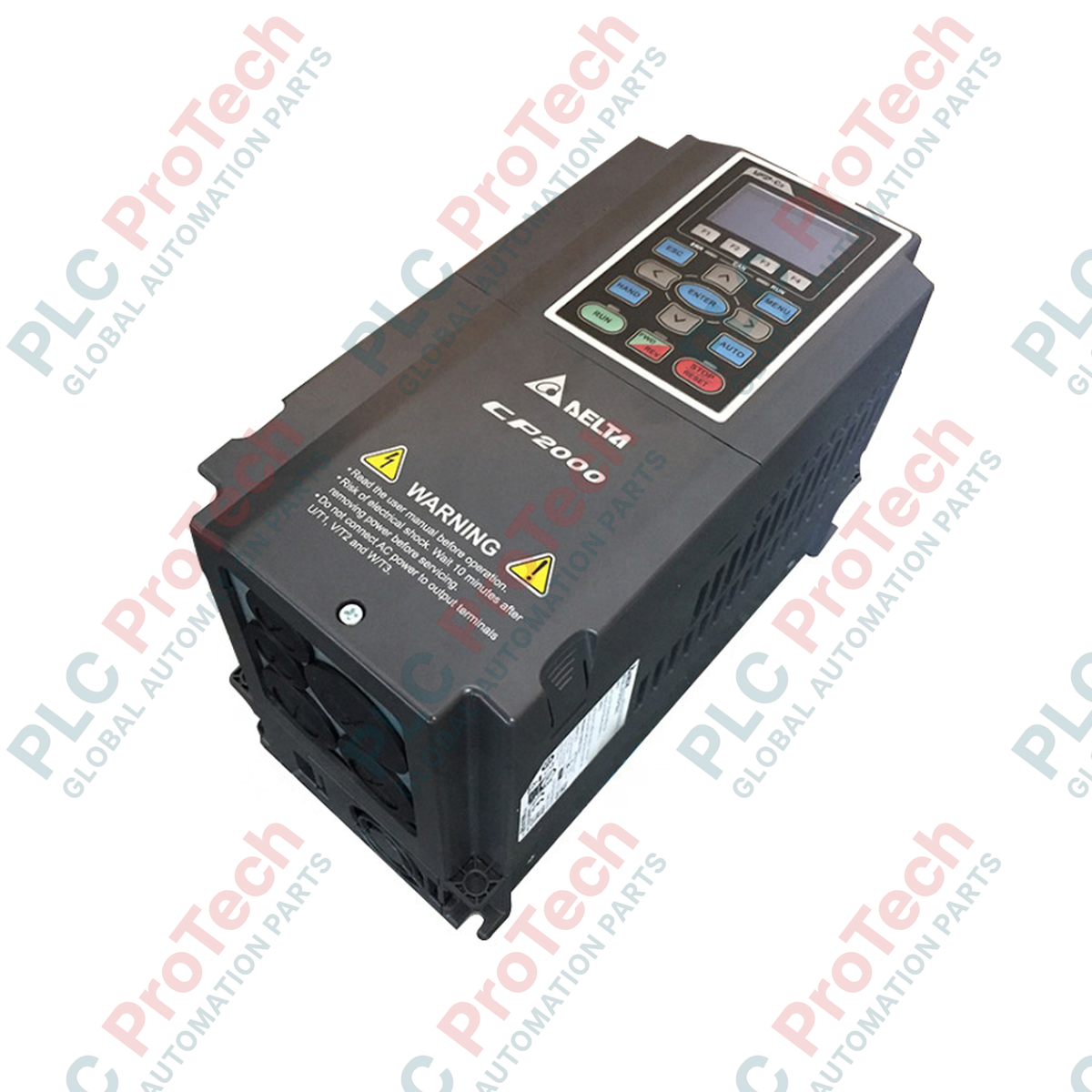

Delta Electronics VFD370CP43B-21 CP2000 Series Fan/Pump Vector Control Drive

Apenas 10 item(ns) restante(s) em estoque

Fabricante: Delta Electronics
Nº do Produto: VFD370CP43B-21
País de origem:Estados Unidos
Tipo de Produto: Variable Frequency Drives
Pagamento: T/T, Western Union
Peso: 11000g
Dimensões: 250 mm x 400 mm x 210 mm
Porto de embarque: Xiamen
Garantia: 12 meses

Ver detalhes completos

Description

Providing dedicated torque control for centrifugal pumps and ventilation systems, the Delta Electronics VFD370CP43B-21 drives 37 kW (50 HP) motors with high efficiency. This CP2000 Series variable frequency drive utilizes sensorless vector control to optimize power consumption based on real-time load demand. With a robust 460V three-phase input rating and a continuous output capacity of 73 Amps, this unit integrates seamlessly into municipal water systems, industrial cooling towers, and commercial HVAC networks.

Features

Optimized V/f and sensorless vector control (SVC) curves for variable torque loads.
Built-in 10k steps PLC capacity to execute local logic without external controllers.
Integrated PID control with sleep, wake, and redirection functions for pressure and flow systems.
Multi-pump synchronous control mode supporting fixed-quantity and circulating configurations.
Robust IP20 / NEMA 1 physical protection rating suited for wall-mounted control panels.
MODBUS communication protocol embedded for direct network integration.

Applications

Wastewater treatment facility pumping stations.
Commercial HVAC air handling units and supply fans.
Industrial cooling tower fan modulation.
Constant pressure clean water supply networks.

Technical Specifications

Parameter	Specification
Manufacturer	Delta Electronics
Model Number	VFD370CP43B-21
Product Series	CP2000
Applicable Motor Capacity	37 kW / 50 HP
Rated Output Current	73 Amps
Input Voltage / Phase	460V AC, 3-Phase
Installation Type	Wall Mount
Enclosure Rating	IP20 / NEMA 1
Physical Dimensions (W x H x D)	250 mm x 400 mm x 210 mm (9.84 in x 15.75 in x 8.27 in)
Net Weight	10.0 kg (22.0 lbs)
Shipping Weight (Calculated)	11.0 kg (24.2 lbs)

Empirical Engineering Insights

Alternative Models & Compatibility

The CP2000 series features standardized terminal footprints across similar frame sizes. When replacing legacy VFD-F series units, confirm that existing PLC program configurations are migrated using Delta's VFDSoft software to ensure register compatibility. Note that control terminal logic can be switched between SINK and SOURCE via an internal jumper on the main control board.

Application Pitfalls & Engineering Notes

In fan applications experiencing high wind-milling effects (where the fan rotates even when unpowered), always enable the "Spin Start" (catch on the fly) parameters. Attempting to start the drive into a rotating load without spin start enabled will trigger overcurrent (OC) or overvoltage (OV) trip faults immediately upon startup.

Commissioning & Wiring Tips

To minimize electromagnetic interference (EMI) affecting the 4-20mA pressure transducer feedback signal, ensure all analog control lines use twisted-pair shielded cables grounded exclusively at the drive-end shield terminal. For long motor cable runs exceeding 50 meters, the installation of an output AC reactor is highly recommended to protect motor windings from dv/dt degradation.

Installation Guidelines

CRITICAL WARNING: Hazardous voltage levels remain present inside the unit after input power is disconnected. Wait a minimum of 10 minutes for the internal DC bus capacitors to discharge fully before removing the drive cover or touching any wiring terminals. Confirm zero voltage using a calibrated multimeter.

Mechanical Mounting: Bolt the VFD securely to a flat, vertical surface using the rear wall-mount brackets. Ensure a minimum clearance of 150 mm above and below the chassis to allow unimpeded airflow through the heatsink.

Power Terminations: Connect the 460V 3-phase input lines to terminals R/L1, S/L2, and T/L3. Connect the motor leads to U/T1, V/T2, and W/T3. Ensure the ground wire is connected securely to the primary PE terminal.

Motor Auto-Tuning: Perform an rotational or static auto-tune run with the motor decoupled from the load to optimize internal vector control algorithm parameters.

Key Features:

#Delta CP2000 #Variable Frequency Drives

What is the primary application for the VFD370CP43B-21?

This drive is specifically designed for variable torque loads such as centrifugal pumps, fans, and blower systems in HVAC and water treatment applications.

Does this drive contain an integrated PLC?

Yes, the CP2000 series has a built-in PLC with a program capacity of up to 10k steps for localized process control and logic automation.

What protection standard does the VFD370CP43B-21 enclosure meet?

The drive meets IP20 and NEMA 1 protection standards, making it suitable for clean, indoor dry panel environments.

What should be done if the motor cable run exceeds 50 meters?

An output AC reactor must be installed between the VFD output terminals and the motor to suppress dv/dt voltage spikes and protect winding insulation.
