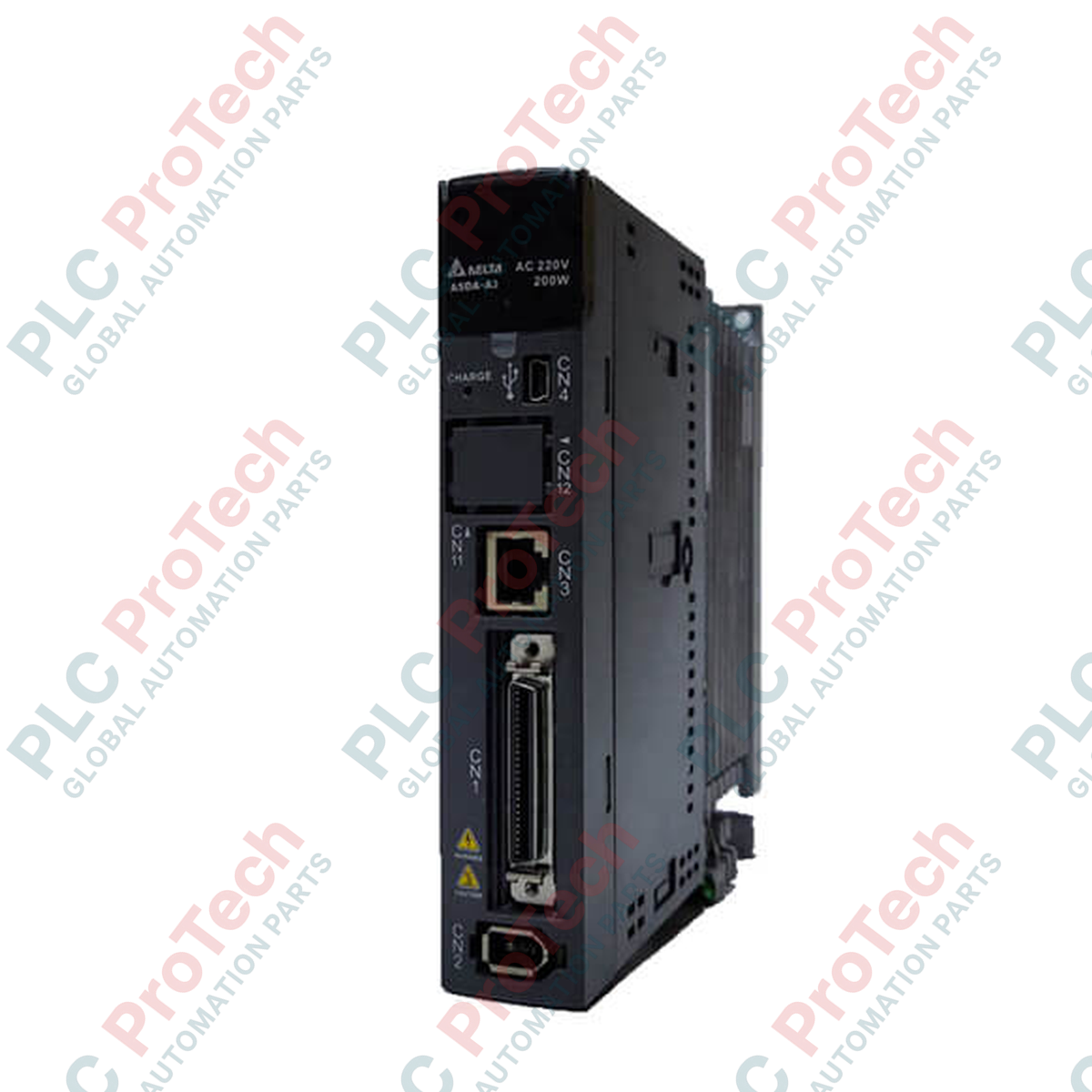

DELTA ASD-A3-0221-M ASDA-A3 Series 200 W AC Servo Drive

Overview & Engineering Value

The ASD-A3-0221-M (ASDA30221M) is a high-performance 200 W AC servo drive engineered for high-bandwidth, safety-critical motion control architectures within the Delta ASDA-A3 platform. Developed to meet the rigorous demands of precise electronic assembly, semiconductor packaging, medical automation, and high-speed multi-axis pick-and-place systems, this compact drive significantly optimizes machine efficiency.

By delivering an advanced control loop response alongside embedded Safe Torque Off (STO) safety functions, the unit guarantees maximum operator protection without compromising manufacturing uptime. The integration of high-resolution feedback support and mechanical resonance suppression features effectively mitigates structural vibrations, resulting in rapid settling times and reliable error-free positioning.

System Configuration & Network Architecture

The electrical topology of this drive accommodates versatile power distribution, accepting either 220 V single-phase or three-phase alternating current inputs. Classified as an 'M-Type' variant, this hardware platform is optimized for advanced distributed motion control networks, featuring native CANopen communication protocol capability alongside standard RS-485 Modbus serial interfaces.

For localized or legacy system designs, the drive retains high-speed Pulse Train (PT) input, internal Position Register (PR) sequencing routines, and precise analog voltage control loops. Crucially, the drive features dual-encoder feedback inputs to facilitate full closed-loop control directly from the load side, alongside an integrated Electronic Cam (E-CAM) engine for complex master-slave profiling.

Hardware Specifications

Technical Queries & Troubleshooting

• How does the integrated Safe Torque Off (STO) function operate during an emergency stop condition?

  The STO function directly interrupts the gate-drive power supply of the internal IGBT output transistors. This mechanical-level separation prevents the inverter stage from generating the rotating magnetic field required to produce motor torque. Because it bypasses the microprocessor software layers, it ensures a safe, unpowered motor state without requiring the upstream main AC contactor to be dropped, allowing faster system recovery.

• What parameter alignment is required to toggle between CANopen control and standard Pulse Train mode?

  The control mode selection is determined by internal configuration parameters located within the primary parameter group (typically P1-01). Setting this register defines whether the internal command path references the high-speed communication buffer or the physical optocoupler inputs on the CN1 connector. A power cycle is required following parameter modification to reallocate the internal processor logic.

• What steps mitigate position tracking errors when implementing the Full Closed-Loop configuration?

  When closing the loop around an external linear scale, ensure the scale's resolution is correctly defined within the drive's electronic gear ratio parameters. If the dual-encoder tracking deviation exceeds the pre-set threshold defined in the monitoring registers, the drive will trip on a position deviation fault to prevent mechanical runaway caused by backlash or belt slippage.

Field Commissioning & Safety Protocols

STO Safety Loop Wiring Requirements

When interfacing the STO dual-channel inputs via the designated safety connector, both channels must be driven by independent 24 VDC safety outputs originating from a certified safety relay or safety PLC. Removing the factory-installed jumper plug without establishing the correct dual-channel wiring path will permanently inhibit the drive stage, preventing the servo-ready state from executing.

CANopen Fieldbus Termination Standards

To maintain reliable data packet transmission over the CANopen bus network, install a 120 Ohm metallic film termination resistor across the CAN_H and CAN_L signal lines at both physical ends of the network segment. Utilize dedicated twisted-pair shielded CAN cables featuring a characteristic impedance of 120 Ohms. The outer shield must be clamped to the metal backpanel at each drive chassis to divert high-frequency ground noise away from the transceiver chips.

Dynamic Tuning and Vibration Suppression

Utilize the auto-tuning tools within the ASDA-Soft environment to calculate the exact load inertia ratio. If the mechanical assembly exhibits high-frequency acoustic noise or resonance during high acceleration profiles, activate the internal notch filtering system. The drive features automatic notch filters that scan the current loop feedback, isolate resonance peaks, and inject phase attenuation to stabilize the motion path without degrading overall system responsiveness.
