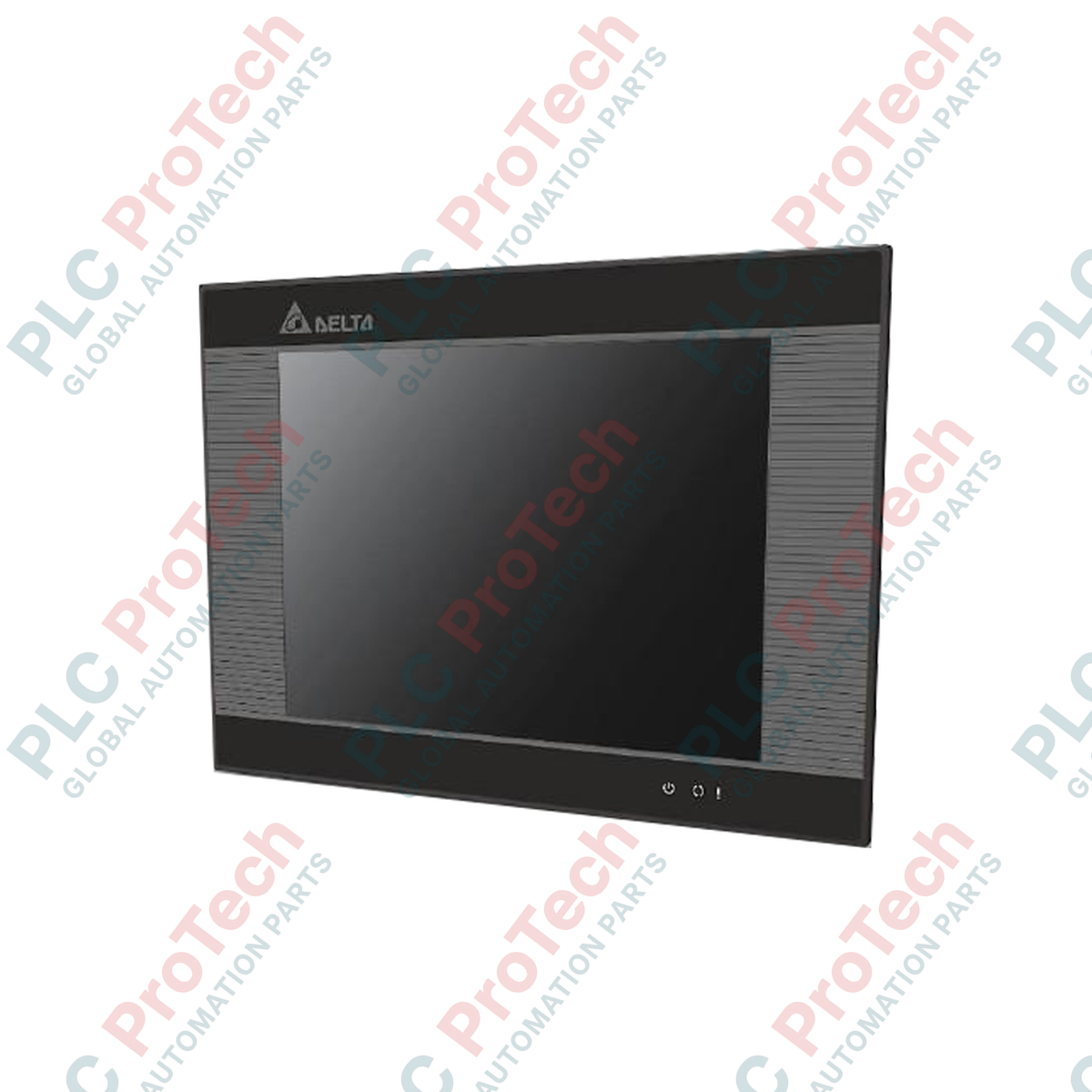

Delta Electronics DOP-B10S511 DOP-B Series Touch Panel HMI

Description

Engineered to facilitate efficient industrial visualization and process control, the DOP-B10S511 is a high-performance operator interface terminal from Delta Electronics. This 10.4-inch widescreen touch panel HMI runs on the proprietary Delta Real Time OS, delivering rapid response times and stable continuous operation in demanding environments. Driven by a high-speed 32-bit RISC micro-controller, it handles complex system screens, alarms, and data logs with minimal latency.

The unit features a bright TFT LCD with LED backlighting, providing clear readouts of critical system metrics. With integrated memory resources—including 128 MB NOR Flash ROM and 64 MB SDRAM—this HMI supports multi-language displays, extensive recipe storage, and dedicated user application space. Connectivity is managed through onboard USB Host and Slave interfaces, allowing straightforward data transport, peripheral connection, and program uploading.

Features

• Bright 10.4-inch widescreen TFT LCD display with energy-efficient LED backlighting.
• High-speed 32-bit RISC micro-controller ensuring rapid graphical rendering and processing.
• Structured onboard storage containing 128 MB NOR Flash ROM and 64 MB system SDRAM.
• Dual integrated USB interfaces: USB Host Ver 1.1 for storage and peripherals, and USB Slave Ver 2.0 for PC-based programming.
• Integrated multi-tone buzzer outputting frequencies from 2 kHz to 4 kHz at a loudness level of 85 dB.
• Lithium backup battery (3V CR2032) to safeguard historical data and system parameters during power loss.

Applications

• Automated packaging and assembly systems
• HVAC and climate monitoring stations
• Municipal water and wastewater treatment facilities
• Plastic extrusion and injection molding machinery
• Material handling and conveyor control configurations

Technical Specifications

Connections and Interfaces

Installation Guidelines

• Prepare a precise panel cutout corresponding to the unit's exact physical dimensions to ensure IP-rated front panel sealing.
• Verify that the DC power source provides a stable 24 VDC supply within the operational window of 21.6 VDC to 27.6 VDC.
• Maintain a minimum clear ventilation space of 50 mm around the rear and side chassis of the unit to ensure passive heat dissipation.
• Ensure proper structural grounding of the HMI housing to mitigate electrical noise and protect the internal communication circuitry.
