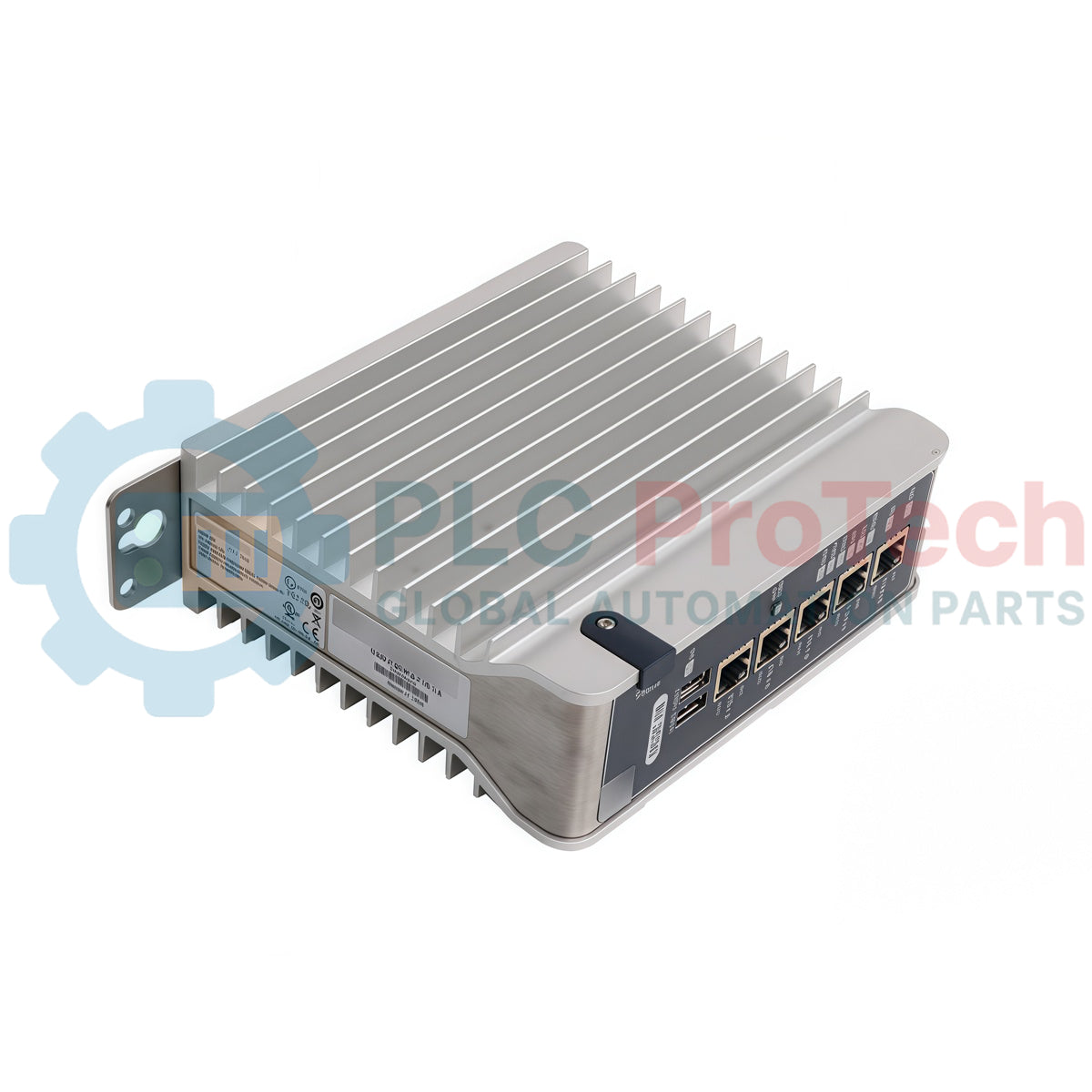

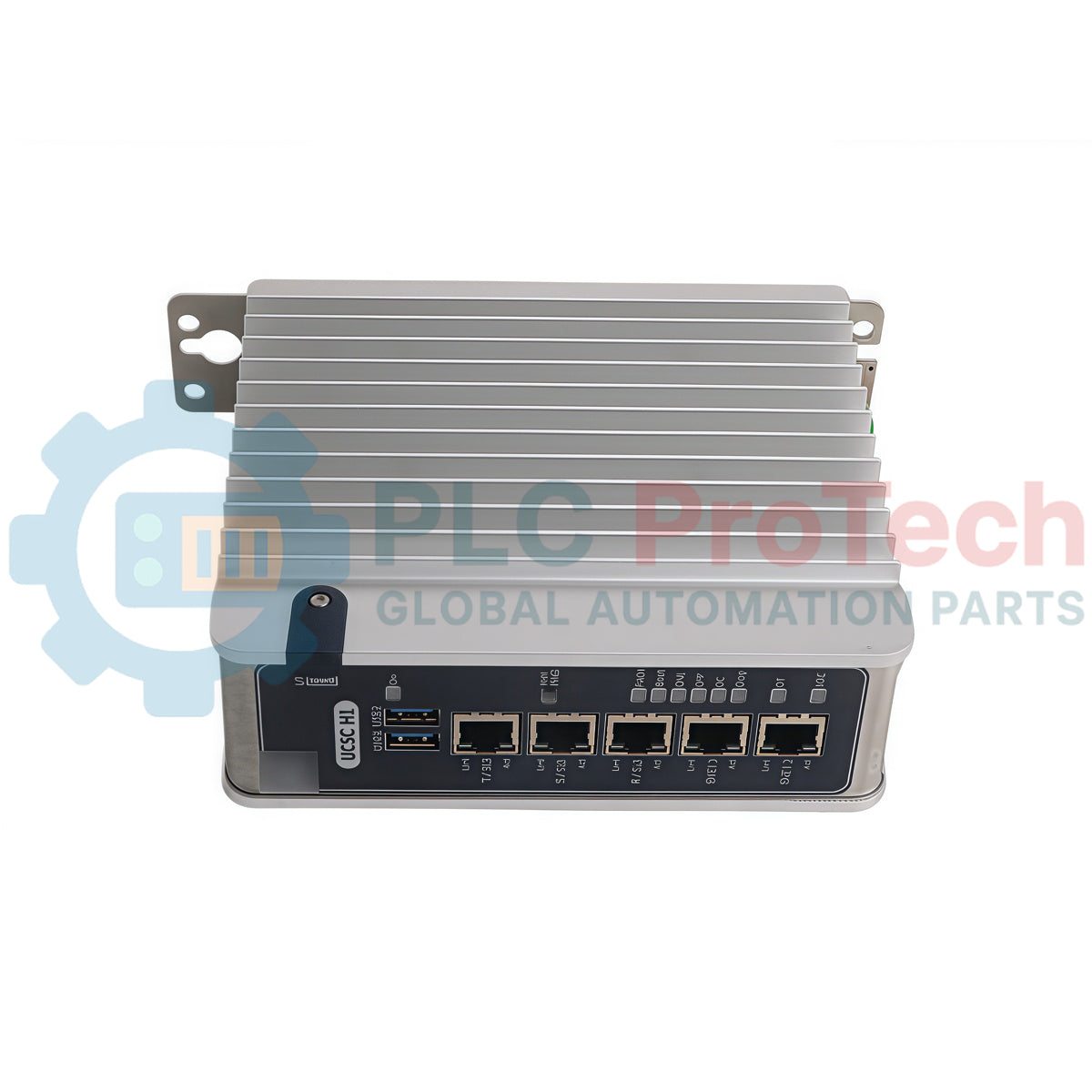

GE Fanuc IS420UCSCS2 Mark VIeS Safety controller

Description

The IS420UCSCS2 is a high-reliability functional safety controller engineered for the GE Fanuc Mark VIeS Safety Control System. This standalone safety controller features a high-performance Dual-Core 1.6 GHz AMD G-Series processor, specifically designed to execute safety critical logic for Safety Instrumented Systems (SIS), Emergency Shutdown (ESD) systems, and Burner Management Systems (BMS). It functions as the central intelligence module within a distributed control architecture, providing real-time computation, diagnostics, and deterministic control loop execution.

Equipped with high-speed Ethernet communication capability, the IS420UCSCS2 safety controller interfaces seamlessly with Mark VIeS functional safety I/O packs over redundant networks. It communicates using proprietary, safety-certified industrial communication protocols to maintain system integrity up to SIL 3 requirements. This safety controller is fully certified for deployment in hazardous environments, offering robust protection, extended uptime, and complete cross-system compatibility within existing Mark VIe and Mark VIeS architectures.

Features

• Built-in high-speed Dual-Core 1.6 GHz AMD G-Series hardware processor for dedicated safety task execution.
• Seamless integration with Mark VIeS Safety Control functional safety I/O networks.
• Supports high-performance industrial communication with triple-redundant or dual-redundancy options.
• Certified for installation directly within challenging industrial environments and classified hazardous locations.
• Comprehensive internal runtime self-diagnostics to ensure continuous system reliability and hardware integrity.

Applications

• Safety Instrumented Systems (SIS)
• Emergency Shutdown (ESD) Systems
• Burner Management Systems (BMS)
• Critical Fire and Gas (F&G) Detection Networks
• Turbine Over-speed Protection and Critical Control loops

Technical Specifications

Installation Guidelines

Grounding and Shielding

All structural enclosures and DIN rails housing the controller must be connected to a low-impedance system safety ground. Implement proper cable shielding guidelines for all network communication and interface cables to mitigate Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI).

Cooling and Ventilation

Maintain proper clearance surrounding the enclosure to allow natural convection cooling. Ensure that the internal enclosure temperature does not exceed the maximum operational ambient temperature rating of +70 degC.

Hazardous Area Precautions

When deployed in Class I, Division 2 or Zone 2 locations, ensure all peripheral connections, wiring terminal assignments, and modules are fully rated for the specific classification. Do not disconnect equipment unless power has been removed or the area is verified to be non-hazardous.

Compliance and Certifications

• UL Listed: File E207685 (Non-hazardous, Class I Div 2, Class I Zone 2)
• ATEX Certified: Zone 2, Group IIC (UL DEMKO 20 ATEX 2359X)
• Standards Compliance:
  • UL 61010-1 / UL 61010-2-201
  • CSA-C22.2 No. 61010-1 / CSA-C22.2 No. 61010-2-201
  • ANSI/ISA-12.12.01-2015
  • CSA-C22.2 No. 213-15
  • UL 60079-0 / UL 60079-15
  • CAN-CSA-C22.2 No. 60079-0:11 / CAN-CSA-C22.2 No. 60079-15:12
  • EN 60079-0:2012+A11:2013
  • EN 60079-7:2015
