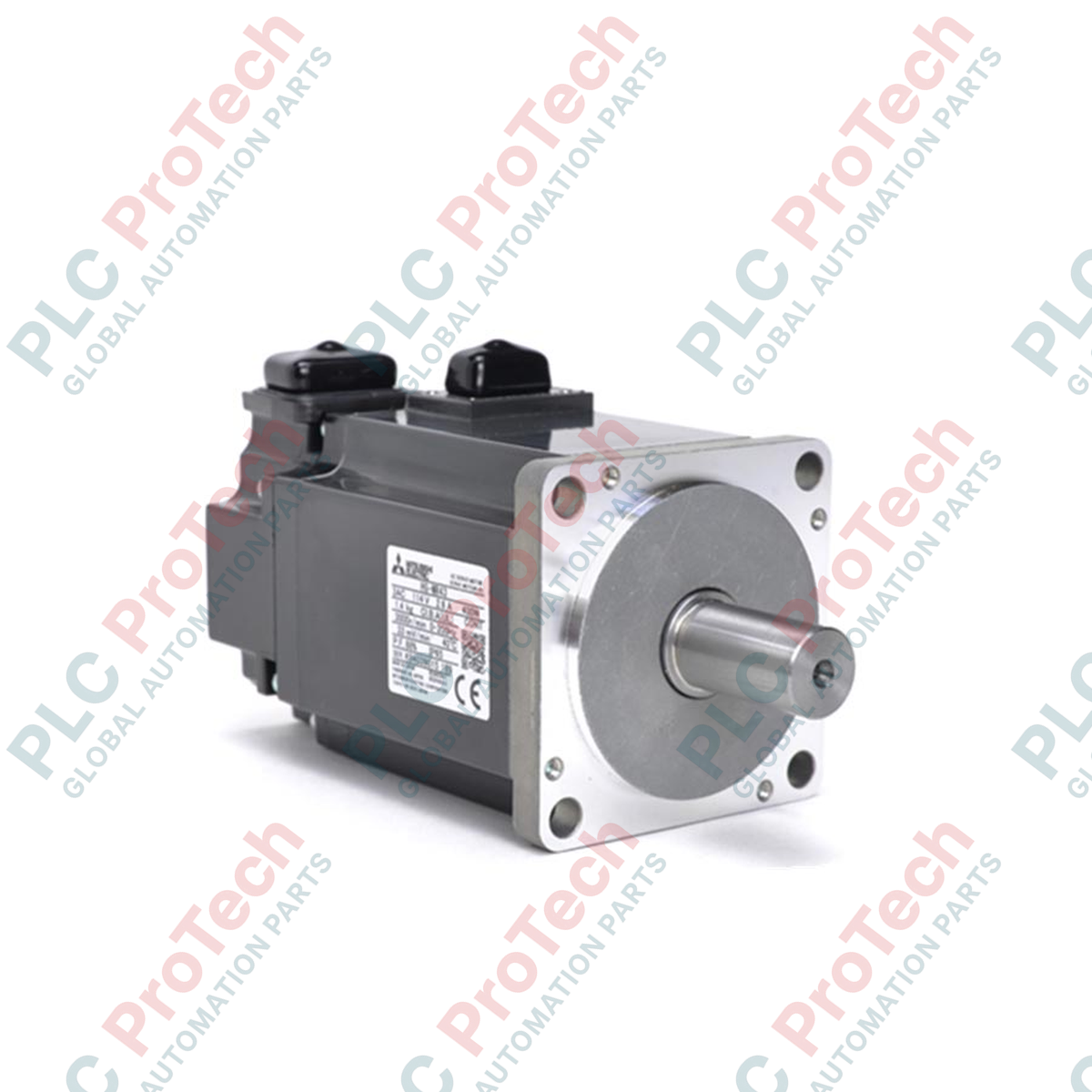

Mitsubishi Electric HG-MR73B MELSERVO HG-MR Series Servo Motor

Description

Designed for high-dynamic, high-precision industrial motion control, the HG-MR73B rotary AC servo motor delivers rapid acceleration and deceleration capabilities within an ultra-low inertia footprint. This 750W power-class actuator integrates directly with Mitsubishi Electric MELSERVO-J4 servo amplifiers, providing high-resolution positioning and robust performance in high-speed machinery. Featuring an integrated electromagnetic brake, this module ensures reliable shaft retention during power-loss or disabled states, making it highly suited for vertical axis control or holding applications.

Features

• Ultra-low inertia rotor design optimized for high-frequency start/stop operational profiles.
• High-resolution 22-bit absolute/incremental encoder providing 4,194,304 pulses per revolution for exceptional positioning accuracy and velocity smoothness.
• Built-in electromagnetic holding brake ("B" suffix) to prevent axis slippage during power cuts.
• IP65 environmental protection rating (excluding the shaft-through portion) for resilience in challenging industrial conditions.
• Seamless integration with the MELSERVO-J4 amplifier platform via high-speed serial feedback.

Applications

• High-speed pick-and-place industrial robotics.
• Material handling inserters and packaging machinery.
• Semiconductor manufacturing and wafer handling equipment.
• X-Y gantry systems and vertical axis positioning assemblies.
• Textile feeder and tension control machinery.

Technical Specifications

Connections and Interfaces

Installation Guidelines

• Mounting Alignment: Ensure precise alignment between the motor shaft and the driven load. Always use flexible couplings to mitigate radial and axial forces beyond specified shaft load limits.
• Brake Operation: The electromagnetic brake is strictly designed as a holding brake. Do not use this brake for dynamic braking or deceleration control under normal operating conditions.
• Cable Routing: Separate encoder cables from main power and motor drive cables by at least 10 cm to prevent electromagnetic interference (EMI).
• Heat Dissipation: Mount the motor in a well-ventilated space, ensuring the surrounding air temperature does not exceed 40 degC during continuous duty cycles.

Compliance and Certifications

• CE (Conformite Europeenne)
• UL Listed / cUL Certified
• KC (Korea Certification)
