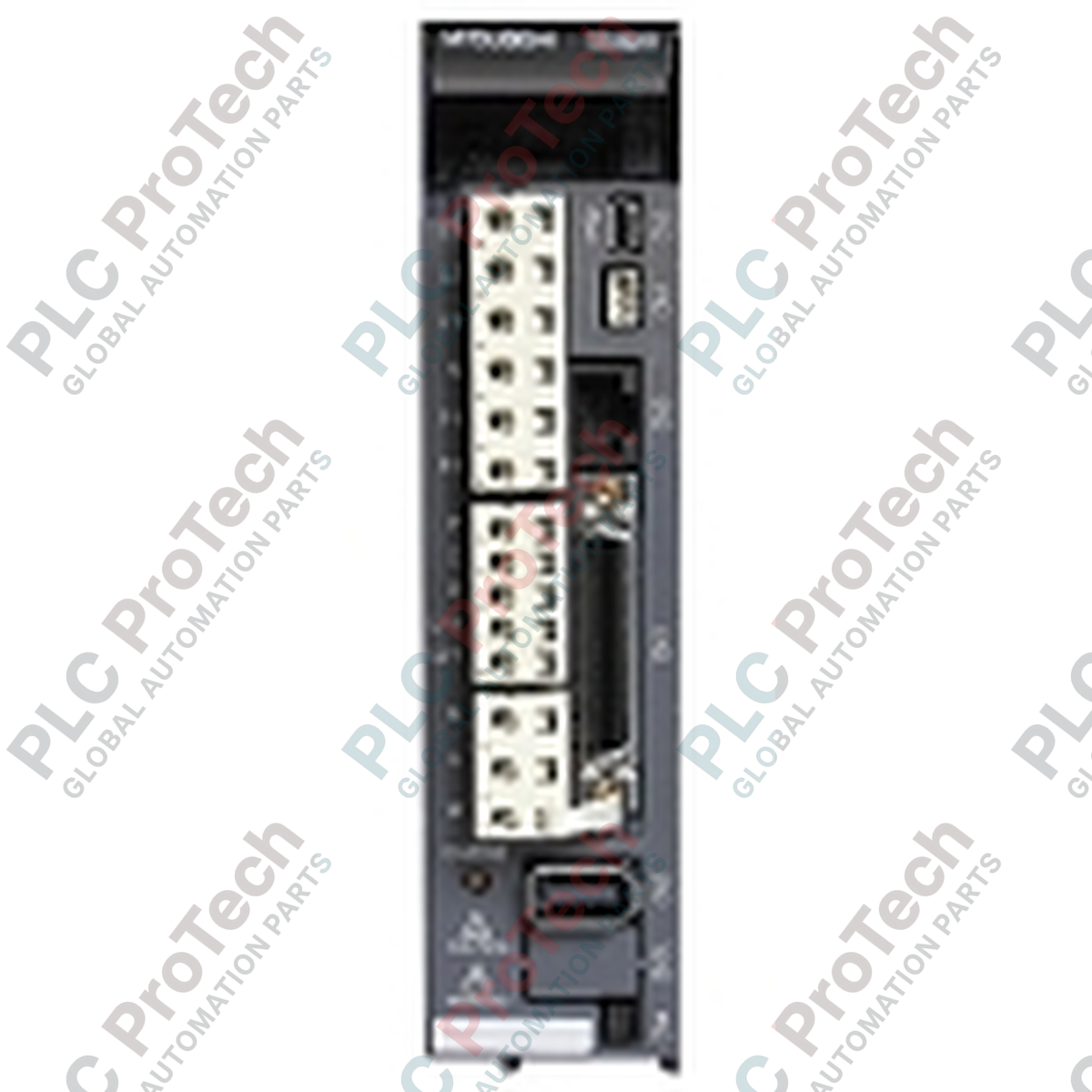

Mitsubishi Electric MR-J3-60B MELSERVO-J3 AC Servo Amplifier

Description

Designed to execute high-precision motion profiles within the MELSERVO-J3 system architecture, the Mitsubishi Electric MR-J3-60B AC servo amplifier offers high-speed control loops and synchronized multi-axis coordination. Equipped with a digital SSCNET III fiber-optic communication interface, this drive integrates directly into complex industrial automation configurations to minimize latency and ensure noise-free signal transmission. It operates with high-resolution feedback systems to guarantee positioning accuracy, making it ideal for processes requiring tight speed constancy and dynamic performance.

Features

• SSCNET III Bus Interface: High-speed, noise-immune synchronous optical fiber network communication for precise multi-axis positioning and coordination.
• High-Resolution Feedback compatibility: Seamless processing of 18-bit absolute/incremental encoder signals providing 262,144 pulses per revolution.
• Adaptive Vibration Suppression: Advanced filtration system designed to minimize mechanical resonance and structural oscillations during rapid deceleration or acceleration.
• Real-Time Auto Tuning: Automatic adjustment of gain settings to optimize response according to the real-time load inertia ratio.
• Integrated Diagnostic Port: Direct USB connection for configuration, monitoring, and trend analysis using MR Configurator software.

Applications

• Multi-axis CNC milling, routing, and precision grinding machines.
• Pick-and-place robots and electronic component assembly systems.
• High-speed packaging, filling, and continuous labeling machinery.
• Semiconductor handling machinery and wafer positioning systems.

Technical Specifications

Connections and Interfaces

Empirical Engineering Insights

Alternative Models & Compatibility

When migrating a system from the MR-J2S-60B series, note that the SSCNET III optical fiber connector format differs physically from the original SSCNET configuration. The MR-J3-60B requires specialized high-speed optical fiber cables (such as MR-J3BUS) which utilize standard locking tabs. Intermixing old and new optical connection configurations is not possible without an optical media converter or controller-level interface card replacement.

Application Pitfalls & Engineering Notes

To avoid high thermal loading in enclosed electrical cabinets, design layout spacing strictly: maintain at least 10 mm clearance on either side of the chassis, and 40 mm clearance above and below. If routing SSCNET III fiber optic cables, enforce a minimum bending radius of 25 mm. Exceeding this limit will result in optical signal attenuation, manifesting as communication timeouts or non-specific "AL.37 Parameter Error" fault triggers.

Commissioning & Wiring Tips

If configuring the absolute position detection system, always insert an active MR-BAT or MR-J3BAT battery pack before starting the system calibration. Loss of control voltage without an active battery backup instantly clears the stored encoder home coordinates, requiring manual re-homing procedures upon subsequent control system re-initialization.

Installation Guidelines
