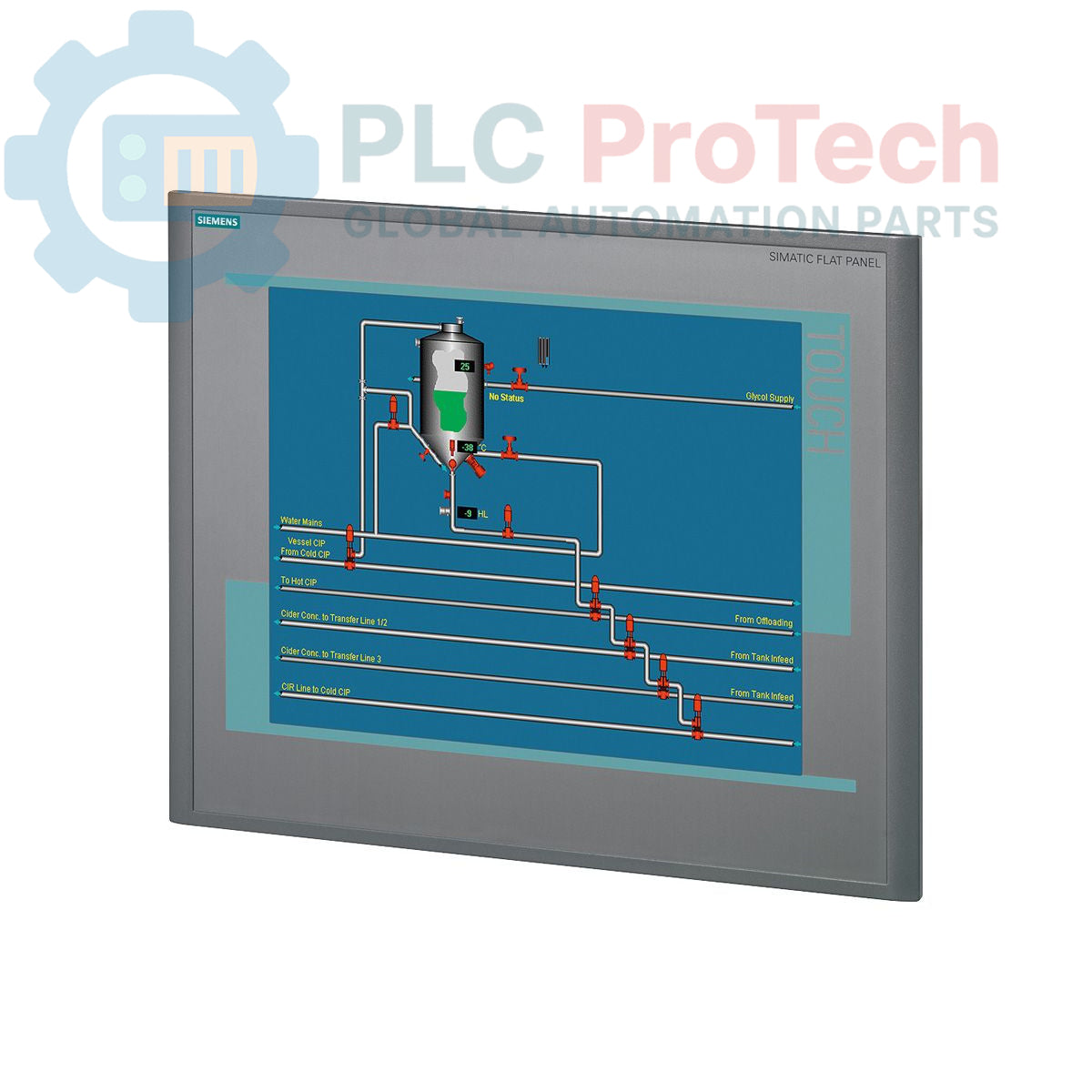

Siemens 6AV7861-4TB00-1AA0 SIMATIC FP Flat Panel

Description

Features

• 17-inch Touch TFT-Display
• 1280x1024 Pixel Resolution
• Flexible Power Input: 24V DC and 120/240V AC
• VGA and DVI-D Video Interfaces
• Includes 1.8m VGA-Cable
• Designed for SIMATIC systems

Applications

• Industrial Human-Machine Interface (HMI)
• Process Visualization and Control
• Machine Operation and Monitoring
• Factory Automation Systems
• Control Room Displays

Technical Specifications

Connections / Interfaces

Installation Guidelines

1. De-energize System: Before beginning any installation work, ensure that all power to the system and the flat panel is disconnected and secured against accidental re-energization.
2. Mounting: Securely mount the flat panel in its designated enclosure or panel cutout. Ensure adequate clearance for ventilation and cable routing.
3. Power Connection: Connect the appropriate power supply (24V DC or 120/240V AC) to the panel's power input terminals. Verify correct polarity for DC connections and proper grounding for AC connections.
4. Video Signal Connection: Connect the video source (e.g., industrial PC, PLC with display output) to either the VGA or DVI-D interface on the flat panel using the provided VGA cable or a suitable DVI-D cable.
5. Touch Interface Connection: If a separate USB or serial cable is required for the touch functionality, connect it to the host system as per standard HMI setup procedures.
6. Cable Routing: Route all cables to prevent strain, interference, and damage. Use cable ties and conduits where necessary to maintain an organized and protected installation.
7. Grounding: Ensure the flat panel and its associated equipment are properly grounded to minimize electrical noise and ensure safety.
8. Power On: After all connections are verified, re-energize the system and test the display and touch functionality.
