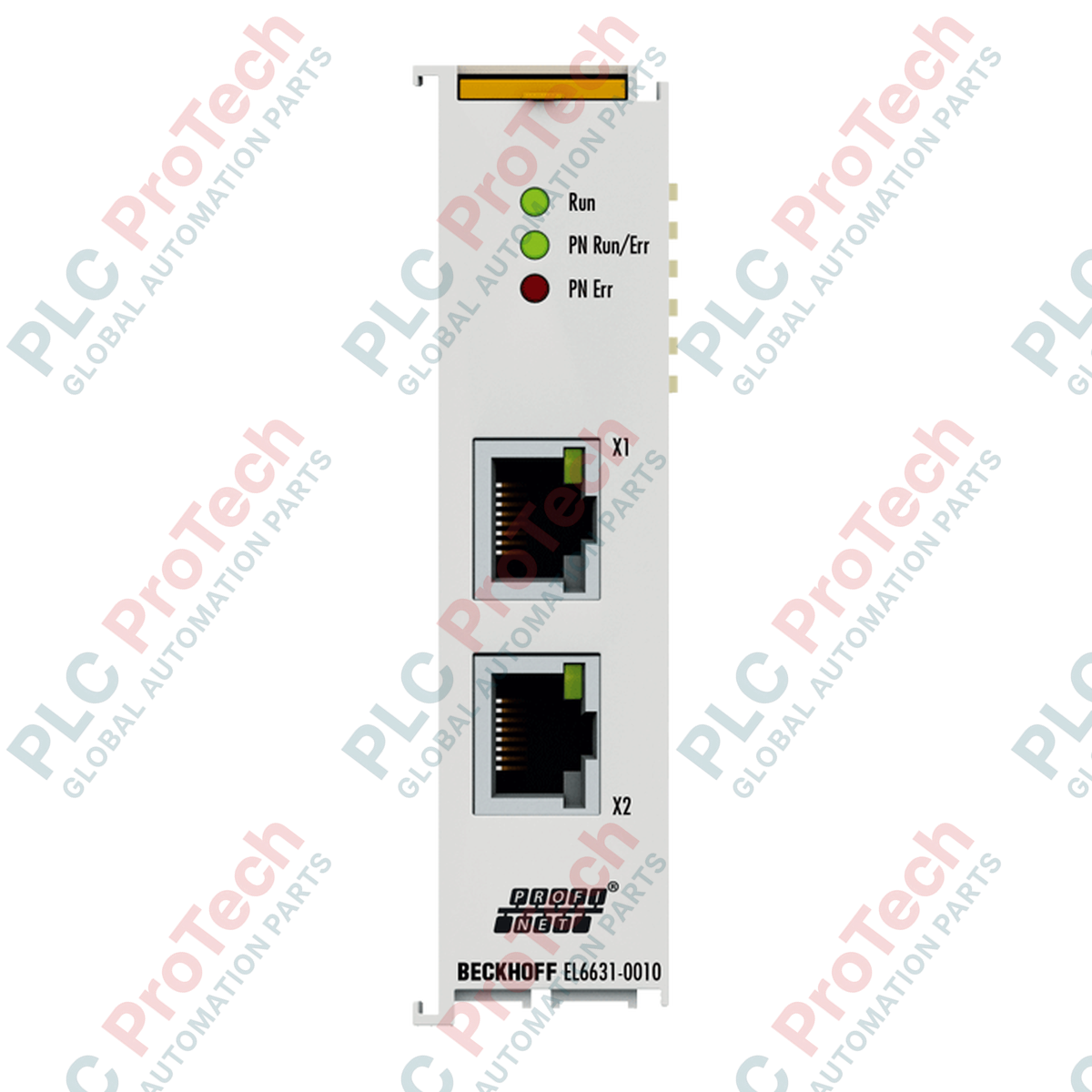

Beckhoff EL6631-0010 EtherCAT Terminal PROFINET RT Device

Only 10 item(s) left in stock

Manufacturer: BECKHOFF
Product No.: EL6631-0010
Country of origin:Đức
Product Type: EtherCAT Terminals
Payment: T/T, Western Union
Weight: 75g
Dimensions: 24 mm x 100 mm x 52 mm
Shipping port: Xiamen
Warranty: 12 months

Description

Engineered for high-performance industrial networking, the Beckhoff EL6631-0010 serves as a specialized PROFINET RT device interface within decentralized EtherCAT Terminal systems. This gateway module enables seamless data exchange between EtherCAT and PROFINET RT controllers, mapping up to 1000 bytes of input and output process data directly onto the E-bus.

The module features an integrated 2-port switch designed for 100BASE-TX Ethernet connections via standard RJ45 connectors. This dual-port switched configuration simplifies line topology deployment in complex automation systems. Through hardware diagnostics and status LEDs, operators receive real-time visibility into E-bus communication status, network link activity, and protocol diagnostics.

Features

Dual-port switched Ethernet interface (100BASE-TX) via RJ45 connectors.
Supports PROFINET RT device protocol with Conformance Class B.
Handles up to 1 kbyte of input and 1 kbyte of output process data.
Integrated LLDP and SNMP functions for physical topology detection and network diagnostics.
Minimum RT cycle time of 1 ms.
Robust 500 V electrical isolation between E-bus and Ethernet interfaces.

Applications

Decentralized factory automation systems.
Machine building and modular assembly lines.
Interfacing PROFINET RT master controllers with high-speed EtherCAT networks.
Process control systems requiring distributed network topology bridging.

Technical Specifications

ManufacturerPart Number / ModelProtocolInterface TypeMax. Process Data SizeE-bus Current ConsumptionPower SupplyElectrical IsolationMax. Cable LengthOperating TemperatureStorage TemperatureRelative HumidityHousing MaterialDimensions (W x H x D)WeightInstallation Type

Beckhoff

EL6631-0010

PROFINET RT (Device)

100BASE-TX Ethernet (2 x RJ45 switched)

1 kbyte input / 1 kbyte output

typ. 400 mA

Via E-bus

500 V (E-bus / Ethernet)

Up to 100 m twisted pair

0 to +55 degC

-25 to +85 degC

95%, non-condensing

Polycarbonate

24 mm x 100 mm x 52 mm

approx. 75 g

35 mm DIN rail (EN 60715) with locking mechanism

Connections and Interfaces

Connector / Port	Function
RJ45 Port 1	PROFINET RT / Ethernet interface (Switched port 1)
RJ45 Port 2	PROFINET RT / Ethernet interface (Switched port 2)
E-Bus Contacts	Internal power supply and data exchange with EtherCAT master

Installation Guidelines

Mount vertically on standard 35 mm DIN rail conforming to EN 60715.
Ensure the double slot and key connection is aligned correctly with adjacent EtherCAT terminals.
Maintain clear ventilation channels above and below the terminal block to prevent thermal buildup.
Use shielded twisted pair (STP) cabling for network lines to limit electromagnetic interference.

Compliance and Certifications

CE
UL
ATEX: II 3 G Ex nA IIC T4 Gc
EMC Immunity/Emission: EN 61000-6-2 / EN 61000-6-4
Vibration/Shock Resistance: EN 60068-2-6 / EN 60068-2-27

Product Image	Model Number / Title	Condition	Availability	Action
	BECKHOFF EJ2889 EtherCAT Plug-in Module 16-Channel Digital Output	Original New	In Stock	View Details

Key Features:

What is the primary function of the Beckhoff EL6631-0010?

The EL6631-0010 functions as a PROFINET RT device gateway within an EtherCAT Terminal system, allowing seamless communication between an EtherCAT master and a PROFINET RT master controller.

What is the maximum process data capacity of the EL6631-0010?

The module supports a maximum process data size of 1 kbyte input and 1 kbyte output.

Does the EL6631-0010 support network diagnostics?

Yes, it supports LLDP (Link Layer Discovery Protocol) and SNMP (Simple Network Management Protocol) for physical topology detection and advanced network diagnostics.

How is the EL6631-0010 terminal powered?

The module is powered internally via the standard EtherCAT E-bus, drawing a typical current of 400 mA.

What hazardous area certifications does the EL6631-0010 have?

The module is ATEX certified with the marking II 3 G Ex nA IIC T4 Gc, making it suitable for Zone 2 hazardous locations when installed inside an appropriate enclosure.
