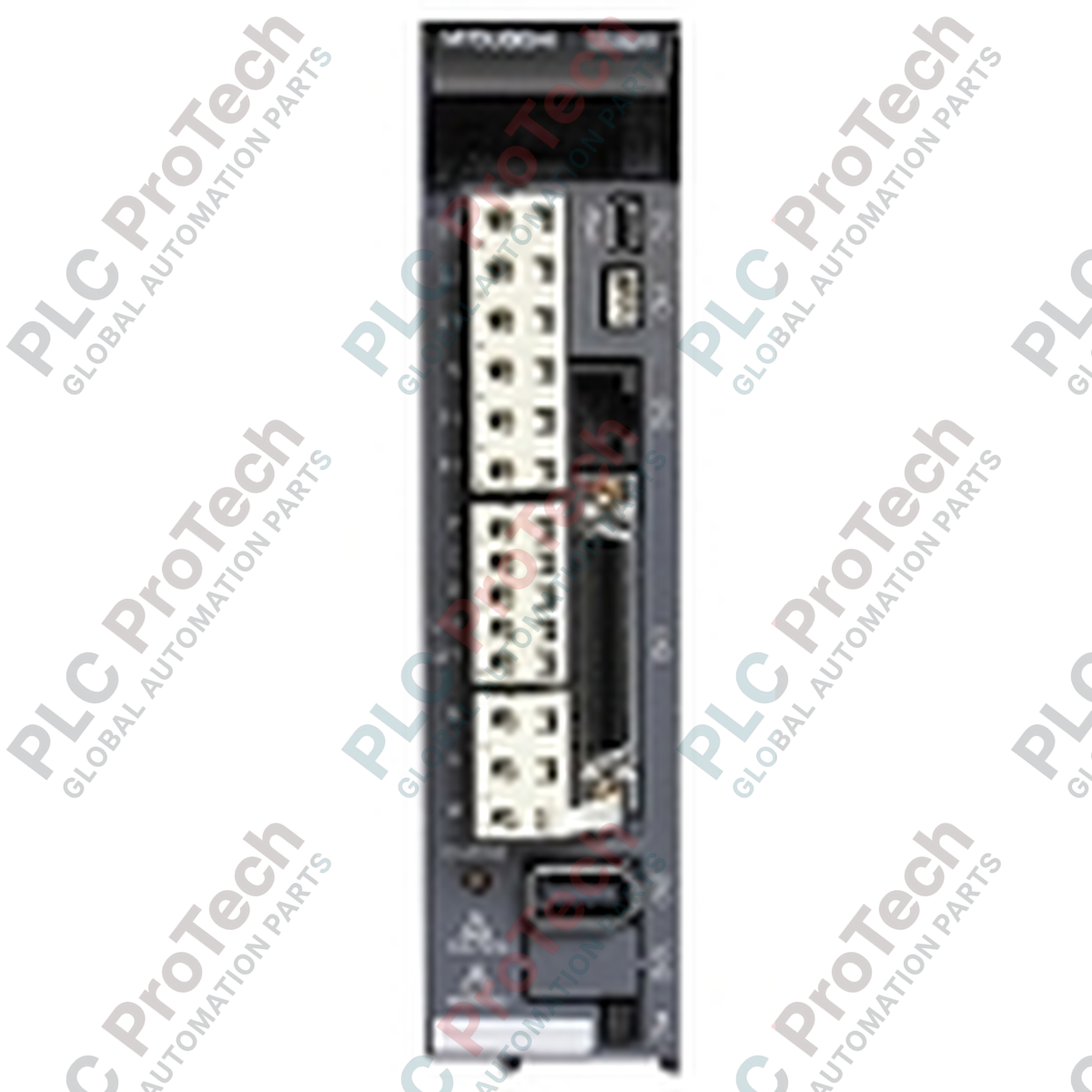

Mitsubishi Electric MR-J3-70A MELSERVO MR-J3 Series AC Servo Amplifier

Description

Operating as a high-performance motion control component, the Mitsubishi Electric MR-J3-70A AC servo amplifier delivers precise torque, speed, and position control within the MELSERVO MR-J3 product range. This 700-Watt unit relies on a general-purpose command interface, allowing seamless integration into automation architectures using pulse train inputs or analog voltage signals. By processing high-resolution feedback from 18-bit absolute and incremental encoders, the drive guarantees exceptional speed constancy and positioning accuracy even under dynamic loads. Integrated adaptive vibration suppression automatically adjusts to minimize mechanical resonance on mechanical linkages, making it highly reliable for demanding high-duty manufacturing setups.

Features

• Flexible Interface Option: Supports general-purpose command systems, accepting differential or open-collector pulse trains and +-10 VDC analog inputs.
• Advanced Vibration Suppression: Employs adaptive vibration filters to automatically detect and counteract mechanical resonances in machine structures.
• Real-Time Auto-Tuning: Automatically optimizes servo gains based on continuous load inertia calculations for simplified commissioning.
• Absolute Encoder Integration: Compatible with 18-bit (262,144 pulses/rev) high-resolution feedback systems to eliminate the need for homing routines.
• Integrated Protection Circuits: Features built-in overcurrent, regenerative overvoltage, overload, and encoder error protection.

Applications

• Semiconductor manufacturing equipment and high-speed wafer handling systems.
• Automated packaging, labeling, and bottle-filling machinery.
• Multi-axis CNC machine tool feed systems.
• Precision pick-and-place robotic arms and Cartesian gantries.

Technical Specifications

Empirical Engineering Insights

Alternative Models & Compatibility

The MR-J3-70A general-purpose drive utilizes standard terminal layouts and I/O connections that differ significantly from its network-based counterpart, the MR-J3-70B (which utilizes optical SSCNET III). If upgrading an older system running the MR-J2S-70A series, note that the physical dimensions and parameter mapping have changed. Use the MR Configurator software migration utility to properly translate system gains and electronic gear ratios to prevent mechanical binding on start-up.

Application Pitfalls & Engineering Notes

When utilizing this drive with high-inertia loads or in vertical lift configurations, the integrated regenerative resistor may experience thermal saturation. If the drive regularly triggers an AL.30 (Regenerative Overvoltage) fault during rapid deceleration, disconnect the built-in jumper between the P+ and C terminals and install an appropriately rated external regenerative resistor options. Ensure parameter PA02 is updated to reflect the external resistor installation.

Commissioning & Wiring Tips

To prevent electromagnetic interference from disturbing sensitive analog inputs or causing encoder signal degradation, ensure that the encoder cable is routed separately from the U/V/W motor output wires by a minimum of 10 cm. Always ground the shield of the feedback cable to the amplifier's internal ground plate via a grounding clamp, and do not daisy-chain the PE (protective earth) connection with other electrical equipment.
