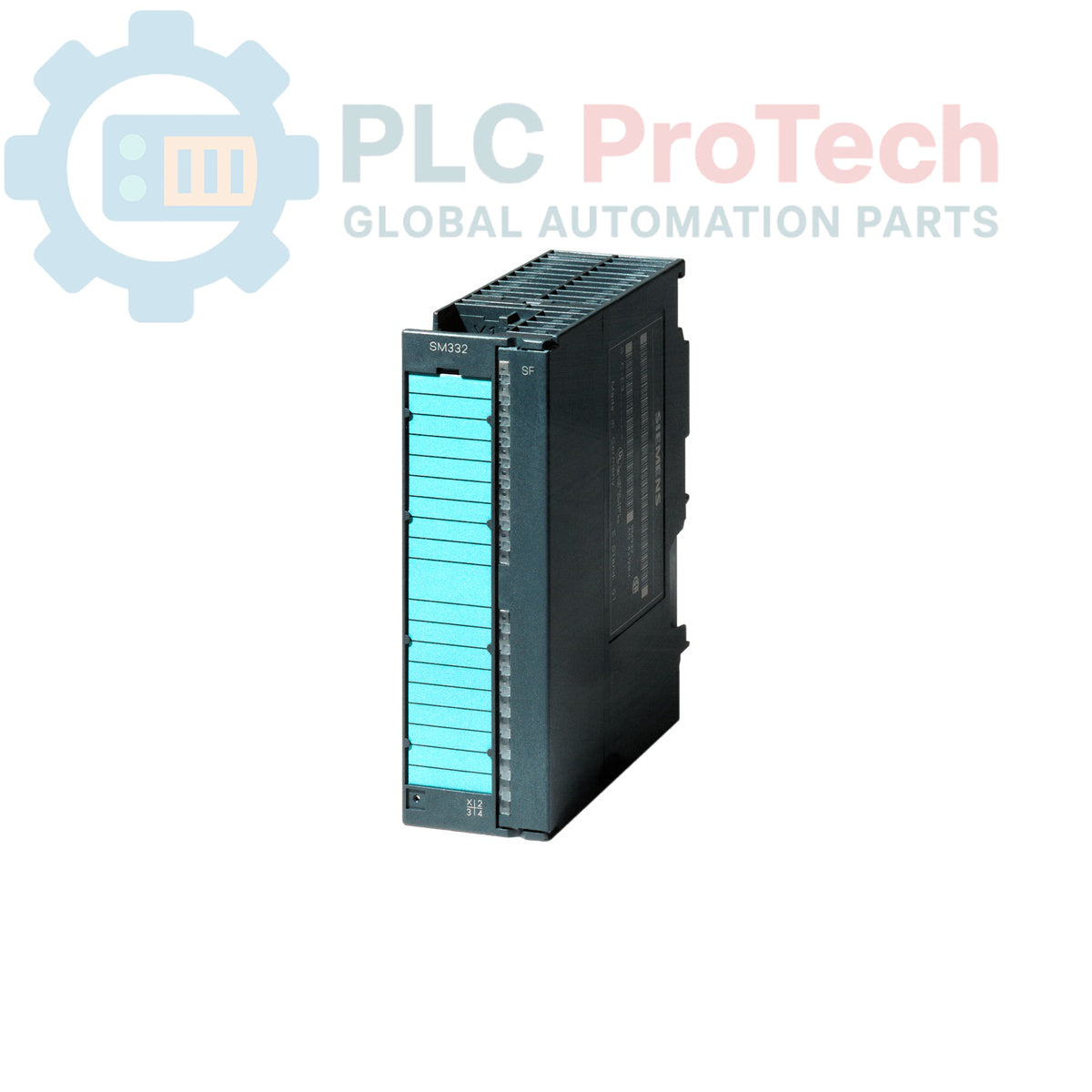

Siemens 6AG1332-5HD01-7AB0 SIPLUS S7-300 Analog-Ausgangsmodul

Description

The 6AG1332-5HD01-7AB0 is a ruggedized SIPLUS S7-300 SM 332 analog output module, specifically engineered for harsh industrial environments. Based on the standard 6ES7332-5HD01-0AB0, this module features enhanced resistance through conformal coating, allowing for reliable operation in extended temperature ranges from -25 degC to +70 degC.

It provides 4 isolated analog outputs (AQ) capable of voltage or current signaling. Designed for high-density control applications, it supports a resolution of 11/12 bits and integrates seamlessly into the S7-300 backplane architecture. The module supports hot-swapping (removing and inserting) when used with an active backplane bus, facilitating maintenance without requiring a total system shutdown.

Features

• 4 isolated analog outputs (U/I)
• Enhanced environmental protection with conformal coating
• Extended operating temperature range: -25 degC to +70 degC
• 11/12-bit resolution for precise signal output
• Supports hot-swapping (removing and inserting) on active backplane bus
• Integrated diagnostic functionality

Applications

• Distributed control systems in harsh or outdoor environments
• Chemical and petrochemical processing plants
• Water and wastewater treatment facilities
• Heavy manufacturing and mining operations
• Infrastructure automation requiring high thermal stability

Technical Specifications

Installation Guidelines

• Mounting: Mount the module on a standard S7-300 DIN rail. Ensure the module is securely locked into the bus connector.
• Backplane: The module supports insertion and removal during operation only if an active backplane bus is installed.
• Wiring: Use the standard 20-pole front connector for I/O wiring. Ensure all signal cables are properly shielded to mitigate EMI/RFI interference.
• Thermal Management: Despite the wide temperature range, ensure adequate ventilation around the S7-300 rack to maintain optimal operating conditions.
• Polarity: Verify voltage/current polarity before energizing to prevent output stage damage.
